IslandPath Analysis: Polaromonas naphthalenivorans CJ2

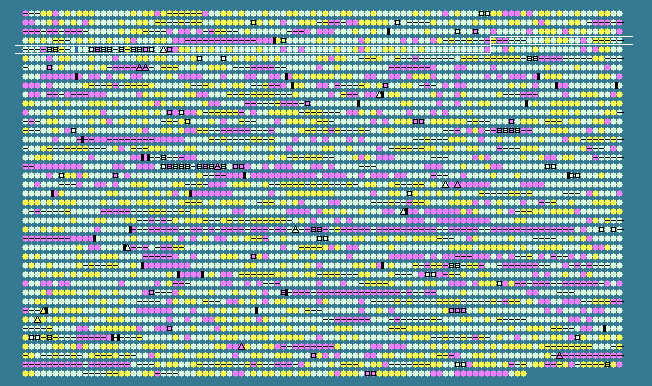

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.80 STD DEV: 5.38
Polaromonas naphthalenivorans CJ2, complete genome - 1..4410291
4084 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
379	 72.46	+1	378995..379996	-	333	121603298	-	Pnap_0383	-	hypothetical protein
380	 35.77	-2	380445..382046	-	533	121603299	-	Pnap_0384	-	hypothetical protein
381	 58.14	0	382417..382674	+	85	121603300	-	Pnap_0385	-	hypothetical protein
382	 61.39	0	382949..383554	+	201	121603301	-	Pnap_0386	-	helix-turn-helix domain-containing protein
383	 65.40	0	383746..385404	+	552	121603302	-	Pnap_0387	-	radical SAM domain-containing protein
384	 60.24	0	385516..385935	+	139	121603303	-	Pnap_0388	-	hypothetical protein
385	 65.99	0	385951..387585	+	544	121603304	-	Pnap_0389	-	chaperonin GroEL
386	 64.49	0	387609..388067	+	152	121603305	-	Pnap_0390	-	hypothetical protein
387	 63.64	0	388119..388547	+	142	121603306	-	Pnap_0391	-	UspA domain-containing protein
388	 67.15	0	388540..390396	-	618	121603307	-	Pnap_0392	-	ATP-dependent metalloprotease FtsH
389	 65.52	0	390553..390900	+	115	121603308	-	Pnap_0393	-	hypothetical protein
390	 66.32	0	390986..391855	+	289	121603309	-	Pnap_0394	-	creatininase
391	 67.26	0	392221..393561	+	446	121603310	-	Pnap_0395	-	L-sorbosone dehydrogenase
392	 65.32	0	393640..394308	-	222	121603311	-	Pnap_0396	-	phosphoglycerate mutase
393	 64.73	0	394345..396612	-	755	121603312	-	Pnap_0397	-	integral membrane sensor hybrid histidine kinase
394	 55.64	-1	396843..397241	-	132	121603313	-	Pnap_0398	-	response regulator receiver protein
395	 59.51	0	397480..398220	-	246	121603314	-	Pnap_0399	-	hypothetical protein
396	 67.74	0	398447..399379	-	310	121603315	-	Pnap_0400	-	PhzF family phenazine biosynthesis protein
397	 67.49	0	399420..400640	-	406	121603316	-	Pnap_0401	-	GntR family transcriptional regulator
398	 69.12	+1	400694..401629	-	311	121603317	-	Pnap_0402	-	hypothetical protein
399	 66.24	0	401856..403277	+	473	121603318	-	Pnap_0403	-	GntR family transcriptional regulator
400	 62.80	0	403967..404509	+	180	121603319	-	Pnap_0404	-	hypothetical protein
401	 61.86	0	404675..407608	+	977	121603320	-	Pnap_0405	-	hypothetical protein
402	 61.07	0	407611..414867	+	2418	121603321	-	Pnap_0406	-	hypothetical protein
403	 60.13	0	415038..418895	+	1285	121603322	-	Pnap_0407	-	hypothetical protein
404	 57.38	-1	419056..419238	-	60	121603323	-	Pnap_0408	-	hypothetical protein
405	 60.71	0	419263..419430	-	55	121603324	-	Pnap_0409	-	transposase, IS4
406	 67.51	0	419901..420377	-	158	121603325	-	Pnap_0410	-	putative transposase of insertion sequence ISRm10-1
407	 69.93	+1	420397..420855	-	152	121603326	-	Pnap_0411	-	hypothetical protein
408	 63.64	0	421048..422730	-	560	121603327	-	Pnap_0412	-	phospholipase D/transphosphatidylase
409	 60.90	0	422891..424816	-	641	121603328	-	Pnap_0413	-	ABC transporter related
410	 66.12	0	431209..431571	+	120	121603329	-	Pnap_0414	-	hypothetical protein
411	 63.86	0	431574..433643	+	689	121603330	-	Pnap_0415	-	recombinase
412	 60.85	0	433656..434240	-	194	121603331	-	Pnap_0416	-	transposase IS66
413	 58.67	0	434614..435651	-	345	121603332	-	Pnap_0418	-	ISXo7 transposase
414	 64.04	0	435689..436183	-	164	121603333	-	Pnap_0419	-	IS4 family transposase
415	 59.65	0	436531..437613	-	360	121603334	-	Pnap_0420	-	transposase IS116/IS110/IS902 family protein
416	 62.41	0	437610..438173	-	187	121603335	-	Pnap_0421	-	hypothetical protein
417	 65.82	0	438226..439050	-	274	121603336	-	Pnap_0422	-	transposase IS66
418	 66.67	0	439115..439402	-	95	121603337	-	Pnap_0423	-	IS66 Orf2 family protein
419	 64.96	0	439444..439854	-	136	121603338	-	Pnap_0424	-	transposase IS3/IS911 family protein
420	 61.06	0	439931..441178	-	415	121603339	-	Pnap_0425	-	transposase, IS4 family protein
421	 59.08	0	441484..442551	+	355	121603340	-	Pnap_0426	-	transposase IS116/IS110/IS902 family protein
422	 64.75	0	442923..443963	+	346	121603341	-	Pnap_0427	-	transposase IS116/IS110/IS902 family protein
423	 59.51	0	444129..444617	+	162	121603342	-	Pnap_0428	-	hypothetical protein
424	 60.94	0	444542..445519	-	325	121603343	-	Pnap_0429	-	integrase catalytic subunit
425	 57.67	0	445572..445871	-	99	121603344	-	Pnap_0430	-	transposase IS3/IS911 family protein
426	 58.28	0	446057..446986	-	309	121603345	-	Pnap_0431	-	beta-lactamase domain-containing protein
427	 67.32	0	446986..447756	-	256	121603346	-	Pnap_0432	-	hypothetical protein
428	 72.76	+1	447789..448346	+	185	121603347	-	Pnap_0433	-	hypothetical protein
429	 65.44	0	448360..449985	+	541	121603348	-	Pnap_0434	-	glucose-methanol-choline oxidoreductase
430	 67.77	0	450012..450920	+	302	121603349	-	Pnap_0435	-	putative lipase transmembrane protein
431	 66.04	0	451228..452340	+	370	121603350	-	Pnap_0436	-	response regulator receiver protein
432	 66.93	0	452337..455729	+	1130	121603351	-	Pnap_0437	-	multi-sensor hybrid histidine kinase
433	 60.02	0	455888..456715	+	275	121603352	-	Pnap_0438	-	GCN5-related N-acetyltransferase
434	 61.15	0	456915..457784	+	289	121603353	-	Pnap_0439	-	CBS domain-containing protein
435	 66.41	0	457921..459471	+	516	121603354	-	Pnap_0440	-	apolipoprotein N-acyltransferase
436	 65.91	0	459474..460394	-	306	121603355	-	Pnap_0441	-	LysR family transcriptional regulator
437	 63.95	0	460542..461681	+	379	121603356	-	Pnap_0442	-	L-asparaginases, type II
438	 60.95	0	461823..462749	+	308	121603357	glyQ	Pnap_0443	-	glycyl-tRNA synthetase subunit alpha
439	 64.14	0	462753..464888	+	711	121603358	-	Pnap_0444	-	glycine--tRNA ligase
440	 70.81	+1	464914..465564	+	216	121603359	-	Pnap_0445	-	hypothetical protein
441	 65.81	0	465564..466148	+	194	121603360	-	Pnap_0446	-	histidinol-phosphate phosphatase family protein
442	 63.02	0	466315..467082	+	255	121603361	-	Pnap_0447	-	phospholipid/glycerol acyltransferase
443	 65.00	0	467090..468049	+	319	121603362	-	Pnap_0448	-	hypothetical protein
444	 58.50	0	468166..468606	+	146	121603363	-	Pnap_0449	-	response regulator receiver protein
445	 61.60	0	468674..472207	+	1177	121603364	-	Pnap_0450	-	multi-sensor signal transduction histidine kinase
446	 59.35	0	472320..472961	+	213	121603365	-	Pnap_0451	-	response regulator receiver protein
447	 58.85	0	472986..474545	+	519	121603366	-	Pnap_0452	-	PAS/PAC sensor signal transduction histidine kinase
448	 60.35	0	474767..475162	+	131	121603367	-	Pnap_0453	-	MerR family transcriptional regulator
449	 66.22	0	475243..475686	+	147	121603368	-	Pnap_0454	-	hypothetical protein
450	 63.62	0	475729..476910	+	393	121603369	-	Pnap_0455	-	acyl-CoA dehydrogenase domain-containing protein
451	 59.55	0	476964..477623	+	219	121603370	-	Pnap_0456	-	carbonate dehydratase
452	 62.45	0	477701..479572	+	623	121603371	aceK	Pnap_0457	-	bifunctional isocitrate dehydrogenase kinase/phosphatase protein
453	 68.02	0	479647..480828	+	393	121603372	-	Pnap_0458	-	acetyl-CoA acetyltransferases
454	 65.16	0	480874..482004	+	376	121603373	-	Pnap_0459	-	acyl-CoA dehydrogenase domain-containing protein
455	 64.27	0	482039..482455	+	138	121603374	-	Pnap_0460	-	rhodanese domain-containing protein
456	 66.75	0	482671..483831	+	386	121603375	-	Pnap_0461	-	aminotransferase, class V
457	 58.13	0	483853..484824	-	323	121603376	-	Pnap_0462	-	hypothetical protein
458	 68.54	+1	485047..485313	+	88	121603377	-	Pnap_0463	-	aminotransferase, class V
459	 62.11	0	485332..485946	-	204	121603378	-	Pnap_0464	-	hypothetical protein
460	 61.01	0	486200..486994	+	264	121603379	-	Pnap_0465	-	hypothetical protein
461	 67.64	0	487094..487504	+	136	121603380	-	Pnap_0466	-	hypothetical protein
462	 68.79	+1	487567..488226	+	219	121603381	-	Pnap_0467	-	HAD family hydrolase
463	 63.31	0	488415..488861	-	148	121603382	-	Pnap_0468	-	Ion transport 2 domain-containing protein
464	 70.53	+1	488880..489941	-	353	121603383	-	Pnap_0469	-	helix-turn-helix domain-containing protein
465	 64.31	0	490052..491791	+	579	121603384	-	Pnap_0470	-	acyl-CoA synthetase
466	 65.36	0	491808..493415	+	535	121603385	-	Pnap_0471	-	propionyl-CoA carboxylase
467	 67.82	0	493424..493945	+	173	121603386	-	Pnap_0472	-	DinB family protein
468	 65.64	0	493942..494724	+	260	121603387	-	Pnap_0473	-	enoyl-CoA hydratase
469	 65.62	0	494747..495418	+	223	121603388	-	Pnap_0474	-	putative transmembrane protein
470	 64.98	0	495411..497423	+	670	121603389	-	Pnap_0475	-	carbamoyl-phosphate synthase L chain, ATP-binding
471	 66.24	0	497441..498370	+	309	121603390	-	Pnap_0476	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
472	 63.54	0	498375..499301	+	308	121603391	-	Pnap_0477	-	pyruvate carboxyltransferase
473	 65.47	0	499301..500053	+	250	121603392	-	Pnap_0478	-	YbaK/prolyl-tRNA synthetase associated region
474	 64.35	0	500050..500739	+	229	121603393	-	Pnap_0479	-	DSBA oxidoreductase
475	 63.82	0	500800..502626	+	608	121603394	-	Pnap_0480	-	cyclic nucleotide-binding protein
476	 64.40	0	502623..503285	+	220	121603395	-	Pnap_0481	-	DNA polymerase III subunit epsilon
477	 62.15	0	503441..503794	+	117	121603396	-	Pnap_0482	-	transport-associated
478	 55.08	-1	505881..506234	-	117	121603397	-	Pnap_0484	-	hypothetical protein
62.80	MEAN

5.38	STD DEV
