IslandPath Analysis: Polaromonas naphthalenivorans CJ2

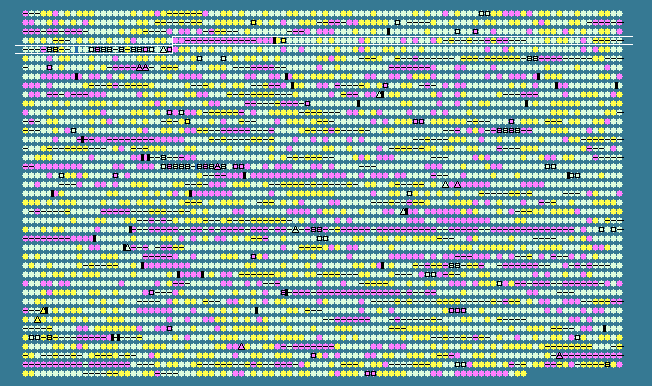

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.80 STD DEV: 5.38
Polaromonas naphthalenivorans CJ2, complete genome - 1..4410291
4084 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
326	 55.56	-1	334415..334783	+	122	121603245	-	Pnap_0330	-	ribosomal protein L14
327	 52.96	-1	334796..335116	+	106	121603246	-	Pnap_0331	-	ribosomal protein L24
328	 56.11	-1	335119..335658	+	179	121603247	rplE	Pnap_0332	-	50S ribosomal protein L5
329	 55.56	-1	335667..335972	+	101	121603248	-	Pnap_0333	-	ribosomal protein S14
330	 55.56	-1	335991..336386	+	131	121603249	-	Pnap_0334	-	ribosomal protein S8
331	 53.93	-1	336411..336944	+	177	121603250	-	Pnap_0335	-	ribosomal protein L6
332	 55.46	-1	336956..337321	+	121	121603251	-	Pnap_0336	-	ribosomal protein L18P/L5E
333	 56.07	-1	337339..337857	+	172	121603252	rpsE	Pnap_0337	-	30S ribosomal protein S5
334	 55.19	-1	337871..338053	+	60	121603253	-	Pnap_0338	-	ribosomal protein L30
335	 57.41	-1	338067..338498	+	143	121603254	-	Pnap_0339	-	ribosomal protein L15
336	 50.08	-2	338518..339825	+	435	121603255	secY	Pnap_0340	-	preprotein translocase subunit SecY
337	 51.75	-2	339911..340024	+	37	121603256	-	Pnap_0341	-	ribosomal protein L36
338	 54.64	-1	340050..340415	+	121	121603257	rpsM	Pnap_0342	-	30S ribosomal protein S13
339	 55.80	-1	340429..340833	+	134	121603258	-	Pnap_0343	-	30S ribosomal protein S11
340	 54.49	-1	340964..341587	+	207	121603259	rpsD	Pnap_0344	-	30S ribosomal protein S4
341	 51.96	-2	341683..342675	+	330	121603260	-	Pnap_0345	-	DNA-directed RNA polymerase subunit alpha
342	 55.22	-1	342759..343160	+	133	121603261	-	Pnap_0346	-	ribosomal protein L17
343	 69.93	+1	343429..343887	+	152	121603262	-	Pnap_0347	-	hypothetical protein
344	 67.51	0	343907..344383	+	158	121603263	-	Pnap_0348	-	putative transposase of insertion sequence ISRm10-1
345	 59.68	0	344375..345706	-	443	121603264	-	Pnap_0349	-	sodium/hydrogen exchanger
346	 62.60	0	345932..347137	-	401	121603265	-	Pnap_0350	-	phospholipase A1
347	 61.61	0	347159..347731	-	190	121603266	-	Pnap_0351	-	hypothetical protein
348	 63.43	0	347808..349937	-	709	121603267	-	Pnap_0352	-	UvrD/REP helicase
349	 64.88	0	350042..351274	-	410	121603268	-	Pnap_0353	-	acetylornithine deacetylase or succinyl-diaminopimelate desuccinylase
350	 66.61	0	351271..353049	-	592	121603269	-	Pnap_0354	-	putative bifunctional OHCU decarboxylase/allantoate amidohydrolase
351	 66.14	0	353046..353999	-	317	121603270	-	Pnap_0355	-	polysaccharide deacetylase
352	 66.67	0	354171..354527	+	118	121603271	-	Pnap_0356	-	transthyretin
353	 63.71	0	354524..355741	+	405	121603272	-	Pnap_0357	-	hypothetical protein
354	 65.87	0	355874..356878	-	334	121603273	-	Pnap_0358	-	ATPase central domain-containing protein
355	 62.69	0	357176..359512	+	778	121603274	-	Pnap_0359	-	PAS/PAC sensor signal transduction histidine kinase
356	 63.40	0	359491..360561	-	356	121603275	-	Pnap_0360	-	hypothetical protein
357	 54.44	-1	360685..361191	+	168	121603276	-	Pnap_0361	-	hypothetical protein
358	 68.59	+1	361263..363392	-	709	121603277	-	Pnap_0362	-	primosomal protein N'
359	 66.22	0	363768..364877	-	369	121603278	-	Pnap_0363	-	uroporphyrinogen decarboxylase
360	 62.57	0	364982..365347	+	121	121603279	-	Pnap_0364	-	hypothetical protein
361	 64.86	0	365438..365770	-	110	121603280	-	Pnap_0365	-	hypothetical protein
362	 64.82	0	365781..366377	-	198	121603281	-	Pnap_0366	-	hypothetical protein
363	 63.46	0	366415..366819	-	134	121603282	-	Pnap_0367	-	roadblock/LC7 family protein
364	 57.11	-1	366906..367313	-	135	121603283	-	Pnap_0368	-	hypothetical protein
365	 63.74	0	367341..368777	-	478	121603284	-	Pnap_0369	-	ABC transporter related
366	 58.51	0	368774..369337	-	187	121603285	-	Pnap_0370	-	protein of unknown function, ATP binding
367	 60.80	0	369366..369740	-	124	121603286	-	Pnap_0371	-	hypothetical protein
368	 65.08	0	369880..371205	-	441	121603287	-	Pnap_0372	-	methyltransferase type 12
369	 52.63	-1	371606..372061	+	151	121603288	-	Pnap_0373	-	hypothetical protein
370	 68.16	0	372171..372905	-	244	121603289	-	Pnap_0374	-	putative lipoprotein
371	 66.02	0	372909..373373	-	154	121603290	-	Pnap_0375	-	CoA-binding domain-containing protein
372	 69.41	+1	373443..375590	-	715	121603291	-	Pnap_0376	-	cytochrome c biogenesis protein, transmembrane region
373	 65.05	0	375774..376268	+	164	121603292	-	Pnap_0377	-	XRE family transcriptional regulator
374	 62.23	0	376278..376976	+	232	121603293	-	Pnap_0378	-	hypothetical protein
375	 66.67	0	377049..377372	-	107	121603294	-	Pnap_0379	-	hypothetical protein
376	 64.91	0	377538..378107	+	189	121603295	-	Pnap_0380	-	cytochrome B561
377	 60.61	0	378109..378603	+	164	121603296	-	Pnap_0381	-	hypothetical protein
378	 58.26	0	378619..378939	+	106	121603297	-	Pnap_0382	-	hypothetical protein
379	 72.46	+1	378995..379996	-	333	121603298	-	Pnap_0383	-	hypothetical protein
380	 35.77	-2	380445..382046	-	533	121603299	-	Pnap_0384	-	hypothetical protein
381	 58.14	0	382417..382674	+	85	121603300	-	Pnap_0385	-	hypothetical protein
382	 61.39	0	382949..383554	+	201	121603301	-	Pnap_0386	-	helix-turn-helix domain-containing protein
383	 65.40	0	383746..385404	+	552	121603302	-	Pnap_0387	-	radical SAM domain-containing protein
384	 60.24	0	385516..385935	+	139	121603303	-	Pnap_0388	-	hypothetical protein
385	 65.99	0	385951..387585	+	544	121603304	-	Pnap_0389	-	chaperonin GroEL
386	 64.49	0	387609..388067	+	152	121603305	-	Pnap_0390	-	hypothetical protein
387	 63.64	0	388119..388547	+	142	121603306	-	Pnap_0391	-	UspA domain-containing protein
388	 67.15	0	388540..390396	-	618	121603307	-	Pnap_0392	-	ATP-dependent metalloprotease FtsH
389	 65.52	0	390553..390900	+	115	121603308	-	Pnap_0393	-	hypothetical protein
390	 66.32	0	390986..391855	+	289	121603309	-	Pnap_0394	-	creatininase
391	 67.26	0	392221..393561	+	446	121603310	-	Pnap_0395	-	L-sorbosone dehydrogenase
392	 65.32	0	393640..394308	-	222	121603311	-	Pnap_0396	-	phosphoglycerate mutase
393	 64.73	0	394345..396612	-	755	121603312	-	Pnap_0397	-	integral membrane sensor hybrid histidine kinase
394	 55.64	-1	396843..397241	-	132	121603313	-	Pnap_0398	-	response regulator receiver protein
395	 59.51	0	397480..398220	-	246	121603314	-	Pnap_0399	-	hypothetical protein
396	 67.74	0	398447..399379	-	310	121603315	-	Pnap_0400	-	PhzF family phenazine biosynthesis protein
397	 67.49	0	399420..400640	-	406	121603316	-	Pnap_0401	-	GntR family transcriptional regulator
398	 69.12	+1	400694..401629	-	311	121603317	-	Pnap_0402	-	hypothetical protein
399	 66.24	0	401856..403277	+	473	121603318	-	Pnap_0403	-	GntR family transcriptional regulator
400	 62.80	0	403967..404509	+	180	121603319	-	Pnap_0404	-	hypothetical protein
401	 61.86	0	404675..407608	+	977	121603320	-	Pnap_0405	-	hypothetical protein
402	 61.07	0	407611..414867	+	2418	121603321	-	Pnap_0406	-	hypothetical protein
403	 60.13	0	415038..418895	+	1285	121603322	-	Pnap_0407	-	hypothetical protein
404	 57.38	-1	419056..419238	-	60	121603323	-	Pnap_0408	-	hypothetical protein
405	 60.71	0	419263..419430	-	55	121603324	-	Pnap_0409	-	transposase, IS4
406	 67.51	0	419901..420377	-	158	121603325	-	Pnap_0410	-	putative transposase of insertion sequence ISRm10-1
407	 69.93	+1	420397..420855	-	152	121603326	-	Pnap_0411	-	hypothetical protein
408	 63.64	0	421048..422730	-	560	121603327	-	Pnap_0412	-	phospholipase D/transphosphatidylase
409	 60.90	0	422891..424816	-	641	121603328	-	Pnap_0413	-	ABC transporter related
410	 66.12	0	431209..431571	+	120	121603329	-	Pnap_0414	-	hypothetical protein
411	 63.86	0	431574..433643	+	689	121603330	-	Pnap_0415	-	recombinase
412	 60.85	0	433656..434240	-	194	121603331	-	Pnap_0416	-	transposase IS66
413	 58.67	0	434614..435651	-	345	121603332	-	Pnap_0418	-	ISXo7 transposase
414	 64.04	0	435689..436183	-	164	121603333	-	Pnap_0419	-	IS4 family transposase
415	 59.65	0	436531..437613	-	360	121603334	-	Pnap_0420	-	transposase IS116/IS110/IS902 family protein
416	 62.41	0	437610..438173	-	187	121603335	-	Pnap_0421	-	hypothetical protein
417	 65.82	0	438226..439050	-	274	121603336	-	Pnap_0422	-	transposase IS66
418	 66.67	0	439115..439402	-	95	121603337	-	Pnap_0423	-	IS66 Orf2 family protein
419	 64.96	0	439444..439854	-	136	121603338	-	Pnap_0424	-	transposase IS3/IS911 family protein
420	 61.06	0	439931..441178	-	415	121603339	-	Pnap_0425	-	transposase, IS4 family protein
421	 59.08	0	441484..442551	+	355	121603340	-	Pnap_0426	-	transposase IS116/IS110/IS902 family protein
422	 64.75	0	442923..443963	+	346	121603341	-	Pnap_0427	-	transposase IS116/IS110/IS902 family protein
423	 59.51	0	444129..444617	+	162	121603342	-	Pnap_0428	-	hypothetical protein
424	 60.94	0	444542..445519	-	325	121603343	-	Pnap_0429	-	integrase catalytic subunit
425	 57.67	0	445572..445871	-	99	121603344	-	Pnap_0430	-	transposase IS3/IS911 family protein
62.80	MEAN

5.38	STD DEV
