IslandPath Analysis: Polaromonas naphthalenivorans CJ2

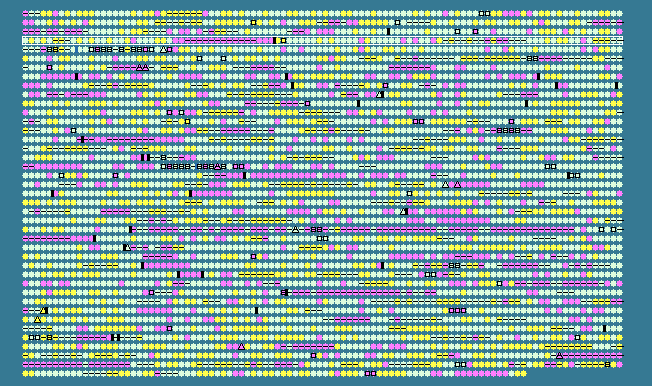

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.80 STD DEV: 5.38
Polaromonas naphthalenivorans CJ2, complete genome - 1..4410291
4084 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
301	 64.14	0	305357..306346	+	329	121603220	-	Pnap_0305	-	hypothetical protein
302	 67.56	0	306390..307733	+	447	121603221	-	Pnap_0306	-	hypothetical protein
303	 65.85	0	307738..308469	-	243	121603222	-	Pnap_0307	-	helix-turn-helix domain-containing protein
304	 68.67	+1	308593..309492	+	299	121603223	-	Pnap_0308	-	hypothetical protein
305	 64.54	0	309489..311465	+	658	121603224	-	Pnap_0309	-	phospholipid/glycerol acyltransferase
306	 68.41	+1	311612..312070	+	152	121603225	-	Pnap_0310	-	hypothetical protein
307	 68.86	+1	312085..312903	+	272	121603226	-	Pnap_0311	-	hypothetical protein
308	 61.49	0	312927..314201	+	424	121603227	-	Pnap_0312	-	hypothetical protein
309	 63.56	0	314236..314685	+	149	121603228	-	Pnap_0313	-	YiaAB two helix domain-containing protein
310	 68.13	0	314705..315595	-	296	121603229	-	Pnap_0314	-	hypothetical protein
311	 65.34	0	315758..316816	+	352	121603230	-	Pnap_0315	-	hypothetical protein
312	 67.19	0	316942..318291	+	449	121603231	-	Pnap_0316	-	hypothetical protein
313	 66.22	0	318385..320175	-	596	121603232	-	Pnap_0317	-	glycosyltransferase
314	 61.15	0	320195..320683	-	162	121603233	-	Pnap_0318	-	GtrA family protein
315	 68.68	+1	320683..321924	-	413	121603234	-	Pnap_0319	-	glycosyl transferase family protein
316	 63.83	0	321928..323091	-	387	121603235	-	Pnap_0320	-	queuine tRNA-ribosyltransferase
317	 65.06	0	323114..324172	-	352	121603236	-	Pnap_0321	-	S-adenosylmethionine--tRNA-ribosyltransferase-isomerase
318	 67.04	0	324192..326339	+	715	121603237	-	Pnap_0322	-	ATP-dependent DNA helicase RecG
319	 51.24	-2	326359..326760	-	133	121603238	-	Pnap_0323	-	hypothetical protein
320	 65.20	0	326904..327860	+	318	121603239	-	Pnap_0324	-	LysR family transcriptional regulator
321	 63.24	0	327973..328497	+	174	121603240	-	Pnap_0325	-	Ferritin, Dps family protein
322	 63.10	0	328532..329401	+	289	121603241	-	Pnap_0326	-	4-hydroxybenzoate polyprenyl transferase
323	 68.45	+1	329984..330823	-	279	121603242	-	Pnap_0327	-	pyrroline-5-carboxylate reductase
324	 68.34	+1	330919..332412	-	497	121603243	-	Pnap_0328	-	glycerol kinase
325	 65.03	0	332614..334200	+	528	121603244	-	Pnap_0329	-	FAD dependent oxidoreductase
326	 55.56	-1	334415..334783	+	122	121603245	-	Pnap_0330	-	ribosomal protein L14
327	 52.96	-1	334796..335116	+	106	121603246	-	Pnap_0331	-	ribosomal protein L24
328	 56.11	-1	335119..335658	+	179	121603247	rplE	Pnap_0332	-	50S ribosomal protein L5
329	 55.56	-1	335667..335972	+	101	121603248	-	Pnap_0333	-	ribosomal protein S14
330	 55.56	-1	335991..336386	+	131	121603249	-	Pnap_0334	-	ribosomal protein S8
331	 53.93	-1	336411..336944	+	177	121603250	-	Pnap_0335	-	ribosomal protein L6
332	 55.46	-1	336956..337321	+	121	121603251	-	Pnap_0336	-	ribosomal protein L18P/L5E
333	 56.07	-1	337339..337857	+	172	121603252	rpsE	Pnap_0337	-	30S ribosomal protein S5
334	 55.19	-1	337871..338053	+	60	121603253	-	Pnap_0338	-	ribosomal protein L30
335	 57.41	-1	338067..338498	+	143	121603254	-	Pnap_0339	-	ribosomal protein L15
336	 50.08	-2	338518..339825	+	435	121603255	secY	Pnap_0340	-	preprotein translocase subunit SecY
337	 51.75	-2	339911..340024	+	37	121603256	-	Pnap_0341	-	ribosomal protein L36
338	 54.64	-1	340050..340415	+	121	121603257	rpsM	Pnap_0342	-	30S ribosomal protein S13
339	 55.80	-1	340429..340833	+	134	121603258	-	Pnap_0343	-	30S ribosomal protein S11
340	 54.49	-1	340964..341587	+	207	121603259	rpsD	Pnap_0344	-	30S ribosomal protein S4
341	 51.96	-2	341683..342675	+	330	121603260	-	Pnap_0345	-	DNA-directed RNA polymerase subunit alpha
342	 55.22	-1	342759..343160	+	133	121603261	-	Pnap_0346	-	ribosomal protein L17
343	 69.93	+1	343429..343887	+	152	121603262	-	Pnap_0347	-	hypothetical protein
344	 67.51	0	343907..344383	+	158	121603263	-	Pnap_0348	-	putative transposase of insertion sequence ISRm10-1
345	 59.68	0	344375..345706	-	443	121603264	-	Pnap_0349	-	sodium/hydrogen exchanger
346	 62.60	0	345932..347137	-	401	121603265	-	Pnap_0350	-	phospholipase A1
347	 61.61	0	347159..347731	-	190	121603266	-	Pnap_0351	-	hypothetical protein
348	 63.43	0	347808..349937	-	709	121603267	-	Pnap_0352	-	UvrD/REP helicase
349	 64.88	0	350042..351274	-	410	121603268	-	Pnap_0353	-	acetylornithine deacetylase or succinyl-diaminopimelate desuccinylase
350	 66.61	0	351271..353049	-	592	121603269	-	Pnap_0354	-	putative bifunctional OHCU decarboxylase/allantoate amidohydrolase
351	 66.14	0	353046..353999	-	317	121603270	-	Pnap_0355	-	polysaccharide deacetylase
352	 66.67	0	354171..354527	+	118	121603271	-	Pnap_0356	-	transthyretin
353	 63.71	0	354524..355741	+	405	121603272	-	Pnap_0357	-	hypothetical protein
354	 65.87	0	355874..356878	-	334	121603273	-	Pnap_0358	-	ATPase central domain-containing protein
355	 62.69	0	357176..359512	+	778	121603274	-	Pnap_0359	-	PAS/PAC sensor signal transduction histidine kinase
356	 63.40	0	359491..360561	-	356	121603275	-	Pnap_0360	-	hypothetical protein
357	 54.44	-1	360685..361191	+	168	121603276	-	Pnap_0361	-	hypothetical protein
358	 68.59	+1	361263..363392	-	709	121603277	-	Pnap_0362	-	primosomal protein N'
359	 66.22	0	363768..364877	-	369	121603278	-	Pnap_0363	-	uroporphyrinogen decarboxylase
360	 62.57	0	364982..365347	+	121	121603279	-	Pnap_0364	-	hypothetical protein
361	 64.86	0	365438..365770	-	110	121603280	-	Pnap_0365	-	hypothetical protein
362	 64.82	0	365781..366377	-	198	121603281	-	Pnap_0366	-	hypothetical protein
363	 63.46	0	366415..366819	-	134	121603282	-	Pnap_0367	-	roadblock/LC7 family protein
364	 57.11	-1	366906..367313	-	135	121603283	-	Pnap_0368	-	hypothetical protein
365	 63.74	0	367341..368777	-	478	121603284	-	Pnap_0369	-	ABC transporter related
366	 58.51	0	368774..369337	-	187	121603285	-	Pnap_0370	-	protein of unknown function, ATP binding
367	 60.80	0	369366..369740	-	124	121603286	-	Pnap_0371	-	hypothetical protein
368	 65.08	0	369880..371205	-	441	121603287	-	Pnap_0372	-	methyltransferase type 12
369	 52.63	-1	371606..372061	+	151	121603288	-	Pnap_0373	-	hypothetical protein
370	 68.16	0	372171..372905	-	244	121603289	-	Pnap_0374	-	putative lipoprotein
371	 66.02	0	372909..373373	-	154	121603290	-	Pnap_0375	-	CoA-binding domain-containing protein
372	 69.41	+1	373443..375590	-	715	121603291	-	Pnap_0376	-	cytochrome c biogenesis protein, transmembrane region
373	 65.05	0	375774..376268	+	164	121603292	-	Pnap_0377	-	XRE family transcriptional regulator
374	 62.23	0	376278..376976	+	232	121603293	-	Pnap_0378	-	hypothetical protein
375	 66.67	0	377049..377372	-	107	121603294	-	Pnap_0379	-	hypothetical protein
376	 64.91	0	377538..378107	+	189	121603295	-	Pnap_0380	-	cytochrome B561
377	 60.61	0	378109..378603	+	164	121603296	-	Pnap_0381	-	hypothetical protein
378	 58.26	0	378619..378939	+	106	121603297	-	Pnap_0382	-	hypothetical protein
379	 72.46	+1	378995..379996	-	333	121603298	-	Pnap_0383	-	hypothetical protein
380	 35.77	-2	380445..382046	-	533	121603299	-	Pnap_0384	-	hypothetical protein
381	 58.14	0	382417..382674	+	85	121603300	-	Pnap_0385	-	hypothetical protein
382	 61.39	0	382949..383554	+	201	121603301	-	Pnap_0386	-	helix-turn-helix domain-containing protein
383	 65.40	0	383746..385404	+	552	121603302	-	Pnap_0387	-	radical SAM domain-containing protein
384	 60.24	0	385516..385935	+	139	121603303	-	Pnap_0388	-	hypothetical protein
385	 65.99	0	385951..387585	+	544	121603304	-	Pnap_0389	-	chaperonin GroEL
386	 64.49	0	387609..388067	+	152	121603305	-	Pnap_0390	-	hypothetical protein
387	 63.64	0	388119..388547	+	142	121603306	-	Pnap_0391	-	UspA domain-containing protein
388	 67.15	0	388540..390396	-	618	121603307	-	Pnap_0392	-	ATP-dependent metalloprotease FtsH
389	 65.52	0	390553..390900	+	115	121603308	-	Pnap_0393	-	hypothetical protein
390	 66.32	0	390986..391855	+	289	121603309	-	Pnap_0394	-	creatininase
391	 67.26	0	392221..393561	+	446	121603310	-	Pnap_0395	-	L-sorbosone dehydrogenase
392	 65.32	0	393640..394308	-	222	121603311	-	Pnap_0396	-	phosphoglycerate mutase
393	 64.73	0	394345..396612	-	755	121603312	-	Pnap_0397	-	integral membrane sensor hybrid histidine kinase
394	 55.64	-1	396843..397241	-	132	121603313	-	Pnap_0398	-	response regulator receiver protein
395	 59.51	0	397480..398220	-	246	121603314	-	Pnap_0399	-	hypothetical protein
396	 67.74	0	398447..399379	-	310	121603315	-	Pnap_0400	-	PhzF family phenazine biosynthesis protein
397	 67.49	0	399420..400640	-	406	121603316	-	Pnap_0401	-	GntR family transcriptional regulator
398	 69.12	+1	400694..401629	-	311	121603317	-	Pnap_0402	-	hypothetical protein
399	 66.24	0	401856..403277	+	473	121603318	-	Pnap_0403	-	GntR family transcriptional regulator
400	 62.80	0	403967..404509	+	180	121603319	-	Pnap_0404	-	hypothetical protein
62.80	MEAN

5.38	STD DEV
