IslandPathversion 1.0

IslandPath Analysis: Polaromonas naphthalenivorans CJ2

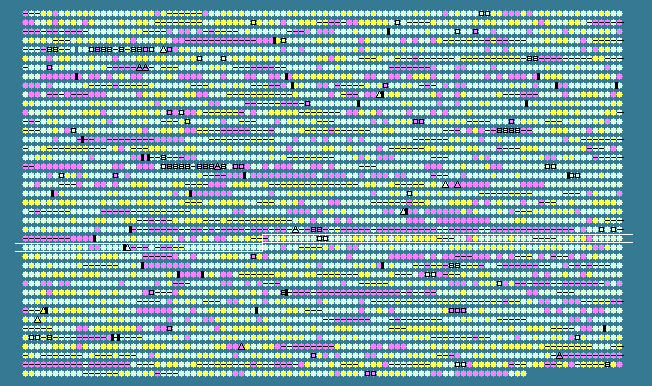

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.80 STD DEV: 5.38
Polaromonas naphthalenivorans CJ2, complete genome - 1..4410291
4084 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2541	 51.03	-2	2704756..2704998	-	80	121605460	-	Pnap_2565	-	hypothetical protein
2542	 61.48	0	2705159..2705428	+	89	121605461	-	Pnap_2566	-	hypothetical protein
2543	 64.96	0	2705572..2705805	+	77	121605462	-	Pnap_2567	-	hypothetical protein
2544	 67.96	0	2705873..2706643	+	256	121605463	-	Pnap_2568	-	TonB family protein
2545	 65.43	0	2706666..2707394	+	242	121605464	-	Pnap_2569	-	MotA/TolQ/ExbB proton channel
2546	 62.53	0	2707397..2707807	+	136	121605465	-	Pnap_2570	-	biopolymer transport protein ExbD/TolR
2547	 62.25	0	2707819..2708022	+	67	121605466	-	Pnap_2571	-	hypothetical protein
2548	 66.18	0	2708202..2708609	-	135	121605467	-	Pnap_2572	-	hypothetical protein
2549	 63.35	0	2708817..2709509	+	230	121605468	-	Pnap_2573	-	hypothetical protein
2550	 61.61	0	2709588..2710121	+	177	121605469	-	Pnap_2574	-	transposase and inactivated derivative
2551	 64.79	0	2710126..2710659	+	177	121605470	-	Pnap_2575	-	ISSod10, transposase OrfB
2552	 65.38	0	2710747..2712219	-	490	121605471	rumA	Pnap_2576	-	23S rRNA 5-methyluridine methyltransferase
2553	 64.13	0	2712352..2713257	-	301	121605472	-	Pnap_2577	-	peptidase M23B
2554	 64.35	0	2713322..2714185	-	287	121605473	-	Pnap_2578	-	protein-L-isoaspartate O-methyltransferase
2555	 64.12	0	2714200..2714985	-	261	121605474	-	Pnap_2579	-	stationary-phase survival protein SurE
2556	 67.18	0	2715138..2716112	+	324	121605475	-	Pnap_2580	-	alcohol dehydrogenase
2557	 68.21	+1	2716135..2716974	-	279	121605476	-	Pnap_2581	-	hypothetical protein
2558	 65.55	0	2717087..2717443	-	118	121605477	-	Pnap_2582	-	hypothetical protein
2559	 64.86	0	2717544..2718482	-	312	121605478	-	Pnap_2583	-	LysR family transcriptional regulator
2560	 66.67	0	2718543..2719535	+	330	121605479	-	Pnap_2584	-	NAD-dependent epimerase/dehydratase
2561	 67.88	0	2719578..2720318	-	246	121605480	-	Pnap_2585	-	NADPH-dependent FMN reductase
2562	 63.66	0	2720305..2720736	-	143	121605481	-	Pnap_2586	-	arsenate reductase
2563	 68.64	+1	2720818..2721171	+	117	121605482	-	Pnap_2587	-	regulatory protein, ArsR
2564	 67.26	0	2721267..2721770	+	167	121605483	-	Pnap_2588	-	protein tyrosine phosphatase
2565	 63.06	0	2721797..2722849	+	350	121605484	-	Pnap_2589	-	arsenical-resistance protein
2566	 66.67	0	2722921..2723442	-	173	121605485	-	Pnap_2590	-	GCN5-related N-acetyltransferase
2567	 70.69	+1	2723682..2725073	+	463	121605486	-	Pnap_2591	-	RND family efflux transporter MFP subunit
2568	 66.43	0	2725070..2728396	+	1108	121605487	-	Pnap_2592	-	acriflavin resistance protein
2569	 66.79	0	2729231..2732449	+	1072	121605488	-	Pnap_2593	-	acriflavin resistance protein
2570	 70.64	+1	2732458..2733891	+	477	121605489	-	Pnap_2594	-	RND efflux system outer membrane lipoprotein
2571	 65.65	0	2734486..2734878	+	130	121605490	-	Pnap_2595	-	hypothetical protein
2572	 66.01	0	2734884..2735189	+	101	121605491	-	Pnap_2596	-	hypothetical protein
2573	 64.16	0	2735254..2735811	-	185	121605492	-	Pnap_2597	-	rare lipoprotein A
2574	 60.07	0	2735835..2736122	+	95	121605493	-	Pnap_2598	-	hypothetical protein
2575	 56.54	-1	2736710..2737114	+	134	121605494	-	Pnap_2600	-	glyoxalase/bleomycin resistance protein/dioxygenase
2576	 69.07	+1	2737166..2738164	-	332	121605495	-	Pnap_2601	-	ribokinase-like domain-containing protein
2577	 63.96	0	2738295..2739293	+	332	121605496	-	Pnap_2602	-	periplasmic binding protein/LacI transcriptional regulator
2578	 60.22	0	2739467..2740474	+	335	121605497	-	Pnap_2603	-	porin
2579	 60.69	0	2740617..2741570	+	317	121605498	-	Pnap_2604	-	inner-membrane translocator
2580	 62.75	0	2741570..2742361	+	263	121605499	-	Pnap_2605	-	ABC transporter related
2581	 63.13	0	2742388..2742840	+	150	121605500	-	Pnap_2606	-	RbsD or FucU transport
2582	 67.57	0	2742837..2744051	+	404	121605501	-	Pnap_2607	-	ROK family protein
2583	 61.88	0	2744275..2745276	+	333	121605502	-	Pnap_2608	-	periplasmic binding protein/LacI transcriptional regulator
2584	 64.56	0	2745429..2746760	-	443	121605503	-	Pnap_2609	-	phosphoglucosamine mutase
2585	 65.14	0	2746904..2747755	-	283	121605504	-	Pnap_2610	-	dihydropteroate synthase
2586	 61.79	0	2747862..2749790	-	642	121605505	-	Pnap_2611	-	ATP-dependent metalloprotease FtsH
2587	 59.62	0	2749940..2750677	-	245	121605506	-	Pnap_2612	-	ribosomal RNA methyltransferase RrmJ/FtsJ
2588	 62.05	0	2750719..2751195	+	158	121605507	-	Pnap_2613	-	hypothetical protein
2589	 64.48	0	2751305..2753362	+	685	121605508	-	Pnap_2614	-	oligopeptidase A
2590	 65.65	0	2753386..2754075	+	229	121605509	-	Pnap_2615	-	glutaredoxin
2591	 63.07	0	2754113..2754862	-	249	121605510	-	Pnap_2616	-	ribose-5-phosphate isomerase A
2592	 66.38	0	2754928..2755980	+	350	121605511	-	Pnap_2617	-	dihydroorotate dehydrogenase 2
2593	 65.02	0	2756243..2757214	+	323	121605512	-	Pnap_2618	-	hypothetical protein
2594	 69.10	+1	2757211..2757990	+	259	121605513	-	Pnap_2619	-	hypothetical protein
2595	 58.53	0	2758057..2758314	-	85	121605514	-	Pnap_2620	-	hypothetical protein
2596	 64.82	0	2758394..2758990	+	198	121605515	-	Pnap_2621	-	3'-5' exonuclease
2597	 64.63	0	2759051..2759689	-	212	121605516	-	Pnap_2622	-	hypothetical protein
2598	 63.16	0	2759782..2761035	+	417	121605517	-	Pnap_2623	-	hypothetical protein
2599	 64.56	0	2761157..2762200	-	347	121605518	-	Pnap_2624	-	helix-turn-helix domain-containing protein
2600	 61.93	0	2762407..2763798	+	463	121605519	-	Pnap_2625	-	ethanolamine transproter
2601	 64.88	0	2763806..2765203	+	465	121605520	-	Pnap_2626	-	ethanolamine ammonia lyase large subunit
2602	 65.74	0	2765226..2766086	+	286	121605521	-	Pnap_2627	-	ethanolamine ammonia-lyase small subunit
2603	 63.89	0	2766092..2768716	-	874	121605522	-	Pnap_2628	-	alanyl-tRNA synthetase
2604	 64.80	0	2768789..2770180	-	463	121605523	-	Pnap_2629	-	GntR family transcriptional regulator
2605	 66.05	0	2770364..2771656	+	430	121605524	-	Pnap_2630	-	4-aminobutyrate aminotransferase
2606	 64.90	0	2771720..2772796	+	358	121605525	-	Pnap_2631	-	spermidine/putrescine ABC transporter ATPase subunit
2607	 61.72	0	2772865..2773896	+	343	121605526	-	Pnap_2632	-	extracellular solute-binding protein
2608	 64.78	0	2773927..2775198	+	423	121605527	-	Pnap_2633	-	binding-protein-dependent transport systems inner membrane component
2609	 63.77	0	2775206..2776033	+	275	121605528	-	Pnap_2634	-	Fis family transcriptional regulator
2610	 67.09	0	2776062..2777009	+	315	121605529	-	Pnap_2635	-	putative agmatinase
2611	 63.67	0	2777124..2778590	+	488	121605530	-	Pnap_2636	-	succinic semialdehyde dehydrogenase
2612	 59.20	0	2778556..2780832	-	758	121605531	-	Pnap_2637	-	FMN-binding domain-containing protein
2613	 56.71	-1	2780837..2781871	-	344	121605532	-	Pnap_2638	-	ApbE family lipoprotein
2614	 62.37	0	2782142..2782630	+	162	121605533	-	Pnap_2639	-	hypothetical protein
2615	 65.70	0	2782616..2783233	-	205	121605534	-	Pnap_2640	-	two component LuxR family transcriptional regulator
2616	 65.32	0	2783244..2784650	-	468	121605535	-	Pnap_2641	-	integral membrane sensor signal transduction histidine kinase
2617	 65.78	0	2784733..2785296	-	187	121605536	-	Pnap_2642	-	Sel1 domain-containing protein
2618	 62.72	0	2785967..2787208	+	413	121605537	-	Pnap_2643	-	phage integrase family protein
2619	 57.84	0	2787221..2787424	+	67	121605538	-	Pnap_2644	-	YcfA family protein
2620	 64.98	0	2787439..2787852	+	137	121605539	-	Pnap_2645	-	hypothetical protein
2621	 51.79	-2	2787960..2788490	+	176	121605540	-	Pnap_2646	-	hypothetical protein
2622	 62.00	0	2788573..2788872	+	99	121605541	-	Pnap_2647	-	phage transcriptional regulator, AlpA
2623	 64.24	0	2788963..2789250	+	95	121605542	-	Pnap_2648	-	hypothetical protein
2624	 58.05	0	2789247..2789873	+	208	121605543	-	Pnap_2649	-	hypothetical protein
2625	 58.55	0	2789870..2790214	+	114	121605544	-	Pnap_2650	-	hypothetical protein
2626	 67.49	0	2790211..2790573	+	120	121605545	-	Pnap_2651	-	hypothetical protein
2627	 66.79	0	2790566..2793007	+	813	121605546	-	Pnap_2652	-	hypothetical protein
2628	 64.06	0	2793004..2793540	+	178	121605547	-	Pnap_2653	-	hypothetical protein
2629	 61.84	0	2793709..2794143	+	144	121605548	-	Pnap_2654	-	hypothetical protein
2630	 64.95	0	2794661..2795299	+	212	121605549	-	Pnap_2655	-	hypothetical protein
2631	 61.50	0	2795491..2798238	-	915	121605550	-	Pnap_2656	-	multi-sensor signal transduction histidine kinase
2632	 64.01	0	2798320..2798958	-	212	121605551	-	Pnap_2657	-	3-oxoacid CoA-transferase, B subunit
2633	 63.25	0	2798961..2799779	-	272	121605552	-	Pnap_2658	-	3-oxoacid CoA-transferase, A subunit
2634	 62.52	0	2799890..2800444	+	184	121605553	-	Pnap_2659	-	putative PAS/PAC sensor protein
2635	 60.83	0	2800514..2800873	-	119	121605554	-	Pnap_2660	-	ribosomal subunit interface protein, putative
2636	 63.49	0	2801163..2801540	-	125	121605555	-	Pnap_2661	-	carboxymuconolactone decarboxylase
2637	 62.97	0	2801729..2803189	+	486	121605556	-	Pnap_2662	-	catalase
2638	 63.89	0	2803229..2804236	-	335	121605557	-	Pnap_2663	-	hypothetical protein
2639	 65.42	0	2804552..2805994	-	480	121605558	-	Pnap_2664	-	aldehyde dehydrogenase
2640	 63.66	0	2806029..2807027	-	332	121605559	-	Pnap_2665	-	hypothetical protein
62.80	MEAN

5.38	STD DEV
