IslandPath Analysis: Polaromonas naphthalenivorans CJ2

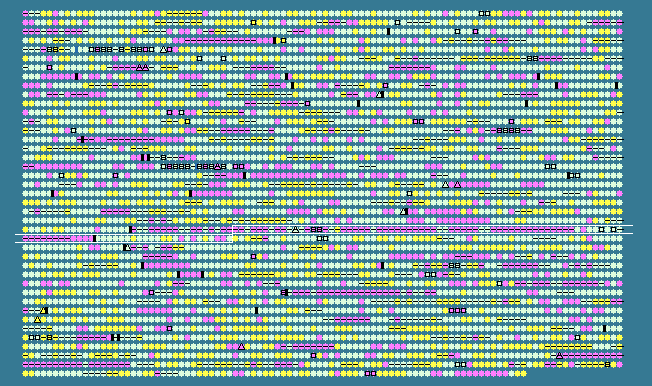

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.80 STD DEV: 5.38
Polaromonas naphthalenivorans CJ2, complete genome - 1..4410291
4084 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2436	 58.83	0	2599246..2599998	-	250	121605355	-	Pnap_2457	-	ABC transporter related
2437	 58.52	0	2599995..2600951	-	318	121605356	-	Pnap_2458	-	inner-membrane translocator
2438	 59.44	0	2600948..2601874	-	308	121605357	-	Pnap_2459	-	inner-membrane translocator
2439	 57.80	0	2601874..2603046	-	390	121605358	-	Pnap_2460	-	extracellular ligand-binding receptor
2440	 55.87	-1	2603082..2603396	-	104	121605359	-	Pnap_2461	-	Rieske (2Fe-2S) domain-containing protein
2441	 51.52	-2	2603406..2603735	-	109	121605360	-	Pnap_2462	-	aromatic-ring-hydroxylating dioxygenase, beta subunit
2442	 60.68	0	2604381..2605148	+	255	121605361	-	Pnap_2464	-	IstB ATP binding domain-containing protein
2443	 53.65	-1	2605625..2606584	-	319	121605362	-	Pnap_2465	-	proline dehydrogenase
2444	 51.71	-2	2606589..2607230	-	213	121605363	-	Pnap_2466	-	GntR family transcriptional regulator
2445	 61.73	0	2607554..2608363	-	269	121605364	-	Pnap_2467	-	IstB ATP binding domain-containing protein
2446	 62.07	0	2608360..2609904	-	514	121605365	-	Pnap_2468	-	integrase catalytic subunit
2447	 63.78	0	2609888..2610199	-	103	121605366	-	Pnap_2469	-	hypothetical protein
2448	 57.10	-1	2610519..2610821	-	100	121605367	-	Pnap_2470	-	recombinase
2449	 58.27	0	2610961..2611353	-	130	121605368	-	Pnap_2471	-	transposase IS3/IS911 family protein
2450	 53.82	-1	2611702..2612736	-	344	121605369	-	Pnap_2472	-	transposase IS116/IS110/IS902 family protein
2451	 58.78	0	2612897..2613175	+	92	121605370	-	Pnap_2473	-	hypothetical protein
2452	 60.92	0	2613247..2614116	-	289	121605371	-	Pnap_2474	-	5-carboxymethyl-2-hydroxymuconate delta-isomerase
2453	 68.36	+1	2614388..2615392	-	334	121605372	-	Pnap_2476	-	cupin 2 domain-containing protein
2454	 55.94	-1	2615493..2616098	-	201	121605373	-	Pnap_2477	-	glutathione S-transferase domain-containing protein
2455	 52.69	-1	2616304..2616897	-	197	121605374	-	Pnap_2478	-	DSBA oxidoreductase
2456	 56.26	-1	2617087..2618124	-	345	121605375	-	Pnap_2479	-	dihydrodipicolinate synthetase
2457	 55.66	-1	2618182..2618817	-	211	121605376	-	Pnap_2480	-	OmpW family protein
2458	 55.56	-1	2618892..2619800	-	302	121605377	-	Pnap_2481	-	glyoxalase/bleomycin resistance protein/dioxygenase
2459	 59.78	0	2619826..2621277	-	483	121605378	-	Pnap_2482	-	aldehyde dehydrogenase
2460	 56.28	-1	2621326..2622105	-	259	121605379	-	Pnap_2483	-	2,3-dihydroxy-2,3-dihydrophenylpropionate dehydrogenase
2461	 52.99	-1	2622169..2622753	-	194	121605380	-	Pnap_2484	-	aromatic-ring-hydroxylating dioxygenase, beta subunit
2462	 54.76	-1	2622768..2624111	-	447	121605381	-	Pnap_2485	-	ring hydroxylating dioxygenase, alpha subunit
2463	 56.64	-1	2624176..2624514	-	112	121605382	-	Pnap_2486	-	Rieske (2Fe-2S) domain-containing protein
2464	 51.65	-2	2624524..2625009	-	161	121605383	-	Pnap_2487	-	aromatic-ring-hydroxylating dioxygenase, beta subunit
2465	 55.58	-1	2625012..2626274	-	420	121605384	-	Pnap_2488	-	Rieske (2Fe-2S) domain-containing protein
2466	 57.55	0	2626320..2627306	-	328	121605385	-	Pnap_2489	-	oxidoreductase FAD-binding subunit
2467	 54.23	-1	2627423..2628379	+	318	121605386	-	Pnap_2490	-	LysR family transcriptional regulator
2468	 52.71	-1	2628931..2629539	+	202	121605387	-	Pnap_2491	-	hypothetical protein
2469	 53.36	-1	2629576..2630334	+	252	121605388	-	Pnap_2492	-	hypothetical protein
2470	 59.97	0	2630331..2630942	+	203	121605389	-	Pnap_2493	-	hypothetical protein
2471	 59.66	0	2630954..2631538	+	194	121605390	-	Pnap_2494	-	lytic transglycosylase, catalytic
2472	 51.89	-2	2631468..2632022	-	184	121605391	-	Pnap_2495	-	hypothetical protein
2473	 45.94	-2	2632055..2632411	-	118	121605392	-	Pnap_2496	-	hypothetical protein
2474	 52.48	-1	2632633..2633598	+	321	121605393	-	Pnap_2497	-	type II secretion system protein E
2475	 56.47	-1	2633963..2634217	+	84	121605394	-	Pnap_2498	-	hypothetical protein
2476	 55.67	-1	2634497..2635378	+	293	121605395	-	Pnap_2499	-	hypothetical protein
2477	 63.19	0	2635393..2635536	-	47	121605396	-	Pnap_2500	-	hypothetical protein
2478	 59.65	0	2635951..2636292	+	113	121605397	-	Pnap_2501	-	conjugal transfer protein TrbC
2479	 56.48	-1	2636319..2636642	+	107	121605398	-	Pnap_2502	-	conjugal transfer TrbD family protein
2480	 57.59	0	2636646..2639090	+	814	121605399	-	Pnap_2503	-	CagE, TrbE, VirB component of type IV transporter system
2481	 52.14	-1	2639249..2639950	+	233	121605400	-	Pnap_2504	-	conjugal transfer protein TrbJ
2482	 57.50	0	2639965..2641590	+	541	121605401	-	Pnap_2505	-	Type IV secretory pathway TrbL components-like protein
2483	 56.93	-1	2641600..2643099	+	499	121605402	-	Pnap_2506	-	hypothetical protein
2484	 57.68	0	2643196..2644107	-	303	121605403	-	Pnap_2507	-	hypothetical protein
2485	 56.45	-1	2644104..2645297	-	397	121605404	-	Pnap_2508	-	hypothetical protein
2486	 57.34	-1	2645366..2646019	+	217	121605405	-	Pnap_2509	-	conjugal transfer protein
2487	 54.92	-1	2646379..2647161	+	260	121605406	-	Pnap_2510	-	conjugal transfer protein TrbG/VirB9/CagX
2488	 56.42	-1	2647158..2648630	+	490	121605407	-	Pnap_2511	-	conjugation TrbI family protein
2489	 57.28	-1	2648780..2649514	-	244	121605408	-	Pnap_2512	-	cytochrome c biogenesis protein, transmembrane region
2490	 53.28	-1	2649527..2649907	-	126	121605409	-	Pnap_2513	-	thioredoxin domain-containing protein
2491	 54.31	-1	2650031..2650564	+	177	121605410	-	Pnap_2514	-	hypothetical protein
2492	 56.16	-1	2650603..2651211	+	202	121605411	-	Pnap_2515	-	TetR family transcriptional regulator
2493	 60.88	0	2651284..2651871	+	195	121605412	-	Pnap_2516	-	late embryogenesis abundant protein
2494	 58.61	0	2651981..2652427	+	148	121605413	-	Pnap_2517	-	hypothetical protein
2495	 59.68	0	2652625..2653311	+	228	121605414	-	Pnap_2518	-	hypothetical protein
2496	 62.55	0	2653326..2655074	+	582	121605415	-	Pnap_2519	-	hypothetical protein
2497	 65.86	0	2655495..2657105	-	536	121605416	-	Pnap_2521	-	transposase IS66
2498	 64.97	0	2657188..2657541	-	117	121605417	-	Pnap_2522	-	IS66 Orf2 family protein
2499	 64.16	0	2657529..2657966	-	145	121605418	-	Pnap_2523	-	transposase IS3/IS911 family protein
2500	 59.59	0	2659689..2660465	+	258	121605419	phnP	Pnap_2524	-	carbon-phosphorus lyase complex accessory protein
2501	 59.00	0	2660462..2661322	+	286	121605420	-	Pnap_2525	-	hypothetical protein
2502	 51.67	-2	2661429..2661728	-	99	121605421	-	Pnap_2526	-	hypothetical protein
2503	 56.47	-1	2661836..2662453	+	205	121605422	-	Pnap_2527	-	hypothetical protein
2504	 55.05	-1	2662475..2663851	+	458	121605423	-	Pnap_2528	-	hypothetical protein
2505	 55.50	-1	2664051..2665205	+	384	121605424	-	Pnap_2529	-	hypothetical protein
2506	 55.54	-1	2665222..2667207	+	661	121605425	-	Pnap_2530	-	TRAG family protein
2507	 53.71	-1	2667227..2667751	+	174	121605426	-	Pnap_2531	-	conjugal transfer protein TraF
2508	 54.69	-1	2667794..2668369	-	191	121605427	-	Pnap_2532	-	hypothetical protein
2509	 56.36	-1	2668994..2670973	-	659	121605428	-	Pnap_2533	-	relaxase/mobilization nuclease family protein
2510	 51.48	-2	2671629..2671898	+	89	121605429	-	Pnap_2534	-	hypothetical protein
2511	 55.56	-1	2671898..2672176	+	92	121605430	-	Pnap_2535	-	hypothetical protein
2512	 52.36	-1	2673124..2673738	-	204	121605431	-	Pnap_2536	-	polyhydroxyalkonate synthesis repressor, PhaR
2513	 61.78	0	2674053..2676323	-	756	121605432	-	Pnap_2537	-	(p)ppGpp synthetase I, SpoT/RelA
2514	 66.23	0	2676354..2677274	-	306	121605433	-	Pnap_2538	-	alpha/beta hydrolase fold
2515	 61.94	0	2677400..2678182	+	260	121605434	-	Pnap_2539	-	3-hydroxybutyrate dehydrogenase
2516	 64.30	0	2678219..2679064	-	281	121605435	-	Pnap_2540	-	N-formylglutamate amidohydrolase
2517	 61.25	0	2679318..2679908	+	196	121605436	-	Pnap_2541	-	OmpA domain-containing protein
2518	 62.22	0	2680164..2680613	+	149	121605437	-	Pnap_2542	-	transmembrane pair domain-containing protein
2519	 67.28	0	2680622..2681437	-	271	121605438	-	Pnap_2543	-	metallophosphoesterase
2520	 65.23	0	2681445..2682416	-	323	121605439	-	Pnap_2544	-	diacylglycerol kinase, catalytic region
2521	 63.91	0	2682441..2683166	-	241	121605440	-	Pnap_2545	-	hypothetical protein
2522	 63.55	0	2683542..2684279	+	245	121605441	ompR	Pnap_2546	-	osmolarity response regulator
2523	 63.18	0	2684388..2685764	+	458	121605442	-	Pnap_2547	-	integral membrane sensor signal transduction histidine kinase
2524	 68.26	+1	2685857..2686357	-	166	121605443	-	Pnap_2548	-	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
2525	 67.35	0	2686391..2687119	-	242	121605444	-	Pnap_2549	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
2526	 64.66	0	2687152..2690637	+	1161	121605445	-	Pnap_2550	-	transcription-repair coupling factor
2527	 57.28	-1	2690686..2690994	+	102	121605446	-	Pnap_2551	-	virulence-associated protein VapB-like protein
2528	 62.53	0	2690991..2691449	+	152	121605447	-	Pnap_2552	-	PilT domain-containing protein
2529	 51.14	-2	2691446..2691709	+	87	121605448	-	Pnap_2553	-	hypothetical protein
2530	 64.98	0	2691768..2692478	+	236	121605449	-	Pnap_2554	-	phosphoserine phosphatase SerB
2531	 67.26	0	2692491..2693828	-	445	121605450	-	Pnap_2555	-	hypothetical protein
2532	 66.04	0	2693915..2694235	-	106	121605451	-	Pnap_2556	-	HNH nuclease
2533	 57.44	0	2694363..2694839	+	158	121605452	-	Pnap_2557	-	bacterioferritin
2534	 58.87	0	2695115..2697397	+	760	121605453	-	Pnap_2558	-	TonB-dependent siderophore receptor
2535	 64.47	0	2697480..2698163	+	227	121605454	-	Pnap_2559	-	putative hydroxylase
62.80	MEAN

5.38	STD DEV
