IslandPath Analysis: Polaromonas naphthalenivorans CJ2

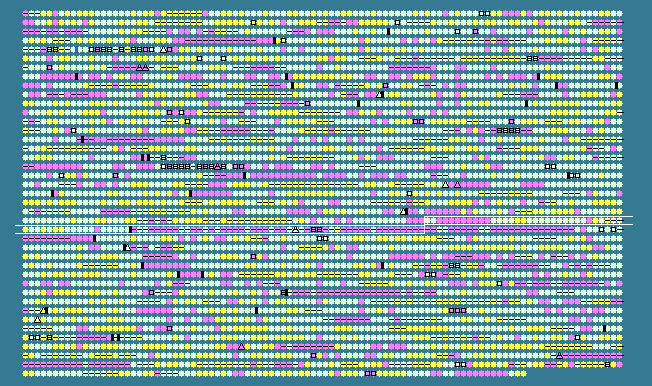

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.80 STD DEV: 5.38
Polaromonas naphthalenivorans CJ2, complete genome - 1..4410291
4084 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2368	 60.85	0	2519610..2520623	-	337	121605287	-	Pnap_2388	-	tRNA-dihydrouridine synthase A
2369	 60.89	0	2520806..2522605	+	599	121605288	-	Pnap_2389	-	peptidase M14, carboxypeptidase A
2370	 51.79	-2	2522783..2523172	+	129	121605289	-	Pnap_2390	-	hypothetical protein
2371	 57.73	0	2523320..2524729	-	469	121605290	-	Pnap_2391	-	replicative DNA helicase
2372	 54.97	-1	2524938..2525390	-	150	121605291	-	Pnap_2392	-	ribosomal protein L9
2373	 56.14	-1	2525403..2525687	-	94	121605292	-	Pnap_2393	-	ribosomal protein S18
2374	 51.57	-2	2525698..2526015	-	105	121605293	-	Pnap_2394	-	putative primosomal replication protein
2375	 54.92	-1	2526064..2526429	-	121	121605294	-	Pnap_2395	-	ribosomal protein S6
2376	 56.85	-1	2526501..2528681	-	726	121605295	-	Pnap_2396	-	Na+/solute symporter
2377	 50.57	-2	2528684..2528944	-	86	121605296	-	Pnap_2397	-	hypothetical protein
2378	 57.29	-1	2528931..2529794	-	287	121605297	-	Pnap_2398	-	TPR repeat-containing protein
2379	 59.79	0	2529971..2532370	-	799	121605298	-	Pnap_2399	-	phosphoenolpyruvate synthase
2380	 60.10	0	2532550..2533371	+	273	121605299	-	Pnap_2400	-	hypothetical protein
2381	 59.34	0	2533623..2534195	+	190	121605300	-	Pnap_2401	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
2382	 62.66	0	2534278..2535876	+	532	121605301	-	Pnap_2402	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
2383	 67.00	0	2535955..2536257	-	100	121605302	-	Pnap_2403	-	antibiotic biosynthesis monooxygenase
2384	 66.98	0	2536335..2536979	-	214	121605303	-	Pnap_2404	-	glutathione S-transferase domain-containing protein
2385	 62.36	0	2537271..2537618	+	115	121605304	-	Pnap_2405	-	hypothetical protein
2386	 62.41	0	2537615..2538601	+	328	121605305	-	Pnap_2406	-	putative poly-gamma-glutamate biosynthesis enzyme
2387	 64.51	0	2538902..2540155	+	417	121605306	-	Pnap_2407	-	DEAD/DEAH box helicase domain-containing protein
2388	 63.76	0	2540291..2542936	+	881	121605307	-	Pnap_2408	-	pentapeptide repeat-containing protein
2389	 63.73	0	2543124..2545781	+	885	121605308	-	Pnap_2409	-	pentapeptide repeat-containing protein
2390	 62.21	0	2545878..2549153	+	1091	121605309	-	Pnap_2410	-	NHL repeat-containing protein
2391	 60.19	0	2549257..2549565	-	102	121605310	-	Pnap_2411	-	hypothetical protein
2392	 62.66	0	2549679..2550227	-	182	121605311	-	Pnap_2412	-	DSBA oxidoreductase
2393	 64.32	0	2550396..2550608	+	70	121605312	-	Pnap_2413	-	hypothetical protein
2394	 61.64	0	2550642..2551019	-	125	121605313	-	Pnap_2414	-	hypothetical protein
2395	 57.78	0	2551442..2551666	-	74	121605314	-	Pnap_2415	-	TOBE domain-containing protein
2396	 69.25	+1	2551777..2552589	-	270	121605315	-	Pnap_2416	-	ABC transporter related
2397	 65.45	0	2552599..2553501	-	300	121605316	-	Pnap_2417	-	binding-protein-dependent transport systems inner membrane component
2398	 66.41	0	2553523..2554686	-	387	121605317	-	Pnap_2418	-	alkanesulfonate monooxygenase
2399	 65.81	0	2554706..2555755	-	349	121605318	-	Pnap_2419	-	aliphatic sulfonate ABC transporter periplasmic ligand-binding protein
2400	 63.64	0	2555781..2556803	-	340	121605319	-	Pnap_2420	-	aliphatic sulfonate ABC transporter periplasmic ligand-binding protein
2401	 67.67	0	2556926..2557525	-	199	121605320	-	Pnap_2421	-	NADPH-dependent FMN reductase
2402	 63.47	0	2557586..2558617	-	343	121605321	-	Pnap_2422	-	sulfate ABC transporter, periplasmic sulfate-binding protein
2403	 62.77	0	2558764..2559045	+	93	121605322	-	Pnap_2423	-	hypothetical protein
2404	 69.02	+1	2559055..2560968	+	637	121605323	-	Pnap_2424	-	hypothetical protein
2405	 62.30	0	2561038..2562273	-	411	121605324	-	Pnap_2425	-	extracellular ligand-binding receptor
2406	 66.41	0	2562506..2563297	+	263	121605325	-	Pnap_2426	-	hypothetical protein
2407	 66.72	0	2563389..2565197	+	602	121605326	-	Pnap_2427	-	nitrite/sulfite reductase hemoprotein beta subunit
2408	 61.69	0	2565236..2565637	+	133	121605327	-	Pnap_2428	-	hypothetical protein
2409	 64.40	0	2565649..2566443	+	264	121605328	-	Pnap_2429	-	phosphoadenylyl-sulfate reductase (thioredoxin)
2410	 63.52	0	2566440..2567393	+	317	121605329	-	Pnap_2430	-	sulfate adenylyltransferase subunit 2
2411	 65.30	0	2567393..2568709	+	438	121605330	-	Pnap_2431	-	sulfate adenylyltransferase, large subunit
2412	 59.70	0	2568881..2569210	+	109	121605331	-	Pnap_2432	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
2413	 57.49	0	2569288..2570388	+	366	121605332	-	Pnap_2433	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
2414	 64.14	0	2570465..2571769	+	434	121605333	-	Pnap_2434	-	permease for cytosine/purines, uracil, thiamine, allantoin
2415	 62.35	0	2571753..2572610	-	285	121605334	-	Pnap_2435	-	phosphomethylpyrimidine kinase
2416	 64.48	0	2573052..2574605	+	517	121605335	-	Pnap_2436	-	carbohydrate kinase, YjeF related protein
2417	 62.28	0	2574602..2575171	-	189	121605336	-	Pnap_2437	-	protein of unknown function YGGT
2418	 62.82	0	2575213..2577372	-	719	121605337	-	Pnap_2438	-	ribonuclease R
2419	 57.65	0	2578044..2579429	-	461	121605338	-	Pnap_2439	-	MiaB-like tRNA modifying enzyme YliG
2420	 62.17	0	2579464..2581086	+	540	121605339	-	Pnap_2440	-	recombinase
2421	 62.22	0	2581460..2581774	+	104	121605340	-	Pnap_2441	-	hypothetical protein
2422	 55.70	-1	2581894..2583060	+	388	121605341	-	Pnap_2442	-	ATPase central domain-containing protein
2423	 58.33	0	2583057..2585276	+	739	121605342	-	Pnap_2443	-	hypothetical protein
2424	 49.24	-2	2585330..2586121	+	263	121605343	-	Pnap_2444	-	ECF subfamily RNA polymerase sigma-24 factor
2425	 52.69	-1	2586118..2586711	+	197	121605344	-	Pnap_2445	-	hypothetical protein
2426	 59.02	0	2586714..2590139	+	1141	121605345	-	Pnap_2446	-	UvrD/REP helicase
2427	 59.35	0	2590232..2591161	+	309	121605346	-	Pnap_2447	-	hypothetical protein
2428	 60.71	0	2591158..2592567	+	469	121605347	-	Pnap_2448	-	UBA/THIF-type NAD/FAD binding protein
2429	 53.76	-1	2592632..2592910	+	92	121605348	-	Pnap_2449	-	hypothetical protein
2430	 53.43	-1	2594155..2594577	-	140	121605349	-	Pnap_2450	-	hypothetical protein
2431	 61.82	0	2595386..2596024	-	212	121605350	-	Pnap_2452	-	maleylacetoacetate isomerase
2432	 58.83	0	2596034..2596735	-	233	121605351	-	Pnap_2453	-	fumarylacetoacetate (FAA) hydrolase
2433	 60.98	0	2596829..2597884	-	351	121605352	-	Pnap_2454	-	cupin 2 domain-containing protein
2434	 57.19	-1	2597903..2598493	-	196	121605353	-	Pnap_2455	-	hemerythrin HHE cation binding region
2435	 57.42	0	2598530..2599243	-	237	121605354	-	Pnap_2456	-	ABC transporter related
2436	 58.83	0	2599246..2599998	-	250	121605355	-	Pnap_2457	-	ABC transporter related
2437	 58.52	0	2599995..2600951	-	318	121605356	-	Pnap_2458	-	inner-membrane translocator
2438	 59.44	0	2600948..2601874	-	308	121605357	-	Pnap_2459	-	inner-membrane translocator
2439	 57.80	0	2601874..2603046	-	390	121605358	-	Pnap_2460	-	extracellular ligand-binding receptor
2440	 55.87	-1	2603082..2603396	-	104	121605359	-	Pnap_2461	-	Rieske (2Fe-2S) domain-containing protein
2441	 51.52	-2	2603406..2603735	-	109	121605360	-	Pnap_2462	-	aromatic-ring-hydroxylating dioxygenase, beta subunit
2442	 60.68	0	2604381..2605148	+	255	121605361	-	Pnap_2464	-	IstB ATP binding domain-containing protein
2443	 53.65	-1	2605625..2606584	-	319	121605362	-	Pnap_2465	-	proline dehydrogenase
2444	 51.71	-2	2606589..2607230	-	213	121605363	-	Pnap_2466	-	GntR family transcriptional regulator
2445	 61.73	0	2607554..2608363	-	269	121605364	-	Pnap_2467	-	IstB ATP binding domain-containing protein
2446	 62.07	0	2608360..2609904	-	514	121605365	-	Pnap_2468	-	integrase catalytic subunit
2447	 63.78	0	2609888..2610199	-	103	121605366	-	Pnap_2469	-	hypothetical protein
2448	 57.10	-1	2610519..2610821	-	100	121605367	-	Pnap_2470	-	recombinase
2449	 58.27	0	2610961..2611353	-	130	121605368	-	Pnap_2471	-	transposase IS3/IS911 family protein
2450	 53.82	-1	2611702..2612736	-	344	121605369	-	Pnap_2472	-	transposase IS116/IS110/IS902 family protein
2451	 58.78	0	2612897..2613175	+	92	121605370	-	Pnap_2473	-	hypothetical protein
2452	 60.92	0	2613247..2614116	-	289	121605371	-	Pnap_2474	-	5-carboxymethyl-2-hydroxymuconate delta-isomerase
2453	 68.36	+1	2614388..2615392	-	334	121605372	-	Pnap_2476	-	cupin 2 domain-containing protein
2454	 55.94	-1	2615493..2616098	-	201	121605373	-	Pnap_2477	-	glutathione S-transferase domain-containing protein
2455	 52.69	-1	2616304..2616897	-	197	121605374	-	Pnap_2478	-	DSBA oxidoreductase
2456	 56.26	-1	2617087..2618124	-	345	121605375	-	Pnap_2479	-	dihydrodipicolinate synthetase
2457	 55.66	-1	2618182..2618817	-	211	121605376	-	Pnap_2480	-	OmpW family protein
2458	 55.56	-1	2618892..2619800	-	302	121605377	-	Pnap_2481	-	glyoxalase/bleomycin resistance protein/dioxygenase
2459	 59.78	0	2619826..2621277	-	483	121605378	-	Pnap_2482	-	aldehyde dehydrogenase
2460	 56.28	-1	2621326..2622105	-	259	121605379	-	Pnap_2483	-	2,3-dihydroxy-2,3-dihydrophenylpropionate dehydrogenase
2461	 52.99	-1	2622169..2622753	-	194	121605380	-	Pnap_2484	-	aromatic-ring-hydroxylating dioxygenase, beta subunit
2462	 54.76	-1	2622768..2624111	-	447	121605381	-	Pnap_2485	-	ring hydroxylating dioxygenase, alpha subunit
2463	 56.64	-1	2624176..2624514	-	112	121605382	-	Pnap_2486	-	Rieske (2Fe-2S) domain-containing protein
2464	 51.65	-2	2624524..2625009	-	161	121605383	-	Pnap_2487	-	aromatic-ring-hydroxylating dioxygenase, beta subunit
2465	 55.58	-1	2625012..2626274	-	420	121605384	-	Pnap_2488	-	Rieske (2Fe-2S) domain-containing protein
2466	 57.55	0	2626320..2627306	-	328	121605385	-	Pnap_2489	-	oxidoreductase FAD-binding subunit
2467	 54.23	-1	2627423..2628379	+	318	121605386	-	Pnap_2490	-	LysR family transcriptional regulator
62.80	MEAN

5.38	STD DEV
