IslandPath Analysis: Polaromonas naphthalenivorans CJ2

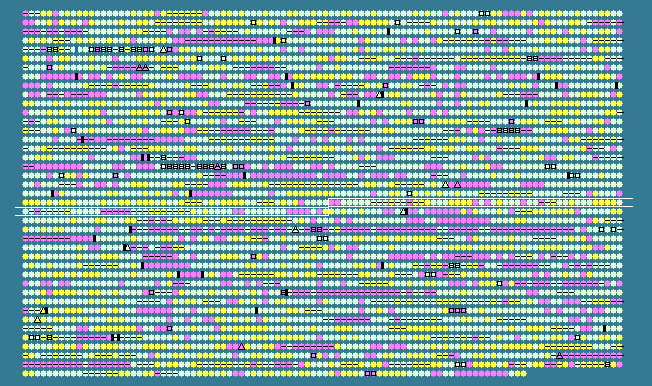

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.80 STD DEV: 5.38
Polaromonas naphthalenivorans CJ2, complete genome - 1..4410291
4084 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2152	 58.60	0	2308916..2310055	+	379	121605071	-	Pnap_2171	-	permease YjgP/YjgQ family protein
2153	 58.99	0	2310091..2310468	+	125	121605072	-	Pnap_2172	-	cobalamin (vitamin B12) biosynthesis CbiX protein
2154	 61.69	0	2310573..2311517	+	314	121605073	-	Pnap_2173	-	transcriptional regulator CysB-like protein
2155	 64.47	0	2311521..2312705	+	394	121605074	-	Pnap_2174	-	putative aminotransferase
2156	 59.75	0	2312796..2312954	+	52	121605075	-	Pnap_2175	-	hypothetical protein
2157	 65.16	0	2313015..2316935	-	1306	121605076	-	Pnap_2176	-	ATP-dependent helicase HrpA
2158	 64.89	0	2317118..2318470	+	450	121605077	-	Pnap_2177	-	N-acetylglutamate synthase
2159	 61.58	0	2318500..2319972	-	490	121605078	-	Pnap_2178	-	hypothetical protein
2160	 59.35	0	2320099..2320836	-	245	121605079	-	Pnap_2179	-	hypothetical protein
2161	 65.01	0	2320859..2323993	-	1044	121605080	-	Pnap_2180	-	acriflavin resistance protein
2162	 68.76	+1	2324046..2324999	-	317	121605081	-	Pnap_2181	-	hypothetical protein
2163	 62.98	0	2325034..2325765	-	243	121605082	-	Pnap_2182	-	hypothetical protein
2164	 64.96	0	2325804..2328968	-	1054	121605083	-	Pnap_2183	-	acriflavin resistance protein
2165	 53.29	-1	2329015..2329455	-	146	121605084	-	Pnap_2184	-	hypothetical protein
2166	 67.37	0	2329588..2330295	+	235	121605085	-	Pnap_2185	-	dienelactone hydrolase
2167	 67.30	0	2330308..2332356	+	682	121605086	-	Pnap_2186	-	erythromycin esterase
2168	 68.92	+1	2332362..2333738	-	458	121605087	-	Pnap_2187	-	hypothetical protein
2169	 61.28	0	2333971..2334360	-	129	121605088	-	Pnap_2188	-	carboxymuconolactone decarboxylase
2170	 63.10	0	2334372..2334764	-	130	121605089	-	Pnap_2189	-	MerR family transcriptional regulator
2171	 61.87	0	2334845..2335282	-	145	121605090	-	Pnap_2190	-	hypothetical protein
2172	 68.82	+1	2335320..2335736	-	138	121605091	-	Pnap_2191	-	regulatory protein, ArsR
2173	 69.23	+1	2335733..2336824	-	363	121605092	-	Pnap_2192	-	hypothetical protein
2174	 69.69	+1	2337008..2340319	-	1103	121605093	-	Pnap_2193	-	UvrD/REP helicase
2175	 70.09	+1	2340316..2342883	-	855	121605094	-	Pnap_2194	-	exonuclease-like protein
2176	 57.66	0	2343052..2343384	+	110	121605095	-	Pnap_2195	-	thioredoxin
2177	 59.38	0	2343636..2344898	+	420	121605096	rho	Pnap_2196	-	transcription termination factor Rho
2178	 55.44	-1	2345074..2345367	+	97	121605097	-	Pnap_2197	-	ribosomal protein L31
2179	 65.42	0	2345489..2347258	+	589	121605098	-	Pnap_2198	-	hypothetical protein
2180	 67.18	0	2347255..2348622	+	455	121605099	-	Pnap_2199	-	MATE efflux family protein
2181	 65.03	0	2348610..2349956	-	448	121605100	-	Pnap_2200	-	PAS/PAC sensor signal transduction histidine kinase
2182	 65.43	0	2349953..2350681	-	242	121605101	-	Pnap_2201	-	two component transcriptional regulator
2183	 61.42	0	2350678..2351382	-	234	121605102	-	Pnap_2202	-	phosphate uptake regulator, PhoU
2184	 57.47	0	2351439..2352221	-	260	121605103	-	Pnap_2203	-	phosphate ABC transporter, ATPase subunit
2185	 61.40	0	2352265..2353137	-	290	121605104	pstA	Pnap_2204	-	phosphate transporter permease subunit
2186	 60.77	0	2353134..2354099	-	321	121605105	-	Pnap_2205	-	phosphate ABC transporter, inner membrane subunit PstC
2187	 57.76	0	2354232..2355275	-	347	121605106	-	Pnap_2206	-	phosphate ABC transporter, periplasmic phosphate-binding protein
2188	 62.32	0	2355474..2355956	+	160	121605107	-	Pnap_2207	-	beta-Ig-H3/fasciclin
2189	 68.05	0	2356086..2357240	+	384	121605108	-	Pnap_2208	-	twin-arginine translocation pathway signal
2190	 64.36	0	2357244..2358806	+	520	121605109	-	Pnap_2209	-	Ppx/GppA phosphatase
2191	 61.50	0	2358878..2359438	+	186	121605110	-	Pnap_2210	-	hypothetical protein
2192	 66.46	0	2359466..2359939	-	157	121605111	-	Pnap_2211	-	putative phosphohistidine phosphatase, SixA
2193	 64.43	0	2359946..2362051	-	701	121605112	-	Pnap_2212	-	polyphosphate kinase
2194	 66.21	0	2362240..2363982	-	580	121605113	-	Pnap_2213	-	Fis family transcriptional regulator
2195	 66.01	0	2364006..2364308	-	100	121605114	-	Pnap_2214	-	hypothetical protein
2196	 68.25	+1	2364420..2366882	-	820	121605115	-	Pnap_2215	-	MscS mechanosensitive ion channel
2197	 67.56	0	2366977..2368212	-	411	121605116	-	Pnap_2216	-	major facilitator superfamily transporter
2198	 70.82	+1	2368314..2369156	+	280	121605117	-	Pnap_2217	-	AraC family transcriptional regulator
2199	 68.77	+1	2369253..2370677	-	474	121605118	-	Pnap_2218	-	aldehyde dehydrogenase
2200	 64.68	0	2370766..2371269	+	167	121605119	-	Pnap_2219	-	CreA family protein
2201	 65.24	0	2371382..2372359	+	325	121605120	-	Pnap_2220	-	heat shock protein DnaJ domain-containing protein
2202	 65.73	0	2372356..2372676	+	106	121605121	-	Pnap_2221	-	MerR family regulatory protein
2203	 56.89	-1	2372785..2373009	+	74	121605122	-	Pnap_2222	-	putative addiction module antidote
2204	 62.96	0	2373006..2373410	+	134	121605123	-	Pnap_2223	-	death-on-curing family protein
2205	 65.65	0	2373537..2374613	+	358	121605124	-	Pnap_2224	-	Allergen V5/Tpx-1 family protein
2206	 63.71	0	2374721..2377324	-	867	121605125	-	Pnap_2225	-	ATPase
2207	 64.98	0	2377463..2377936	-	157	121605126	-	Pnap_2226	-	molybdopterin biosynthesis MoaE
2208	 67.86	0	2377942..2378193	-	83	121605127	-	Pnap_2227	-	molybdopterin converting factor, subunit 1
2209	 65.95	0	2378207..2379466	-	419	121605128	-	Pnap_2228	-	molybdenum cofactor synthesis domain-containing protein
2210	 59.40	0	2379506..2380042	-	178	121605129	-	Pnap_2229	-	molybdopterin-guanine dinucleotide biosynthesis protein B
2211	 63.03	0	2380121..2381548	-	475	121605130	-	Pnap_2230	-	threonine synthase
2212	 65.03	0	2381548..2382894	-	448	121605131	-	Pnap_2231	-	homoserine dehydrogenase
2213	 59.56	0	2382960..2384183	-	407	121605132	-	Pnap_2232	-	aminotransferase AlaT
2214	 57.25	-1	2384380..2384772	+	130	121605133	-	Pnap_2233	-	hypothetical protein
2215	 52.41	-1	2384902..2385378	+	158	121605134	-	Pnap_2234	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
2216	 57.71	0	2385532..2387217	+	561	121605135	-	Pnap_2235	-	PhoH family protein
2217	 42.04	-2	2387875..2388540	-	221	121605136	-	Pnap_2236	-	hypothetical protein
2218	 43.83	-2	2388552..2388932	-	126	121605137	-	Pnap_2237	-	hypothetical protein
2219	 64.87	0	2389151..2389708	-	185	121605138	-	Pnap_2238	-	hypothetical protein
2220	 59.84	0	2389705..2390202	-	165	121605139	-	Pnap_2239	-	glycoside hydrolase family protein
2221	 63.06	0	2390199..2390531	-	110	121605140	-	Pnap_2240	-	hypothetical protein
2222	 66.67	0	2390541..2390762	-	73	121605141	-	Pnap_2241	-	hypothetical protein
2223	 69.00	+1	2390759..2392642	-	627	121605142	-	Pnap_2242	-	hypothetical protein
2224	 70.62	+1	2392647..2393051	-	134	121605143	-	Pnap_2243	-	hypothetical protein
2225	 61.90	0	2393048..2393446	-	132	121605144	-	Pnap_2244	-	hypothetical protein
2226	 62.69	0	2393450..2394631	-	393	121605145	-	Pnap_2245	-	hypothetical protein
2227	 66.70	0	2394656..2398156	-	1166	121605146	-	Pnap_2246	-	putative transmembrane protein
2228	 66.17	0	2398163..2398561	-	132	121605147	-	Pnap_2247	-	hypothetical protein
2229	 66.30	0	2398582..2401326	-	914	121605148	-	Pnap_2248	-	TP901 family phage tail tape measure protein
2230	 62.19	0	2401432..2402190	-	252	121605149	-	Pnap_2249	-	hypothetical protein
2231	 69.29	+1	2402222..2402641	-	139	121605150	-	Pnap_2250	-	hypothetical protein
2232	 64.08	0	2402642..2402950	-	102	121605151	-	Pnap_2251	-	hypothetical protein
2233	 62.81	0	2402989..2403351	-	120	121605152	-	Pnap_2252	-	putative RecA/RadA recombinase
2234	 63.90	0	2403419..2405443	-	674	121605153	-	Pnap_2253	-	peptidase S14, ClpP
2235	 62.58	0	2405542..2407131	-	529	121605154	-	Pnap_2254	-	lambda family phage portal protein
2236	 58.22	0	2407141..2407365	-	74	121605155	-	Pnap_2255	-	hypothetical protein
2237	 59.32	0	2407418..2407771	-	117	121605156	-	Pnap_2256	-	hypothetical protein
2238	 65.29	0	2407771..2409948	-	725	121605157	-	Pnap_2257	-	phage terminase GpA
2239	 64.10	0	2409948..2410454	-	168	121605158	-	Pnap_2258	-	hypothetical protein
2240	 64.10	0	2410582..2411361	-	259	121605159	-	Pnap_2259	-	hypothetical protein
2241	 64.99	0	2411367..2412200	-	277	121605160	-	Pnap_2260	-	hypothetical protein
2242	 62.57	0	2412209..2412550	-	113	121605161	-	Pnap_2261	-	hypothetical protein
2243	 61.21	0	2412633..2413163	-	176	121605162	-	Pnap_2262	-	hypothetical protein
2244	 61.57	0	2413196..2413450	+	84	121605163	-	Pnap_2263	-	hypothetical protein
2245	 56.38	-1	2413945..2414508	-	187	121605164	-	Pnap_2264	-	hypothetical protein
2246	 49.90	-2	2414590..2415114	+	174	121605165	-	Pnap_2265	-	hypothetical protein
2247	 53.45	-1	2415186..2415707	+	173	121605166	-	Pnap_2266	-	hypothetical protein
2248	 52.20	-1	2415752..2416297	+	181	121605167	-	Pnap_2267	-	hypothetical protein
2249	 64.39	0	2416574..2416837	+	87	121605168	-	Pnap_2268	-	hypothetical protein
2250	 56.52	-1	2416834..2417316	+	160	121605169	-	Pnap_2269	-	hypothetical protein
2251	 70.92	+1	2417313..2417594	+	93	121605170	-	Pnap_2270	-	hypothetical protein
62.80	MEAN

5.38	STD DEV
