IslandPath Analysis: Polaromonas naphthalenivorans CJ2

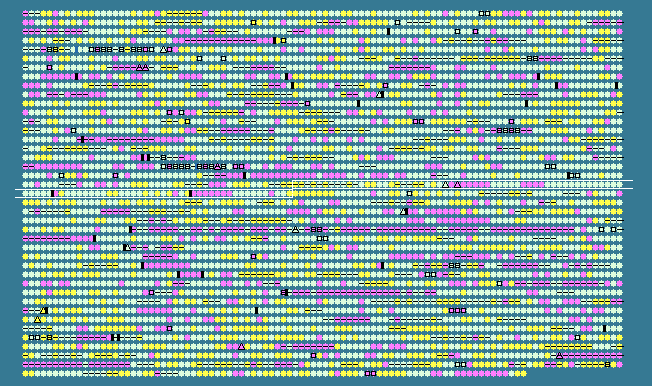

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.80 STD DEV: 5.38
Polaromonas naphthalenivorans CJ2, complete genome - 1..4410291
4084 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1946	 66.67	0	2087094..2087441	-	115	121604865	-	Pnap_1964	-	hydrogenase expression/synthesis, HypA
1947	 68.20	+1	2087434..2088606	-	390	121604866	-	Pnap_1965	-	hypothetical protein
1948	 66.11	0	2088599..2089141	-	180	121604867	-	Pnap_1966	-	hypothetical protein
1949	 68.72	+1	2089145..2089387	-	80	121604868	-	Pnap_1967	-	rubredoxin-type Fe(Cys)4 protein
1950	 65.17	0	2089384..2090250	-	288	121604869	-	Pnap_1968	-	HupH hydrogenase expression protein
1951	 68.43	+1	2090268..2090777	-	169	121604870	-	Pnap_1969	-	hydrogenase-1 expression HyaE
1952	 63.91	0	2090800..2091126	-	108	121604871	-	Pnap_1970	-	hydrogenase assembly chaperone hypC/hupF
1953	 65.33	0	2091134..2091805	-	223	121604872	-	Pnap_1971	-	hydrogenase expression/formation protein
1954	 62.89	0	2091892..2092632	-	246	121604873	-	Pnap_1972	-	Ni/Fe-hydrogenase, b-type cytochrome subunit
1955	 71.57	+1	2092648..2093238	-	196	121604874	-	Pnap_1973	-	HupE/UreJ protein
1956	 63.49	0	2093280..2095136	-	618	121604875	-	Pnap_1974	-	nickel-dependent hydrogenase, large subunit
1957	 64.02	0	2095169..2096263	-	364	121604876	-	Pnap_1975	-	hydrogenase (NiFe) small subunit HydA
1958	 70.80	+1	2096724..2099024	-	766	121604877	-	Pnap_1976	-	von Willebrand factor, type A
1959	 67.04	0	2099036..2099833	-	265	121604878	-	Pnap_1977	-	CbbQ/NirQ/NorQ C-terminal domain-containing protein
1960	 65.07	0	2099886..2101265	-	459	121604879	-	Pnap_1978	-	ribulose bisphosphate carboxylase
1961	 64.27	0	2101392..2102309	-	305	121604880	-	Pnap_1979	-	LysR family transcriptional regulator
1962	 68.24	+1	2102443..2103204	+	253	121604881	-	Pnap_1980	-	HAD family hydrolase
1963	 68.21	+1	2103214..2103924	+	236	121604882	-	Pnap_1981	-	ribulose-phosphate 3-epimerase
1964	 66.03	0	2103968..2105062	+	364	121604883	-	Pnap_1982	-	inositol phosphatase/fructose-1,6-bisphosphatase
1965	 63.62	0	2105150..2106034	+	294	121604884	-	Pnap_1983	-	phosphoribulokinase
1966	 68.35	+1	2106056..2108137	+	693	121604885	-	Pnap_1984	-	transketolase
1967	 66.82	0	2108151..2108822	+	223	121604886	-	Pnap_1985	-	phosphoglycolate phosphatase
1968	 63.42	0	2108893..2109909	+	338	121604887	-	Pnap_1986	-	glyceraldehyde-3-phosphate dehydrogenase, type I
1969	 66.83	0	2109906..2111108	+	400	121604888	-	Pnap_1987	-	phosphoglycerate kinase
1970	 64.80	0	2111190..2112206	+	338	121604889	-	Pnap_1988	-	fructose-1,6-bisphosphate aldolase
1971	 60.14	0	2112300..2113694	-	464	121604890	-	Pnap_1989	-	integrase catalytic subunit
1972	 53.65	-1	2113858..2114871	-	337	121604891	-	Pnap_1990	-	hypothetical protein
1973	 58.77	0	2114995..2116071	+	358	121604892	-	Pnap_1991	-	phage integrase family protein
1974	 50.11	-2	2116186..2117121	+	311	121604893	-	Pnap_1992	-	putative signal peptide protein
1975	 54.61	-1	2117340..2119529	+	729	121604894	-	Pnap_1993	-	catalase
1976	 57.07	-1	2119577..2120503	-	308	121604895	-	Pnap_1994	-	putative adenylate/guanylate cyclase
1977	 54.09	-1	2120695..2121036	+	113	121604896	-	Pnap_1995	-	hypothetical protein
1978	 56.77	-1	2121074..2122033	-	319	121604897	-	Pnap_1996	-	muramoyltetrapeptide carboxypeptidase
1979	 60.19	0	2122054..2123289	-	411	121604898	-	Pnap_1997	-	CMP/dCMP deaminase, zinc-binding
1980	 59.44	0	2123355..2123603	-	82	121604899	-	Pnap_1998	-	hypothetical protein
1981	 63.26	0	2123759..2124169	+	136	121604900	-	Pnap_1999	-	hypothetical protein
1982	 61.18	0	2124230..2125852	-	540	121604901	guaA	Pnap_2000	-	bifunctional GMP synthase/glutamine amidotransferase protein
1983	 63.67	0	2125933..2127402	-	489	121604902	-	Pnap_2001	-	inosine-5'-monophosphate dehydrogenase
1984	 59.26	0	2127467..2128087	+	206	121604903	-	Pnap_2002	-	hypothetical protein
1985	 59.02	0	2128109..2128474	-	121	121604904	-	Pnap_2003	-	hypothetical protein
1986	 53.69	-1	2128461..2128907	-	148	121604905	-	Pnap_2004	-	cyclase/dehydrase
1987	 59.32	0	2128979..2129536	+	185	121604906	smpB	Pnap_2005	-	SsrA-binding protein
1988	 62.85	0	2129568..2130695	-	375	121604907	-	Pnap_2006	-	enoyl-CoA hydratase
1989	 64.73	0	2130692..2131567	-	291	121604908	-	Pnap_2007	-	hypothetical protein
1990	 61.07	0	2131667..2133490	-	607	121604909	-	Pnap_2008	-	GTP-binding protein TypA
1991	 62.16	0	2133526..2134569	-	347	121604910	-	Pnap_2009	-	tRNA pseudouridine synthase B
1992	 59.62	0	2134657..2135025	-	122	121604911	-	Pnap_2010	-	ribosome-binding factor A
1993	 61.20	0	2135105..2138083	-	992	121604912	-	Pnap_2011	-	translation initiation factor IF-2
1994	 60.03	0	2138112..2139632	-	506	121604913	-	Pnap_2012	-	NusA antitermination factor
1995	 59.77	0	2139655..2140263	-	202	121604914	-	Pnap_2013	-	hypothetical protein
1996	 64.67	0	2140465..2142069	-	534	121604915	-	Pnap_2014	-	ABC transporter related
1997	 62.22	0	2142066..2143121	-	351	121604916	-	Pnap_2015	-	binding-protein-dependent transport systems inner membrane component
1998	 62.32	0	2143124..2144158	-	344	121604917	-	Pnap_2016	-	binding-protein-dependent transport systems inner membrane component
1999	 62.75	0	2144171..2145985	-	604	121604918	-	Pnap_2017	-	extracellular solute-binding protein
2000	 63.53	0	2146098..2146895	+	265	121604919	-	Pnap_2018	-	short-chain dehydrogenase/reductase SDR
2001	 65.32	0	2146979..2147866	+	295	121604920	-	Pnap_2019	-	DNA ligase
2002	 60.54	0	2147972..2150305	-	777	121604921	-	Pnap_2020	-	lysine decarboxylase
2003	 65.50	0	2150579..2151007	+	142	121604922	-	Pnap_2021	-	hypothetical protein
2004	 62.06	0	2151078..2151989	+	303	121604923	-	Pnap_2022	-	band 7 protein
2005	 62.67	0	2152025..2152399	+	124	121604924	-	Pnap_2023	-	hypothetical protein
2006	 43.30	-2	2152558..2152818	+	86	121604925	-	Pnap_2024	-	hypothetical protein
2007	 66.37	0	2152815..2153819	-	334	121604926	-	Pnap_2025	-	aldo/keto reductase
2008	 63.24	0	2153952..2154914	-	320	121604927	-	Pnap_2026	-	oxidoreductase domain-containing protein
2009	 62.75	0	2154915..2155832	-	305	121604928	-	Pnap_2027	-	protocatechuate 4,5-dioxygenase subunit beta
2010	 62.91	0	2155833..2156285	-	150	121604929	-	Pnap_2028	-	protocatechuate 4,5-dioxygenase subunit alpha
2011	 64.86	0	2156289..2157227	-	312	121604930	-	Pnap_2029	-	amidohydrolase 2
2012	 65.27	0	2157237..2158235	-	332	121604931	-	Pnap_2030	-	hypothetical protein
2013	 64.35	0	2158269..2158958	-	229	121604932	-	Pnap_2031	-	hypothetical protein
2014	 59.86	0	2158962..2159990	-	342	121604933	-	Pnap_2032	-	amidohydrolase 2
2015	 67.35	0	2160000..2161169	-	389	121604934	-	Pnap_2033	-	hypothetical protein
2016	 68.53	+1	2161304..2162215	+	303	121604935	-	Pnap_2034	-	LysR family transcriptional regulator
2017	 63.21	0	2162616..2163020	+	134	121604936	-	Pnap_2035	-	hypothetical protein
2018	 65.70	0	2163047..2163877	+	276	121604937	-	Pnap_2036	-	ModE family transcriptional regulator
2019	 63.48	0	2163910..2164662	+	250	121604938	-	Pnap_2037	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
2020	 66.20	0	2164677..2165108	+	143	121604939	-	Pnap_2038	-	hypothetical protein
2021	 70.36	+1	2165127..2165966	+	279	121604940	-	Pnap_2039	-	modD protein
2022	 63.44	0	2166052..2166732	+	226	121604941	-	Pnap_2040	-	molybdate ABC transporter, inner membrane subunit
2023	 68.25	+1	2166734..2167804	+	356	121604942	-	Pnap_2041	-	molybdate ABC transporter, ATPase subunit
2024	 64.17	0	2167904..2168503	-	199	121604943	-	Pnap_2042	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
2025	 71.25	+1	2168976..2170808	-	610	121604944	-	Pnap_2043	-	hypothetical protein
2026	 58.23	0	2171048..2171296	-	82	121604945	-	Pnap_2044	-	hypothetical protein
2027	 65.38	0	2171388..2171699	-	103	121604946	-	Pnap_2045	-	Rieske (2Fe-2S) domain-containing protein
2028	 72.37	+1	2171719..2173296	-	525	121604947	-	Pnap_2046	-	hypothetical protein
2029	 56.59	-1	2173749..2174582	-	277	121604948	-	Pnap_2047	-	UBA/THIF-type NAD/FAD binding protein
2030	 52.89	-1	2174666..2175427	-	253	121604949	-	Pnap_2048	-	TPR repeat-containing protein
2031	 57.96	0	2175443..2175982	-	179	121604950	-	Pnap_2049	-	OmpA domain-containing protein
2032	 57.67	0	2176027..2177316	-	429	121604951	-	Pnap_2050	-	TolB domain-containing protein
2033	 52.43	-1	2177331..2178173	-	280	121604952	-	Pnap_2051	-	glycosyl transferase family protein
2034	 52.47	-1	2178173..2178940	-	255	121604953	-	Pnap_2052	-	glycosyl transferase family protein
2035	 58.54	0	2179137..2180354	+	405	121604954	-	Pnap_2053	-	O-antigen polymerase
2036	 61.11	0	2180351..2182132	+	593	121604955	-	Pnap_2054	-	lipid A ABC exporter, fused ATPase and inner membrane subunits MsbA
2037	 60.83	0	2182134..2182733	-	199	121604956	-	Pnap_2055	-	hypothetical protein
2038	 62.37	0	2183274..2184041	+	255	121604957	-	Pnap_2056	-	polar amino acid ABC transporter, inner membrane subunit
2039	 62.30	0	2184019..2184750	+	243	121604958	-	Pnap_2057	-	ABC transporter related
2040	 61.03	0	2184867..2185079	-	70	121604959	-	Pnap_2058	-	hypothetical protein
2041	 64.74	0	2185082..2185444	-	120	121604960	-	Pnap_2059	-	translation initiation factor SUI1
2042	 57.41	-1	2185487..2185918	-	143	121604961	-	Pnap_2060	-	hypothetical protein
2043	 65.84	0	2186115..2188547	-	810	121604962	-	Pnap_2061	-	glycosyl transferase family protein
2044	 65.11	0	2188620..2189198	-	192	121604963	-	Pnap_2062	-	hypothetical protein
2045	 68.19	+1	2189265..2191829	+	854	121604964	-	Pnap_2063	-	hypothetical protein
62.80	MEAN

5.38	STD DEV
