IslandPath Analysis: Polaromonas naphthalenivorans CJ2

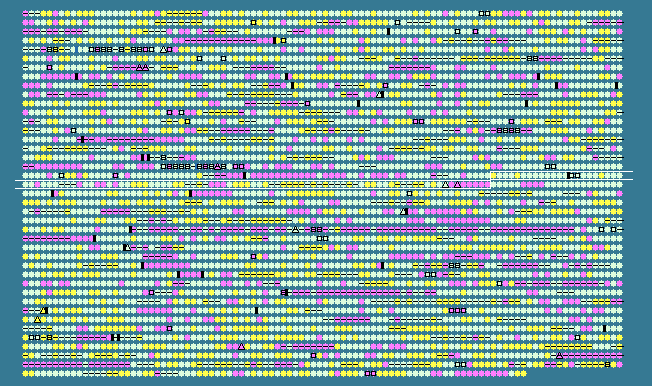

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.80 STD DEV: 5.38
Polaromonas naphthalenivorans CJ2, complete genome - 1..4410291
4084 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1879	 69.85	+1	2017502..2017972	+	156	121604798	-	Pnap_1896	-	CHRD domain-containing protein
1880	 65.07	0	2018240..2020624	+	794	121604799	-	Pnap_1897	-	radical SAM domain-containing protein
1881	 62.45	0	2020730..2021227	-	165	121604800	-	Pnap_1898	-	hypothetical protein
1882	 61.26	0	2021584..2023119	-	511	121604801	-	Pnap_1899	-	filamentation induced by cAMP protein Fic
1883	 67.78	0	2023210..2024109	-	299	121604802	-	Pnap_1900	-	L-carnitine dehydratase/bile acid-inducible protein F
1884	 63.12	0	2024260..2025444	-	394	121604803	-	Pnap_1901	-	4-hydroxybenzoate 3-monooxygenase
1885	 65.94	0	2025605..2026426	+	273	121604804	-	Pnap_1902	-	beta-ketoadipate pathway transcription regulator
1886	 64.76	0	2026438..2027172	-	244	121604805	-	Pnap_1903	-	ABC transporter related
1887	 62.61	0	2027169..2027933	-	254	121604806	-	Pnap_1904	-	ABC transporter related
1888	 62.93	0	2027926..2028942	-	338	121604807	-	Pnap_1905	-	inner-membrane translocator
1889	 63.31	0	2028939..2029802	-	287	121604808	-	Pnap_1906	-	inner-membrane translocator
1890	 62.54	0	2029847..2031034	-	395	121604809	-	Pnap_1907	-	extracellular ligand-binding receptor
1891	 59.39	0	2031195..2031689	-	164	121604810	-	Pnap_1908	-	flavodoxin/nitric oxide synthase
1892	 65.88	0	2032271..2032780	-	169	121604811	-	Pnap_1909	-	ISSod10, transposase OrfB
1893	 61.61	0	2032809..2033342	-	177	121604812	-	Pnap_1910	-	transposase and inactivated derivative
1894	 63.41	0	2033448..2034707	-	419	121604813	-	Pnap_1911	-	acyl-CoA dehydrogenase domain-containing protein
1895	 62.27	0	2034775..2035866	-	363	121604814	-	Pnap_1912	-	aminoglycoside phosphotransferase
1896	 63.91	0	2035897..2036622	-	241	121604815	-	Pnap_1913	-	CRP/FNR family transcriptional regulator
1897	 66.41	0	2036977..2037756	-	259	121604816	-	Pnap_1914	-	enoyl-CoA hydratase
1898	 64.94	0	2037758..2039320	-	520	121604817	-	Pnap_1915	-	3-hydroxybutyryl-CoA dehydrogenase
1899	 62.40	0	2039336..2040343	-	335	121604818	-	Pnap_1916	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
1900	 61.19	0	2040436..2040855	-	139	121604819	-	Pnap_1917	-	hypothetical protein
1901	 60.43	0	2040992..2041696	-	234	121604820	-	Pnap_1918	-	LexA repressor
1902	 60.77	0	2041822..2042787	+	321	121604821	-	Pnap_1919	-	asparaginase
1903	 57.84	0	2042834..2043490	-	218	121604822	adk	Pnap_1920	-	adenylate kinase
1904	 63.60	0	2043646..2044428	-	260	121604823	-	Pnap_1921	-	3-deoxy-D-manno-octulosonate cytidylyltransferase
1905	 59.56	0	2044436..2044618	-	60	121604824	-	Pnap_1922	-	hypothetical protein
1906	 63.57	0	2044599..2045630	-	343	121604825	-	Pnap_1923	-	tetraacyldisaccharide 4'-kinase
1907	 60.23	0	2045673..2046107	-	144	121604826	-	Pnap_1924	-	biopolymer transport protein ExbD/TolR
1908	 61.38	0	2046104..2046727	-	207	121604827	-	Pnap_1925	-	MotA/TolQ/ExbB proton channel
1909	 64.70	0	2047068..2048387	+	439	121604828	-	Pnap_1926	-	exodeoxyribonuclease VII, large subunit
1910	 57.04	-1	2048446..2049027	+	193	121604829	-	Pnap_1927	-	superoxide dismutase
1911	 59.60	0	2049097..2049591	-	164	121604830	-	Pnap_1928	-	hypothetical protein
1912	 60.46	0	2049705..2050010	-	101	121604831	-	Pnap_1929	-	TolA protein
1913	 55.98	-1	2050235..2051488	+	417	121604832	-	Pnap_1930	-	isocitrate dehydrogenase
1914	 56.44	-1	2051660..2051962	+	100	121604833	-	Pnap_1931	-	hypothetical protein
1915	 61.65	0	2052100..2052498	+	132	121604834	-	Pnap_1932	-	RNP-1 like RNA-binding protein
1916	 53.65	-1	2052978..2053415	+	145	121604835	-	Pnap_1933	-	ATP-dependent Clp protease adaptor protein ClpS
1917	 61.15	0	2053496..2055832	+	778	121604836	-	Pnap_1934	-	ATP-dependent Clp protease, ATP-binding subunit clpA
1918	 64.60	0	2056001..2057449	+	482	121604837	sbcB	Pnap_1935	-	exonuclease I
1919	 67.51	0	2057497..2058675	-	392	121604838	-	Pnap_1936	-	saccharopine dehydrogenase
1920	 66.44	0	2058816..2059247	+	143	121604839	-	Pnap_1937	-	AsnC family transcriptional regulator
1921	 67.39	0	2059251..2059937	-	228	121604840	-	Pnap_1938	-	glutathione S-transferase domain-containing protein
1922	 63.83	0	2059939..2060889	-	316	121604841	-	Pnap_1939	-	rhodanese domain-containing protein
1923	 65.67	0	2061041..2062342	+	433	121604842	-	Pnap_1940	-	PHB depolymerase family esterase
1924	 61.88	0	2062453..2062974	-	173	121604843	-	Pnap_1941	-	hypothetical protein
1925	 65.94	0	2063159..2065495	+	778	121604844	-	Pnap_1942	-	RNA-binding S1 domain-containing protein
1926	 67.11	0	2065635..2066771	-	378	121604845	-	Pnap_1943	-	iron-containing alcohol dehydrogenase
1927	 67.18	0	2066942..2067907	+	321	121604846	-	Pnap_1944	-	alpha/beta hydrolase domain-containing protein
1928	 60.69	0	2068883..2069836	-	317	121604847	-	Pnap_1946	-	glycine cleavage T protein (aminomethyl transferase)
1929	 61.41	0	2069925..2070932	+	335	121604848	-	Pnap_1947	-	aminodeoxychorismate lyase
1930	 67.18	0	2070935..2071717	+	260	121604849	-	Pnap_1948	-	dTMP kinase
1931	 64.44	0	2071714..2072835	+	373	121604850	-	Pnap_1949	-	DNA-directed DNA polymerase
1932	 54.07	-1	2072859..2073239	+	126	121604851	-	Pnap_1950	-	type IV pilus assembly PilZ
1933	 53.01	-1	2073271..2074068	+	265	121604852	-	Pnap_1951	-	TatD family hydrolase
1934	 53.72	-1	2074065..2074736	+	223	121604853	-	Pnap_1952	-	ankyrin
1935	 62.60	0	2074750..2076126	-	458	121604854	-	Pnap_1953	-	PAS/PAC sensor signal transduction histidine kinase
1936	 67.63	0	2076136..2077593	-	485	121604855	-	Pnap_1954	-	nickel-dependent hydrogenase, large subunit
1937	 66.77	0	2077590..2078600	-	336	121604856	-	Pnap_1955	-	NADH ubiquinone oxidoreductase, 20 kDa subunit
1938	 66.87	0	2078603..2080063	-	486	121604857	-	Pnap_1956	-	two component, sigma54 specific, Fis family transcriptional regulator
1939	 64.29	0	2080060..2081868	-	602	121604858	-	Pnap_1957	-	formyl transferase domain-containing protein
1940	 61.42	0	2081865..2082398	-	177	121604859	-	Pnap_1958	-	hypothetical protein
1941	 67.89	0	2082421..2083485	-	354	121604860	-	Pnap_1959	-	hydrogenase expression/formation protein HypE
1942	 62.83	0	2083482..2084627	-	381	121604861	-	Pnap_1960	-	hydrogenase expression/formation protein HypD
1943	 63.57	0	2084624..2084881	-	85	121604862	-	Pnap_1961	-	hydrogenase assembly chaperone hypC/hupF
1944	 70.94	+1	2084872..2086089	-	405	121604863	-	Pnap_1962	-	hydrogenase maturation protein HypF
1945	 66.46	0	2086095..2087081	-	328	121604864	-	Pnap_1963	-	hydrogenase accessory protein HypB
1946	 66.67	0	2087094..2087441	-	115	121604865	-	Pnap_1964	-	hydrogenase expression/synthesis, HypA
1947	 68.20	+1	2087434..2088606	-	390	121604866	-	Pnap_1965	-	hypothetical protein
1948	 66.11	0	2088599..2089141	-	180	121604867	-	Pnap_1966	-	hypothetical protein
1949	 68.72	+1	2089145..2089387	-	80	121604868	-	Pnap_1967	-	rubredoxin-type Fe(Cys)4 protein
1950	 65.17	0	2089384..2090250	-	288	121604869	-	Pnap_1968	-	HupH hydrogenase expression protein
1951	 68.43	+1	2090268..2090777	-	169	121604870	-	Pnap_1969	-	hydrogenase-1 expression HyaE
1952	 63.91	0	2090800..2091126	-	108	121604871	-	Pnap_1970	-	hydrogenase assembly chaperone hypC/hupF
1953	 65.33	0	2091134..2091805	-	223	121604872	-	Pnap_1971	-	hydrogenase expression/formation protein
1954	 62.89	0	2091892..2092632	-	246	121604873	-	Pnap_1972	-	Ni/Fe-hydrogenase, b-type cytochrome subunit
1955	 71.57	+1	2092648..2093238	-	196	121604874	-	Pnap_1973	-	HupE/UreJ protein
1956	 63.49	0	2093280..2095136	-	618	121604875	-	Pnap_1974	-	nickel-dependent hydrogenase, large subunit
1957	 64.02	0	2095169..2096263	-	364	121604876	-	Pnap_1975	-	hydrogenase (NiFe) small subunit HydA
1958	 70.80	+1	2096724..2099024	-	766	121604877	-	Pnap_1976	-	von Willebrand factor, type A
1959	 67.04	0	2099036..2099833	-	265	121604878	-	Pnap_1977	-	CbbQ/NirQ/NorQ C-terminal domain-containing protein
1960	 65.07	0	2099886..2101265	-	459	121604879	-	Pnap_1978	-	ribulose bisphosphate carboxylase
1961	 64.27	0	2101392..2102309	-	305	121604880	-	Pnap_1979	-	LysR family transcriptional regulator
1962	 68.24	+1	2102443..2103204	+	253	121604881	-	Pnap_1980	-	HAD family hydrolase
1963	 68.21	+1	2103214..2103924	+	236	121604882	-	Pnap_1981	-	ribulose-phosphate 3-epimerase
1964	 66.03	0	2103968..2105062	+	364	121604883	-	Pnap_1982	-	inositol phosphatase/fructose-1,6-bisphosphatase
1965	 63.62	0	2105150..2106034	+	294	121604884	-	Pnap_1983	-	phosphoribulokinase
1966	 68.35	+1	2106056..2108137	+	693	121604885	-	Pnap_1984	-	transketolase
1967	 66.82	0	2108151..2108822	+	223	121604886	-	Pnap_1985	-	phosphoglycolate phosphatase
1968	 63.42	0	2108893..2109909	+	338	121604887	-	Pnap_1986	-	glyceraldehyde-3-phosphate dehydrogenase, type I
1969	 66.83	0	2109906..2111108	+	400	121604888	-	Pnap_1987	-	phosphoglycerate kinase
1970	 64.80	0	2111190..2112206	+	338	121604889	-	Pnap_1988	-	fructose-1,6-bisphosphate aldolase
1971	 60.14	0	2112300..2113694	-	464	121604890	-	Pnap_1989	-	integrase catalytic subunit
1972	 53.65	-1	2113858..2114871	-	337	121604891	-	Pnap_1990	-	hypothetical protein
1973	 58.77	0	2114995..2116071	+	358	121604892	-	Pnap_1991	-	phage integrase family protein
1974	 50.11	-2	2116186..2117121	+	311	121604893	-	Pnap_1992	-	putative signal peptide protein
1975	 54.61	-1	2117340..2119529	+	729	121604894	-	Pnap_1993	-	catalase
1976	 57.07	-1	2119577..2120503	-	308	121604895	-	Pnap_1994	-	putative adenylate/guanylate cyclase
1977	 54.09	-1	2120695..2121036	+	113	121604896	-	Pnap_1995	-	hypothetical protein
1978	 56.77	-1	2121074..2122033	-	319	121604897	-	Pnap_1996	-	muramoyltetrapeptide carboxypeptidase
62.80	MEAN

5.38	STD DEV
