IslandPathversion 1.0

IslandPath Analysis: Polaromonas naphthalenivorans CJ2

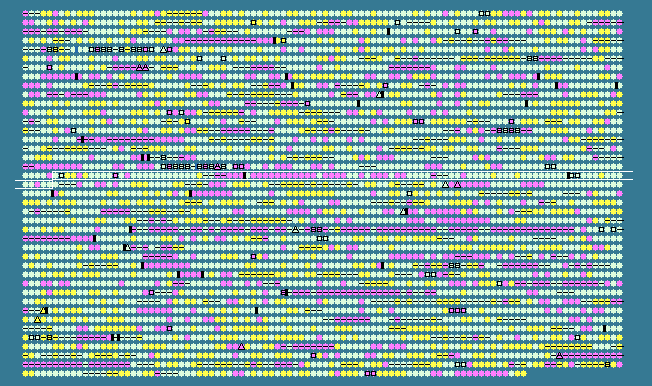

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.80 STD DEV: 5.38
Polaromonas naphthalenivorans CJ2, complete genome - 1..4410291
4084 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1806	 61.31	0	1943103..1943531	+	142	121604725	-	Pnap_1823	-	PilT domain-containing protein
1807	 66.25	0	1943648..1944124	-	158	121604726	-	Pnap_1824	-	putative transposase of insertion sequence ISRm10-1
1808	 68.35	+1	1944186..1944602	-	138	121604727	-	Pnap_1825	-	hypothetical protein
1809	 67.00	0	1945022..1945921	-	299	121604728	-	Pnap_1826	-	aldose 1-epimerase
1810	 58.55	0	1945960..1946649	-	229	121604729	-	Pnap_1827	-	OmpW family protein
1811	 66.85	0	1946669..1948285	-	538	121604730	-	Pnap_1828	-	hypothetical protein
1812	 62.86	0	1948433..1949167	+	244	121604731	-	Pnap_1829	-	hypothetical protein
1813	 63.64	0	1949301..1951847	+	848	121604732	-	Pnap_1830	-	catalase
1814	 60.61	0	1951911..1952702	-	263	121604733	-	Pnap_1831	-	PpiC-type peptidyl-prolyl cis-trans isomerase
1815	 61.33	0	1952788..1953087	-	99	121604734	-	Pnap_1832	-	BolA family protein
1816	 58.54	0	1953201..1954307	+	368	121604735	-	Pnap_1833	-	IS605 family transposase OrfB
1817	 60.13	0	1954320..1954946	-	208	121604736	-	Pnap_1834	-	intracellular septation protein A
1818	 57.91	0	1955019..1955429	-	136	121604737	-	Pnap_1835	-	methionine-R-sulfoxide reductase
1819	 63.79	0	1955463..1956956	-	497	121604738	-	Pnap_1836	-	hypothetical protein
1820	 61.93	0	1957151..1958776	+	541	121604739	-	Pnap_1837	-	acyl-CoA synthetase
1821	 64.47	0	1958853..1959806	+	317	121604740	-	Pnap_1838	-	inner-membrane translocator
1822	 61.30	0	1959812..1961116	+	434	121604741	-	Pnap_1839	-	inner-membrane translocator
1823	 62.17	0	1961113..1961913	+	266	121604742	-	Pnap_1840	-	ABC transporter related
1824	 63.51	0	1961915..1962610	+	231	121604743	-	Pnap_1841	-	ABC transporter related
1825	 62.52	0	1962822..1964921	+	699	121604744	-	Pnap_1842	-	3-hydroxyacyl-CoA dehydrogenase, NAD-binding
1826	 66.07	0	1964964..1966139	+	391	121604745	-	Pnap_1843	-	acetyl-CoA acetyltransferase
1827	 65.66	0	1966374..1967165	+	263	121604746	-	Pnap_1844	-	gluconate 5-dehydrogenase
1828	 65.09	0	1967170..1967613	+	147	121604747	-	Pnap_1845	-	hypothetical protein
1829	 65.39	0	1967729..1968745	+	338	121604748	-	Pnap_1846	-	alcohol dehydrogenase
1830	 66.42	0	1968768..1970420	+	550	121604749	-	Pnap_1847	-	acyl-CoA dehydrogenase domain-containing protein
1831	 64.56	0	1970452..1971399	+	315	121604750	-	Pnap_1848	-	putative glutathione S-transferase-related protein
1832	 62.44	0	1971396..1971845	+	149	121604751	-	Pnap_1849	-	GCN5-related N-acetyltransferase
1833	 57.00	-1	1971846..1972145	-	99	121604752	-	Pnap_1850	-	hypothetical protein
1834	 55.39	-1	1972603..1973391	+	262	121604753	-	Pnap_1851	-	two component LuxR family transcriptional regulator
1835	 54.46	-1	1973437..1973772	+	111	121604754	-	Pnap_1852	-	hypothetical protein
1836	 54.95	-1	1973826..1974431	+	201	121604755	-	Pnap_1853	-	Fis family transcriptional regulator
1837	 57.97	0	1974599..1975828	-	409	121604756	-	Pnap_1854	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
1838	 63.33	0	1976450..1976899	-	149	121604757	-	Pnap_1855	-	hypothetical protein
1839	 57.95	0	1977412..1980303	+	963	121604758	kgd	Pnap_1856	-	alpha-ketoglutarate decarboxylase
1840	 57.72	0	1980352..1981614	+	420	121604759	-	Pnap_1857	-	dihydrolipoamide acetyltransferase
1841	 57.28	-1	1981645..1983114	+	489	121604760	-	Pnap_1858	-	dihydrolipoamide dehydrogenase
1842	 55.53	-1	1983134..1984237	+	367	121604761	-	Pnap_1859	-	AFG1 family ATPase
1843	 58.10	0	1984462..1984881	+	139	121604762	-	Pnap_1860	-	hypothetical protein
1844	 51.52	-2	1984891..1985649	-	252	121604763	-	Pnap_1861	-	protein phosphatase 2C domain-containing protein
1845	 52.94	-1	1985730..1985933	+	67	121604764	-	Pnap_1862	-	hypothetical protein
1846	 56.30	-1	1985933..1987939	+	668	121604765	-	Pnap_1863	-	helicase c2
1847	 55.15	-1	1987902..1988726	-	274	121604766	-	Pnap_1864	-	putative transmembrane protein
1848	 58.74	0	1988744..1989778	+	344	121604767	-	Pnap_1865	-	RluA family pseudouridine synthase
1849	 56.31	-1	1989882..1990547	+	221	121604768	-	Pnap_1866	-	putative transcriptional regulator
1850	 62.12	0	1990586..1992169	+	527	121604769	-	Pnap_1867	-	pseudouridine synthase
1851	 56.34	-1	1992298..1992723	+	141	121604770	-	Pnap_1868	-	nucleoside-diphosphate kinase
1852	 58.05	0	1992803..1993951	+	382	121604771	-	Pnap_1869	-	radical SAM protein
1853	 57.62	0	1993948..1994754	+	268	121604772	-	Pnap_1870	-	type IV pilus biogenesis/stability protein PilW
1854	 57.96	0	1994765..1995694	+	309	121604773	-	Pnap_1871	-	hypothetical protein
1855	 61.49	0	1995694..1996968	+	424	121604774	ispG	Pnap_1872	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1856	 61.56	0	1996974..1998344	+	456	121604775	-	Pnap_1873	-	histidyl-tRNA synthetase
1857	 58.44	0	1998413..1999105	+	230	121604776	-	Pnap_1874	-	hypothetical protein
1858	 62.04	0	1999102..2000247	+	381	121604777	-	Pnap_1875	-	Pyrrolo-quinoline quinone
1859	 58.82	0	2000282..2001619	+	445	121604778	-	Pnap_1876	-	small GTP-binding protein
1860	 48.15	-2	2001676..2001945	+	89	121604779	-	Pnap_1877	-	RNA chaperone Hfq
1861	 57.38	-1	2001963..2003114	+	383	121604780	-	Pnap_1878	-	GTP-binding protein, HSR1-related
1862	 60.17	0	2003180..2004595	+	471	121604781	-	Pnap_1879	-	HflK protein
1863	 57.56	0	2004608..2005507	+	299	121604782	-	Pnap_1880	-	HflC protein
1864	 58.73	0	2005520..2005708	+	62	121604783	-	Pnap_1881	-	hypothetical protein
1865	 64.96	0	2005860..2007029	+	389	121604784	-	Pnap_1882	-	tRNA synthetase, class II (G, H, P and S)
1866	 65.47	0	2007118..2008458	+	446	121604785	-	Pnap_1883	-	adenylosuccinate synthetase
1867	 60.57	0	2008536..2009060	+	174	121604786	-	Pnap_1884	-	phosphoribosyltransferase
1868	 65.83	0	2009191..2010384	+	397	121604787	-	Pnap_1885	-	cystathionine beta-lyase
1869	 57.14	-1	2010453..2010641	+	62	121604788	-	Pnap_1886	-	hypothetical protein
1870	 63.83	0	2010785..2011843	-	352	121604789	-	Pnap_1887	-	tRNA 2-selenouridine synthase
1871	 64.89	0	2011840..2012457	-	205	121604790	-	Pnap_1888	-	GDSL family lipase
1872	 63.32	0	2012582..2013298	+	238	121604791	-	Pnap_1889	-	ABC transporter related
1873	 66.14	0	2013429..2014190	+	253	121604792	-	Pnap_1890	-	RNA methyltransferase
1874	 50.19	-2	2014293..2014553	-	86	121604793	-	Pnap_1891	-	hypothetical protein
1875	 63.05	0	2014716..2015102	+	128	121604794	-	Pnap_1892	-	cytochrome c, class I
1876	 61.77	0	2015120..2015446	-	108	121604795	-	Pnap_1893	-	hypothetical protein
1877	 63.67	0	2015745..2016677	-	310	121604796	-	Pnap_1894	-	Ku domain-containing protein
1878	 65.20	0	2016680..2017294	-	204	121604797	-	Pnap_1895	-	PfpI family intracellular peptidase
1879	 69.85	+1	2017502..2017972	+	156	121604798	-	Pnap_1896	-	CHRD domain-containing protein
1880	 65.07	0	2018240..2020624	+	794	121604799	-	Pnap_1897	-	radical SAM domain-containing protein
1881	 62.45	0	2020730..2021227	-	165	121604800	-	Pnap_1898	-	hypothetical protein
1882	 61.26	0	2021584..2023119	-	511	121604801	-	Pnap_1899	-	filamentation induced by cAMP protein Fic
1883	 67.78	0	2023210..2024109	-	299	121604802	-	Pnap_1900	-	L-carnitine dehydratase/bile acid-inducible protein F
1884	 63.12	0	2024260..2025444	-	394	121604803	-	Pnap_1901	-	4-hydroxybenzoate 3-monooxygenase
1885	 65.94	0	2025605..2026426	+	273	121604804	-	Pnap_1902	-	beta-ketoadipate pathway transcription regulator
1886	 64.76	0	2026438..2027172	-	244	121604805	-	Pnap_1903	-	ABC transporter related
1887	 62.61	0	2027169..2027933	-	254	121604806	-	Pnap_1904	-	ABC transporter related
1888	 62.93	0	2027926..2028942	-	338	121604807	-	Pnap_1905	-	inner-membrane translocator
1889	 63.31	0	2028939..2029802	-	287	121604808	-	Pnap_1906	-	inner-membrane translocator
1890	 62.54	0	2029847..2031034	-	395	121604809	-	Pnap_1907	-	extracellular ligand-binding receptor
1891	 59.39	0	2031195..2031689	-	164	121604810	-	Pnap_1908	-	flavodoxin/nitric oxide synthase
1892	 65.88	0	2032271..2032780	-	169	121604811	-	Pnap_1909	-	ISSod10, transposase OrfB
1893	 61.61	0	2032809..2033342	-	177	121604812	-	Pnap_1910	-	transposase and inactivated derivative
1894	 63.41	0	2033448..2034707	-	419	121604813	-	Pnap_1911	-	acyl-CoA dehydrogenase domain-containing protein
1895	 62.27	0	2034775..2035866	-	363	121604814	-	Pnap_1912	-	aminoglycoside phosphotransferase
1896	 63.91	0	2035897..2036622	-	241	121604815	-	Pnap_1913	-	CRP/FNR family transcriptional regulator
1897	 66.41	0	2036977..2037756	-	259	121604816	-	Pnap_1914	-	enoyl-CoA hydratase
1898	 64.94	0	2037758..2039320	-	520	121604817	-	Pnap_1915	-	3-hydroxybutyryl-CoA dehydrogenase
1899	 62.40	0	2039336..2040343	-	335	121604818	-	Pnap_1916	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
1900	 61.19	0	2040436..2040855	-	139	121604819	-	Pnap_1917	-	hypothetical protein
1901	 60.43	0	2040992..2041696	-	234	121604820	-	Pnap_1918	-	LexA repressor
1902	 60.77	0	2041822..2042787	+	321	121604821	-	Pnap_1919	-	asparaginase
1903	 57.84	0	2042834..2043490	-	218	121604822	adk	Pnap_1920	-	adenylate kinase
1904	 63.60	0	2043646..2044428	-	260	121604823	-	Pnap_1921	-	3-deoxy-D-manno-octulosonate cytidylyltransferase
1905	 59.56	0	2044436..2044618	-	60	121604824	-	Pnap_1922	-	hypothetical protein
62.80	MEAN

5.38	STD DEV
