IslandPathversion 1.0

IslandPath Analysis: Polaromonas naphthalenivorans CJ2

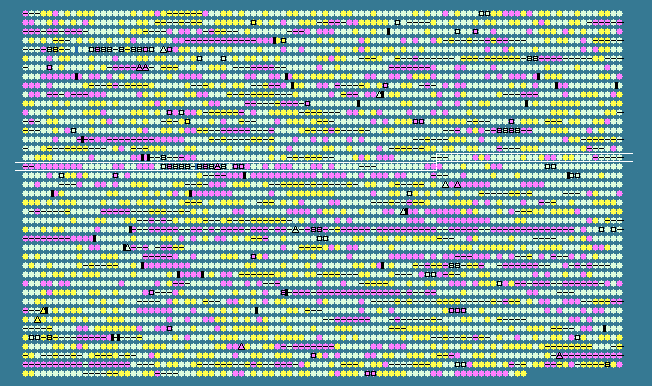

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.80 STD DEV: 5.38
Polaromonas naphthalenivorans CJ2, complete genome - 1..4410291
4084 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1670	 63.88	0	1783332..1784084	-	250	121604589	-	Pnap_1684	-	hypothetical protein
1671	 62.94	0	1784081..1784698	-	205	121604590	-	Pnap_1685	-	ECF subfamily RNA polymerase sigma-24 factor
1672	 59.61	0	1785118..1785684	+	188	121604591	-	Pnap_1686	-	hypothetical protein
1673	 65.85	0	1785767..1787113	-	448	121604592	-	Pnap_1687	-	molybdenum cofactor synthesis domain-containing protein
1674	 65.12	0	1787110..1787754	-	214	121604593	mobA	Pnap_1688	-	molybdopterin-guanine dinucleotide biosynthesis protein A
1675	 64.63	0	1787916..1789046	-	376	121604594	moaA	Pnap_1689	-	molybdenum cofactor biosynthesis protein A
1676	 58.92	0	1789189..1790337	-	382	121604595	-	Pnap_1690	-	extracellular ligand-binding receptor
1677	 66.74	0	1790552..1791988	-	478	121604596	-	Pnap_1691	-	aldehyde dehydrogenase
1678	 58.17	0	1792034..1792492	-	152	121604597	-	Pnap_1692	-	hypothetical protein
1679	 61.29	0	1792507..1792878	-	123	121604598	-	Pnap_1693	-	response regulator receiver protein
1680	 62.48	0	1792923..1795070	-	715	121604599	-	Pnap_1694	-	CheA signal transduction histidine kinases
1681	 65.23	0	1795471..1795956	-	161	121604600	-	Pnap_1695	-	thioesterase superfamily protein
1682	 64.74	0	1796137..1797120	-	327	121604601	-	Pnap_1696	-	hypothetical protein
1683	 66.11	0	1797177..1797893	-	238	121604602	-	Pnap_1697	-	hypothetical protein
1684	 66.78	0	1797909..1799648	-	579	121604603	-	Pnap_1698	-	dihydroxy-acid dehydratase
1685	 59.34	0	1799994..1801439	+	481	121604604	-	Pnap_1699	-	HNH endonuclease
1686	 63.74	0	1801436..1802152	+	238	121604605	-	Pnap_1700	-	GntR family transcriptional regulator
1687	 66.67	0	1802294..1804534	-	746	121604606	hppA	Pnap_1701	-	membrane-bound proton-translocating pyrophosphatase
1688	 56.72	-1	1804796..1805338	+	180	121604607	-	Pnap_1702	-	inorganic diphosphatase
1689	 59.14	0	1805475..1809701	+	1408	121604608	-	Pnap_1703	-	signal transduction histidine kinase with CheB and CheR activity
1690	 63.14	0	1809797..1810504	+	235	121604609	-	Pnap_1704	-	hypothetical protein
1691	 67.13	0	1810528..1811382	-	284	121604610	-	Pnap_1705	-	hypothetical protein
1692	 69.53	+1	1811514..1812350	-	278	121604611	-	Pnap_1706	-	hypothetical protein
1693	 63.64	0	1812389..1812718	-	109	121604612	-	Pnap_1707	-	hypothetical protein
1694	 65.47	0	1812715..1813971	-	418	121604613	-	Pnap_1708	-	hypothetical protein
1695	 64.25	0	1814007..1815704	+	565	121604614	-	Pnap_1709	-	NAD+ synthetase
1696	 56.47	-1	1815733..1816134	+	133	121604615	-	Pnap_1710	-	nitrogen regulatory protein P-II
1697	 63.07	0	1816141..1816752	-	203	121604616	-	Pnap_1711	-	hypothetical protein
1698	 63.53	0	1816749..1817162	-	137	121604617	-	Pnap_1712	-	diacylglycerol kinase
1699	 60.68	0	1817191..1817691	-	166	121604618	-	Pnap_1713	-	RDD domain-containing protein
1700	 59.59	0	1817816..1818550	-	244	121604619	-	Pnap_1714	-	putative transmembrane protein
1701	 56.38	-1	1818547..1818993	-	148	121604620	-	Pnap_1715	-	putative transmembrane protein
1702	 52.56	-1	1818990..1819556	-	188	121604621	-	Pnap_1716	-	RNA polymerase factor sigma-70
1703	 59.13	0	1819887..1821665	+	592	121604622	-	Pnap_1717	-	acetolactate synthase 3 catalytic subunit
1704	 56.71	-1	1821774..1822265	+	163	121604623	ilvH	Pnap_1718	-	acetolactate synthase 3 regulatory subunit
1705	 58.90	0	1822336..1823352	+	338	121604624	-	Pnap_1719	-	ketol-acid reductoisomerase
1706	 56.46	-1	1823586..1824398	+	270	121604625	-	Pnap_1720	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
1707	 56.21	-1	1824667..1826205	+	512	121604626	-	Pnap_1721	-	2-isopropylmalate synthase
1708	 54.85	-1	1826401..1827492	+	363	121604627	-	Pnap_1722	-	peptidase S11, D-alanyl-D-alanine carboxypeptidase 1
1709	 58.97	0	1827624..1828403	-	259	121604628	-	Pnap_1723	-	regulatory proteins, IclR
1710	 58.79	0	1828494..1829255	-	253	121604629	-	Pnap_1724	-	arginyl-tRNA-protein transferase
1711	 61.30	0	1829252..1830034	-	260	121604630	aat	Pnap_1725	-	leucyl/phenylalanyl-tRNA--protein transferase
1712	 60.00	0	1830084..1830713	-	209	121604631	-	Pnap_1726	-	uracil phosphoribosyltransferase
1713	 64.62	0	1830752..1832269	-	505	121604632	-	Pnap_1727	-	protein of unknown function DUF853, NPT hydrolase putative
1714	 59.37	0	1832364..1833089	+	241	121604633	-	Pnap_1728	-	hypothetical protein
1715	 62.57	0	1833128..1834420	+	430	121604634	-	Pnap_1729	-	phosphoribosylamine--glycine ligase
1716	 57.90	0	1834430..1835353	+	307	121604635	-	Pnap_1730	-	coproporphyrinogen III oxidase
1717	 57.24	-1	1835732..1836601	+	289	121604636	-	Pnap_1732	-	iojap-like protein
1718	 59.40	0	1836598..1837065	+	155	121604637	-	Pnap_1733	-	hypothetical protein
1719	 60.20	0	1837087..1837689	+	200	121604638	-	Pnap_1734	-	Maf-like protein
1720	 53.13	-1	1837708..1839207	+	499	121604639	-	Pnap_1735	-	ribonuclease
1721	 53.47	-1	1839227..1839976	+	249	121604640	-	Pnap_1736	-	polysaccharide deacetylase
1722	 52.97	-1	1839973..1841184	+	403	121604641	-	Pnap_1737	-	glycosyl transferase, group 1
1723	 60.20	0	1841281..1841481	+	66	121604642	-	Pnap_1738	-	hypothetical protein
1724	 60.02	0	1841486..1842523	-	345	121604643	-	Pnap_1739	-	ISXo7 transposase
1725	 55.35	-1	1842594..1843079	+	161	121604644	-	Pnap_1740	-	putative transposase
1726	 63.62	0	1845660..1846151	+	163	121604645	-	Pnap_1743	-	transposase
1727	 61.73	0	1846260..1847615	-	451	121604646	-	Pnap_1744	-	putative transposase
1728	 59.35	0	1847696..1847941	+	81	121604647	-	Pnap_1745	-	transposase
1729	 64.10	0	1847997..1848971	+	324	121604648	-	Pnap_1746	-	insertion element protein
1730	 64.75	0	1855409..1856449	-	346	121604649	-	Pnap_1747	-	transposase IS116/IS110/IS902 family protein
1731	 59.08	0	1856821..1857888	-	355	121604650	-	Pnap_1748	-	transposase IS116/IS110/IS902 family protein
1732	 63.70	0	1858093..1859373	-	426	121604651	-	Pnap_1749	-	transposase, IS4 family protein
1733	 57.74	0	1859498..1860886	+	462	121604652	-	Pnap_1750	-	integrase catalytic subunit
1734	 59.74	0	1861100..1862182	+	360	121604653	-	Pnap_1751	-	transposase IS116/IS110/IS902 family protein
1735	 63.53	0	1862292..1863629	-	445	121604654	-	Pnap_1752	-	hypothetical protein
1736	 55.46	-1	1863929..1864276	-	115	121604655	-	Pnap_1753	-	ISCc1, transposase OrfB
1737	 58.96	0	1864249..1864728	-	159	121604656	-	Pnap_1754	-	transposase
1738	 56.29	-1	1864794..1865381	-	195	121604657	-	Pnap_1755	-	peptidoglycan-binding LysM
1739	 64.44	0	1865432..1866691	-	419	121604658	-	Pnap_1756	-	D-amino-acid dehydrogenase
1740	 65.41	0	1866807..1868159	-	450	121604659	-	Pnap_1757	-	amidase
1741	 56.71	-1	1868306..1869058	+	250	121604660	-	Pnap_1758	-	ribosomal protein S2
1742	 59.61	0	1869188..1870108	+	306	121604661	-	Pnap_1759	-	translation elongation factor Ts
1743	 58.23	0	1870170..1870880	+	236	121604662	pyrH	Pnap_1760	-	uridylate kinase
1744	 57.58	0	1870953..1871513	+	186	121604663	-	Pnap_1761	-	ribosome recycling factor
1745	 57.68	0	1871542..1872264	+	240	121604664	-	Pnap_1762	-	undecaprenyl diphosphate synthase
1746	 62.82	0	1872282..1873112	+	276	121604665	-	Pnap_1763	-	phosphatidate cytidylyltransferase
1747	 61.03	0	1873138..1874325	+	395	121604666	-	Pnap_1764	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1748	 61.58	0	1874327..1875703	+	458	121604667	-	Pnap_1765	-	putative membrane-associated zinc metalloprotease
1749	 56.84	-1	1875718..1878018	+	766	121604668	-	Pnap_1766	-	surface antigen (D15)
1750	 55.23	-1	1878018..1878524	+	168	121604669	-	Pnap_1767	-	outer membrane chaperone Skp (OmpH)
1751	 62.83	0	1878572..1879639	+	355	121604670	-	Pnap_1768	-	UDP-3-O-(3-hydroxymyristoyl) glucosamine N-acyltransferase
1752	 56.01	-1	1879636..1880076	+	146	121604671	-	Pnap_1769	-	beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabZ
1753	 63.47	0	1880088..1880900	+	270	121604672	-	Pnap_1770	-	acyl-(acyl-carrier-protein)--UDP-N-acetylglucosamine O-acyltransferase
1754	 61.82	0	1880908..1882104	+	398	121604673	-	Pnap_1771	-	lipid-A-disaccharide synthase
1755	 62.52	0	1882076..1882702	+	208	121604674	-	Pnap_1772	-	ribonuclease H
1756	 61.54	0	1882699..1883478	+	259	121604675	-	Pnap_1773	-	tRNA/rRNA methyltransferase (SpoU)
1757	 60.83	0	1883634..1884815	+	393	121604676	-	Pnap_1774	-	carbamoyl phosphate synthase small subunit
1758	 62.90	0	1884808..1888050	+	1080	121604677	-	Pnap_1775	-	carbamoyl-phosphate synthase, large subunit
1759	 62.47	0	1888171..1888647	+	158	121604678	-	Pnap_1776	-	transcription elongation factor GreA
1760	 63.72	0	1888647..1889087	+	146	121604679	-	Pnap_1777	-	putative transmembrane protein
1761	 64.54	0	1889136..1889981	-	281	121604680	-	Pnap_1778	-	methenyltetrahydrofolate cyclohydrolase
1762	 60.61	0	1890068..1890694	-	208	121604681	-	Pnap_1779	-	response regulator receiver protein
1763	 62.89	0	1890741..1893311	-	856	121604682	-	Pnap_1780	-	multi-sensor signal transduction histidine kinase
1764	 61.79	0	1893611..1896340	+	909	121604683	aceE	Pnap_1781	-	pyruvate dehydrogenase subunit E1
1765	 64.03	0	1896383..1898089	+	568	121604684	-	Pnap_1782	-	pyruvate dehydrogenase complex dihydrolipoamide acetyltransferase
1766	 59.90	0	1898086..1898676	+	196	121604685	-	Pnap_1783	-	20S proteasome, A and B subunits
1767	 65.81	0	1898673..1900538	+	621	121604686	-	Pnap_1784	-	dihydrolipoamide dehydrogenase
1768	 55.56	-1	1900715..1901245	-	176	121604687	-	Pnap_1785	-	hypothetical protein
1769	 58.39	0	1901287..1901733	+	148	121604688	-	Pnap_1786	-	pyridine nucleotide-disulphide oxidoreductase dimerisation region
62.80	MEAN

5.38	STD DEV
