IslandPath Analysis: Porphyromonas gingivalis W83

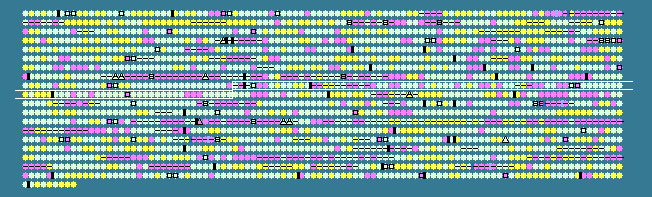

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.73 STD DEV: 4.83
Porphyromonas gingivalis W83, complete genome - 1..2343476
1909 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
836	 47.00	0	1025201..1025866	-	221	34540716	-	PG0965	-	phosphatidylserine decarboxylase
837	 39.98	-1	1026968..1027885	+	305	34540717	mrr	PG0968	-	Mrr restriction system protein
838	 51.97	0	1028291..1029508	-	405	34540718	-	PG0969	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase, putative
839	 45.77	0	1029746..1030903	+	385	34540719	-	PG0970	-	ISPg4, transposase
840	 38.23	-2	1031086..1032801	+	571	34540720	-	PG0971	-	McrBC restriction endonuclease system, McrB subunit, putative
841	 39.74	-1	1032808..1034103	+	431	34540721	-	PG0972	-	hypothetical protein
842	 51.68	0	1034307..1036622	+	771	34540722	-	PG0973	-	alpha-1,2-mannosidase family protein
843	 53.37	0	1037424..1038416	+	330	34540723	-	PG0975	-	PhoH family protein
844	 52.02	0	1038466..1039407	+	313	34540724	hemH	PG0976	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
845	 49.32	0	1039439..1040176	+	245	34540725	ubiE	PG0977	-	ubiquinone/menaquinone biosynthesis methyltransferase
846	 52.80	0	1040173..1040922	+	249	34540726	aroE	PG0978	-	shikimate 5-dehydrogenase
847	 54.72	+1	1040892..1041050	+	52	34540727	-	PG0979	-	hypothetical protein
848	 51.83	0	1041037..1043274	+	745	34540728	-	PG0980	-	hypothetical protein
849	 36.88	-2	1044450..1046702	+	750	34540729	-	PG0982	-	TPR domain-containing protein
850	 42.51	-1	1046803..1047009	-	68	34540730	-	PG0984	-	hypothetical protein
851	 55.82	+1	1047070..1047576	+	168	34540731	-	PG0985	-	ECF subfamily RNA polymerase sigma factor
852	 53.30	0	1047566..1048126	+	186	34540732	-	PG0986	-	hypothetical protein
853	 47.62	0	1048142..1048918	+	258	34540733	-	PG0987	-	hypothetical protein
854	 45.98	0	1050789..1051136	-	115	34540734	rplT	PG0989	-	50S ribosomal protein L20
855	 42.93	-1	1051249..1051446	-	65	34540735	rpmI	PG0990	-	50S ribosomal protein L35
856	 45.05	0	1051524..1052129	-	201	34540736	infC	PG0991	-	translation initiation factor IF-3
857	 47.40	0	1052233..1054194	-	653	34540737	thrS	PG0992	-	threonyl-tRNA synthetase
858	 34.34	-2	1055061..1055159	+	32	34540738	-	PG0994	-	hypothetical protein
859	 39.32	-1	1055559..1055675	-	38	34540739	-	PG0995	-	hypothetical protein
860	 50.17	0	1055732..1056640	+	302	34540740	-	PG0996	-	hypothetical protein
861	 50.19	0	1056806..1057072	+	88	34540741	-	PG0997	-	transcriptional regulator, putative
862	 44.79	0	1057069..1057164	+	31	34540742	-	PG0998	-	hypothetical protein
863	 37.36	-2	1057166..1057711	+	181	34540743	-	PG0999	-	hypothetical protein
864	 47.24	0	1057734..1058366	+	210	34540744	-	PG1000	-	hypothetical protein
865	 47.11	0	1058370..1058906	+	178	34540745	-	PG1001	-	hypothetical protein
866	 45.48	0	1058911..1059297	+	128	34540746	-	PG1002	-	hypothetical protein
867	 44.91	0	1059372..1060364	+	330	34540747	-	PG1003	-	hypothetical protein
868	 51.54	0	1060523..1062802	-	759	34540748	-	PG1004	-	prolyl oligopeptidase family protein
869	 52.36	0	1063113..1063853	-	246	34540749	-	PG1005	-	putative lipoprotein
870	 50.65	0	1063884..1066568	-	894	34540750	-	PG1006	-	hypothetical protein
871	 50.54	0	1066608..1066979	-	123	34540751	-	PG1007	-	GntR family transcriptional regulator
872	 48.09	0	1066976..1067734	-	252	34540752	-	PG1008	-	hypothetical protein
873	 43.63	-1	1067731..1068585	-	284	34540753	-	PG1009	-	hypothetical protein
874	 49.52	0	1068599..1069426	-	275	34540754	-	PG1010	-	ABC transporter, ATP-binding protein
875	 54.53	+1	1070179..1071570	-	463	34540755	-	PG1012	-	tRNA-i(6)A37 modification enzyme MiaB
876	 51.84	0	1071874..1073370	+	498	34540756	-	PG1013	-	acetyl-CoA hydrolase/transferase family protein
877	 44.41	0	1073903..1075915	+	670	34540757	-	PG1014	-	TPR domain-containing protein
878	 45.14	0	1075967..1076110	-	47	34540758	-	PG1015	-	hypothetical protein
879	 53.65	+1	1076278..1079004	+	908	34540759	ppdK	PG1017	-	pyruvate phosphate dikinase
880	 41.42	-1	1079034..1079342	+	102	34540760	-	PG1018	-	hypothetical protein
881	 48.22	0	1079355..1080536	+	393	34540761	-	PG1019	-	putative lipoprotein
882	 49.63	0	1080708..1083518	+	936	34540762	-	PG1020	-	hypothetical protein
883	 48.99	0	1083485..1083682	-	65	34540763	-	PG1021	-	hypothetical protein
884	 52.36	0	1083677..1085158	+	493	34540764	-	PG1022	-	hypothetical protein
885	 42.42	-1	1086838..1086936	+	32	34540765	-	PG1024	-	hypothetical protein
886	 44.08	0	1087281..1088369	+	362	34540766	-	PG1025	-	hypothetical protein
887	 41.80	-1	1088317..1089048	+	243	34540767	-	PG1026	-	hypothetical protein
888	 45.27	0	1089287..1089529	-	80	34540768	-	PG1027	-	hypothetical protein
889	 48.85	0	1089810..1091156	+	448	34540769	-	PG1028	-	TPR domain-containing protein
890	 36.72	-2	1091220..1091396	+	58	34540770	-	PG1029	-	hypothetical protein
891	 41.31	-1	1091540..1092880	+	446	34540771	-	PG1030	-	hypothetical protein
892	 48.16	0	1093171..1094256	-	361	34540772	-	PG1031	-	ISPg1, transposase
893	 40.75	-1	1094473..1095375	+	300	34540773	-	PG1032	-	ISPg3, transposase
894	 46.85	0	1095538..1096284	+	248	34540774	-	PG1033	-	hypothetical protein
895	 47.89	0	1096303..1097037	+	244	34540775	-	PG1034	-	ABC transporter, ATP-binding protein
896	 48.56	0	1097015..1098505	+	496	34540776	-	PG1035	-	hypothetical protein
897	 46.63	0	1098576..1101479	+	967	34540777	uvrA-1	PG1036	-	excinuclease ABC, A subunit
898	 47.10	0	1101505..1102884	+	459	34540778	-	PG1037	-	hypothetical protein
899	 48.52	0	1102884..1105181	+	765	34540779	-	PG1038	-	ATP-dependent DNA helicase UvrD/PcrA/Rep family
900	 47.51	0	1105415..1107142	-	575	34540780	-	PG1039	-	integral membrane protein
901	 56.34	+1	1107575..1108039	-	154	34540781	-	PG1040	-	transcriptional regulator, putative
902	 50.73	0	1108060..1109013	-	317	34540782	-	PG1041	-	K+-dependent Na+/Ca+ exchanger related-protein
903	 54.83	+1	1109082..1110728	-	548	34540783	-	PG1042	-	glycogen synthase, putative
904	 53.90	+1	1110765..1112942	-	725	34540784	feoB-1	PG1043	-	ferrous iron transport protein B
905	 53.38	0	1112976..1113908	-	310	34540785	-	PG1044	-	iron dependent repressor, putative
906	 48.87	0	1115296..1116486	+	396	34540786	-	PG1048	-	N-acetylmuramoyl-L-alanine amidase
907	 46.87	0	1116527..1117405	+	292	34540787	-	PG1049	-	hypothetical protein
908	 48.38	0	1117412..1118308	+	298	34540788	-	PG1050	-	hypothetical protein
909	 44.92	0	1118350..1119765	+	471	34540789	-	PG1051	-	hypothetical protein
910	 48.18	0	1119830..1120186	+	118	34540790	-	PG1052	-	transcriptional regulator, putative
911	 47.89	0	1120205..1120891	+	228	34540791	-	PG1053	-	transcriptional regulator, putative
912	 44.05	0	1121292..1122737	-	481	34540792	tpr	PG1055	-	thiol protease
913	 51.43	0	1123120..1123539	+	139	34540793	-	PG1056	-	hypothetical protein
914	 49.16	0	1123559..1124152	+	197	34540794	-	PG1057	-	hypothetical protein
915	 51.71	0	1124174..1126192	+	672	34540795	-	PG1058	-	OmpA family protein
916	 49.00	0	1126286..1126585	-	99	34540796	-	PG1059	-	hypothetical protein
917	 47.25	0	1126798..1128507	+	569	34540797	-	PG1060	-	carboxyl-terminal protease
918	 43.16	-1	1128820..1129908	-	362	34540798	-	PG1061	-	ISPg6, transposase
919	 45.58	0	1131196..1131636	+	146	34540799	-	PG1063	-	transcriptional regulator, putative
920	 48.37	0	1131688..1132485	+	265	34540800	-	PG1064	-	dihydroorotate dehydrogenase, putative
921	 46.75	0	1132467..1133390	+	307	34540801	pyrD	PG1065	-	dihydroorotate dehydrogenase
922	 47.91	0	1133661..1134305	+	214	34540802	ctfA	PG1066	-	butyrate-acetoacetate CoA-transferase, subunit A
923	 47.69	0	1134359..1134748	+	129	34540803	-	PG1067	-	hypothetical protein
924	 47.93	0	1134776..1135597	+	273	34540804	-	PG1068	-	hypothetical protein
925	 47.03	0	1135639..1136682	+	347	34540805	-	PG1069	-	alcohol dehydrogenase, zinc-containing, putative
926	 46.92	0	1136769..1138019	+	416	34540806	kamA	PG1070	-	L-lysine 2,3-aminomutase
927	 46.23	0	1138148..1139116	+	322	34540807	-	PG1071	-	hypothetical protein
928	 43.82	-1	1139116..1140507	+	463	34540808	-	PG1072	-	MutS family protein
929	 45.17	0	1140535..1142106	+	523	34540809	kamD	PG1073	-	D-lysine 5,6-aminomutase, alpha subunit
930	 44.57	0	1142103..1142894	+	263	34540810	kamE	PG1074	-	D-lysine 5,6-aminomutase, beta subunit
931	 46.76	0	1142918..1143580	+	220	34540811	-	PG1075	-	coenzyme A transferase, beta subunit
932	 47.72	0	1143625..1144764	+	379	34540812	acdA	PG1076	-	acyl-CoA dehydrogenase, short-chain specific
933	 49.36	0	1144779..1145564	+	261	34540813	etfB-2	PG1077	-	electron transfer flavoprotein, beta subunit
934	 50.99	0	1145578..1146585	+	335	34540814	etfA-2	PG1078	-	electron transfer flavoprotein, alpha subunit
935	 51.10	0	1146689..1147459	+	256	34540815	-	PG1079	-	enoyl-CoA hydratase/isomerase family protein
48.73	MEAN

4.83	STD DEV
