IslandPathversion 1.0

IslandPath Analysis: Porphyromonas gingivalis W83

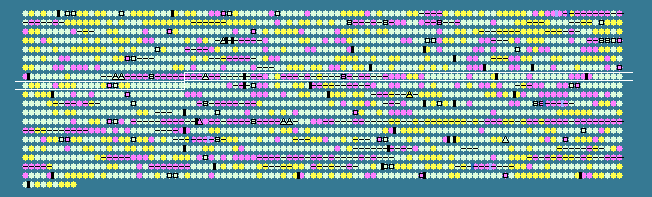

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.73 STD DEV: 4.83
Porphyromonas gingivalis W83, complete genome - 1..2343476
1909 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
728	 32.58	-2	889798..891663	-	621	34540608	-	PG0833	-	hypothetical protein
729	 31.43	-2	892088..893350	-	420	34540609	-	PG0834	-	hypothetical protein
730	 43.48	-1	893720..893857	+	45	34540610	-	PG0835	-	hypothetical protein
731	 49.88	0	895617..896915	+	432	34540611	-	PG0838	-	integrase
732	 38.49	-2	897353..898534	+	393	34540612	-	PG0839	-	hypothetical protein
733	 38.47	-2	898512..902543	+	1343	34540613	-	PG0840	-	hypothetical protein
734	 50.56	0	902871..903764	-	297	34540614	-	PG0841	-	mobilizable transposon, excision protein, putative
735	 50.99	0	903900..904964	-	354	34540615	-	PG0842	-	mobilizable transposon protein
736	 51.60	0	904961..905272	-	103	34540616	-	PG0843	-	hypothetical protein
737	 50.54	0	905429..905521	+	30	34540617	-	PG0844	-	hypothetical protein
738	 46.68	0	907894..909474	+	526	34540618	-	PG0847	-	hypothetical protein
739	 38.64	-2	909579..910577	-	332	34540619	-	PG0848	-	hypothetical protein
740	 40.08	-1	910562..911332	-	256	34540620	-	PG0849	-	hypothetical protein
741	 44.01	0	911360..911668	-	102	34540621	-	PG0850	-	excisionase family DNA-binding protein
742	 46.62	0	911656..912822	-	388	34540622	-	PG0851	-	hypothetical protein
743	 54.73	+1	914524..915009	+	161	34540623	-	PG0853	-	histone-like family DNA-binding protein
744	 37.97	-2	915010..915828	+	272	34540624	-	PG0854	-	hypothetical protein
745	 40.62	-1	916050..916145	-	31	34540625	-	PG0855	-	hypothetical protein
746	 40.40	-1	916330..917235	+	301	34540626	-	PG0856	-	hypothetical protein
747	 49.33	0	917459..917683	+	74	34540627	-	PG0857	-	transcriptional regulator, putative
748	 43.75	-1	917680..918015	+	111	34540628	-	PG0858	-	hypothetical protein
749	 47.07	0	918005..918943	+	312	34540629	-	PG0859	-	hypothetical protein
750	 54.58	+1	919028..919333	+	101	34540630	-	PG0860	-	transcriptional regulator, putative
751	 47.98	0	919387..922869	+	1160	34540631	-	PG0861	-	Snf2/Rad54 family helicase
752	 46.25	0	922880..926278	+	1132	34540632	-	PG0862	-	type IIS restriction endonuclease, putative
753	 46.54	0	927139..927759	-	206	34540633	mpi	PG0864	-	multiple promoter invertase
754	 41.82	-1	927856..928986	-	376	34540634	-	PG0865	-	ISPg2, transposase
755	 45.20	0	929123..930268	+	381	34540635	-	PG0866	-	hypothetical protein
756	 48.13	0	930328..931023	-	231	34540636	-	PG0867	-	hypothetical protein
757	 43.83	-1	931020..931943	-	307	34540637	-	PG0868	-	mobilization protein
758	 41.81	-1	931940..932293	-	117	34540638	-	PG0869	-	mobilization protein
759	 46.08	0	932394..933452	-	352	34540639	-	PG0870	-	hypothetical protein
760	 45.82	0	933550..934926	-	458	34540640	-	PG0871	-	hypothetical protein
761	 44.17	0	934936..935295	-	119	34540641	-	PG0872	-	mobilizable transposon, Xis protein
762	 39.77	-1	936200..936898	-	232	34540642	-	PG0873	-	mobilizable transposon, tnpC protein
763	 43.21	-1	937000..938103	-	367	34540643	-	PG0874	-	mobilizable transposon, int protein
764	 41.53	-1	938192..939094	-	300	34540644	-	PG0875	-	mobilizable transposon, tnpA protein
765	 53.82	+1	939340..940896	-	518	34540645	trmE	PG0876	-	tRNA modification GTPase TrmE
766	 52.40	0	940928..941635	-	235	34540646	-	PG0877	-	hypothetical protein
767	 45.21	0	942021..942626	-	201	34540647	-	PG0879	-	hypothetical protein
768	 48.21	0	942679..943182	+	167	34540648	bcp	PG0880	-	bacterioferritin comigratory protein
769	 50.73	0	943203..944225	+	340	34540649	recA	PG0881	-	recombinase A
770	 51.94	0	944335..945264	+	309	34540650	-	PG0882	-	hypothetical protein
771	 49.93	0	945261..946622	+	453	34540651	-	PG0883	-	hypothetical protein
772	 49.72	0	946619..947869	+	416	34540652	-	PG0884	-	hypothetical protein
773	 50.68	0	947885..948985	+	366	34540653	-	PG0885	-	phospho-2-dehydro-3-deoxyheptonate aldolase/chorismate mutase
774	 47.45	0	948982..949746	+	254	34540654	-	PG0886	-	hypothetical protein
775	 38.64	-2	950050..950181	+	43	34540655	-	PG0888	-	hypothetical protein
776	 48.04	0	950240..951436	+	398	34540656	-	PG0889	-	M24 family peptidase
777	 47.99	0	951472..953163	+	563	34540657	-	PG0890	-	alkaline phosphatase, putative
778	 49.06	0	954291..955931	-	546	161579530	-	PG0893	-	hydroxylamine reductase
779	 53.07	0	956168..956851	-	227	34540659	radC	PG0894	-	DNA repair protein RadC
780	 50.79	0	957389..960442	+	1017	34540660	lacZ-2	PG0896	-	beta-galactosidase
781	 50.53	0	960958..962562	-	534	34540661	-	PG0897	-	alpha-amylase family protein
782	 48.74	0	962649..963440	-	263	34540662	-	PG0898	-	hypothetical protein
783	 47.42	0	963587..964750	-	387	34540663	cydB	PG0899	-	cytochrome d ubiquinol oxidase, subunit II
784	 50.57	0	964796..966379	-	527	34540664	cydA	PG0900	-	cytochrome d ubiquinol oxidase, subunit I
785	 42.17	-1	966405..966653	-	82	34540665	-	PG0901	-	hypothetical protein
786	 51.48	0	966836..969061	-	741	34540666	-	PG0902	-	alpha-1,2-mannosidase family protein
787	 51.38	0	969188..969730	-	180	34540667	-	PG0903	-	hypothetical protein
788	 47.46	0	970756..971208	+	150	34540668	-	PG0906	-	putative lipoprotein
789	 48.78	0	971320..971811	-	163	34540669	-	PG0908	-	G/U mismatch-specific DNA glycosylase, putative
790	 50.46	0	971828..973129	-	433	34540670	-	PG0909	-	hypothetical protein
791	 47.29	0	973184..973756	-	190	34540671	-	PG0910	-	FHA domain-containing protein
792	 38.51	-2	973881..975446	-	521	34540672	-	PG0912	-	polysaccharide transport protein, putative
793	 45.10	0	975794..976507	-	237	34540673	-	PG0914	-	hypothetical protein
794	 38.68	-2	976725..977117	+	130	34540674	-	PG0915	-	hypothetical protein
795	 43.43	-1	977792..978187	-	131	34540675	-	PG0917	-	GtrA family protein
796	 50.40	0	978153..978908	-	251	34540676	-	PG0918	-	hypothetical protein
797	 50.96	0	979075..980424	-	449	34540677	pyrC	PG0919	-	dihydroorotase
798	 48.31	0	980435..981115	-	226	34540678	-	PG0920	-	glycosyl transferase, group 2 family protein
799	 49.84	0	981318..982541	-	407	34540679	-	PG0922	-	hypothetical protein
800	 45.83	0	982569..982904	-	111	34540680	rbfA	PG0923	-	ribosome-binding factor A
801	 51.47	0	982943..983758	-	271	34540681	-	PG0924	-	5'-nucleotidase
802	 52.68	0	983755..984369	-	204	34540682	tmk	PG0925	-	thymidine kinase
803	 53.07	0	984497..984724	-	75	34540683	-	PG0926	-	hypothetical protein
804	 51.80	0	984724..985140	-	138	34540684	-	PG0927	-	hypothetical protein
805	 48.68	0	985152..986708	-	518	34540685	-	PG0928	-	response regulator
806	 30.64	-2	986757..987239	-	160	34540686	-	PG0929	-	hypothetical protein
807	 54.62	+1	987243..987632	-	129	34540687	-	PG0930	-	hypothetical protein
808	 53.00	0	988643..989893	+	416	34540688	-	PG0932	-	DNA polymerase III, delta prime subunit, putative
809	 52.27	0	990137..992296	+	719	34540689	-	PG0933	-	elongation factor G
810	 50.50	0	992504..994408	-	634	34540690	-	PG0934	-	hypothetical protein
811	 49.33	0	994387..995211	-	274	34540691	ispE	PG0935	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
812	 52.07	0	995240..996541	-	433	34540692	-	PG0936	-	xanthine/uracil permease family protein
813	 50.48	0	996562..997284	-	240	34540693	-	PG0937	-	hypothetical protein
814	 54.54	+1	997284..1000475	-	1063	34540694	-	PG0938	-	calcium-transporting ATPase
815	 44.95	0	1002203..1002598	+	131	34540695	-	PG0942	-	ISPg5, transposase Orf1
816	 50.05	0	1002652..1003590	+	312	34540696	-	PG0943	-	ISPg5, transposase Orf2
817	 52.82	0	1005194..1006522	-	442	34540697	-	PG0945	-	ABC transporter, permease protein, putative
818	 56.25	+1	1006527..1007486	-	319	34540698	-	PG0946	-	ABC transporter, ATP-binding protein
819	 50.21	0	1007489..1007962	-	157	34540699	-	PG0947	-	hypothetical protein
820	 52.12	0	1008031..1008807	+	258	34540700	-	PG0948	-	AMP nucleosidase
821	 49.90	0	1008826..1009833	+	335	34540701	-	PG0949	-	hypothetical protein
822	 49.87	0	1010001..1010381	+	126	34540702	gcvH	PG0950	-	glycine cleavage system protein H
823	 50.49	0	1010382..1010888	+	168	34540703	purE	PG0951	-	phosphoribosylaminoimidazole carboxylase, PurE protein
824	 49.89	0	1011062..1012807	+	581	34540704	ispG	PG0952	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
825	 50.80	0	1012864..1013298	+	144	34540705	dut	PG0953	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
826	 47.41	0	1013326..1015065	+	579	34540706	-	PG0954	-	TPR domain-containing protein
827	 46.65	0	1014972..1015925	+	317	34540707	-	PG0955	-	hypothetical protein
48.73	MEAN

4.83	STD DEV
