IslandPathversion 1.0

IslandPath Analysis: Porphyromonas gingivalis W83

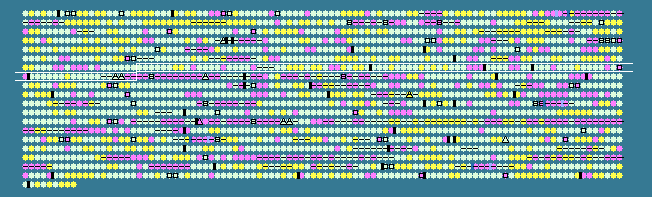

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.73 STD DEV: 4.83
Porphyromonas gingivalis W83, complete genome - 1..2343476
1909 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
620	 48.88	0	761176..763722	-	848	34540500	-	PG0707	-	TonB-dependent receptor, putative
621	 47.05	0	763888..764718	-	276	34540501	-	PG0708	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
622	 48.29	0	764746..765507	-	253	34540502	fkpA	PG0709	-	peptidyl-prolyl cis-trans isomerase FkpA, FKBP-type
623	 47.11	0	765537..766124	-	195	34540503	-	PG0710	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
624	 50.76	0	766210..766341	+	43	34540504	-	PG0711	-	hypothetical protein
625	 48.85	0	766874..767221	-	115	34540505	-	PG0712	-	hypothetical protein
626	 54.94	+1	767243..767839	-	198	34540506	trpG	PG0713	-	anthranilate synthase component II
627	 52.74	0	768015..768761	-	248	34540507	cutC	PG0714	-	copper homeostasis protein CutC
628	 48.32	0	768766..769686	-	306	34540508	-	PG0715	-	transporter
629	 44.66	0	770081..771184	-	367	34540509	-	PG0717	-	putative lipoprotein
630	 45.43	0	771226..771663	-	145	34540510	-	PG0718	-	hypothetical protein
631	 46.34	0	771786..773069	-	427	34540511	-	PG0719	-	sensor histidine kinase
632	 47.68	0	773066..773755	-	229	34540512	-	PG0720	-	DNA-binding response regulator
633	 51.23	0	773987..774595	+	202	34540513	-	PG0721	-	NLP/P60 family protein
634	 35.95	-2	774829..774981	-	50	34540514	-	PG0722	-	hypothetical protein
635	 45.57	0	775089..775415	+	108	34540515	-	PG0723	-	hypothetical protein
636	 51.82	0	775369..777315	+	648	34540516	-	PG0724	-	prolyl oligopeptidase family protein
637	 48.80	0	777400..778026	+	208	34540517	-	PG0725	-	HAD superfamily hydrolase
638	 47.69	0	778093..778482	-	129	34540518	-	PG0726	-	putative lipoprotein
639	 33.33	-2	778479..778685	-	68	34540519	-	PG0727	-	hypothetical protein
640	 50.39	0	778731..779897	-	388	34540520	-	PG0728	-	hypothetical protein
641	 50.86	0	779916..780908	-	330	34540521	ddl	PG0729	-	D-alanyl-alanine synthetase A
642	 51.45	0	782110..782766	-	218	34540522	-	PG0731	-	hypothetical protein
643	 47.17	0	782761..783078	+	105	34540523	-	PG0732	-	hypothetical protein
644	 51.41	0	783314..783916	+	200	34540524	ribE	PG0733	-	riboflavin synthase subunit alpha
645	 56.52	+1	783913..784464	+	183	34540525	-	PG0734	-	nitroreductase family protein
646	 54.73	+1	784523..785737	+	404	34540526	-	PG0735	-	aminotransferase, class V
647	 53.96	+1	785748..786353	+	201	34540527	rnhB	PG0736	-	ribonuclease HII
648	 50.18	0	786328..786606	+	92	34540528	-	PG0737	-	hypothetical protein
649	 56.73	+1	786603..787055	+	150	34540529	-	PG0738	-	cytidine/deoxycytidylate deaminase family protein
650	 52.57	0	787087..788001	+	304	34540530	-	PG0739	-	ribonuclease Z
651	 50.00	0	787976..788545	+	189	34540531	-	PG0740	-	NLP/P60 family protein
652	 42.17	-1	788807..789406	-	199	34540532	-	PG0741	-	hypothetical protein
653	 44.62	0	789390..790727	-	445	34540533	pgaA	PG0742	-	antigen PgaA
654	 55.42	+1	791223..791987	-	254	34540534	-	PG0744	-	RNA methyltransferase
655	 51.88	0	792072..792470	-	132	34540535	-	PG0745	-	lactoylglutathione lyase, putative
656	 52.27	0	792626..793993	-	455	34540536	-	PG0746	-	sensor histidine kinase
657	 54.19	+1	793990..795384	-	464	34540537	-	PG0747	-	sigma-54 dependent DNA-binding response regulator
658	 47.86	0	795628..795744	-	38	34540538	-	PG0749	-	hypothetical protein
659	 45.38	0	796036..796782	-	248	34540539	-	PG0750	-	glycosyl transferase, group 2 family protein
660	 47.07	0	796934..797668	-	244	34540540	porT	PG0751	-	porT protein
661	 49.16	0	797807..798457	+	216	34540541	upp	PG0752	-	uracil phosphoribosyltransferase
662	 53.41	0	798441..800348	+	635	34540542	prtQ	PG0753	-	protease
663	 50.78	0	801083..803449	+	788	34540543	topA	PG0754	-	DNA topoisomerase I
664	 48.63	0	804411..805763	-	450	34540544	-	PG0756	-	hypothetical protein
665	 51.08	0	805813..806460	-	215	34540545	-	PG0757	-	hypothetical protein
666	 52.11	0	806557..808644	-	695	34540546	dcp-1	PG0758	-	peptidyl-dipeptidase Dcp
667	 54.41	+1	808722..810875	-	717	34540547	-	PG0759	-	TPR domain-containing protein
668	 49.24	0	812899..814275	+	458	34540548	-	PG0762	-	trigger factor, putative
669	 54.08	+1	816264..818495	-	743	34540549	pnpA	PG0766	-	polynucleotide phosphorylase/polyadenylase
670	 52.00	0	818647..820623	-	658	34540550	malQ	PG0767	-	4-alpha-glucanotransferase
671	 52.57	0	821365..822471	-	368	34540551	-	PG0768	-	hypothetical protein
672	 47.94	0	822645..824267	-	540	34540552	-	PG0769	-	fibronectin type III domain-containing protein
673	 49.16	0	824249..824665	-	138	34540553	-	PG0770	-	hypothetical protein
674	 46.59	0	824664..824927	+	87	34540554	-	PG0771	-	hypothetical protein
675	 42.00	-1	825115..825264	+	49	34540555	-	PG0772	-	hypothetical protein
676	 36.96	-2	825271..825408	+	45	34540556	-	PG0773	-	hypothetical protein
677	 43.69	-1	825787..827031	-	414	34540557	-	PG0774	-	hypothetical protein
678	 51.39	0	827522..829243	-	573	34540558	-	PG0775	-	acyl-CoA dehydrogenase family protein
679	 46.96	0	829255..830274	-	339	34540559	etfA-1	PG0776	-	electron transfer flavoprotein, alpha subunit
680	 50.17	0	830283..831149	-	288	34540560	etfB-1	PG0777	-	electron transfer flavoprotein, beta subunit
681	 45.83	0	831240..831959	-	239	34540561	-	PG0778	-	hypothetical protein
682	 42.62	-1	832190..832663	-	157	34540562	-	PG0779	-	hypothetical protein
683	 42.28	-1	832679..833293	-	204	34540563	-	PG0780	-	hypothetical protein
684	 46.28	0	833329..833799	-	156	34540564	-	PG0781	-	hypothetical protein
685	 46.25	0	833808..834620	-	270	34540565	-	PG0782	-	MotA/TolQ/ExbB proton channel family protein
686	 46.01	0	834968..835795	-	275	34540566	-	PG0783	-	hydrolase, putative
687	 47.85	0	835842..836819	-	325	34540567	-	PG0784	-	polyprenyl synthetase
688	 50.79	0	836990..837682	-	230	34540568	-	PG0785	-	tonB protein, putative
689	 34.96	-2	837660..837782	-	40	34540569	-	PG0786	-	hypothetical protein
690	 47.74	0	837815..838057	+	80	34540570	-	PG0787	-	hypothetical protein
691	 50.30	0	838133..840766	-	877	34540571	-	PG0788	-	hypothetical protein
692	 51.74	0	840792..841508	-	238	34540572	-	PG0789	-	hypothetical protein
693	 54.68	+1	841489..842673	-	394	34540573	obgE	PG0790	-	GTPase ObgE
694	 51.45	0	842683..843267	-	194	34540574	adk	PG0791	-	adenylate kinase
695	 47.11	0	843268..843804	-	178	34540575	hpt	PG0792	-	hypoxanthine phosphoribosyltransferase
696	 48.88	0	844428..846395	+	655	34540576	fbp	PG0793	-	fructose-1,6-bisphosphatase
697	 49.09	0	846551..848911	+	786	34540577	-	PG0794	-	penicillin-binding protein 1A, putative
698	 44.44	0	848953..849663	+	236	34540578	-	PG0795	-	hypothetical protein
699	 49.28	0	849763..852540	-	925	34540579	leuS	PG0796	-	leucyl-tRNA synthetase
700	 40.86	-1	852985..853887	+	300	34540580	-	PG0798	-	ISPg3, transposase
701	 43.01	-1	854474..854659	+	61	34540581	-	PG0799	-	hypothetical protein
702	 52.05	0	854809..856368	-	519	34540582	-	PG0800	-	hypothetical protein
703	 49.24	0	856353..857804	-	483	34540583	-	PG0801	-	polyA polymerase family protein
704	 52.15	0	858463..859812	-	449	34540584	pdhD	PG0802	-	alpha keto acid dehydrogenase complex, E3 component, lipoamide dehydrogenase
705	 48.99	0	859817..860608	-	263	34540585	nagB	PG0803	-	glucosamine-6-phosphate deaminase
706	 48.55	0	860647..861855	-	402	34540586	-	PG0804	-	flavodoxin
707	 50.35	0	861889..862740	-	283	34540587	lgt	PG0805	-	prolipoprotein diacylglyceryl transferase
708	 54.19	+1	862777..863682	-	301	34540588	-	PG0806	-	Gfo/Idh/MocA family oxidoreductase
709	 48.40	0	863720..864814	-	364	34540589	-	PG0807	-	NusB family protein
710	 49.03	0	865154..872104	-	2316	34540590	-	PG0809	-	hypothetical protein
711	 50.93	0	872067..872657	-	196	34540591	-	PG0810	-	hypothetical protein
712	 50.25	0	872691..873299	-	202	34540592	ruvA	PG0811	-	Holliday junction DNA helicase motor protein
713	 45.69	0	875994..876341	-	115	34540593	-	PG0814	-	hypothetical protein
714	 48.55	0	876370..876507	+	45	34540594	-	PG0815	-	hypothetical protein
715	 48.95	0	876476..876949	-	157	34540595	-	PG0816	-	hypothetical protein
716	 47.24	0	877466..878695	+	409	34540596	-	PG0819	-	integrase
717	 45.47	0	878721..879923	+	400	34540597	-	PG0820	-	integrase
718	 43.25	-1	879930..880292	+	120	34540598	-	PG0821	-	putative lipoprotein
719	 41.42	-1	880418..880825	-	135	34540599	-	PG0822	-	hypothetical protein
48.73	MEAN

4.83	STD DEV
