IslandPath Analysis: Porphyromonas gingivalis W83

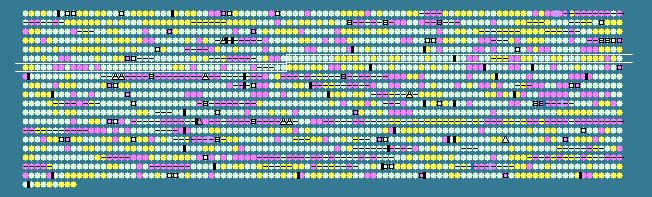

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.73 STD DEV: 4.83
Porphyromonas gingivalis W83, complete genome - 1..2343476
1909 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
545	 52.20	0	671244..672791	+	515	34540425	-	PG0619	-	alkyl hydroperoxide reductase, F subunit
546	 49.20	0	673103..675535	+	810	34540426	lon	PG0620	-	ATP-dependent protease La
547	 45.54	0	675532..676080	+	182	34540427	-	PG0621	-	hypothetical protein
548	 45.32	0	676077..677369	+	430	34540428	-	PG0622	-	hypothetical protein
549	 49.74	0	677401..678156	+	251	34540429	tpiA	PG0623	-	triosephosphate isomerase
550	 48.52	0	678218..678724	+	168	34540430	-	PG0624	-	hypothetical protein
551	 50.52	0	678728..679309	+	193	34540431	folE	PG0625	-	GTP cyclohydrolase I
552	 46.71	0	679540..680406	+	288	34540432	-	PG0626	-	hypothetical protein
553	 52.72	0	681232..681525	-	97	34540433	-	PG0627	-	RNA-binding protein
554	 55.69	+1	681774..682529	-	251	34540434	-	PG0628	-	ABC transporter, ATP-binding protein
555	 57.90	+1	682588..683454	-	288	34540435	ppnK	PG0629	-	inorganic polyphosphate/ATP-NAD kinase
556	 54.39	+1	683532..684248	+	238	34540436	pdxJ	PG0630	-	pyridoxal phosphate biosynthetic protein PdxJ
557	 49.92	0	684406..685020	+	204	34540437	-	PG0631	-	MotA/TolQ/ExbB proton channel family protein
558	 49.29	0	685017..685436	+	139	34540438	-	PG0632	-	biopolymer transport protein ExbD, putative
559	 55.43	+1	685441..686268	+	275	34540439	-	PG0633	-	hypothetical protein
560	 51.10	0	686283..686828	+	181	34540440	-	PG0634	-	ThiJ/PfpI family protein
561	 49.47	0	686928..687863	-	311	34540441	prmA	PG0635	-	ribosomal protein L11 methyltransferase
562	 52.67	0	687797..689161	-	454	34540442	-	PG0636	-	MATE efflux family protein
563	 53.03	0	689154..690194	-	346	34540443	thiL	PG0637	-	thiamine monophosphate kinase
564	 50.65	0	690200..691273	-	357	34540444	lpxK	PG0638	-	tetraacyldisaccharide 4'-kinase
565	 51.23	0	691303..693090	-	595	34540445	sppA	PG0639	-	signal peptide peptidase SppA, 67K type
566	 51.81	0	696973..698049	-	358	34540446	-	PG0645	-	hypothetical protein
567	 52.10	0	698160..699161	-	333	34540447	-	PG0646	-	iron compound ABC transporter, ATP-binding protein
568	 52.37	0	699169..700203	-	344	34540448	-	PG0647	-	iron compound ABC transporter, permease protein
569	 49.74	0	700200..701375	-	391	34540449	-	PG0648	-	iron compound ABC transporter, periplasmic iron compound-binding protein, putative
570	 49.91	0	701960..702544	+	194	34540450	-	PG0649	-	hypothetical protein
571	 45.57	0	702671..703054	-	127	34540451	-	PG0650	-	hypothetical protein
572	 48.73	0	703161..703712	-	183	34540452	-	PG0651	-	HDIG domain-containing protein
573	 46.20	0	703989..704291	-	100	34540453	-	PG0652	-	hypothetical protein
574	 48.23	0	704303..705544	-	413	34540454	serB	PG0653	-	phosphoserine phosphatase
575	 44.42	0	705603..706775	-	390	34540455	-	PG0654	-	hypothetical protein
576	 43.75	-1	706852..706947	+	31	34540456	-	PG0655	-	hypothetical protein
577	 50.33	0	707035..707187	-	50	34540457	rpmH	PG0656	-	50S ribosomal protein L34
578	 48.08	0	707249..707872	-	207	34540458	maf	PG0657	-	Maf-like protein
579	 54.60	+1	707888..708409	-	173	34540459	-	PG0658	-	YrbI family phosphatase
580	 54.00	+1	708426..709238	-	270	34540460	-	PG0659	-	hypothetical protein
581	 53.87	+1	709231..709785	-	184	34540461	-	PG0660	-	nitroreductase family protein
582	 44.44	0	709782..709943	-	53	34540462	-	PG0661	-	hypothetical protein
583	 40.95	-1	710007..710216	+	69	34540463	-	PG0662	-	hypothetical protein
584	 52.96	0	710433..711920	+	495	34540464	-	PG0664	-	Gfo/Idh/MocA family oxidoreductase
585	 53.31	0	711967..715305	+	1112	34540465	lacZ-1	PG0665	-	beta-galactosidase
586	 48.90	0	717591..719864	+	757	34540466	-	PG0668	-	TonB-dependent receptor
587	 46.15	0	719893..720774	+	293	34540467	fetB	PG0669	-	heme-binding protein FetB
588	 50.44	0	720892..722031	+	379	34540468	-	PG0670	-	putative lipoprotein
589	 53.59	+1	722028..723098	+	356	34540469	-	PG0671	-	iron compound ABC transporter, permease protein
590	 53.36	0	723142..723900	+	252	34540470	-	PG0672	-	iron compound ABC transporter, ATP-binding protein
591	 50.84	0	724299..724892	-	197	34540471	iorB	PG0674	-	indolepyruvate oxidoreductase subunit B
592	 51.87	0	724919..726526	-	535	34540472	iorA	PG0675	-	indolepyruvate ferredoxin oxidoreductase, alpha subunit
593	 51.97	0	726604..727365	-	253	34540473	-	PG0676	-	short chain dehydrogenase/reductase family oxidoreductase
594	 53.27	0	727793..728986	+	397	34540474	LYS1	PG0677	-	saccharopine dehydrogenase
595	 55.95	+1	729019..729531	+	170	34540475	-	PG0678	-	pyrazinamidase/nicotinamidase, putative
596	 59.40	+2	729734..731068	+	444	34540476	-	PG0679	-	outer membrane efflux protein
597	 56.14	+1	731108..732361	+	417	34540477	-	PG0680	-	RND family efflux transporter MFP subunit
598	 44.01	0	732501..732809	-	102	34540478	-	PG0681	-	hypothetical protein
599	 53.10	0	733011..735362	+	783	34540479	-	PG0682	-	ABC transporter, permease protein, putative
600	 51.84	0	735395..737761	+	788	34540480	-	PG0683	-	ABC transporter, permease protein, putative
601	 55.85	+1	737788..740163	+	791	34540481	-	PG0684	-	ABC transporter, permease protein, putative
602	 55.61	+1	740256..740915	+	219	34540482	-	PG0685	-	ABC transporter, ATP-binding protein
603	 49.29	0	741221..742774	-	517	34540483	-	PG0686	-	hypothetical protein
604	 49.04	0	743258..744613	-	451	34540484	sucD	PG0687	-	succinate-semialdehyde dehydrogenase
605	 45.70	0	744808..745923	-	371	34540485	4hbD	PG0689	-	NAD-dependent 4-hydroxybutyrate dehydrogenase
606	 44.68	0	745974..747269	-	431	34540486	abfT-1	PG0690	-	4-hydroxybutyrate CoA-transferase
607	 43.86	-1	747275..747559	-	94	34540487	-	PG0691	-	NifU-related protein
608	 46.00	0	747632..749092	-	486	34540488	abfD	PG0692	-	4-hydroxybutyryl-CoA dehydratase
609	 44.44	0	749793..750935	-	380	34540489	-	PG0694	-	immunoreactive 42 kDa antigen PG33
610	 44.98	0	750982..752157	-	391	34540490	-	PG0695	-	immunoreactive 43 kDa antigen PG32
611	 41.46	-1	752463..753446	-	327	34540491	-	PG0698	-	putative lipoprotein
612	 48.89	0	753478..756048	-	856	34540492	malP	PG0699	-	maltodextrin phosphorylase
613	 41.33	-1	756173..756685	-	170	34540493	-	PG0700	-	hypothetical protein
614	 51.58	0	756651..757187	+	178	34540494	cobU	PG0701	-	cobinamide kinase/cobinamide phosphate guanylyltransferase
615	 51.35	0	757240..758277	+	345	34540495	-	PG0702	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase, putative
616	 49.68	0	758284..759066	+	260	34540496	-	PG0703	-	cobalamin (5'-phosphate) synthase, putative
617	 51.11	0	759068..759607	+	179	34540497	-	PG0704	-	phosphoglycerate mutase family protein
618	 49.09	0	759669..760493	+	274	34540498	murI	PG0705	-	glutamate racemase
619	 45.92	0	760490..760942	+	150	34540499	-	PG0706	-	hypothetical protein
620	 48.88	0	761176..763722	-	848	34540500	-	PG0707	-	TonB-dependent receptor, putative
621	 47.05	0	763888..764718	-	276	34540501	-	PG0708	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
622	 48.29	0	764746..765507	-	253	34540502	fkpA	PG0709	-	peptidyl-prolyl cis-trans isomerase FkpA, FKBP-type
623	 47.11	0	765537..766124	-	195	34540503	-	PG0710	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
624	 50.76	0	766210..766341	+	43	34540504	-	PG0711	-	hypothetical protein
625	 48.85	0	766874..767221	-	115	34540505	-	PG0712	-	hypothetical protein
626	 54.94	+1	767243..767839	-	198	34540506	trpG	PG0713	-	anthranilate synthase component II
627	 52.74	0	768015..768761	-	248	34540507	cutC	PG0714	-	copper homeostasis protein CutC
628	 48.32	0	768766..769686	-	306	34540508	-	PG0715	-	transporter
629	 44.66	0	770081..771184	-	367	34540509	-	PG0717	-	putative lipoprotein
630	 45.43	0	771226..771663	-	145	34540510	-	PG0718	-	hypothetical protein
631	 46.34	0	771786..773069	-	427	34540511	-	PG0719	-	sensor histidine kinase
632	 47.68	0	773066..773755	-	229	34540512	-	PG0720	-	DNA-binding response regulator
633	 51.23	0	773987..774595	+	202	34540513	-	PG0721	-	NLP/P60 family protein
634	 35.95	-2	774829..774981	-	50	34540514	-	PG0722	-	hypothetical protein
635	 45.57	0	775089..775415	+	108	34540515	-	PG0723	-	hypothetical protein
636	 51.82	0	775369..777315	+	648	34540516	-	PG0724	-	prolyl oligopeptidase family protein
637	 48.80	0	777400..778026	+	208	34540517	-	PG0725	-	HAD superfamily hydrolase
638	 47.69	0	778093..778482	-	129	34540518	-	PG0726	-	putative lipoprotein
639	 33.33	-2	778479..778685	-	68	34540519	-	PG0727	-	hypothetical protein
640	 50.39	0	778731..779897	-	388	34540520	-	PG0728	-	hypothetical protein
641	 50.86	0	779916..780908	-	330	34540521	ddl	PG0729	-	D-alanyl-alanine synthetase A
642	 51.45	0	782110..782766	-	218	34540522	-	PG0731	-	hypothetical protein
643	 47.17	0	782761..783078	+	105	34540523	-	PG0732	-	hypothetical protein
644	 51.41	0	783314..783916	+	200	34540524	ribE	PG0733	-	riboflavin synthase subunit alpha
48.73	MEAN

4.83	STD DEV
