IslandPathversion 1.0

IslandPath Analysis: Porphyromonas gingivalis W83

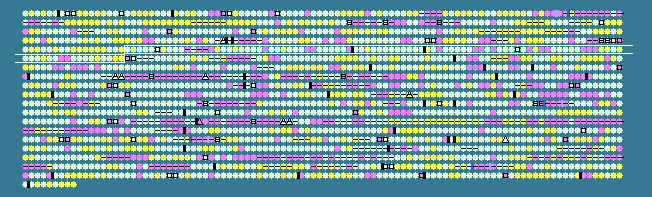

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.73 STD DEV: 4.83
Porphyromonas gingivalis W83, complete genome - 1..2343476
1909 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
418	 49.54	0	522788..523219	-	143	34540298	-	PG0482	-	hypothetical protein
419	 54.52	+1	523326..523934	-	202	34540299	-	PG0483	-	kinase, putative
420	 49.31	0	523941..524948	-	335	34540300	-	PG0484	-	hypothetical protein
421	 49.85	0	525076..525414	-	112	34540301	yajC	PG0485	-	preprotein translocase, YajC subunit
422	 51.52	0	525497..526024	-	175	34540302	ogt	PG0486	-	methylated-DNA--protein-cysteine S-methyltransferase
423	 45.77	0	526366..527523	-	385	34540303	-	PG0487	-	ISPg4, transposase
424	 55.81	+1	528309..529340	+	343	34540304	ruvB	PG0488	-	Holliday junction DNA helicase B
425	 51.42	0	529387..530868	+	493	34540305	-	PG0489	-	polysaccharide biosynthesis-related protein
426	 49.37	0	530968..532308	+	446	34540306	-	PG0490	-	hypothetical protein
427	 51.80	0	532324..534462	+	712	34540307	-	PG0491	-	hypothetical protein
428	 41.38	-1	534498..534758	-	86	34540308	-	PG0492	-	hypothetical protein
429	 48.43	0	534832..534990	-	52	34540309	-	PG0493	-	hypothetical protein
430	 41.76	-1	535184..535456	-	90	34540310	-	PG0494	-	hypothetical protein
431	 42.41	-1	535587..536996	+	469	34540311	-	PG0495	-	hypothetical protein
432	 43.01	-1	537308..537400	+	30	34540312	-	PG0496	-	hypothetical protein
433	 52.84	0	537397..538083	+	228	34540313	mtn	PG0497	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
434	 51.25	0	538108..538587	+	159	34540314	luxS	PG0498	-	S-ribosylhomocysteinase
435	 49.15	0	538849..539202	+	117	34540315	-	PG0499	-	hypothetical protein
436	 54.73	+1	539337..540467	+	376	34540316	tgt	PG0500	-	queuine tRNA-ribosyltransferase
437	 48.48	0	540484..541566	+	360	34540317	-	PG0501	-	hypothetical protein
438	 47.19	0	541599..542060	+	153	34540318	smpB	PG0502	-	SsrA-binding protein
439	 48.71	0	542100..544271	+	723	34540319	dpp	PG0503	-	dipeptidyl aminopeptidase IV
440	 50.18	0	544374..545222	+	282	34540320	lipA	PG0504	-	lipoyl synthase
441	 36.59	-2	545335..545457	+	40	34540321	-	PG0505	-	hypothetical protein
442	 46.45	0	545475..547685	+	736	34540322	prtRII	PG0506	-	arginine-specific cysteine proteinase
443	 46.67	0	548056..548250	+	64	34540323	-	PG0507	-	hypothetical protein
444	 53.73	+1	548226..548828	-	200	34540324	-	PG0508	-	HAD family hydrolase
445	 48.32	0	548818..549678	-	286	34540325	-	PG0509	-	phosphoribose diphosphate:decaprenyl-phosphate phosphoribosyltransferase
446	 48.03	0	549695..550150	-	151	34540326	-	PG0510	-	hypothetical protein
447	 49.07	0	550186..551418	-	410	34540327	-	PG0511	-	spore maturation protein A/spore maturation protein B
448	 44.27	0	551438..552004	-	188	34540328	gmk	PG0512	-	guanylate kinase
449	 43.66	-1	552037..552927	-	296	34540329	-	PG0513	-	hypothetical protein
450	 46.92	0	553019..556360	-	1113	161579531	secA	PG0514	-	preprotein translocase subunit SecA
451	 47.49	0	556453..558048	-	531	34540331	-	PG0515	-	hypothetical protein
452	 45.59	0	558027..559274	-	415	34540332	-	PG0516	-	hypothetical protein
453	 46.90	0	559305..562187	-	960	34540333	-	PG0517	-	hypothetical protein
454	 46.28	0	562304..563029	-	241	34540334	-	PG0518	-	hypothetical protein
455	 36.94	-2	563029..563139	+	36	34540335	-	PG0519	-	hypothetical protein
456	 52.20	0	563708..565345	-	545	34540336	groEL	PG0520	-	chaperonin GroEL
457	 47.78	0	565598..565867	-	89	34540337	groES	PG0521	-	co-chaperonin GroES
458	 53.69	+1	566083..566991	-	302	34540338	miaA	PG0522	-	tRNA delta(2)-isopentenylpyrophosphate transferase
459	 52.17	0	566988..568484	-	498	34540339	guaB	PG0523	-	inositol-5-monophosphate dehydrogenase
460	 48.77	0	568739..569023	+	94	34540340	-	PG0524	-	hypothetical protein
461	 51.79	0	569139..570758	+	539	34540341	pyrG	PG0525	-	CTP synthetase
462	 49.73	0	570886..572769	+	627	34540342	-	PG0526	-	putative inner membrane protein translocase component YidC
463	 49.89	0	572860..574743	+	627	34540343	-	PG0528	-	amidophosphoribosyltransferase, putative
464	 49.44	0	574777..575850	+	357	34540344	carA	PG0529	-	carbamoyl phosphate synthase small subunit
465	 49.47	0	575869..579096	+	1075	34540345	carB	PG0530	-	carbamoyl-phosphate synthase, large subunit
466	 52.16	0	579286..581229	-	647	34540346	nadE	PG0531	-	NAD synthetase
467	 52.00	0	581339..582238	-	299	34540347	-	PG0532	-	hypothetical protein
468	 53.18	0	583382..585865	+	827	34540348	-	PG0534	-	hypothetical protein
469	 47.02	0	586046..586666	-	206	34540349	-	PG0535	-	hypothetical protein
470	 42.81	-1	586680..586985	+	101	34540350	-	PG0536	-	hypothetical protein
471	 49.76	0	586994..588454	+	486	34540351	pepD-2	PG0537	-	aminoacyl-histidine dipeptidase
472	 50.54	0	589282..590670	+	462	34540352	-	PG0538	-	outer membrane efflux protein
473	 51.09	0	590714..591766	+	350	34540353	-	PG0539	-	RND family efflux transporter MFP subunit
474	 49.59	0	591763..594912	+	1049	34540354	-	PG0540	-	AcrB/AcrD/AcrF family protein
475	 49.33	0	594897..595196	+	99	34540355	-	PG0541	-	hypothetical protein
476	 43.46	-1	595467..595772	-	101	34540356	-	PG0542	-	hypothetical protein
477	 39.22	-1	595797..596000	+	67	34540357	-	PG0543	-	transcriptional regulator, putative
478	 46.64	0	596192..598138	+	648	34540358	-	PG0544	-	type I restriction-modification system, M subunit, putative
479	 41.41	-1	598183..600288	+	701	34540359	-	PG0545	-	hypothetical protein
480	 50.23	0	600269..600481	-	70	34540360	-	PG0546	-	hypothetical protein
481	 48.04	0	600853..602049	+	398	34540361	-	PG0547	-	hypothetical protein
482	 51.70	0	602238..605819	+	1193	34540362	-	PG0548	-	pyruvate ferredoxin/flavodoxin oxidoreductase family protein
483	 48.62	0	606077..607162	-	361	34540363	-	PG0549	-	ISPg1, transposase
484	 48.81	0	608457..611279	-	940	34540364	-	PG0553	-	extracellular protease, putative
485	 43.59	-1	611605..611721	+	38	34540365	-	PG0554	-	hypothetical protein
486	 55.68	+1	611806..612324	-	172	34540366	-	PG0555	-	histone-like family DNA-binding protein
487	 31.23	-2	613418..614320	+	300	34540367	-	PG0556	-	hypothetical protein
488	 40.98	-1	614375..615067	+	230	34540368	-	PG0557	-	hypothetical protein
489	 49.88	0	615600..616421	-	273	34540369	-	PG0558	-	purine nucleoside phosphorylase
490	 51.05	0	616441..617586	-	381	34540370	-	PG0559	-	chlorohydrolase family protein
491	 47.97	0	617563..617808	+	81	34540371	-	PG0560	-	hypothetical protein
492	 52.21	0	617790..619145	-	451	34540372	-	PG0561	-	M20/M25/M40 family peptidase
493	 51.82	0	619362..621038	+	558	34540373	-	PG0562	-	hypothetical protein
494	 39.29	-1	621025..621528	-	167	34540374	-	PG0563	-	hypothetical protein
495	 43.08	-1	621506..621700	-	64	34540375	-	PG0564	-	hypothetical protein
496	 34.36	-2	621861..622733	-	290	34540376	-	PG0565	-	hypothetical protein
497	 54.04	+1	623025..623531	-	168	34540377	-	PG0566	-	histone-like family DNA-binding protein
498	 53.79	+1	624089..624655	-	188	34540378	efp-1	PG0568	-	elongation factor P
499	 52.19	0	624787..626313	-	508	34540379	-	PG0569	-	hypothetical protein
500	 52.56	0	626539..627552	+	337	34540380	asd	PG0571	-	aspartate-semialdehyde dehydrogenase
501	 45.65	0	627524..627661	-	45	34540381	-	PG0572	-	hypothetical protein
502	 51.82	0	628223..629158	+	311	34540382	mraW	PG0573	-	S-adenosyl-methyltransferase MraW
503	 48.73	0	629158..629631	+	157	34540383	-	PG0574	-	hypothetical protein
504	 52.23	0	629641..631842	+	733	34540384	-	PG0575	-	penicillin-binding protein 2, putative
505	 49.25	0	631859..633322	+	487	34540385	murE	PG0576	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
506	 46.35	0	633337..634596	+	419	34540386	mraY	PG0577	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
507	 44.42	0	634620..635972	+	450	34540387	murD	PG0578	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
508	 43.68	-1	635984..637240	+	418	34540388	-	PG0579	-	cell division protein FtsW, putative
509	 48.95	0	637237..638376	+	379	34540389	murG	PG0580	-	N-acetylglucosaminyl transferase
510	 46.97	0	638376..639746	+	456	34540390	murC	PG0581	-	UDP-N-acetylmuramate--L-alanine ligase
511	 46.33	0	639740..640516	+	258	34540391	-	PG0582	-	cell division protein FtsQ, putative
512	 47.99	0	640565..642004	+	479	34540392	ftsA	PG0583	-	cell division protein FtsA
513	 52.40	0	642007..643380	+	457	34540393	ftsz	PG0584	-	cell division protein FtsZ
514	 51.11	0	643412..643861	+	149	34540394	-	PG0585	-	YqeY family protein
515	 49.92	0	644702..645334	-	210	34540395	yadS	PG0587	-	yadS protein
516	 53.65	+1	645386..646207	-	273	34540396	panB	PG0588	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
517	 53.98	+1	646278..647798	-	506	34540397	guaA	PG0589	-	bifunctional GMP synthase/glutamine amidotransferase protein
48.73	MEAN

4.83	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
