IslandPath Analysis: Porphyromonas gingivalis W83

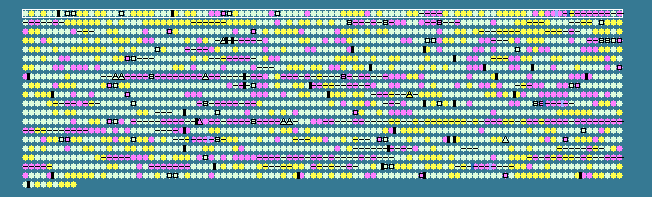

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 48.73   STD DEV: 4.83
Porphyromonas gingivalis W83, complete genome - 1..2343476
1909 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 50.84	0	1..1422	+	473	34539881	dnaA	PG0001	-	chromosomal replication initiation protein
2	 52.36	0	1435..2007	+	190	34539882	-	PG0002	-	hexapeptide transferase family protein
3	 49.90	0	2009..3028	-	339	34539883	-	PG0003	-	hypothetical protein
4	 52.34	0	3108..3812	+	234	34539884	-	PG0004	-	NAD-dependent deacetylase
5	 51.69	0	3887..5041	-	384	34539885	-	PG0005	-	hypothetical protein
6	 51.84	0	5094..6422	-	442	34539886	-	PG0006	-	MATE efflux family protein
7	 48.43	0	6845..7003	-	52	34539887	-	PG0007	-	hypothetical protein
8	 49.73	0	7175..8113	-	312	34539888	-	PG0008	-	ISPg5 transposase Orf2
9	 45.38	0	8167..8556	-	129	34539889	-	PG0009	-	ISPg5 transposase Orf1
10	 55.08	+1	8915..11494	+	859	34539890	clpC	PG0010	-	ATP-dependent Clp protease, ATP-binding subunit ClpC
11	 53.22	0	11634..14645	+	1003	34539891	-	PG0011	-	glycosy hydrolase family protein
12	 49.27	0	14693..15721	+	342	34539892	-	PG0012	-	L-threonine-O-3-phosphate decarboxylase, putative
13	 52.53	0	15731..16501	+	256	34539893	-	PG0013	-	hypothetical protein
14	 53.04	0	17087..18436	+	449	34539894	-	PG0016	-	sigma-54 dependent DNA-binding response regulator
15	 50.45	0	18447..19784	+	445	34539895	-	PG0017	-	sensor histidine kinase
16	 49.35	0	19788..22034	+	748	34539896	-	PG0018	-	hypothetical protein
17	 45.51	0	22180..23337	+	385	34539897	-	PG0019	-	ISPg4 transposase
18	 50.35	0	23522..24226	+	234	34539898	-	PG0020	-	MarR family transcriptional regulator
19	 52.99	0	24212..25213	-	333	34539899	-	PG0021	-	NifR3 family TIM-barrel protein
20	 52.24	0	25210..26886	-	558	34539900	-	PG0022	-	sulfate permease family protein
21	 53.88	+1	27872..28528	+	218	34539901	-	PG0024	-	redox-sensing transcriptional repressor Rex
22	 53.64	+1	28597..29256	+	219	34539902	-	PG0025	-	fumarylacetoacetate hydrolase family protein
23	 51.13	0	29374..32745	+	1123	34539903	-	PG0026	-	hypothetical protein
24	 47.45	0	32821..33996	+	391	34539904	-	PG0027	-	hypothetical protein
25	 50.31	0	34003..34491	+	162	34539905	ispF	PG0028	-	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
26	 56.18	+1	35986..36462	+	158	34539906	-	PG0030	-	cytidine deaminase
27	 49.78	0	36995..37669	-	224	34539907	-	PG0031	-	hypothetical protein
28	 54.02	+1	37717..40302	-	861	34539908	-	PG0032	-	beta-mannosidase, putative
29	 53.43	0	40332..41630	-	432	34539909	-	PG0033	-	RmuC domain-containing protein
30	 48.25	0	42325..42639	-	104	34539910	trx	PG0034	-	thioredoxin
31	 49.28	0	42688..46374	-	1228	34539911	dnaE	PG0035	-	DNA polymerase III, alpha subunit
32	 44.81	0	46659..47024	+	121	34539912	rplS	PG0037	-	50S ribosomal protein L19
33	 42.50	-1	47777..47896	+	39	34539913	-	PG0039	-	hypothetical protein
34	 45.13	0	48074..48463	+	129	34539914	-	PG0040	-	ISPg5 transposase Orf1
35	 50.27	0	48517..49455	+	312	34539915	-	PG0041	-	ISPg5 transposase Orf2
36	 52.54	0	49769..51049	+	426	34539916	glyA	PG0042	-	serine hydroxymethyltransferase
37	 50.81	0	51206..53539	+	777	34539917	nahA	PG0043	-	beta-hexosaminidase
38	 51.82	0	54199..56253	+	684	34539918	htpG	PG0045	-	heat shock protein 90
39	 51.11	0	56436..57290	-	284	34539919	cdsA	PG0046	-	phosphatidate cytidylyltransferase
40	 51.83	0	57319..59340	-	673	34539920	-	PG0047	-	cell division protein FtsH, putative
41	 49.73	0	59544..60647	-	367	34539921	-	PG0048	-	translation-associated GTPase
42	 42.42	-1	60666..60830	-	54	34539922	-	PG0049	-	hypothetical protein
43	 45.34	0	61056..62213	+	385	34539923	-	PG0050	-	ISPg4, transposase
44	 49.83	0	63559..64746	+	395	34539924	-	PG0052	-	sensor histidine kinase
45	 46.67	0	65057..65176	-	39	34539925	-	PG0053	-	hypothetical protein
46	 49.74	0	65205..66959	+	584	34539926	recJ	PG0054	-	single-stranded-DNA-specific exonuclease RecJ
47	 48.20	0	66956..68011	+	351	34539927	-	PG0055	-	hypothetical protein
48	 42.15	-1	68142..69842	+	566	34539928	-	PG0056	-	hypothetical protein
49	 48.27	0	69875..71059	+	394	34539929	pncB	PG0057	-	nicotinate phosphoribosyltransferase
50	 50.00	0	71059..71652	+	197	34539930	nadD	PG0058	-	nicotinic acid mononucleotide adenylyltransferase
51	 51.56	0	71666..72049	+	127	34539931	-	PG0059	-	hypothetical protein
52	 45.36	0	72056..72238	+	60	34539932	-	PG0060	-	hypothetical protein
53	 51.85	0	72285..73823	+	512	34539933	yngK-1	PG0061	-	yngK protein
54	 53.01	0	73828..75870	+	680	34539934	-	PG0062	-	TPR domain-containing protein
55	 52.33	0	75968..77146	-	392	34539935	-	PG0063	-	outer membrane efflux protein
56	 52.98	0	77164..80283	-	1039	34539936	-	PG0064	-	CzcA family heavy metal efflux protein
57	 53.23	0	80303..81277	-	324	34539937	-	PG0065	-	RND family efflux transporter MFP subunit
58	 45.14	0	81354..81641	-	95	34539938	-	PG0066	-	hypothetical protein
59	 51.59	0	81888..82139	+	83	34539939	-	PG0068	-	hypothetical protein
60	 53.86	+1	82511..84025	-	504	34539940	-	PG0069	-	hypothetical protein
61	 49.69	0	84030..84824	-	264	34539941	lpxA	PG0070	-	UDP-N-acetylglucosamine acyltransferase
62	 49.60	0	84821..86209	-	462	34539942	-	PG0071	-	bifunctional UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase/(3R)-hydroxymyristoyl-[acyl-carrier-protein] dehydratase
63	 51.33	0	86188..87237	-	349	34539943	lpxD	PG0072	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
64	 50.30	0	87330..88160	-	276	34539944	-	PG0073	-	orotidine 5'-monophosphate decarboxylase
65	 54.70	+1	88177..89262	-	361	34539945	prfA	PG0074	-	peptide chain release factor 1
66	 54.19	+1	89287..90528	-	413	34539946	-	PG0075	-	phosphoribosylformylglycinamidine cyclo-ligase, putative
67	 52.02	0	90482..91423	-	313	34539947	-	PG0076	-	N-acetylmuramoyl-L-alanine amidase
68	 39.77	-1	91656..92354	-	232	34539948	-	PG0078	-	hypothetical protein
69	 40.78	-1	92327..93628	-	433	34539949	-	PG0079	-	abortive infection protein, putative
70	 42.42	-1	93659..93922	-	87	34539950	-	PG0080	-	hypothetical protein
71	 53.95	+1	93945..96122	+	725	34539951	-	PG0081	-	hypothetical protein
72	 51.50	0	96184..97086	+	300	34539952	-	PG0082	-	hypothetical protein
73	 52.80	0	97092..97877	+	261	34539953	-	PG0083	-	hypothetical protein
74	 55.67	+1	97972..99171	+	399	34539954	sda	PG0084	-	L-serine dehydratase, iron-sulfur-dependent, single chain form
75	 52.49	0	99312..100616	+	434	34539955	-	PG0085	-	alpha-galactosidase
76	 50.30	0	100635..102449	-	604	34539956	-	PG0086	-	DEAD-box ATP dependent DNA helicase
77	 54.11	+1	102595..103215	-	206	34539957	-	PG0087	-	SIS domain-containing protein
78	 50.66	0	103415..104632	+	405	34539958	-	PG0088	-	M16 family peptidase
79	 51.67	0	105664..106143	+	159	34539959	-	PG0090	-	Dps family protein
80	 52.55	0	106273..107490	-	405	34539960	-	PG0091	-	transporter, putative
81	 52.98	0	107549..108688	-	379	34539961	-	PG0092	-	transporter, putative
82	 56.33	+1	108733..109728	-	331	34539962	-	PG0093	-	HlyD family secretion protein
83	 55.11	+1	109778..111283	-	501	34539963	-	PG0094	-	outer membrane efflux protein, putative
84	 53.25	0	112178..114853	-	891	34539964	mutS	PG0095	-	DNA mismatch repair protein
85	 50.21	0	115146..115874	-	242	161579534	-	PG0097	-	hypothetical protein
86	 38.38	-2	115835..115933	-	32	34539966	-	PG0098	-	hypothetical protein
87	 52.64	0	115917..118376	-	819	34539967	pheT	PG0099	-	phenylalanyl-tRNA synthetase subunit beta
88	 45.24	0	119142..119309	-	55	34539968	-	PG0100	-	hypothetical protein
89	 44.29	0	119338..119556	+	72	34539969	-	PG0101	-	hypothetical protein
90	 44.65	0	121143..121301	+	52	34539970	-	PG0102	-	hypothetical protein
91	 44.23	0	121430..121585	+	51	34539971	-	PG0103	-	hypothetical protein
92	 52.51	0	125481..127508	+	675	34539972	topB-1	PG0104	-	DNA topoisomerase III
93	 37.03	-2	128858..129994	+	378	34539973	-	PG0106	-	glycosyl transferase, group 4 family protein
94	 44.17	0	130241..131449	+	402	34539974	epsD	PG0108	-	UDP-N-acetyl-D-mannosaminuronic acid dehydrogenase
95	 38.24	-2	131471..132694	+	407	34539975	-	PG0109	-	hypothetical protein
96	 39.96	-1	132731..133771	+	346	34539976	-	PG0110	-	glycosyl transferase, group 1 family protein
97	 37.75	-2	133820..135088	+	422	34539977	-	PG0111	-	capsular polysacharride biosynthesis gene, putative
98	 42.42	-1	136065..136922	+	285	34539978	-	PG0113	-	hypothetical protein
99	 47.89	0	136919..138058	+	379	34539979	-	PG0114	-	hypothetical protein
100	 39.04	-2	138178..138615	+	145	34539980	-	PG0115	-	hexapeptide transferase family protein
48.73	MEAN

4.83	STD DEV
