IslandPath Analysis: Porphyromonas gingivalis W83

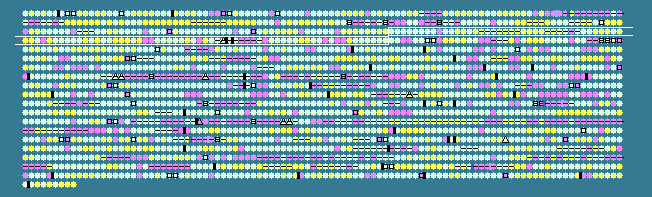

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.73 STD DEV: 4.83
Porphyromonas gingivalis W83, complete genome - 1..2343476
1909 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
262	 50.51	0	341046..342029	+	327	34540142	-	PG0305	-	electron transport complex, RnfABCDGE type, D subunit
263	 49.54	0	342056..342703	+	215	34540143	-	PG0306	-	electron transport complex, RnfABCDGE type, G subunit
264	 46.02	0	342700..343290	+	196	34540144	-	PG0307	-	SoxR-reducing system protein RsxE
265	 47.47	0	343315..343887	+	190	34540145	-	PG0308	-	electron transport complex, RnfABCDGE type, A subunit
266	 51.68	0	344100..345113	-	337	34540146	apbE	PG0309	-	thiamine biosynthesis lipoprotein ApbE
267	 50.37	0	345110..345649	-	179	34540147	-	PG0310	-	nitroreductase family protein
268	 49.79	0	345649..346602	-	317	34540148	-	PG0311	-	glycosyl transferase, group 2 family protein
269	 48.15	0	346599..347138	-	179	34540149	-	PG0312	-	hypothetical protein
270	 38.51	-2	347506..347814	+	102	34540150	-	PG0313	-	hypothetical protein
271	 46.86	0	347875..348192	+	105	161579533	rplU	PG0314	-	50S ribosomal protein L21
272	 46.51	0	348220..348477	+	85	34540152	rpmA	PG0315	-	50S ribosomal protein L27
273	 54.56	+1	348577..349848	+	423	34540153	serS	PG0316	-	seryl-tRNA synthetase
274	 54.42	+1	349861..352521	-	886	34540154	-	PG0317	-	M49 family peptidase
275	 46.39	0	353089..353517	+	142	34540155	-	PG0319	-	hypothetical protein
276	 54.91	+1	353549..354637	+	362	34540156	-	PG0320	-	hypothetical protein
277	 54.36	+1	354788..355819	+	343	34540157	-	PG0321	-	arginine/ornithine transport system ATPase
278	 51.06	0	355848..357026	+	392	34540158	-	PG0322	-	serine/threonine transporter
279	 50.91	0	357149..357478	-	109	34540159	-	PG0323	-	hypothetical protein
280	 54.75	+1	357679..359172	-	497	34540160	hutH	PG0324	-	histidine ammonia-lyase
281	 52.54	0	359175..359804	-	209	34540161	-	PG0325	-	hypothetical protein
282	 54.94	+1	359829..361064	-	411	34540162	-	PG0326	-	hypothetical protein
283	 57.32	+1	360997..362151	-	384	34540163	-	PG0327	-	hypothetical protein
284	 60.30	+2	362245..363516	-	423	34540164	hutI	PG0328	-	imidazolonepropionase
285	 58.58	+2	363617..364519	-	300	34540165	-	PG0329	-	formiminotransferase-cyclodeaminase-related protein
286	 60.08	+2	364568..365083	-	171	34540166	-	PG0330	-	histone-like family DNA-binding protein
287	 60.39	+2	365759..367735	+	658	34540167	rho	PG0332	-	transcription termination factor Rho
288	 57.32	+1	367963..368871	+	302	34540168	-	PG0333	-	hypothetical protein
289	 53.44	0	368882..369841	-	319	34540169	-	PG0334	-	glycosyl transferase, group 2 family protein
290	 55.48	+1	369894..370796	-	300	34540170	miaA	PG0335	-	tRNA delta(2)-isopentenylpyrophosphate transferase
291	 51.75	0	370813..371382	-	189	34540171	-	PG0336	-	hypothetical protein
292	 44.44	0	371467..371619	-	50	34540172	-	PG0337	-	hypothetical protein
293	 52.07	0	371670..375197	+	1175	34540173	-	PG0338	-	hypothetical protein
294	 48.72	0	375202..375747	+	181	34540174	-	PG0339	-	hypothetical protein
295	 48.11	0	376206..376496	+	96	34540175	-	PG0340	-	hypothetical protein
296	 58.38	+1	377271..378452	-	393	34540176	megL	PG0343	-	methionine gamma-lyase
297	 57.28	+1	378633..380102	-	489	34540177	-	PG0344	-	purple acid phosphatase
298	 53.03	0	380105..380698	-	197	34540178	-	PG0345	-	hypothetical protein
299	 48.18	0	380799..381404	+	201	34540179	-	PG0346	-	GTPase EngB
300	 53.26	0	381414..382442	+	342	34540180	galE	PG0347	-	UDP-glucose 4-epimerase
301	 54.12	+1	382485..384581	+	698	34540181	recG	PG0348	-	ATP-dependent DNA helicase RecG
302	 53.52	0	384599..385351	+	250	34540182	-	PG0349	-	HAD superfamily hydrolase
303	 49.28	0	385446..386900	-	484	34540183	-	PG0350	-	internalin-related protein
304	 42.53	-1	386914..387174	+	86	34540184	-	PG0351	-	hypothetical protein
305	 54.71	+1	387327..388907	+	526	34540185	-	PG0352	-	sialidase, putative
306	 49.67	0	389221..389373	-	50	34540186	-	PG0354	-	hypothetical protein
307	 48.48	0	389784..390767	+	327	34540187	-	PG0355	-	hypothetical protein
308	 48.28	0	390751..391533	+	260	34540188	-	PG0356	-	hypothetical protein
309	 50.49	0	391580..392494	+	304	34540189	pyrB	PG0357	-	aspartate carbamoyltransferase catalytic subunit
310	 50.00	0	392507..392962	+	151	34540190	pyrI	PG0358	-	aspartate carbamoyltransferase regulatory subunit
311	 53.40	0	392991..393578	+	195	34540191	-	PG0359	-	flavin reductase domain-containing protein
312	 48.56	0	393622..394212	+	196	34540192	-	PG0360	-	hypothetical protein
313	 52.37	0	394234..395541	+	435	34540193	-	PG0361	-	hypothetical protein
314	 49.79	0	395441..397609	+	722	34540194	-	PG0362	-	hypothetical protein
315	 51.81	0	397610..398437	+	275	34540195	-	PG0363	-	hypothetical protein
316	 52.65	0	398500..399705	-	401	34540196	-	PG0364	-	hypothetical protein
317	 57.14	+1	399702..400268	-	188	34540197	-	PG0365	-	3'-5' exonuclease domain-containing protein
318	 52.76	0	400345..400905	-	186	34540198	-	PG0366	-	hypothetical protein
319	 51.73	0	401385..403319	+	644	34540199	-	PG0368	-	DNA topoisomerase IV subunit B
320	 53.90	+1	403350..403811	+	153	34540200	coaD	PG0369	-	phosphopantetheine adenylyltransferase
321	 43.14	-1	404183..404284	+	33	34540201	-	PG0371	-	hypothetical protein
322	 39.91	-1	404845..405513	+	222	34540202	-	PG0373	-	hypothetical protein
323	 48.72	0	405538..405654	-	38	34540203	-	PG0374	-	hypothetical protein
324	 49.56	0	406074..406529	+	151	34540204	rplM	PG0375	-	50S ribosomal protein L13
325	 50.13	0	406539..406925	+	128	34540205	rpsI	PG0376	-	30S ribosomal protein S9
326	 51.89	0	407060..407905	+	281	34540206	rpsB	PG0377	-	30S ribosomal protein S2
327	 52.12	0	408044..408868	+	274	34540207	tsf	PG0378	-	elongation factor Ts
328	 55.13	+1	409242..411278	+	678	34540208	uvrB	PG0380	-	excinuclease ABC subunit B
329	 50.89	0	411275..412795	-	506	34540209	-	PG0381	-	potassium/proton antiporter
330	 32.93	-2	413331..414803	+	490	34540210	-	PG0382	-	hypothetical protein
331	 52.27	0	414906..416225	+	439	34540211	-	PG0383	-	membrane-associated zinc metalloprotease, putative
332	 52.04	0	416235..418757	+	840	34540212	-	PG0384	-	MutS2 family protein
333	 46.35	0	418919..419110	+	63	34540213	rpsU	PG0385	-	30S ribosomal protein S21
334	 46.55	0	419187..420389	+	400	34540214	-	PG0386	-	phage integrase family site specific recombinase
335	 49.24	0	420783..421970	+	395	34540215	tuf	PG0387	-	elongation factor Tu
336	 45.74	0	422354..422893	+	179	34540216	nusG	PG0389	-	transcription antitermination protein NusG
337	 44.06	0	422962..423399	+	145	34540217	rplK	PG0390	-	50S ribosomal protein L11
338	 43.35	-1	423420..424118	+	232	34540218	rplA	PG0391	-	50S ribosomal protein L1
339	 43.81	-1	424134..424658	+	174	34540219	rplJ	PG0392	-	50S ribosomal protein L10
340	 47.62	0	424700..425077	+	125	34540220	rplL	PG0393	-	50S ribosomal protein L7/L12
341	 44.86	0	425189..428998	+	1269	34540221	rpoB	PG0394	-	DNA-directed RNA polymerase subunit beta
342	 46.54	0	429064..433365	+	1433	34540222	rpoC	PG0395	-	DNA-directed RNA polymerase subunit beta'
343	 46.64	0	433653..434351	+	232	34540223	-	PG0396	-	Crp/FNR family transcriptional regulator
344	 49.14	0	434402..434692	-	96	34540224	-	PG0397	-	hypothetical protein
345	 48.40	0	434706..435800	-	364	34540225	recF	PG0398	-	recF protein
346	 50.28	0	435797..436327	-	176	34540226	-	PG0399	-	putative lipoprotein
347	 53.43	0	436335..437618	-	427	34540227	-	PG0400	-	hypothetical protein
348	 53.18	0	437855..439396	-	513	34540228	-	PG0401	-	phosphodiesterase
349	 51.46	0	439543..439851	-	102	34540229	-	PG0403	-	hypothetical protein
350	 46.90	0	439858..440196	-	112	34540230	-	PG0404	-	hypothetical protein
351	 39.89	-1	441042..441575	-	177	34540231	-	PG0408	-	hypothetical protein
352	 48.18	0	441589..442410	+	273	34540232	-	PG0409	-	hypothetical protein
353	 40.13	-1	442757..446641	+	1294	34540233	-	PG0410	-	hypothetical protein
354	 45.07	0	446641..449418	+	925	34540234	-	PG0411	-	hemagglutinin, putative
355	 52.56	0	449674..451530	-	618	34540235	mutL	PG0412	-	DNA mismatch repair protein MutL
356	 49.86	0	451527..451871	-	114	34540236	-	PG0413	-	hypothetical protein
357	 50.56	0	451862..453742	-	626	34540237	-	PG0414	-	hypothetical protein
358	 45.48	0	453804..455186	-	460	34540238	-	PG0415	-	peptidyl-prolyl cis-trans isomerase, PPIC-type
359	 46.79	0	455223..457400	-	725	34540239	recQ-1	PG0416	-	ATP-dependent DNA helicase RecQ
360	 46.36	0	457479..458714	-	411	34540240	clpX	PG0417	-	ATP-dependent protease ATP-binding subunit
361	 48.73	0	458751..459419	-	222	34540241	clpP	PG0418	-	ATP-dependent Clp protease, proteolytic subunit
48.73	MEAN

4.83	STD DEV
