IslandPath Analysis: Porphyromonas gingivalis W83

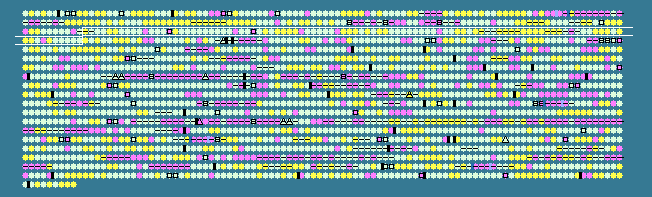

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.73 STD DEV: 4.83
Porphyromonas gingivalis W83, complete genome - 1..2343476
1909 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
211	 53.28	0	278349..279050	-	233	34540091	-	PG0242	-	hypothetical protein
212	 46.96	0	279066..279542	-	158	34540092	-	PG0243	-	hypothetical protein
213	 47.98	0	279863..280975	-	370	34540093	-	PG0245	-	universal stress protein
214	 51.04	0	281140..281331	-	63	34540094	-	PG0246	-	hypothetical protein
215	 52.25	0	281600..281932	-	110	34540095	-	PG0248	-	translation initation factor SUI1, putative
216	 52.31	0	282029..283888	-	619	34540096	-	PG0249	-	oxaloacetate decarboxylase, putative
217	 50.85	0	283995..284171	-	58	34540097	-	PG0250	-	hypothetical protein
218	 51.85	0	284747..285205	+	152	34540098	-	PG0253	-	hypothetical protein
219	 51.99	0	285252..286586	+	444	34540099	nusA	PG0254	-	transcription elongation factor NusA
220	 52.21	0	286682..289621	+	979	34540100	infB	PG0255	-	translation initiation factor IF-2
221	 45.12	0	289649..290140	+	163	34540101	-	PG0256	-	CvpA family protein
222	 46.68	0	290174..291619	+	481	34540102	-	PG0257	-	cysteine desulfurase activator complex subunit SufB
223	 51.53	0	291659..292411	+	250	34540103	-	PG0258	-	ABC transporter, ATP-binding protein
224	 50.15	0	292418..293761	+	447	34540104	-	PG0259	-	hypothetical protein
225	 40.97	-1	293952..294854	-	300	34540105	-	PG0261	-	ISPg3, transposase
226	 52.44	0	295803..297095	+	430	34540106	tyrS	PG0263	-	tyrosyl-tRNA synthetase
227	 47.38	0	297115..298182	+	355	34540107	-	PG0264	-	glycosyl transferase, group 2 family protein
228	 49.06	0	298483..298641	-	52	34540108	-	PG0265	-	hypothetical protein
229	 48.49	0	299240..301033	+	597	34540109	argS	PG0267	-	arginyl-tRNA synthetase
230	 47.88	0	301038..302123	+	361	34540110	trmU	PG0268	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
231	 46.80	0	302168..302932	+	254	34540111	xth	PG0269	-	exodeoxyribonuclease III
232	 49.30	0	303005..303931	+	308	34540112	oxyR	PG0270	-	redox-sensitive transcriptional activator OxyR
233	 49.89	0	303982..304452	+	156	34540113	ssb	PG0271	-	single-stranded binding protein
234	 46.03	0	304539..305798	+	419	34540114	-	PG0272	-	CBS domain-containing protein
235	 49.92	0	305834..306430	+	198	34540115	-	PG0273	-	4'-phosphopantetheinyl transferase family protein
236	 40.92	-1	306473..306841	+	122	34540116	-	PG0274	-	hypothetical protein
237	 46.67	0	307045..307554	-	169	34540117	-	PG0275	-	thioredoxin family protein
238	 47.81	0	307692..308879	-	395	34540118	-	PG0276	-	hypothetical protein
239	 41.82	-1	308996..310126	+	376	34540119	-	PG0277	-	ISPg2, transposase
240	 51.00	0	310187..310537	+	116	34540120	-	PG0278	-	hypothetical protein
241	 53.38	0	310765..313044	-	759	34540121	maeB	PG0279	-	malic enzyme
242	 51.54	0	313387..314715	-	442	34540122	-	PG0280	-	ABC transporter, permease protein, putative
243	 53.96	+1	314737..316113	-	458	34540123	-	PG0281	-	ABC transporter, permease protein, putative
244	 55.36	+1	316334..317005	-	223	34540124	-	PG0282	-	ABC transporter, ATP-binding protein
245	 56.27	+1	317085..318335	-	416	34540125	-	PG0283	-	RND family efflux transporter MFP subunit
246	 57.04	+1	318599..320104	+	501	34540126	-	PG0285	-	hypothetical protein
247	 40.70	-1	320257..320514	+	85	34540127	-	PG0286	-	hypothetical protein
248	 50.85	0	320597..321538	+	313	34540128	-	PG0287	-	hypothetical protein
249	 50.47	0	321595..323070	+	491	34540129	-	PG0288	-	putative lipoprotein
250	 50.05	0	323000..324040	+	346	34540130	-	PG0289	-	hypothetical protein
251	 48.61	0	324044..325594	+	516	34540131	-	PG0290	-	hypothetical protein
252	 49.36	0	325597..326682	+	361	34540132	-	PG0291	-	hypothetical protein
253	 44.73	0	328183..328761	-	192	34540133	-	PG0293	-	secretion activator protein, putative
254	 52.41	0	329361..330251	-	296	34540134	-	PG0294	-	glycosyl transferase, group 2 family protein
255	 54.67	+1	330266..331390	-	374	34540135	dprA	PG0295	-	DNA processing protein DprA, putative
256	 53.14	0	331383..335087	-	1234	34540136	-	PG0296	-	phosphoribosylformylglycinamidine synthase
257	 48.20	0	335387..335608	-	73	34540137	-	PG0297	-	hypothetical protein
258	 53.75	+1	336710..338002	+	430	34540138	-	PG0300	-	TPR domain-containing protein
259	 47.99	0	338359..338781	+	140	34540139	-	PG0302	-	hypothetical protein
260	 56.13	+1	338791..339663	+	290	34540140	-	PG0303	-	ferredoxin
261	 52.55	0	339699..341030	+	443	34540141	-	PG0304	-	electron transport complex, RnfABCDGE type, C subunit
262	 50.51	0	341046..342029	+	327	34540142	-	PG0305	-	electron transport complex, RnfABCDGE type, D subunit
263	 49.54	0	342056..342703	+	215	34540143	-	PG0306	-	electron transport complex, RnfABCDGE type, G subunit
264	 46.02	0	342700..343290	+	196	34540144	-	PG0307	-	SoxR-reducing system protein RsxE
265	 47.47	0	343315..343887	+	190	34540145	-	PG0308	-	electron transport complex, RnfABCDGE type, A subunit
266	 51.68	0	344100..345113	-	337	34540146	apbE	PG0309	-	thiamine biosynthesis lipoprotein ApbE
267	 50.37	0	345110..345649	-	179	34540147	-	PG0310	-	nitroreductase family protein
268	 49.79	0	345649..346602	-	317	34540148	-	PG0311	-	glycosyl transferase, group 2 family protein
269	 48.15	0	346599..347138	-	179	34540149	-	PG0312	-	hypothetical protein
270	 38.51	-2	347506..347814	+	102	34540150	-	PG0313	-	hypothetical protein
271	 46.86	0	347875..348192	+	105	161579533	rplU	PG0314	-	50S ribosomal protein L21
272	 46.51	0	348220..348477	+	85	34540152	rpmA	PG0315	-	50S ribosomal protein L27
273	 54.56	+1	348577..349848	+	423	34540153	serS	PG0316	-	seryl-tRNA synthetase
274	 54.42	+1	349861..352521	-	886	34540154	-	PG0317	-	M49 family peptidase
275	 46.39	0	353089..353517	+	142	34540155	-	PG0319	-	hypothetical protein
276	 54.91	+1	353549..354637	+	362	34540156	-	PG0320	-	hypothetical protein
277	 54.36	+1	354788..355819	+	343	34540157	-	PG0321	-	arginine/ornithine transport system ATPase
278	 51.06	0	355848..357026	+	392	34540158	-	PG0322	-	serine/threonine transporter
279	 50.91	0	357149..357478	-	109	34540159	-	PG0323	-	hypothetical protein
280	 54.75	+1	357679..359172	-	497	34540160	hutH	PG0324	-	histidine ammonia-lyase
281	 52.54	0	359175..359804	-	209	34540161	-	PG0325	-	hypothetical protein
282	 54.94	+1	359829..361064	-	411	34540162	-	PG0326	-	hypothetical protein
283	 57.32	+1	360997..362151	-	384	34540163	-	PG0327	-	hypothetical protein
284	 60.30	+2	362245..363516	-	423	34540164	hutI	PG0328	-	imidazolonepropionase
285	 58.58	+2	363617..364519	-	300	34540165	-	PG0329	-	formiminotransferase-cyclodeaminase-related protein
286	 60.08	+2	364568..365083	-	171	34540166	-	PG0330	-	histone-like family DNA-binding protein
287	 60.39	+2	365759..367735	+	658	34540167	rho	PG0332	-	transcription termination factor Rho
288	 57.32	+1	367963..368871	+	302	34540168	-	PG0333	-	hypothetical protein
289	 53.44	0	368882..369841	-	319	34540169	-	PG0334	-	glycosyl transferase, group 2 family protein
290	 55.48	+1	369894..370796	-	300	34540170	miaA	PG0335	-	tRNA delta(2)-isopentenylpyrophosphate transferase
291	 51.75	0	370813..371382	-	189	34540171	-	PG0336	-	hypothetical protein
292	 44.44	0	371467..371619	-	50	34540172	-	PG0337	-	hypothetical protein
293	 52.07	0	371670..375197	+	1175	34540173	-	PG0338	-	hypothetical protein
294	 48.72	0	375202..375747	+	181	34540174	-	PG0339	-	hypothetical protein
295	 48.11	0	376206..376496	+	96	34540175	-	PG0340	-	hypothetical protein
296	 58.38	+1	377271..378452	-	393	34540176	megL	PG0343	-	methionine gamma-lyase
297	 57.28	+1	378633..380102	-	489	34540177	-	PG0344	-	purple acid phosphatase
298	 53.03	0	380105..380698	-	197	34540178	-	PG0345	-	hypothetical protein
299	 48.18	0	380799..381404	+	201	34540179	-	PG0346	-	GTPase EngB
300	 53.26	0	381414..382442	+	342	34540180	galE	PG0347	-	UDP-glucose 4-epimerase
301	 54.12	+1	382485..384581	+	698	34540181	recG	PG0348	-	ATP-dependent DNA helicase RecG
302	 53.52	0	384599..385351	+	250	34540182	-	PG0349	-	HAD superfamily hydrolase
303	 49.28	0	385446..386900	-	484	34540183	-	PG0350	-	internalin-related protein
304	 42.53	-1	386914..387174	+	86	34540184	-	PG0351	-	hypothetical protein
305	 54.71	+1	387327..388907	+	526	34540185	-	PG0352	-	sialidase, putative
306	 49.67	0	389221..389373	-	50	34540186	-	PG0354	-	hypothetical protein
307	 48.48	0	389784..390767	+	327	34540187	-	PG0355	-	hypothetical protein
308	 48.28	0	390751..391533	+	260	34540188	-	PG0356	-	hypothetical protein
309	 50.49	0	391580..392494	+	304	34540189	pyrB	PG0357	-	aspartate carbamoyltransferase catalytic subunit
310	 50.00	0	392507..392962	+	151	34540190	pyrI	PG0358	-	aspartate carbamoyltransferase regulatory subunit
48.73	MEAN

4.83	STD DEV
