IslandPath Analysis: Porphyromonas gingivalis W83

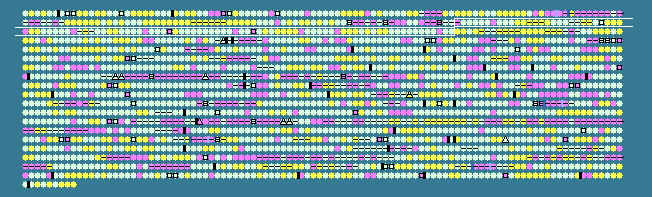

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.73 STD DEV: 4.83
Porphyromonas gingivalis W83, complete genome - 1..2343476
1909 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
173	 45.08	0	236031..236294	-	87	34540053	-	PG0197	-	hypothetical protein
174	 45.93	0	237022..237561	+	179	34540054	-	PG0198	-	hypothetical protein
175	 48.18	0	237514..238227	-	237	34540055	-	PG0199	-	TatD family protein
176	 51.95	0	238211..238441	-	76	34540056	-	PG0200	-	hypothetical protein
177	 48.07	0	238447..238860	-	137	34540057	rnpA	PG0201	-	ribonuclease P
178	 47.26	0	238857..239603	-	248	34540058	-	PG0202	-	uroporphyrinogen-III synthase HemD, putative
179	 44.49	0	239594..240301	-	235	34540059	-	PG0203	-	hypothetical protein
180	 49.19	0	240352..240597	-	81	34540060	-	PG0204	-	hypothetical protein
181	 51.61	0	240603..242183	-	526	34540061	prfC	PG0205	-	peptide chain release factor 3
182	 51.78	0	243371..244156	+	261	34540062	-	PG0209	-	formate/nitrite transporter
183	 54.73	+1	244251..246059	-	602	34540063	-	PG0210	-	precorrin-6x reductase/cobalamin biosynthetic protein CbiD
184	 54.42	+1	246056..247900	-	614	34540064	cbiGF	PG0211	-	cobalamin biosynthesis protein CbiG/precorrin-4 C11-methyltransferase
185	 53.70	+1	247914..249155	-	413	34540065	cobL	PG0212	-	precorrin-6Y C5,15-methyltransferase, decarboxylating
186	 56.57	+1	249148..250554	-	468	34540066	-	PG0213	-	precorrin-3 methylase/precorrin-8X methylmutase
187	 57.49	+1	251103..251603	+	166	34540067	-	PG0214	-	ECF subfamily RNA polymerase sigma factor
188	 55.83	+1	251600..252088	+	162	34540068	-	PG0215	-	hypothetical protein
189	 49.30	0	252096..252596	+	166	34540069	-	PG0216	-	hypothetical protein
190	 50.45	0	252630..253523	+	297	34540070	-	PG0217	-	hypothetical protein
191	 50.52	0	253435..254394	+	319	34540071	-	PG0218	-	hypothetical protein
192	 46.45	0	255100..255648	-	182	34540072	-	PG0219	-	hypothetical protein
193	 49.10	0	255703..255924	-	73	34540073	-	PG0221	-	hypothetical protein
194	 54.91	+1	256003..256470	-	155	34540074	-	PG0222	-	histone-like family DNA-binding protein
195	 58.13	+1	257209..257700	-	163	34540075	-	PG0223	-	exonuclease
196	 51.17	0	257704..258342	-	212	34540076	-	PG0224	-	hypothetical protein
197	 45.77	0	258575..259732	-	385	34540077	-	PG0225	-	ISPg4, transposase
198	 56.98	+1	259928..262621	-	897	34540078	-	PG0226	-	transglutaminase-related protein
199	 56.06	+1	262683..264068	-	461	34540079	radA	PG0227	-	DNA repair protein RadA
200	 53.40	0	264114..265040	-	308	34540080	-	PG0228	-	DdaH family protein
201	 43.36	-1	265012..265410	+	132	34540081	-	PG0229	-	hypothetical protein
202	 52.49	0	265512..266174	+	220	34540082	-	PG0230	-	putative translaldolase
203	 52.50	0	266171..267469	+	432	34540083	-	PG0231	-	hypothetical protein
204	 48.62	0	267548..270013	-	821	34540084	-	PG0232	-	zinc carboxypeptidase, putative
205	 47.60	0	270851..271474	-	207	34540085	-	PG0234	-	immunoreactive 23 kDa antigen PG66
206	 50.79	0	271769..273292	+	507	34540086	-	PG0235	-	carboxyl-terminal protease
207	 51.35	0	273364..274884	+	506	34540087	-	PG0236	-	hypothetical protein
208	 51.12	0	274918..275586	+	222	34540088	ung	PG0237	-	uracil-DNA glycosylase
209	 44.35	0	276485..277183	-	232	34540089	-	PG0240	-	HAD superfamily hydrolase
210	 47.25	0	277450..278304	-	284	34540090	-	PG0241	-	putative lipoprotein
211	 53.28	0	278349..279050	-	233	34540091	-	PG0242	-	hypothetical protein
212	 46.96	0	279066..279542	-	158	34540092	-	PG0243	-	hypothetical protein
213	 47.98	0	279863..280975	-	370	34540093	-	PG0245	-	universal stress protein
214	 51.04	0	281140..281331	-	63	34540094	-	PG0246	-	hypothetical protein
215	 52.25	0	281600..281932	-	110	34540095	-	PG0248	-	translation initation factor SUI1, putative
216	 52.31	0	282029..283888	-	619	34540096	-	PG0249	-	oxaloacetate decarboxylase, putative
217	 50.85	0	283995..284171	-	58	34540097	-	PG0250	-	hypothetical protein
218	 51.85	0	284747..285205	+	152	34540098	-	PG0253	-	hypothetical protein
219	 51.99	0	285252..286586	+	444	34540099	nusA	PG0254	-	transcription elongation factor NusA
220	 52.21	0	286682..289621	+	979	34540100	infB	PG0255	-	translation initiation factor IF-2
221	 45.12	0	289649..290140	+	163	34540101	-	PG0256	-	CvpA family protein
222	 46.68	0	290174..291619	+	481	34540102	-	PG0257	-	cysteine desulfurase activator complex subunit SufB
223	 51.53	0	291659..292411	+	250	34540103	-	PG0258	-	ABC transporter, ATP-binding protein
224	 50.15	0	292418..293761	+	447	34540104	-	PG0259	-	hypothetical protein
225	 40.97	-1	293952..294854	-	300	34540105	-	PG0261	-	ISPg3, transposase
226	 52.44	0	295803..297095	+	430	34540106	tyrS	PG0263	-	tyrosyl-tRNA synthetase
227	 47.38	0	297115..298182	+	355	34540107	-	PG0264	-	glycosyl transferase, group 2 family protein
228	 49.06	0	298483..298641	-	52	34540108	-	PG0265	-	hypothetical protein
229	 48.49	0	299240..301033	+	597	34540109	argS	PG0267	-	arginyl-tRNA synthetase
230	 47.88	0	301038..302123	+	361	34540110	trmU	PG0268	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
231	 46.80	0	302168..302932	+	254	34540111	xth	PG0269	-	exodeoxyribonuclease III
232	 49.30	0	303005..303931	+	308	34540112	oxyR	PG0270	-	redox-sensitive transcriptional activator OxyR
233	 49.89	0	303982..304452	+	156	34540113	ssb	PG0271	-	single-stranded binding protein
234	 46.03	0	304539..305798	+	419	34540114	-	PG0272	-	CBS domain-containing protein
235	 49.92	0	305834..306430	+	198	34540115	-	PG0273	-	4'-phosphopantetheinyl transferase family protein
236	 40.92	-1	306473..306841	+	122	34540116	-	PG0274	-	hypothetical protein
237	 46.67	0	307045..307554	-	169	34540117	-	PG0275	-	thioredoxin family protein
238	 47.81	0	307692..308879	-	395	34540118	-	PG0276	-	hypothetical protein
239	 41.82	-1	308996..310126	+	376	34540119	-	PG0277	-	ISPg2, transposase
240	 51.00	0	310187..310537	+	116	34540120	-	PG0278	-	hypothetical protein
241	 53.38	0	310765..313044	-	759	34540121	maeB	PG0279	-	malic enzyme
242	 51.54	0	313387..314715	-	442	34540122	-	PG0280	-	ABC transporter, permease protein, putative
243	 53.96	+1	314737..316113	-	458	34540123	-	PG0281	-	ABC transporter, permease protein, putative
244	 55.36	+1	316334..317005	-	223	34540124	-	PG0282	-	ABC transporter, ATP-binding protein
245	 56.27	+1	317085..318335	-	416	34540125	-	PG0283	-	RND family efflux transporter MFP subunit
246	 57.04	+1	318599..320104	+	501	34540126	-	PG0285	-	hypothetical protein
247	 40.70	-1	320257..320514	+	85	34540127	-	PG0286	-	hypothetical protein
248	 50.85	0	320597..321538	+	313	34540128	-	PG0287	-	hypothetical protein
249	 50.47	0	321595..323070	+	491	34540129	-	PG0288	-	putative lipoprotein
250	 50.05	0	323000..324040	+	346	34540130	-	PG0289	-	hypothetical protein
251	 48.61	0	324044..325594	+	516	34540131	-	PG0290	-	hypothetical protein
252	 49.36	0	325597..326682	+	361	34540132	-	PG0291	-	hypothetical protein
253	 44.73	0	328183..328761	-	192	34540133	-	PG0293	-	secretion activator protein, putative
254	 52.41	0	329361..330251	-	296	34540134	-	PG0294	-	glycosyl transferase, group 2 family protein
255	 54.67	+1	330266..331390	-	374	34540135	dprA	PG0295	-	DNA processing protein DprA, putative
256	 53.14	0	331383..335087	-	1234	34540136	-	PG0296	-	phosphoribosylformylglycinamidine synthase
257	 48.20	0	335387..335608	-	73	34540137	-	PG0297	-	hypothetical protein
258	 53.75	+1	336710..338002	+	430	34540138	-	PG0300	-	TPR domain-containing protein
259	 47.99	0	338359..338781	+	140	34540139	-	PG0302	-	hypothetical protein
260	 56.13	+1	338791..339663	+	290	34540140	-	PG0303	-	ferredoxin
261	 52.55	0	339699..341030	+	443	34540141	-	PG0304	-	electron transport complex, RnfABCDGE type, C subunit
262	 50.51	0	341046..342029	+	327	34540142	-	PG0305	-	electron transport complex, RnfABCDGE type, D subunit
263	 49.54	0	342056..342703	+	215	34540143	-	PG0306	-	electron transport complex, RnfABCDGE type, G subunit
264	 46.02	0	342700..343290	+	196	34540144	-	PG0307	-	SoxR-reducing system protein RsxE
265	 47.47	0	343315..343887	+	190	34540145	-	PG0308	-	electron transport complex, RnfABCDGE type, A subunit
266	 51.68	0	344100..345113	-	337	34540146	apbE	PG0309	-	thiamine biosynthesis lipoprotein ApbE
267	 50.37	0	345110..345649	-	179	34540147	-	PG0310	-	nitroreductase family protein
268	 49.79	0	345649..346602	-	317	34540148	-	PG0311	-	glycosyl transferase, group 2 family protein
269	 48.15	0	346599..347138	-	179	34540149	-	PG0312	-	hypothetical protein
270	 38.51	-2	347506..347814	+	102	34540150	-	PG0313	-	hypothetical protein
271	 46.86	0	347875..348192	+	105	161579533	rplU	PG0314	-	50S ribosomal protein L21
272	 46.51	0	348220..348477	+	85	34540152	rpmA	PG0315	-	50S ribosomal protein L27
48.73	MEAN

4.83	STD DEV
