IslandPath Analysis: Porphyromonas gingivalis W83

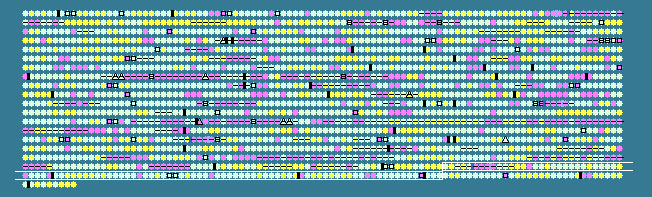

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.73 STD DEV: 4.83
Porphyromonas gingivalis W83, complete genome - 1..2343476
1909 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1771	 48.15	0	2164474..2164932	+	152	34541651	tagD	PG2068	-	glycerol-3-phosphate cytidylyltransferase
1772	 53.55	0	2164938..2165669	+	243	34541652	-	PG2069	-	short chain dehydrogenase/reductase family oxidoreductase
1773	 49.84	0	2165681..2166607	+	308	34541653	-	PG2070	-	hypothetical protein
1774	 53.21	0	2166577..2167512	+	311	34541654	-	PG2071	-	hypothetical protein
1775	 51.01	0	2167509..2170817	+	1102	34541655	-	PG2072	-	UvrD/REP helicase domain-containing protein
1776	 44.23	0	2174309..2174464	-	51	34541656	-	PG2073	-	hypothetical protein
1777	 44.65	0	2174593..2174751	-	52	34541657	-	PG2074	-	hypothetical protein
1778	 43.84	-1	2176338..2176556	-	72	34541658	-	PG2075	-	hypothetical protein
1779	 44.99	0	2176585..2177133	+	182	34541659	-	PG2076	-	hypothetical protein
1780	 50.65	0	2177095..2177481	-	128	34541660	-	PG2077	-	hypothetical protein
1781	 50.98	0	2177518..2178690	-	390	34541661	-	PG2078	-	hypothetical protein
1782	 53.46	0	2178980..2179456	-	158	34541662	-	PG2079	-	hypothetical protein
1783	 57.76	+1	2179468..2180769	-	433	34541663	bioA	PG2080	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
1784	 54.18	+1	2180759..2181751	-	330	34541664	bioB	PG2081	-	biotin synthetase
1785	 44.62	0	2181933..2183474	-	513	34541665	-	PG2082	-	POT family protein
1786	 50.36	0	2183500..2184597	-	365	34541666	-	PG2083	-	hypothetical protein
1787	 49.09	0	2185672..2186655	+	327	34541667	trpS	PG2085	-	tryptophanyl-tRNA synthetase
1788	 53.10	0	2186711..2187130	+	139	34541668	-	PG2086	-	hypothetical protein
1789	 49.58	0	2187130..2187603	+	157	34541669	-	PG2087	-	SPOUT methyltransferase superfamily protein
1790	 47.12	0	2187665..2188723	+	352	34541670	msrA	PG2088	-	bifunctional methionine sulfoxide reductase A/B protein
1791	 48.35	0	2188780..2189964	+	394	34541671	-	PG2089	-	hypothetical protein
1792	 48.95	0	2190370..2191278	+	302	34541672	-	PG2090	-	cation efflux family protein
1793	 50.00	0	2191317..2191670	+	117	34541673	folB	PG2091	-	dihydroneopterin aldolase
1794	 48.17	0	2191741..2193000	-	419	34541674	-	PG2092	-	hypothetical protein
1795	 52.77	0	2193411..2197958	-	1515	34541675	-	PG2094	-	hypothetical protein
1796	 50.82	0	2198380..2200707	-	775	34541676	-	PG2095	-	putative lipoprotein
1797	 50.93	0	2200715..2205505	-	1596	34541677	-	PG2096	-	hypothetical protein
1798	 51.80	0	2205611..2206552	-	313	34541678	prsA	PG2097	-	ribose-phosphate pyrophosphokinase
1799	 45.76	0	2206549..2206725	-	58	34541679	-	PG2098	-	hypothetical protein
1800	 56.07	+1	2206739..2208022	-	427	34541680	-	PG2099	-	DEAD-box ATP dependent DNA helicase
1801	 43.24	-1	2208617..2210281	-	554	34541681	-	PG2100	-	immunoreactive 63 kDa antigen PG102
1802	 51.71	0	2210368..2211363	-	331	34541682	-	PG2101	-	hypothetical protein
1803	 46.58	0	2211514..2213136	-	540	34541683	-	PG2102	-	immunoreactive 61 kDa antigen PG91
1804	 48.15	0	2213316..2213450	-	44	34541684	-	PG2103	-	hypothetical protein
1805	 45.19	0	2213575..2213709	-	44	34541685	-	PG2104	-	hypothetical protein
1806	 46.51	0	2214139..2214639	+	166	34541686	-	PG2105	-	putative lipoprotein
1807	 46.20	0	2214834..2215517	+	227	34541687	-	PG2106	-	hypothetical protein
1808	 56.15	+1	2215636..2216748	-	370	34541688	thiH	PG2107	-	thiamine biosynthesis protein ThiH
1809	 57.44	+1	2216761..2217540	-	259	34541689	thiG	PG2108	-	thiazole synthase
1810	 57.72	+1	2217599..2219542	-	647	34541690	thiE	PG2109	-	thiamine-phosphate pyrophosphorylase
1811	 57.31	+1	2219539..2221302	-	587	34541691	thiC	PG2110	-	thiamine biosynthesis protein ThiC
1812	 57.71	+1	2221372..2221572	-	66	34541692	thiS	PG2111	-	thiS protein
1813	 46.54	0	2221611..2222723	+	370	34541693	-	PG2112	-	hypothetical protein
1814	 52.54	0	2224072..2224248	-	58	34541694	-	PG2114	-	hypothetical protein
1815	 47.06	0	2224775..2224927	+	50	34541695	-	PG2116	-	hypothetical protein
1816	 50.09	0	2225325..2225903	-	192	34541696	rpsP	PG2117	-	30S ribosomal protein S16
1817	 51.95	0	2226687..2227658	+	323	34541697	-	PG2119	-	Gfo/Idh/MocA family oxidoreductase
1818	 49.88	0	2227773..2228582	-	269	34541698	-	PG2120	-	metallo-beta-lactamase superfamily protein
1819	 49.81	0	2228635..2229714	-	359	34541699	ansA	PG2121	-	L-asparaginase
1820	 41.39	-1	2230031..2230303	+	90	34541700	-	PG2123	-	hypothetical protein
1821	 50.25	0	2230314..2231324	+	336	34541701	gapA	PG2124	-	glyceraldehyde 3-phosphate dehydrogenase, type I
1822	 50.85	0	2231466..2232344	-	292	34541702	-	PG2125	-	AraC family transcriptional regulator
1823	 53.33	0	2232528..2233202	-	224	34541703	-	PG2126	-	hypothetical protein
1824	 49.77	0	2233199..2233642	-	147	34541704	-	PG2127	-	hypothetical protein
1825	 49.73	0	2233957..2234895	-	312	34541705	-	PG2128	-	ISPg5, transposase Orf2
1826	 45.38	0	2234949..2235338	-	129	34541706	-	PG2129	-	ISPg5, transposase Orf1
1827	 50.52	0	2235707..2236288	+	193	34541707	-	PG2130	-	hypothetical protein
1828	 52.41	0	2236314..2237786	+	490	34541708	-	PG2131	-	60 kDa protein
1829	 45.67	0	2237837..2239003	+	388	34541709	fimA	PG2132	-	fimbrilin
1830	 50.88	0	2239142..2240053	+	303	34541710	-	PG2133	-	putative lipoprotein
1831	 47.74	0	2240067..2241440	+	457	34541711	-	PG2134	-	putative lipoprotein
1832	 43.37	-1	2241461..2243473	+	670	34541712	-	PG2135	-	putative lipoprotein
1833	 45.53	0	2243500..2245164	+	554	34541713	-	PG2136	-	hypothetical protein
1834	 45.42	0	2245788..2246267	+	159	34541714	-	PG2139	-	hypothetical protein
1835	 47.31	0	2246274..2246459	+	61	34541715	rpmF	PG2140	-	50S ribosomal protein L32
1836	 49.21	0	2246639..2247646	+	335	34541716	fabH	PG2141	-	3-oxoacyl-(acyl carrier protein) synthase III
1837	 47.56	0	2247725..2248624	+	299	34541717	era	PG2142	-	GTP-binding protein Era
1838	 49.01	0	2248687..2250000	+	437	34541718	engA	PG2143	-	GTP-binding protein EngA
1839	 50.70	0	2250051..2253350	+	1099	34541719	-	PG2144	-	hypothetical protein
1840	 53.14	0	2253393..2253998	+	201	34541720	-	PG2145	-	polysaccharide deacetylase
1841	 51.06	0	2253955..2254710	+	251	34541721	-	PG2146	-	hypothetical protein
1842	 47.59	0	2254909..2255490	-	193	34541722	xpt	PG2147	-	xanthine phosphoribosyltransferase
1843	 51.12	0	2255527..2256864	-	445	34541723	-	PG2148	-	xanthine/uracil permease family protein
1844	 52.70	0	2257026..2257748	-	240	34541724	-	PG2149	-	hypothetical protein
1845	 52.12	0	2257757..2259262	-	501	34541725	-	PG2150	-	LysM domain-containing protein
1846	 54.73	+1	2259890..2260375	+	161	34541726	-	PG2152	-	histone-like family DNA-binding protein
1847	 45.16	0	2260850..2261035	-	61	34541727	-	PG2154	-	hypothetical protein
1848	 50.06	0	2261062..2261952	-	296	34541728	-	PG2155	-	putative lipoprotein
1849	 53.82	+1	2261989..2262735	-	248	34541729	-	PG2156	-	hypothetical protein
1850	 54.19	+1	2263083..2264084	+	333	34541730	-	PG2157	-	glutamine cyclotransferase-related protein
1851	 51.64	0	2264108..2264533	+	141	34541731	-	PG2158	-	hypothetical protein
1852	 56.65	+1	2264537..2265934	+	465	34541732	-	PG2159	-	protoporphyrinogen oxidase
1853	 49.33	0	2266807..2267706	-	299	34541733	-	PG2161	-	AraC family transcriptional regulator
1854	 52.52	0	2267703..2268854	-	383	34541734	lpxB	PG2162	-	lipid A disaccharide synthase
1855	 52.79	0	2268891..2269661	-	256	34541735	surE	PG2163	-	stationary phase survival protein SurE
1856	 46.59	0	2269658..2270215	-	185	34541736	-	PG2164	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
1857	 50.58	0	2270212..2271759	-	515	34541737	glyS	PG2165	-	glycyl-tRNA synthetase
1858	 38.74	-2	2271949..2272059	+	36	34541738	-	PG2166	-	hypothetical protein
1859	 45.07	0	2272194..2273633	-	479	34541739	-	PG2167	-	immunoreactive 53 kDa antigen PG123
1860	 45.61	0	2273678..2274247	-	189	34541740	-	PG2168	-	hypothetical protein
1861	 47.67	0	2276775..2278064	-	429	34541741	-	PG2170	-	sugar transporter
1862	 50.83	0	2278103..2279062	-	319	34541742	-	PG2171	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
1863	 45.65	0	2279281..2280027	-	248	34541743	-	PG2172	-	hypothetical protein
1864	 47.08	0	2280031..2280903	-	290	34541744	omp28	PG2173	-	outer membrane lipoprotein Omp28
1865	 50.00	0	2280923..2282668	-	581	34541745	-	PG2174	-	hypothetical protein
1866	 47.20	0	2282724..2283206	-	160	34541746	-	PG2175	-	hypothetical protein
1867	 41.82	-1	2283305..2284435	-	376	34541747	-	PG2176	-	ISPg2, transposase
1868	 48.26	0	2285356..2286594	-	412	34541748	nqrF	PG2177	-	Na(+)-translocating NADH-quinone reductase subunit F
1869	 49.76	0	2286613..2287227	-	204	34541749	nqrE	PG2178	-	Na(+)-translocating NADH-quinone reductase subunit E
1870	 49.05	0	2287267..2287896	-	209	34541750	nqrD	PG2179	-	Na(+)-translocating NADH-quinone reductase subunit D
48.73	MEAN

4.83	STD DEV
