IslandPath Analysis: Porphyromonas gingivalis W83

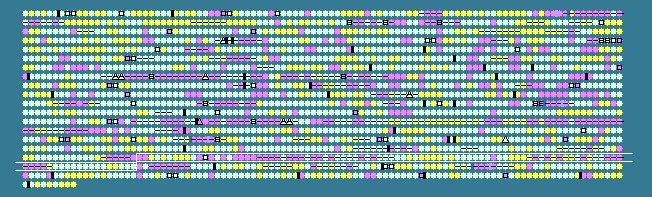

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.73 STD DEV: 4.83
Porphyromonas gingivalis W83, complete genome - 1..2343476
1909 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1620	 40.24	-1	1992417..1992995	+	192	34541500	-	PG1894	-	hypothetical protein
1621	 31.62	-2	1993602..1994300	+	232	34541501	-	PG1895	-	hypothetical protein
1622	 53.26	0	1994726..1996015	+	429	34541502	metK	PG1896	-	S-adenosylmethionine synthetase
1623	 51.47	0	1996143..1996820	-	225	34541503	-	PG1897	-	thiamin pyrophosphokinase catalytic subunit
1624	 52.55	0	1996817..1997425	-	202	34541504	-	PG1898	-	transporter, putative
1625	 51.99	0	1997430..1999814	-	794	34541505	-	PG1899	-	TonB-dependent receptor, putative
1626	 53.69	+1	1999889..2000836	-	315	34541506	-	PG1900	-	ribosome-associated GTPase
1627	 52.58	0	2000921..2001481	-	186	161579528	frr	PG1901	-	ribosome recycling factor
1628	 52.92	0	2001518..2002237	-	239	34541508	pyrH	PG1902	-	uridylate kinase
1629	 52.06	0	2002320..2004311	-	663	34541509	-	PG1903	-	hypothetical protein
1630	 44.24	0	2004522..2004851	-	109	34541510	-	PG1904	-	hypothetical protein
1631	 48.16	0	2005547..2006632	+	361	34541511	-	PG1906	-	ISPg1, transposase
1632	 34.16	-2	2007935..2008780	+	281	34541512	-	PG1908	-	hypothetical protein
1633	 45.55	0	2010372..2010854	-	160	34541513	rplQ	PG1910	-	50S ribosomal protein L17
1634	 43.10	-1	2010860..2011852	-	330	34541514	rpoA	PG1911	-	DNA-directed RNA polymerase subunit alpha
1635	 46.04	0	2011865..2012470	-	201	34541515	rpsD	PG1912	-	30S ribosomal protein S4
1636	 44.70	0	2012630..2013016	-	128	34541516	rpsK	PG1913	-	30S ribosomal protein S11
1637	 45.14	0	2013028..2013408	-	126	34541517	rpsM	PG1914	-	30S ribosomal protein S13
1638	 39.32	-1	2013441..2013557	-	38	34541518	rpmJ	PG1915	-	50S ribosomal protein L36
1639	 40.18	-1	2013574..2013792	-	72	34541519	infA	PG1916	-	translation initiation factor IF-1
1640	 45.17	0	2013795..2014580	-	261	34541520	map	PG1917	-	methionine aminopeptidase, type I
1641	 44.44	0	2014580..2015920	-	446	34541521	secY	PG1918	-	preprotein translocase subunit SecY
1642	 43.85	-1	2015925..2016371	-	148	34541522	rplO	PG1919	-	50S ribosomal protein L15
1643	 37.85	-2	2016397..2016573	-	58	34541523	rpmD	PG1920	-	50S ribosomal protein L30
1644	 46.82	0	2016593..2017111	-	172	34541524	rpsE	PG1921	-	30S ribosomal protein S5
1645	 43.19	-1	2017117..2017461	-	114	34541525	rplR	PG1922	-	50S ribosomal protein L18
1646	 45.11	0	2017480..2018031	-	183	34541526	rplF	PG1923	-	50S ribosomal protein L6
1647	 42.42	-1	2018050..2018445	-	131	34541527	rpsH	PG1924	-	30S ribosomal protein S8
1648	 47.78	0	2018496..2018765	-	89	34541528	rpsN	PG1925	-	30S ribosomal protein S14
1649	 43.14	-1	2018767..2019327	-	186	34541529	rplE	PG1926	-	50S ribosomal protein L5
1650	 42.99	-1	2019327..2019647	-	106	34541530	rplX	PG1927	-	50S ribosomal protein L24
1651	 47.54	0	2019670..2020035	-	121	34541531	rplN	PG1928	-	50S ribosomal protein L14
1652	 40.00	-1	2020037..2020291	-	84	34541532	rpsQ	PG1929	-	30S ribosomal protein S17
1653	 45.64	0	2020305..2020499	-	64	34541533	rpmC	PG1930	-	50S ribosomal protein L29
1654	 45.75	0	2020505..2020939	-	144	34541534	rplP	PG1931	-	50S ribosomal protein L16
1655	 49.80	0	2020960..2021700	-	246	34541535	rpsC	PG1932	-	30S ribosomal protein S3
1656	 49.00	0	2021707..2022057	-	116	34541536	rplV	PG1933	-	50S ribosomal protein L22
1657	 44.44	0	2022166..2022435	-	89	34541537	rpsS	PG1934	-	30S ribosomal protein S19
1658	 51.15	0	2022458..2023282	-	274	34541538	rplB	PG1935	-	50S ribosomal protein L2
1659	 42.18	-1	2023289..2023582	-	97	34541539	rplW	PG1936	-	50S ribosomal protein L23
1660	 48.10	0	2023597..2024226	-	209	34541540	rplD	PG1937	-	50S ribosomal protein L4
1661	 48.71	0	2024226..2024843	-	205	34541541	rplC	PG1938	-	50S ribosomal protein L3
1662	 45.42	0	2024866..2025171	-	101	34541542	rpsJ	PG1939	-	30S ribosomal protein S10
1663	 52.12	0	2025187..2027310	-	707	34541543	fusA	PG1940	-	elongation factor G
1664	 48.01	0	2027323..2027799	-	158	34541544	rpsG	PG1941	-	30S ribosomal protein S7
1665	 54.81	+1	2028036..2028440	-	134	34541545	rpsL	PG1942	-	30S ribosomal protein S12
1666	 50.51	0	2029064..2030350	-	428	34541546	-	PG1943	-	hypothetical protein
1667	 56.19	+1	2030556..2031815	+	419	34541547	aroA	PG1944	-	3-phosphoshikimate 1-carboxyvinyltransferase
1668	 53.15	0	2031837..2032280	+	147	34541548	-	PG1945	-	hypothetical protein
1669	 52.91	0	2032273..2033079	+	268	34541549	-	PG1946	-	ABC 3 transporter family protein
1670	 52.25	0	2033072..2036554	+	1160	34541550	-	PG1947	-	TPR domain-containing protein
1671	 52.18	0	2036579..2038000	+	473	34541551	-	PG1948	-	putative lipoprotein
1672	 52.94	0	2038274..2039278	-	334	34541552	mdh	PG1949	-	malate dehydrogenase
1673	 46.08	0	2039740..2040900	+	386	34541553	-	PG1950	-	hypothetical protein
1674	 52.09	0	2041282..2042982	+	566	34541554	glnS	PG1951	-	glutaminyl-tRNA synthetase
1675	 49.07	0	2043010..2043657	+	215	34541555	-	PG1952	-	DedA family protein
1676	 47.33	0	2043714..2044649	+	311	34541556	-	PG1953	-	YitT family protein
1677	 51.96	0	2044653..2045672	+	339	34541557	-	PG1954	-	NAD dependent epimerase/reductase-related protein
1678	 51.54	0	2046305..2047600	-	431	34541558	abfT-2	PG1956	-	4-hydroxybutyrate CoA-transferase
1679	 43.39	-1	2048307..2048495	-	62	34541559	rpmG	PG1959	-	50S ribosomal protein L33
1680	 47.50	0	2048514..2048753	-	79	34541560	rpmB	PG1960	-	50S ribosomal protein L28
1681	 51.15	0	2048976..2051243	-	755	34541561	-	PG1961	-	hypothetical protein
1682	 57.29	+1	2052478..2053053	+	191	34541562	-	PG1963	-	Sua5/YciO/YrdC/YwlC family protein
1683	 55.15	+1	2053050..2054456	+	468	34541563	-	PG1964	-	sugar transferase
1684	 55.02	+1	2056208..2057014	-	268	34541564	-	PG1966	-	hypothetical protein
1685	 59.80	+2	2057308..2058195	+	295	34541565	-	PG1967	-	TPR domain-containing protein
1686	 44.76	0	2058550..2058654	-	34	34541566	-	PG1968	-	hypothetical protein
1687	 52.05	0	2058703..2059605	-	300	34541567	-	PG1969	-	hypothetical protein
1688	 41.33	-1	2059574..2059873	-	99	34541568	-	PG1970	-	hypothetical protein
1689	 58.02	+1	2060142..2061263	+	373	34541569	-	PG1972	-	hemagglutinin protein HagB
1690	 37.91	-2	2062054..2063145	-	363	34541570	-	PG1974	-	hypothetical protein
1691	 59.92	+2	2063358..2064410	+	350	34541571	-	PG1975	-	hemagglutinin protein HagC
1692	 58.94	+2	2064777..2066783	-	668	34541572	-	PG1977	-	hypothetical protein
1693	 50.08	0	2066813..2067427	-	204	34541573	-	PG1978	-	hypothetical protein
1694	 44.64	0	2067412..2067579	+	55	34541574	-	PG1979	-	hypothetical protein
1695	 52.63	0	2067850..2068020	-	56	34541575	-	PG1980	-	hypothetical protein
1696	 47.42	0	2069305..2069595	-	96	34541576	cas2-1	PG1981	-	CRISPR-associated Cas2 family protein
1697	 50.65	0	2069615..2072710	-	1031	34541577	-	PG1982	-	CRISPR-associated Cas1 family protein
1698	 43.04	-1	2072771..2073532	-	253	34541578	-	PG1983	-	CRISPR-associated Cmr5 family protein
1699	 43.92	0	2073529..2073972	-	147	34541579	-	PG1984	-	hypothetical protein
1700	 42.74	-1	2073969..2074670	-	233	34541580	-	PG1985	-	CRISPR-associated Cmr4 family protein
1701	 43.58	-1	2074684..2075874	-	396	34541581	-	PG1986	-	CRISPR-associated Cmr3 family protein
1702	 41.96	-1	2075876..2077522	-	548	34541582	-	PG1987	-	CRISPR-associated Csm1 family protein
1703	 37.21	-2	2077515..2078957	-	480	34541583	-	PG1988	-	hypothetical protein
1704	 36.99	-2	2078973..2079191	-	72	34541584	-	PG1989	-	hypothetical protein
1705	 55.06	+1	2081550..2083427	+	625	34541585	gidA	PG1992	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
1706	 49.67	0	2083461..2085260	+	599	34541586	uvrC	PG1993	-	excinuclease ABC, C subunit
1707	 49.45	0	2085267..2085719	+	150	34541587	dtd	PG1994	-	D-tyrosyl-tRNA deacylase
1708	 45.58	0	2085724..2086074	+	116	34541588	-	PG1995	-	hypothetical protein
1709	 50.23	0	2086061..2086930	+	289	34541589	deoC	PG1996	-	deoxyribose-phosphate aldolase
1710	 50.00	0	2086971..2087132	+	53	34541590	-	PG1997	-	hypothetical protein
1711	 49.60	0	2087241..2088119	-	292	34541591	-	PG1998	-	polyprenyl synthetase
1712	 46.95	0	2088273..2088911	-	212	34541592	-	PG1999	-	hypothetical protein
1713	 50.72	0	2088932..2089558	-	208	34541593	-	PG2000	-	signal peptidase-related protein
1714	 49.57	0	2089548..2090945	-	465	34541594	lepB	PG2001	-	signal peptidase I
1715	 54.39	+1	2090961..2091677	-	238	34541595	dapB	PG2002	-	dihydrodipicolinate reductase
1716	 53.65	+1	2091738..2093081	-	447	34541596	dgt	PG2003	-	deoxyguanosinetriphosphate triphosphohydrolase
1717	 51.06	0	2093225..2094217	-	330	34541597	-	PG2004	-	hypothetical protein
1718	 48.06	0	2094727..2095086	+	119	34541598	-	PG2006	-	hypothetical protein
1719	 49.32	0	2095383..2097884	+	833	34541599	-	PG2008	-	TonB-dependent receptor, putative
48.73	MEAN

4.83	STD DEV
