IslandPath Analysis: Porphyromonas gingivalis W83

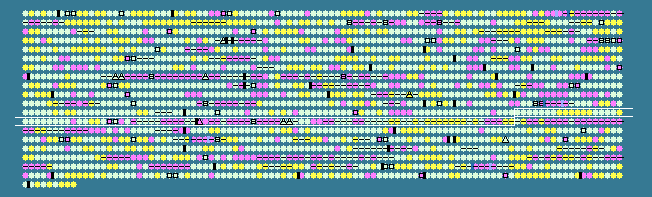

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 48.73   STD DEV: 4.83
Porphyromonas gingivalis W83, complete genome - 1..2343476
1909 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1183	 48.14	0	1459077..1460015	+	312	34541063	-	PG1379	-	ABC transporter, periplasmic substrate-binding protein, putative
1184	 50.36	0	1460067..1460765	+	232	34541064	-	PG1380	-	ABC transporter, ATP-binding protein
1185	 48.67	0	1460762..1461511	+	249	34541065	-	PG1381	-	ABC transporter, permease protein
1186	 45.35	0	1461471..1462610	+	379	34541066	-	PG1382	-	hypothetical protein
1187	 46.48	0	1462809..1463447	+	212	34541067	-	PG1383	-	amino acid exporter, putative
1188	 46.72	0	1465223..1466425	-	400	34541068	-	PG1385	-	TPR domain-containing protein
1189	 50.66	0	1466459..1469038	-	859	34541069	gyrA	PG1386	-	DNA gyrase, A subunit
1190	 52.86	0	1469222..1470148	-	308	34541070	-	PG1387	-	hypothetical protein
1191	 53.96	+1	1470185..1470979	-	264	34541071	-	PG1388	-	hypothetical protein
1192	 53.81	+1	1470960..1471418	-	152	34541072	-	PG1389	-	histone-like family DNA-binding protein
1193	 57.01	+1	1471810..1473021	+	403	34541073	-	PG1391	-	hypothetical protein
1194	 53.02	0	1473049..1474506	-	485	34541074	-	PG1392	-	rod shape-determining protein RodA, putative
1195	 54.07	+1	1474496..1476361	-	621	34541075	-	PG1393	-	penicillin-binding protein 2, putative
1196	 47.78	0	1476354..1476872	-	172	34541076	-	PG1394	-	hypothetical protein
1197	 51.80	0	1476872..1477759	-	295	34541077	-	PG1395	-	cell shape-determining protein MreC, putative
1198	 50.88	0	1477797..1478816	-	339	34541078	mreB	PG1396	-	cell shape-determining protein MreB
1199	 49.44	0	1478919..1480445	-	508	34541079	purH	PG1397	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
1200	 52.30	0	1480834..1481007	+	57	34541080	-	PG1398	-	hypothetical protein
1201	 48.55	0	1483489..1484868	-	459	34541081	tnaA	PG1401	-	tryptophanase
1202	 47.80	0	1485121..1486053	-	310	34541082	-	PG1402	-	AP endonuclease domain-containing protein
1203	 48.56	0	1486263..1487129	-	288	34541083	-	PG1403	-	rhomboid family protein
1204	 47.70	0	1487161..1487877	-	238	34541084	-	PG1404	-	rhomboid family protein
1205	 48.21	0	1487904..1490759	-	951	34541085	-	PG1405	-	hypothetical protein
1206	 48.42	0	1491202..1491738	-	178	34541086	-	PG1407	-	nitroimidazole resistance protein, putative
1207	 49.17	0	1492001..1492966	+	321	34541087	-	PG1408	-	CzcD family heavy metal efflux protein
1208	 48.09	0	1492963..1493355	-	130	34541088	-	PG1409	-	hypothetical protein
1209	 42.71	-1	1493401..1493496	+	31	34541089	-	PG1410	-	hypothetical protein
1210	 49.05	0	1493571..1495256	-	561	34541090	-	PG1411	-	hypothetical protein
1211	 49.54	0	1497149..1499764	+	871	34541091	-	PG1414	-	hypothetical protein
1212	 54.14	+1	1500197..1501138	+	313	34541092	fabK	PG1416	-	enoyl-(acyl-carrier-protein) reductase II
1213	 52.64	0	1501435..1503081	+	548	34541093	fumB	PG1417	-	fumarate hydratase class I, anaerobic
1214	 50.53	0	1503204..1505012	+	602	34541094	dnaX	PG1418	-	DNA polymerase III, gamma and tau subunits
1215	 44.95	0	1505137..1505532	+	131	34541095	-	PG1419	-	ISPg5, transposase Orf1
1216	 50.05	0	1505586..1506524	+	312	34541096	-	PG1420	-	ISPg5, transposase Orf2
1217	 43.27	-1	1506964..1507134	-	56	34541097	-	PG1421	-	ferredoxin, 4Fe-4S
1218	 46.71	0	1507470..1509002	-	510	34541098	dacB	PG1422	-	D-alanyl-D-alanine carboxypeptidase
1219	 35.35	-2	1508981..1509178	-	65	34541099	-	PG1423	-	hypothetical protein
1220	 47.28	0	1509227..1510897	-	556	34541100	-	PG1424	-	peptidylarginine deiminase
1221	 49.06	0	1511242..1511400	-	52	34541101	-	PG1426	-	hypothetical protein
1222	 46.17	0	1511955..1514486	-	843	34541102	-	PG1427	-	thiol protease/hemagglutinin PrtT precursor, putative
1223	 49.38	0	1514627..1515112	-	161	34541103	ribH	PG1428	-	riboflavin synthase subunit beta
1224	 35.14	-2	1515093..1515203	-	36	34541104	-	PG1429	-	hypothetical protein
1225	 44.10	0	1515204..1515890	-	228	34541105	-	PG1430	-	TPR domain-containing protein
1226	 42.84	-1	1516076..1516759	-	227	34541106	-	PG1431	-	LuxR family DNA-binding response regulator
1227	 39.07	-1	1516824..1518689	-	621	34541107	-	PG1432	-	sensor histidine kinase
1228	 49.07	0	1518971..1519186	+	71	34541108	-	PG1433	-	hydrolase
1229	 48.88	0	1519162..1519830	+	222	34541109	ispD	PG1434	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
1230	 40.67	-1	1520443..1521669	+	408	34541110	-	PG1435	-	integrase
1231	 32.49	-2	1521796..1523814	+	672	34541111	-	PG1436	-	ATPase, putative
1232	 32.51	-2	1524675..1526750	-	691	34541112	-	PG1439	-	hypothetical protein
1233	 31.07	-2	1526740..1527357	-	205	34541113	-	PG1440	-	hypothetical protein
1234	 50.00	0	1527448..1527615	-	55	34541114	-	PG1441	-	lysozyme-related protein
1235	 41.72	-1	1527692..1528120	-	142	34541115	-	PG1442	-	hypothetical protein
1236	 43.17	-1	1528886..1529302	+	138	34541116	-	PG1444	-	hypothetical protein
1237	 42.88	-1	1529998..1531317	-	439	34541117	-	PG1446	-	MATE efflux family protein
1238	 40.87	-1	1531453..1532301	-	282	34541118	-	PG1447	-	AraC family transcriptional regulator
1239	 48.16	0	1532424..1533509	+	361	34541119	-	PG1448	-	ISPg1, transposase
1240	 31.57	-2	1533672..1534352	-	226	34541120	-	PG1449	-	hypothetical protein
1241	 40.63	-1	1534390..1534704	-	104	34541121	-	PG1450	-	hypothetical protein
1242	 41.42	-1	1534837..1535244	+	135	34541122	-	PG1451	-	hypothetical protein
1243	 43.25	-1	1535370..1535732	-	120	34541123	-	PG1452	-	putative lipoprotein
1244	 45.47	0	1535739..1536941	-	400	34541124	-	PG1453	-	integrase
1245	 47.24	0	1536967..1538196	-	409	34541125	-	PG1454	-	integrase
1246	 48.08	0	1538790..1539257	+	155	34541126	-	PG1457	-	hypothetical protein
1247	 46.84	0	1539284..1539742	+	152	34541127	-	PG1458	-	hypothetical protein
1248	 47.10	0	1539722..1539859	-	45	34541128	-	PG1459	-	hypothetical protein
1249	 45.00	0	1540100..1540459	+	119	34541129	-	PG1460	-	hypothetical protein
1250	 40.42	-1	1540466..1540987	+	173	34541130	-	PG1461	-	hypothetical protein
1251	 45.18	0	1541000..1541227	+	75	34541131	-	PG1462	-	hypothetical protein
1252	 40.78	-1	1541250..1541531	+	93	34541132	-	PG1463	-	hypothetical protein
1253	 47.60	0	1542122..1542766	+	214	34541133	-	PG1465	-	hypothetical protein
1254	 48.34	0	1542763..1543335	+	190	34541134	-	PG1466	-	hypothetical protein
1255	 50.16	0	1543350..1543961	+	203	34541135	-	PG1467	-	UbiE/COQ5 family methlytransferase
1256	 32.60	-2	1545080..1548088	-	1002	34541136	-	PG1469	-	type I restriction-modification system, M subunit, putative
1257	 42.86	-1	1548261..1548491	+	76	34541137	-	PG1470	-	hypothetical protein
1258	 47.01	0	1548671..1549138	+	155	34541138	-	PG1471	-	hypothetical protein
1259	 45.52	0	1549173..1549820	+	215	34541139	-	PG1472	-	hypothetical protein
1260	 49.89	0	1549851..1550315	-	154	34541140	-	PG1473	-	conjugative transposon protein TraQ
1261	 51.64	0	1550328..1550906	-	192	34541141	-	PG1474	-	conjugative transposon protein TraO
1262	 53.02	0	1550900..1551925	-	341	34541142	-	PG1475	-	conjugative transposon protein TraN
1263	 54.48	+1	1551948..1553309	-	453	34541143	-	PG1476	-	conjugative transposon protein TraM
1264	 49.31	0	1553299..1553586	-	95	34541144	-	PG1477	-	hypothetical protein
1265	 50.32	0	1553583..1554206	-	207	34541145	-	PG1478	-	conjugative transposon protein TraK
1266	 54.29	+1	1554218..1555324	-	368	34541146	-	PG1479	-	conjugative transposon protein TraJ
1267	 50.00	0	1555356..1555985	-	209	34541147	-	PG1480	-	conjugative transposon protein TraI
1268	 53.72	+1	1556012..1558537	-	841	34541148	-	PG1481	-	conjugative transposon protein TraG
1269	 57.44	+1	1558534..1558869	-	111	34541149	-	PG1482	-	conjugative transposon protein TraF
1270	 53.80	+1	1558873..1559175	-	100	34541150	-	PG1483	-	conjugative transposon protein TraE
1271	 54.04	+1	1559365..1560069	-	234	34541151	-	PG1484	-	hypothetical protein
1272	 53.75	+1	1560074..1560460	-	128	34541152	-	PG1485	-	conjugative transposon protein TraC
1273	 54.94	+1	1560447..1561256	-	269	34541153	-	PG1486	-	conjugative transposon protein TraA
1274	 56.75	+1	1561608..1561859	+	83	34541154	-	PG1487	-	hypothetical protein
1275	 49.00	0	1561887..1562288	+	133	34541155	-	PG1488	-	hypothetical protein
1276	 52.46	0	1562273..1563553	+	426	34541156	-	PG1489	-	hypothetical protein
1277	 49.05	0	1563555..1565564	+	669	34541157	-	PG1490	-	TraG family protein
1278	 42.25	-1	1565881..1566093	+	70	34541158	-	PG1491	-	hypothetical protein
1279	 36.54	-2	1566190..1566906	+	238	34541159	-	PG1492	-	hypothetical protein
1280	 37.48	-2	1566923..1569598	+	891	34541160	-	PG1493	-	hypothetical protein
1281	 54.11	+1	1569981..1571294	+	437	34541161	-	PG1494	-	hypothetical protein
1282	 55.35	+1	1571383..1573476	+	697	34541162	topB-2	PG1495	-	DNA topoisomerase III
48.73	MEAN

4.83	STD DEV
