IslandPathversion 1.0

IslandPath Analysis: Porphyromonas gingivalis W83

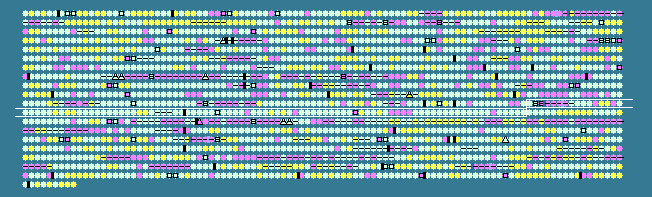

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.73 STD DEV: 4.83
Porphyromonas gingivalis W83, complete genome - 1..2343476
1909 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1085	 48.69	0	1335588..1337984	-	798	34540965	-	PG1260	-	anaerobic ribonucleoside triphosphate reductase
1086	 45.42	0	1338511..1339668	+	385	34540966	-	PG1261	-	ISPg4, transposase
1087	 40.86	-1	1339822..1340724	-	300	34540967	-	PG1262	-	ISPg3, transposase
1088	 44.23	0	1344830..1344985	-	51	34540968	-	PG1264	-	hypothetical protein
1089	 44.65	0	1345114..1345272	-	52	34540969	-	PG1265	-	hypothetical protein
1090	 43.84	-1	1346859..1347077	-	72	34540970	-	PG1266	-	hypothetical protein
1091	 45.24	0	1347106..1347273	+	55	34540971	-	PG1267	-	hypothetical protein
1092	 45.45	0	1347511..1347609	+	32	34540972	-	PG1268	-	hypothetical protein
1093	 51.47	0	1347660..1349291	-	543	34540973	pruA	PG1269	-	delta-1-pyrroline-5-carboxylate dehydrogenase
1094	 50.65	0	1349368..1350297	-	309	34540974	-	PG1270	-	hypothetical protein
1095	 50.81	0	1350304..1351533	-	409	34540975	-	PG1271	-	acetylornithine aminotransferase, putative
1096	 43.59	-1	1351772..1351927	-	51	34540976	-	PG1273	-	hypothetical protein
1097	 54.32	+1	1351983..1352549	+	188	34540977	efp-2	PG1274	-	elongation factor P
1098	 54.04	+1	1353085..1353591	+	168	34540978	-	PG1276	-	histone-like family DNA-binding protein
1099	 42.02	-1	1353894..1355159	+	421	34540979	-	PG1277	-	UDP-glucose-6 dehydrogenase, putative
1100	 47.37	0	1355492..1356574	+	360	34540980	serC	PG1278	-	phosphoserine aminotransferase
1101	 46.69	0	1356675..1357595	+	306	34540981	-	PG1279	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
1102	 48.24	0	1357614..1358861	+	415	34540982	-	PG1280	-	hypothetical protein
1103	 45.62	0	1358988..1360151	+	387	34540983	-	PG1281	-	hypothetical protein
1104	 46.93	0	1360175..1360630	+	151	34540984	-	PG1282	-	hypothetical protein
1105	 50.58	0	1360693..1362855	+	720	34540985	-	PG1283	-	hypothetical protein
1106	 52.79	0	1363034..1365001	+	655	34540986	-	PG1285	-	glucosamine-6-phosphate deaminase-like protein
1107	 49.48	0	1365109..1365591	-	160	34540987	ftn	PG1286	-	ferritin
1108	 53.31	0	1366103..1367188	+	361	34540988	gmd	PG1288	-	GDP-mannose 4,6-dehydratase
1109	 52.51	0	1367181..1368254	+	357	34540989	fcl	PG1289	-	GDP-fucose synthetase
1110	 51.57	0	1368393..1369412	+	339	34540990	ilvE	PG1290	-	branched-chain amino acid aminotransferase
1111	 45.60	0	1369541..1371268	-	575	34540991	-	PG1291	-	hypothetical protein
1112	 49.98	0	1372187..1374721	+	844	34540992	feoB-2	PG1294	-	ferrous iron transport protein B
1113	 46.71	0	1374934..1375389	+	151	34540993	-	PG1296	-	hypothetical protein
1114	 48.94	0	1375971..1377770	+	599	34540994	rpsA	PG1297	-	30S ribosomal protein S1
1115	 46.48	0	1378620..1379159	-	179	34540995	-	PG1300	-	hypothetical protein
1116	 49.88	0	1379196..1380011	-	271	34540996	-	PG1301	-	hypothetical protein
1117	 47.07	0	1380029..1380727	-	232	34540997	-	PG1302	-	hypothetical protein
1118	 50.07	0	1380792..1382207	+	471	34540998	-	PG1303	-	helicase, putative
1119	 48.25	0	1382224..1383564	-	446	34540999	-	PG1304	-	hypothetical protein
1120	 53.38	0	1383761..1386628	-	955	34541000	gcvP	PG1305	-	glycine dehydrogenase
1121	 53.02	0	1386633..1387277	-	214	34541001	-	PG1306	-	metallo-beta-lactamase family protein
1122	 50.30	0	1387274..1387939	-	221	34541002	gidB	PG1307	-	glucose-inhibited division protein B
1123	 47.52	0	1387973..1388818	-	281	34541003	-	PG1308	-	hypothetical protein
1124	 50.83	0	1389224..1389886	+	220	34541004	-	PG1310	-	exsB protein
1125	 49.21	0	1389849..1390415	+	188	34541005	-	PG1311	-	hypothetical protein
1126	 48.48	0	1390426..1391613	+	395	34541006	-	PG1312	-	capA protein, putative
1127	 48.64	0	1392422..1394080	+	552	34541007	-	PG1313	-	dipeptidase-related protein
1128	 50.68	0	1394452..1395558	-	368	34541008	aroC	PG1314	-	chorismate synthase
1129	 49.39	0	1395708..1396280	-	190	34541009	slyD	PG1315	-	peptidyl-prolyl cis-trans isomerase SlyD, FKBP-type
1130	 47.46	0	1396331..1396861	-	176	34541010	-	PG1316	-	hypothetical protein
1131	 49.39	0	1396834..1397244	-	136	34541011	-	PG1317	-	hypothetical protein
1132	 47.62	0	1397292..1397858	-	188	34541012	-	PG1318	-	ECF subfamily RNA polymerase sigma factor
1133	 47.96	0	1398892..1399527	+	211	34541013	-	PG1320	-	ISPg1, transposase, internal deletion
1134	 50.42	0	1399746..1401413	-	555	34541014	fhs	PG1321	-	formate--tetrahydrofolate ligase
1135	 48.24	0	1401570..1402904	+	444	34541015	-	PG1323	-	PhoH family protein
1136	 51.58	0	1402952..1403521	-	189	34541016	ruvC	PG1324	-	Holliday junction resolvase
1137	 46.40	0	1403594..1403968	-	124	34541017	-	PG1325	-	hypothetical protein
1138	 44.76	0	1404173..1405231	+	352	34541018	-	PG1326	-	hemagglutinin, putative
1139	 50.42	0	1405360..1406670	-	436	34541019	-	PG1327	-	aminotransferase, putative
1140	 51.80	0	1406713..1408770	-	685	34541020	-	PG1328	-	CoA ligase family protein
1141	 48.33	0	1409806..1410225	+	139	34541021	mscL	PG1330	-	large conductance mechanosensitive channel protein
1142	 53.14	0	1412182..1414170	+	662	34541022	pntB	PG1332	-	NAD(P) transhydrogenase, beta subunit
1143	 51.58	0	1414316..1415515	-	399	34541023	-	PG1333	-	hypothetical protein
1144	 52.50	0	1415512..1416492	-	326	34541024	-	PG1334	-	band 7/Mec-2 family protein
1145	 50.75	0	1416520..1416984	-	154	34541025	-	PG1335	-	hypothetical protein
1146	 44.84	0	1417953..1418378	+	141	34541026	umuD	PG1337	-	umuD protein
1147	 50.12	0	1418386..1419684	+	432	34541027	umuC	PG1338	-	umuC protein
1148	 49.45	0	1420388..1421938	-	516	34541028	-	PG1340	-	L-lactate permease
1149	 47.57	0	1422171..1422725	+	184	34541029	-	PG1341	-	hypothetical protein
1150	 48.97	0	1422725..1423741	+	338	34541030	murB	PG1342	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1151	 49.43	0	1423768..1425246	+	492	34541031	lipB	PG1343	-	lipoate-protein ligase B
1152	 51.52	0	1425730..1426851	+	373	34541032	-	PG1345	-	glycosyl transferase, group 1 family protein
1153	 50.63	0	1426848..1428119	+	423	34541033	-	PG1346	-	glycosyl transferase, group 1 family protein
1154	 48.39	0	1428256..1428720	+	154	34541034	-	PG1347	-	7-cyano-7-deazaguanine reductase
1155	 50.23	0	1428748..1429629	+	293	34541035	-	PG1348	-	hypothetical protein
1156	 41.82	-1	1431006..1432136	+	376	34541036	-	PG1350	-	ISPg2, transposase
1157	 52.27	0	1432328..1432834	-	168	34541037	-	PG1351	-	hypothetical protein
1158	 50.24	0	1432827..1433240	-	137	34541038	-	PG1352	-	hypothetical protein
1159	 50.87	0	1433291..1433923	-	210	34541039	pyrE	PG1353	-	orotate phosphoribosyltransferase
1160	 53.89	+1	1434034..1434855	-	273	34541040	-	PG1354	-	carbon-nitrogen family hydrolase
1161	 50.28	0	1434852..1435382	-	176	34541041	-	PG1355	-	acyltransferase, putative
1162	 42.94	-1	1435451..1435939	-	162	34541042	-	PG1356	-	hypothetical protein
1163	 39.39	-1	1436417..1436548	-	43	34541043	-	PG1357	-	hypothetical protein
1164	 42.44	-1	1436743..1437423	-	226	34541044	-	PG1358	-	acetyltransferase
1165	 45.16	0	1437734..1438705	-	323	34541045	-	PG1359	-	hypothetical protein
1166	 51.77	0	1438708..1440003	-	431	34541046	purD	PG1360	-	phosphoribosylamine--glycine ligase
1167	 48.29	0	1440000..1442198	-	732	34541047	-	PG1361	-	dipeptidyl aminopeptidase IV, putative
1168	 48.52	0	1442230..1443684	-	484	34541048	-	PG1362	-	hypothetical protein
1169	 51.81	0	1443944..1444219	+	91	34541049	-	PG1363	-	hypothetical protein
1170	 49.74	0	1444478..1445635	-	385	34541050	dxr	PG1364	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1171	 47.16	0	1445632..1446159	-	175	34541051	rimM	PG1365	-	16S rRNA-processing protein
1172	 49.27	0	1446166..1447470	-	434	34541052	murA	PG1366	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1173	 46.27	0	1447501..1448103	-	200	34541053	-	PG1367	-	hypothetical protein
1174	 48.80	0	1448123..1449460	-	445	34541054	pgi	PG1368	-	glucose-6-phosphate isomerase
1175	 48.66	0	1449493..1450497	-	334	34541055	gpsA	PG1369	-	glycerol-3-phosphate dehydrogenase (NAD(P)+)
1176	 50.14	0	1450583..1452319	-	578	34541056	lysS	PG1370	-	lysyl-tRNA synthetase
1177	 51.19	0	1452442..1453320	-	292	34541057	-	PG1371	-	phosphorylase family protein
1178	 50.14	0	1453391..1454812	-	473	34541058	-	PG1372	-	hypothetical protein
1179	 41.30	-1	1454890..1455165	+	91	34541059	-	PG1373	-	hypothetical protein
1180	 46.46	0	1455344..1456630	-	428	34541060	-	PG1374	-	immunoreactive 47 kDa antigen PG97
1181	 49.55	0	1456693..1456803	+	36	34541061	-	PG1375	-	hypothetical protein
1182	 48.69	0	1457805..1459028	-	407	34541062	mutY	PG1378	-	A/G-specific adenine glycosylase
1183	 48.14	0	1459077..1460015	+	312	34541063	-	PG1379	-	ABC transporter, periplasmic substrate-binding protein, putative
1184	 50.36	0	1460067..1460765	+	232	34541064	-	PG1380	-	ABC transporter, ATP-binding protein
48.73	MEAN

4.83	STD DEV
