IslandPath Analysis: Pasteurella multocida subsp. multocida str. Pm70

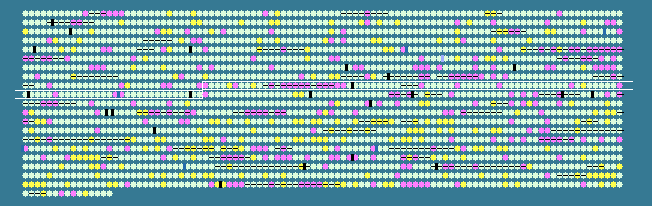

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.66 STD DEV: 3.39
Pasteurella multocida subsp. multocida str. Pm70, complete genome - 1..2257487
2015 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
831	 35.03	-1	980428..981369	-	313	15602696	ompH_3	PM0831	-	OmpH
832	 41.82	0	981835..982671	-	278	15602697	ptnD	PM0832	-	mannose-specific PTS system protein IID
833	 43.53	0	982686..983489	-	267	15602698	ptnC	PM0833	-	PtnC
834	 42.77	0	983514..984488	-	324	15602699	-	PM0834	-	hypothetical protein
835	 44.99	+1	984879..986096	+	405	15602700	-	PM0835	-	hypothetical protein
836	 35.69	-1	986142..986480	-	112	15602701	-	PM0836	-	hypothetical protein
837	 42.57	0	986676..987758	+	360	15602702	serC	PM0837	-	phosphoserine aminotransferase
838	 39.71	0	987822..988919	+	365	15602703	hisH_1	PM0838	-	histidinol-phosphate aminotransferase
839	 44.37	+1	988954..990276	+	440	15602704	aroA	PM0839	-	3-phosphoshikimate 1-carboxyvinyltransferase
840	 41.56	0	990370..991098	-	242	15602705	ubiG	PM0840	-	3-demethylubiquinone-9 3-methyltransferase
841	 43.59	0	991233..993932	+	899	15602706	gyrA	PM0841	-	DNA gyrase subunit A
842	 36.04	-1	994008..994376	+	122	15602707	-	PM0842	-	hypothetical protein
843	 37.35	0	994595..996361	-	588	15602708	tadG	PM0843	-	hypothetical protein
844	 35.64	-1	996381..996944	-	187	15602709	tadF	PM0844	-	TadF
845	 34.52	-1	996973..997560	-	195	15602710	tadE	PM0845	-	TadE
846	 31.01	-2	997576..998349	-	257	15602711	tadD	PM0846	-	hypothetical protein
847	 29.47	-2	998339..999193	-	284	15602712	tadC	PM0847	-	hypothetical protein
848	 34.13	-1	999190..1000065	-	291	15602713	tadB	PM0848	-	hypothetical protein
849	 37.79	0	1000075..1001352	-	425	15602714	tadA	PM0849	-	hypothetical protein
850	 33.24	-2	1001372..1002493	-	373	15602715	-	PM0850	-	hypothetical protein
851	 37.10	-1	1002510..1003013	-	167	15602716	rcpB	PM0851	-	RcpB
852	 36.66	-1	1003010..1004422	-	470	15602717	rcpA	PM0852	-	RcpA
853	 33.33	-2	1004419..1005231	-	270	15602718	-	PM0853	-	hypothetical protein
854	 29.63	-2	1005274..1005705	-	143	15602719	-	PM0854	-	hypothetical protein
855	 40.00	0	1006014..1006238	-	74	15602720	-	PM0855	-	hypothetical protein
856	 38.71	0	1007548..1008105	-	185	15602721	pgsA	PM0856	-	hypothetical protein
857	 41.01	0	1008201..1010036	-	611	15602722	uvrC	PM0857	-	excinuclease ABC subunit C
858	 42.60	0	1010061..1010837	-	258	15602723	kdsB	PM0858	-	3-deoxy-manno-octulosonate cytidylyltransferase
859	 41.53	0	1010839..1011021	-	60	15602724	-	PM0859	-	hypothetical protein
860	 41.62	0	1011033..1012010	-	325	15602725	lpxK	PM0860	-	tetraacyldisaccharide 4'-kinase
861	 38.71	0	1012042..1013790	-	582	15602726	msbA	PM0861	-	lipid transporter ATP-binding/permease protein
862	 40.06	0	1013843..1016236	-	797	15602727	rec2	PM0862	-	Rec2
863	 40.18	0	1016534..1016971	+	145	15602728	dksA	PM0863	-	hypothetical protein
864	 41.17	0	1017059..1018564	+	501	15602729	pcnB	PM0864	-	hypothetical protein
865	 42.57	0	1018576..1019073	+	165	15602730	folK	PM0865	-	hypothetical protein
866	 39.52	0	1019060..1020142	-	360	15602731	metX	PM0866	-	homoserine O-acetyltransferase
867	 36.12	-1	1020299..1021015	+	238	15602732	sanA	PM0867	-	SanA
868	 39.19	0	1021012..1022001	-	329	15602733	fruR	PM0868	-	DNA-binding transcriptional regulator FruR
869	 38.01	0	1022250..1022741	-	163	15602734	ilvH	PM0869	-	acetolactate synthase 3 regulatory subunit
870	 40.46	0	1022734..1024458	-	574	15602735	ilvI	PM0870	-	acetolactate synthase 3 catalytic subunit
871	 39.17	0	1024757..1026280	-	507	15602736	-	PM0871	-	hypothetical protein
872	 38.27	0	1026768..1027172	+	134	15602737	hns	PM0872	-	hypothetical protein
873	 34.65	-1	1027248..1028084	+	278	15602738	purU	PM0873	-	formyltetrahydrofolate deformylase
874	 40.28	0	1028200..1029336	-	378	15602739	nagA	PM0874	-	N-acetylglucosamine-6-phosphate deacetylase
875	 38.43	0	1029349..1030152	-	267	15602740	nagB	PM0875	-	glucosamine-6-phosphate deaminase
876	 42.73	0	1030460..1031917	+	485	15602741	-	PM0876	-	hypothetical protein
877	 40.31	0	1032003..1033952	-	649	15602742	uup1	PM0877	-	ABC transporter ATPase component
878	 40.95	0	1034068..1035420	-	450	15602743	-	PM0878	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
879	 41.49	0	1035422..1036120	-	232	15602744	-	PM0879	-	hypothetical protein
880	 32.96	-2	1036117..1036653	-	178	15602745	-	PM0880	-	hypothetical protein
881	 42.24	0	1036657..1037139	+	160	15602746	-	PM0881	-	hypothetical protein
882	 43.52	0	1037075..1038340	+	421	15602747	nifS_2	PM0882	-	hypothetical protein
883	 41.01	0	1038344..1038721	+	125	15602748	-	PM0883	-	hypothetical protein
884	 42.70	0	1039136..1040566	-	476	15602749	rfaE	PM0884	-	bifunctional heptose 7-phosphate kinase/heptose 1-phosphate adenyltransferase
885	 42.68	0	1040790..1041731	+	313	15602750	-	PM0885	-	lipid A biosynthesis lauroyl acyltransferase
886	 40.80	0	1041830..1042405	-	191	15602751	-	PM0886	-	hypothetical protein
887	 39.19	0	1042395..1043009	-	204	15602752	-	PM0887	-	hypothetical protein
888	 42.00	0	1043015..1043464	-	149	15602753	-	PM0888	-	hypothetical protein
889	 41.23	0	1043485..1044408	-	307	15602754	-	PM0889	-	hypothetical protein
890	 40.22	0	1044453..1045904	-	483	15602755	modF	PM0890	-	putative molybdenum transport ATP-binding protein ModF
891	 40.10	0	1045965..1047206	-	413	15602756	-	PM0891	-	serine/threonine transporter SstT
892	 36.22	-1	1047578..1048027	+	149	15602757	impA	PM0892	-	ImpA
893	 43.06	0	1048135..1049553	-	472	15602758	lpdA	PM0893	-	dihydrolipoamide dehydrogenase
894	 45.50	+1	1049678..1051576	-	632	15602759	aceF	PM0894	-	dihydrolipoamide acetyltransferase
895	 41.89	0	1051649..1054312	-	887	15602760	aceE	PM0895	-	pyruvate dehydrogenase subunit E1
896	 37.72	0	1055015..1055515	-	166	15602761	crr	PM0896	-	glucose-specific PTS system component
897	 38.89	0	1055574..1057301	-	575	15602762	ptsI	PM0897	-	phosphoenolpyruvate-protein phosphotransferase
898	 42.25	0	1057387..1057644	-	85	15602763	ptsH	PM0898	-	PtsH
899	 41.98	0	1057875..1058927	-	350	15602764	-	PM0899	-	ribosome-associated GTPase
900	 36.94	-1	1059010..1059564	+	184	15602765	-	PM0900	-	oligoribonuclease
901	 43.81	0	1059689..1060003	+	104	15602766	-	PM0901	-	hypothetical protein
902	 38.35	0	1060123..1060620	+	165	15602767	-	PM0902	-	hypothetical protein
903	 41.38	0	1060625..1061854	+	409	15602768	-	PM0903	-	hypothetical protein
904	 42.34	0	1061860..1063713	+	617	15602769	mutL	PM0904	-	DNA mismatch repair protein
905	 43.58	0	1063595..1064668	+	357	15602770	miaA	PM0905	-	tRNA delta(2)-isopentenylpyrophosphate transferase
906	 34.36	-1	1064798..1065088	+	96	15602771	hfq	PM0906	-	RNA-binding protein Hfq
907	 41.20	0	1065096..1066442	+	448	15602772	hflX	PM0907	-	hypothetical protein
908	 41.93	0	1066491..1067444	-	317	15602773	tyrR	PM0908	-	hypothetical protein
909	 41.41	0	1067531..1068607	-	358	15602774	-	PM0909	-	hypothetical protein
910	 41.51	0	1068625..1070031	-	468	15602775	-	PM0910	-	hypothetical protein
911	 38.89	0	1070200..1071891	+	563	15602776	sapA	PM0911	-	SapA
912	 40.06	0	1071888..1072853	+	321	15602777	sapB	PM0912	-	hypothetical protein
913	 38.85	0	1072843..1073730	+	295	15602778	sapC	PM0913	-	SapC
914	 39.14	0	1073738..1074787	+	349	15602779	sapD	PM0914	-	SapD
915	 38.97	0	1074800..1075597	+	265	15602780	sapF	PM0915	-	SapF
916	 36.47	-1	1075600..1076397	-	265	15602781	-	PM0916	-	hypothetical protein
917	 37.16	-1	1082228..1083037	-	269	15602782	murI	PM0917	-	glutamate racemase
918	 39.18	0	1083034..1083546	-	170	15602783	-	PM0918	-	hypothetical protein
919	 42.89	0	1083539..1085620	-	693	15602784	recG	PM0919	-	hypothetical protein
920	 40.21	0	1085617..1087740	-	707	15602785	spoT	PM0920	-	hypothetical protein
921	 38.89	0	1087801..1088070	-	89	15602786	rpoZ	PM0921	-	DNA-directed RNA polymerase subunit omega
922	 37.96	0	1088137..1088763	-	208	15602787	gmk	PM0922	-	guanylate kinase
923	 42.24	0	1088861..1089253	-	130	15602788	-	PM0923	-	methionine sulfoxide reductase B
924	 40.90	0	1089501..1090505	+	334	15602789	gapdH	PM0924	-	glyceraldehyde-3-phosphate dehydrogenase
925	 38.93	0	1091068..1092888	+	606	15602790	fadD_2	PM0925	-	FadD
926	 41.24	0	1092953..1094053	-	366	15602791	znuA	PM0926	-	high-affinity zinc transporter periplasmic component
927	 40.67	0	1094200..1094976	-	258	15602792	-	PM0927	-	hypothetical protein
928	 41.69	0	1094961..1096085	-	374	15602793	mltA	PM0928	-	murein transglycosylase A
929	 42.43	0	1096528..1097901	-	457	15602794	-	PM0929	-	hypothetical protein
930	 41.22	0	1098047..1099048	+	333	15602795	fbp	PM0930	-	fructose-1,6-bisphosphatase
40.66	MEAN

3.39	STD DEV
