IslandPath Analysis: Pasteurella multocida subsp. multocida str. Pm70

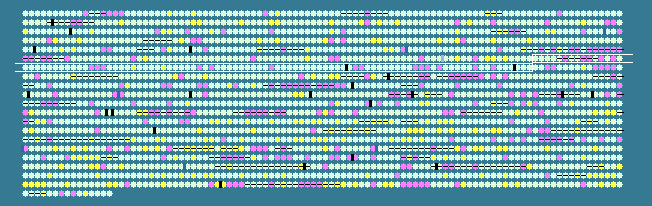

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.66   STD DEV: 3.39
Pasteurella multocida subsp. multocida str. Pm70, complete genome - 1..2257487
2015 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
586	 39.07	0	675351..676169	+	272	15602451	plp4	PM0586	-	Plp4
587	 39.45	0	676223..677089	-	288	15602452	-	PM0587	-	hypothetical protein
588	 41.32	0	677344..678846	+	500	15602453	putP_2	PM0588	-	hypothetical protein
589	 42.90	0	678919..682515	+	1198	15602454	putA	PM0589	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
590	 42.68	0	682610..683743	+	377	15602455	-	PM0590	-	hypothetical protein
591	 36.89	-1	683824..685398	+	524	15602456	-	PM0591	-	hypothetical protein
592	 42.92	0	685467..687062	-	531	15602457	hbpA	PM0592	-	HbpA
593	 42.96	0	687397..689328	+	643	15602458	thrS	PM0593	-	threonyl-tRNA synthetase
594	 30.18	-2	689570..690871	+	433	15602459	-	PM0594	-	hypothetical protein
595	 28.50	-2	690873..692774	+	633	15602460	-	PM0595	-	hypothetical protein
596	 38.70	0	692836..693636	-	266	15602461	-	PM0596	-	hypothetical protein
597	 36.37	-1	693867..695546	+	559	15602462	-	PM0597	-	putative symporter YidK
598	 38.03	0	695592..696995	+	467	15602463	-	PM0598	-	hypothetical protein
599	 36.70	-1	697146..697739	+	197	15602464	-	PM0599	-	hypothetical protein
600	 37.92	0	697752..698885	+	377	15602465	-	PM0600	-	hypothetical protein
601	 37.33	0	698907..699731	+	274	15602466	-	PM0601	-	hypothetical protein
602	 43.44	0	699932..700396	+	154	15602467	infC	PM0602	-	translation initiation factor IF-3
603	 38.38	0	700794..700991	+	65	15602468	rpmI	PM0603	-	50S ribosomal protein L35
604	 41.53	0	701062..701415	+	117	15602469	rplT	PM0604	-	50S ribosomal protein L20
605	 39.43	0	702691..703215	-	174	15602470	-	PM0605	-	methionine sulfoxide reductase A
606	 37.67	0	703250..704194	-	314	15602471	-	PM0606	-	hypothetical protein
607	 41.25	0	704372..705697	+	441	15602472	kicB	PM0607	-	condesin subunit F
608	 42.08	0	705748..706479	+	243	15602473	kicA	PM0608	-	condesin subunit E
609	 42.67	0	706479..710966	+	1495	15602474	mukB	PM0609	-	cell division protein MukB
610	 38.75	0	711133..711999	+	288	15602475	-	PM0610	-	hypothetical protein
611	 38.17	0	712101..713528	+	475	15602476	sbcB	PM0611	-	exonuclease I
612	 33.01	-2	714398..714709	+	103	15602477	-	PM0612	-	hypothetical protein
613	 33.33	-2	714768..715160	+	130	15602478	-	PM0613	-	hypothetical protein
614	 33.69	-2	715173..715451	+	92	15602479	-	PM0614	-	hypothetical protein
615	 41.35	0	715517..718123	-	868	15602480	topA	PM0615	-	DNA topoisomerase I
616	 43.65	0	718284..719117	-	277	15602481	-	PM0616	-	hypothetical protein
617	 42.25	0	719204..720223	-	339	15602482	pyrD	PM0617	-	dihydroorotate dehydrogenase 2
618	 40.54	0	720376..722985	-	869	15602483	pepN	PM0618	-	hypothetical protein
619	 45.11	+1	723156..723656	+	166	15602484	purE	PM0619	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
620	 41.32	0	723719..724807	+	362	15602485	purK	PM0620	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
621	 39.88	0	724950..726140	+	396	15602486	aspC	PM0621	-	aromatic amino acid aminotransferase
622	 43.05	0	726202..726654	-	150	15602487	moaE	PM0622	-	hypothetical protein
623	 43.09	0	726655..726900	-	81	15602488	moaD	PM0623	-	molybdopterin synthase small subunit
624	 45.07	+1	726913..727389	-	158	15602489	moaC	PM0624	-	molybdenum cofactor biosynthesis protein C
625	 39.55	0	727449..728462	-	337	15602490	moaA	PM0625	-	molybdenum cofactor biosynthesis protein A
626	 41.86	0	728836..729762	+	308	15602491	-	PM0626	-	hypothetical protein
627	 38.33	0	729782..730261	-	159	15602492	-	PM0627	-	hypothetical protein
628	 38.72	0	730350..730646	-	98	15602493	himA	PM0628	-	hypothetical protein
629	 42.25	0	730650..733037	-	795	15602494	pheT	PM0629	-	phenylalanyl-tRNA synthetase subunit beta
630	 36.25	-1	733060..733539	-	159	15602495	-	PM0630	-	hypothetical protein
631	 40.96	0	733550..734533	-	327	15602496	pheS	PM0631	-	phenylalanyl-tRNA synthetase subunit alpha
632	 34.87	-1	734712..735230	-	172	15602497	-	PM0632	-	hypothetical protein
633	 41.03	0	735259..735921	-	220	15602498	-	PM0633	-	hypothetical protein
634	 42.24	0	736029..736679	+	216	15602499	gpmB	PM0634	-	hypothetical protein
635	 42.81	0	736710..738038	-	442	15602500	folC	PM0635	-	hypothetical protein
636	 40.98	0	738031..738945	-	304	15602501	accD	PM0636	-	acetyl-CoA carboxylase subunit beta
637	 42.64	0	739029..739823	-	264	15602502	truA	PM0637	-	tRNA pseudouridine synthase A
638	 39.15	0	739981..740823	+	280	15602503	-	PM0638	-	hypothetical protein
639	 40.70	0	740893..741177	-	94	15602504	rpL25	PM0639	-	50S ribosomal protein L25
640	 38.14	0	741386..742009	+	207	15602505	-	PM0640	-	hypothetical protein
641	 37.69	0	742077..742811	-	244	15602506	bioD	PM0641	-	dithiobiotin synthetase
642	 36.39	-1	742976..744187	-	403	15602507	mlc	PM0642	-	Mlc
643	 41.60	0	744470..745885	+	471	15602508	asnC	PM0643	-	asparaginyl-tRNA synthetase
644	 41.14	0	745946..748303	+	785	15602509	ponC	PM0644	-	PonC
645	 41.84	0	748349..749194	-	281	15602510	-	PM0645	-	hypothetical protein
646	 40.09	0	749269..750984	+	571	15602511	lppC	PM0646	-	LppC
647	 40.83	0	750986..751345	+	119	15602512	-	PM0647	-	hypothetical protein
648	 37.76	0	751348..751935	+	195	15602513	-	PM0648	-	hypothetical protein
649	 40.68	0	751999..752583	+	194	15602514	-	PM0649	-	hypothetical protein
650	 37.89	0	752644..753258	-	204	15602515	ribE	PM0650	-	riboflavin synthase subunit alpha
651	 41.58	0	753314..754708	+	464	15602516	-	PM0651	-	multidrug efflux protein
652	 38.46	0	754708..755760	+	350	15602517	-	PM0652	-	hypothetical protein
653	 39.79	0	755890..757329	-	479	15602518	pykA	PM0653	-	pyruvate kinase
654	 41.78	0	757549..757761	-	70	15602519	-	PM0654	-	hypothetical protein
655	 39.05	0	758088..758297	-	69	15602520	msmB	PM0655	-	MsmB
656	 36.12	-1	758645..759505	+	286	15602521	tehB	PM0656	-	tellurite resistance protein TehB
657	 34.44	-1	759543..760625	-	360	15602522	-	PM0657	-	hypothetical protein
658	 41.94	0	760786..761610	-	274	15602523	dapD	PM0658	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
659	 39.84	0	761793..767510	+	1905	15602524	-	PM0659	-	hypothetical protein
660	 38.48	0	767591..768562	-	323	15602525	cysB	PM0660	-	transcriptional regulator CysB
661	 42.49	0	768603..769640	-	345	15602526	-	PM0661	-	hypothetical protein
662	 40.06	0	769689..770312	-	207	15602527	-	PM0662	-	hypothetical protein
663	 38.98	0	770628..773126	-	832	15602528	-	PM0663	-	hypothetical protein
664	 41.24	0	773366..774490	-	374	15602529	tyrA	PM0664	-	bifunctional chorismate mutase/prephenate dehydrogenase
665	 40.46	0	774500..775552	-	350	15602530	aroF	PM0665	-	phospho-2-dehydro-3-deoxyheptonate aldolase
666	 35.39	-1	775937..776422	+	161	15602531	rsgA_1	PM0666	-	RsgA
667	 34.94	-1	776438..776935	+	165	15602532	rsgA_2	PM0667	-	RsgA
668	 36.25	-1	777159..777980	+	273	15602533	fnr	PM0668	-	fumarate/nitrate reduction transcriptional regulator
669	 37.38	0	778092..779030	+	312	15602534	-	PM0669	-	universal stress protein UspE
670	 35.73	-1	779093..779467	-	124	15602535	-	PM0670	-	hypothetical protein
671	 38.06	0	779547..781430	-	627	15602536	sppA	PM0671	-	hypothetical protein
672	 41.08	0	781554..782108	+	184	15602537	-	PM0672	-	hypothetical protein
673	 37.38	0	782337..783077	-	246	15602538	-	PM0673	-	hypothetical protein
674	 38.82	0	783153..783845	-	230	15602539	-	PM0674	-	hypothetical protein
675	 40.22	0	783999..784913	-	304	15602540	-	PM0675	-	N-acetyl-D-glucosamine kinase
676	 37.05	-1	784963..785688	-	241	15602541	pdpB	PM0676	-	PdpB
677	 40.30	0	785764..786423	+	219	15602542	ribA	PM0677	-	GTP cyclohydrolase II
678	 40.84	0	786475..788046	-	523	15602543	-	PM0678	-	hypothetical protein
679	 33.61	-2	788103..788465	-	120	15602544	-	PM0679	-	hypothetical protein
680	 40.15	0	788587..790626	+	679	15602545	prlC	PM0680	-	PrlC
681	 40.02	0	790687..791988	-	433	15602546	-	PM0681	-	hypothetical protein
682	 38.51	0	792145..792453	-	102	15602547	-	PM0682	-	hypothetical protein
683	 41.75	0	792792..794015	-	407	15602548	nagC	PM0683	-	hypothetical protein
684	 40.77	0	794093..795397	-	434	15602549	hemA	PM0684	-	glutamyl-tRNA reductase
685	 40.46	0	795547..796248	-	233	15602550	-	PM0685	-	hypothetical protein
40.66	MEAN

3.39	STD DEV
