IslandPath Analysis: Pasteurella multocida subsp. multocida str. Pm70

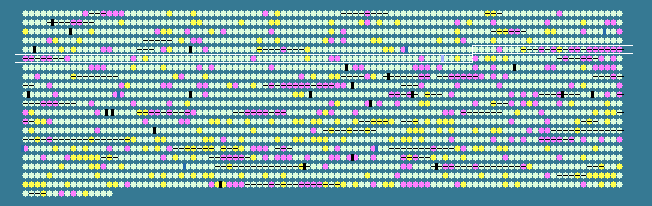

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.66 STD DEV: 3.39
Pasteurella multocida subsp. multocida str. Pm70, complete genome - 1..2257487
2015 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
476	 39.40	0	560807..561646	-	279	15602341	queF	PM0476	-	7-cyano-7-deazaguanine reductase
477	 40.84	0	561690..562475	-	261	15602342	-	PM0477	-	hypothetical protein
478	 38.99	0	562606..562923	+	105	15602343	-	PM0478	-	hypothetical protein
479	 39.34	0	562927..563658	+	243	15602344	-	PM0479	-	tRNA pseudouridine synthase C
480	 36.36	-1	563698..563862	+	54	15602345	-	PM0480	-	hypothetical protein
481	 39.05	0	564068..564277	+	69	15602346	cspD	PM0481	-	CspD
482	 38.03	0	564347..564793	-	148	15602347	-	PM0482	-	hypothetical protein
483	 40.76	0	564958..566748	+	596	15602348	-	PM0483	-	hypothetical protein
484	 46.07	+1	566863..567396	+	177	15602349	fabA	PM0484	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
485	 39.83	0	567465..567941	-	158	15602350	-	PM0485	-	hypothetical protein
486	 41.03	0	567998..568972	+	324	15602351	usg1	PM0486	-	aspartate-semialdehyde dehydrogenase
487	 29.48	-2	569261..569779	+	172	15602352	-	PM0487	-	hypothetical protein
488	 41.95	0	569890..570237	+	115	15602353	-	PM0488	-	hypothetical protein
489	 28.99	-2	570256..570669	+	137	15602354	-	PM0489	-	hypothetical protein
490	 44.73	+1	570666..571016	+	116	15602355	-	PM0490	-	hypothetical protein
491	 38.54	0	571020..571403	+	127	15602356	-	PM0491	-	hypothetical protein
492	 22.86	-2	571581..571895	+	104	15602357	-	PM0492	-	hypothetical protein
493	 32.85	-2	571996..572406	+	136	15602358	-	PM0493	-	hypothetical protein
494	 37.23	-1	573219..573500	+	93	15602359	-	PM0494	-	hypothetical protein
495	 33.18	-2	573528..574178	+	216	15602360	-	PM0495	-	hypothetical protein
496	 28.24	-2	574178..574687	+	169	15602361	-	PM0496	-	hypothetical protein
497	 25.44	-2	574871..575377	+	168	15602362	-	PM0497	-	hypothetical protein
498	 26.21	-2	575639..576115	+	158	15602363	-	PM0498	-	hypothetical protein
499	 27.91	-2	576287..576673	+	128	15602364	-	PM0499	-	hypothetical protein
500	 31.20	-2	576784..577299	+	171	15602365	-	PM0500	-	hypothetical protein
501	 25.86	-2	577476..577823	+	115	15602366	-	PM0501	-	hypothetical protein
502	 28.77	-2	578249..578752	+	167	15602367	-	PM0502	-	hypothetical protein
503	 40.61	0	578895..579224	+	109	15602368	-	PM0503	-	hypothetical protein
504	 37.16	-1	579221..579664	+	147	15602369	-	PM0504	-	hypothetical protein
505	 36.60	-1	579805..580233	+	142	15602370	-	PM0505	-	hypothetical protein
506	 39.92	0	580314..581057	-	247	15602371	-	PM0506	-	hypothetical protein
507	 38.75	0	581175..582374	+	399	15602372	-	PM0507	-	hypothetical protein
508	 35.06	-1	582376..583302	+	308	15602373	-	PM0508	-	hypothetical protein
509	 41.09	0	583304..584089	+	261	15602374	-	PM0509	-	hypothetical protein
510	 39.06	0	584099..585286	+	395	15602375	-	PM0510	-	hypothetical protein
511	 40.79	0	585286..586170	+	294	15602376	-	PM0511	-	hypothetical protein
512	 41.57	0	586170..586970	+	266	15602377	-	PM0512	-	hypothetical protein
513	 43.11	0	586981..588075	+	364	15602378	-	PM0513	-	hypothetical protein
514	 41.25	0	588283..589557	+	424	15602379	-	PM0514	-	hypothetical protein
515	 40.00	0	589557..589916	+	119	15602380	-	PM0515	-	hypothetical protein
516	 41.46	0	589977..593669	+	1230	15602381	recB	PM0516	-	hypothetical protein
517	 41.34	0	593669..595642	+	657	15602382	recD	PM0517	-	hypothetical protein
518	 37.50	0	595680..596327	+	215	15602383	grx2	PM0518	-	glutaredoxin 2
519	 35.36	-1	596418..596762	+	114	15602384	-	PM0519	-	hypothetical protein
520	 42.89	0	597043..597471	+	142	15602385	rplM	PM0520	-	50S ribosomal protein L13
521	 44.53	+1	597488..597880	+	130	15602386	rpS9	PM0521	-	RpS9
522	 38.97	0	598079..598717	+	212	15602387	sspA	PM0522	-	hypothetical protein
523	 39.34	0	598723..599205	+	160	15602388	sspB	PM0523	-	ClpXP protease specificity-enhancing factor
524	 44.14	+1	599268..599813	-	181	15602389	-	PM0524	-	hypothetical protein
525	 41.59	0	599813..600853	-	346	15602390	kpsF	PM0525	-	KpsF
526	 43.81	0	601311..602045	-	244	15602391	-	PM0526	-	hypothetical protein
527	 40.20	0	602101..603468	-	455	15602392	-	PM0527	-	hypothetical protein
528	 41.01	0	603945..605624	+	559	15602393	glnS	PM0528	-	glutaminyl-tRNA synthetase
529	 40.43	0	605796..607274	+	492	15602394	-	PM0529	-	hypothetical protein
530	 39.23	0	607374..607865	+	163	15602395	-	PM0530	-	hypothetical protein
531	 39.26	0	607850..608389	+	179	15602396	-	PM0531	-	hypothetical protein
532	 41.19	0	608496..610340	-	614	15602397	dxs	PM0532	-	1-deoxy-D-xylulose-5-phosphate synthase
533	 43.47	0	610407..611294	-	295	15602398	ispA	PM0533	-	hypothetical protein
534	 38.62	0	611313..611558	-	81	15602399	xseB	PM0534	-	exodeoxyribonuclease VII small subunit
535	 39.29	0	611759..613201	+	480	15602400	thiI	PM0535	-	thiamine biosynthesis protein ThiI
536	 40.50	0	613241..613561	-	106	15602401	-	PM0536	-	dsDNA-mimic protein
537	 40.99	0	613696..614727	+	343	15602402	-	PM0537	-	putative sulfite oxidase subunit YedY
538	 38.16	0	614727..615347	+	206	15602403	-	PM0538	-	putative sulfite oxidase subunit YedZ
539	 36.69	-1	615388..615864	+	158	15602404	-	PM0539	-	hypothetical protein
540	 42.22	0	616319..618412	+	697	15602405	malQ	PM0540	-	hypothetical protein
541	 43.50	0	618444..620636	+	730	15602406	glgB	PM0541	-	glycogen branching enzyme
542	 42.38	0	620710..622698	+	662	15602407	glgx	PM0542	-	Glgx
543	 40.61	0	622759..624078	+	439	15602408	glgC	PM0543	-	glucose-1-phosphate adenylyltransferase
544	 42.41	0	624158..625600	+	480	15602409	glgA	PM0544	-	glycogen synthase
545	 39.60	0	625725..628181	+	818	15602410	glgP	PM0545	-	hypothetical protein
546	 44.05	+1	628288..630927	-	879	15602411	ppc	PM0546	-	phosphoenolpyruvate carboxylase
547	 41.00	0	631172..632176	-	334	15602412	purR	PM0547	-	DNA-binding transcriptional repressor PurR
548	 44.26	+1	632494..633381	-	295	15602413	-	PM0548	-	hypothetical protein
549	 40.33	0	633405..633947	-	180	15602414	argR	PM0549	-	arginine repressor
550	 41.77	0	634091..635026	+	311	15602415	mdh_2	PM0550	-	malate dehydrogenase
551	 40.83	0	635328..637061	-	577	161723314	argS	PM0551	-	arginyl-tRNA synthetase
552	 35.06	-1	637103..637738	+	211	15602417	-	PM0552	-	hypothetical protein
553	 33.99	-1	637740..638045	+	101	15602418	-	PM0553	-	hypothetical protein
554	 41.08	0	638073..638537	+	154	15602419	lpp	PM0554	-	outer membrane lipoprotein
555	 41.27	0	638702..639784	+	360	15602420	prfA	PM0555	-	peptide chain release factor 1
556	 41.58	0	639843..640739	+	298	15602421	hemK	PM0556	-	hypothetical protein
557	 39.25	0	640745..641539	+	264	15602422	-	PM0557	-	hypothetical protein
558	 40.58	0	641553..642407	+	284	15602423	kdsA	PM0558	-	2-dehydro-3-deoxyphosphooctonate aldolase
559	 41.64	0	642590..643540	+	316	15602424	-	PM0559	-	glycerate dehydrogenase
560	 40.13	0	643622..644812	+	396	15602425	-	PM0560	-	hypothetical protein
561	 41.37	0	644829..645512	+	227	15602426	-	PM0561	-	hypothetical protein
562	 40.19	0	645513..646766	+	417	15602427	-	PM0562	-	outer membrane-specific lipoprotein transporter subunit LolE
563	 41.71	0	646913..647998	+	361	15602428	aroG	PM0563	-	phospho-2-dehydro-3-deoxyheptonate aldolase
564	 42.71	0	648219..649445	+	408	15602429	codB	PM0564	-	cytosine permease
565	 40.14	0	649455..650717	+	420	15602430	-	PM0565	-	cytosine deaminase
566	 42.33	0	650809..651831	-	340	15602431	ivlE	PM0566	-	branched-chain amino acid aminotransferase
567	 36.28	-1	652303..653184	+	293	15602432	gcvA	PM0567	-	DNA-binding transcriptional activator GcvA
568	 41.44	0	653184..654281	+	365	15602433	-	PM0568	-	putative RNA 2'-O-ribose methyltransferase
569	 43.52	0	654361..655224	-	287	15602434	-	PM0569	-	hypothetical protein
570	 43.00	0	655221..656099	-	292	15602435	tesB	PM0570	-	TesB
571	 40.32	0	656414..658144	-	576	15602436	cycC	PM0571	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
572	 41.27	0	658144..659907	-	587	15602437	cycD	PM0572	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
573	 44.34	+1	659993..660946	-	317	15602438	trxB	PM0573	-	hypothetical protein
574	 39.91	0	661028..661681	-	217	15602439	-	PM0574	-	hypothetical protein
575	 38.84	0	662017..662706	-	229	15602440	-	PM0575	-	hypothetical protein
40.66	MEAN

3.39	STD DEV
