IslandPath Analysis: Pasteurella multocida subsp. multocida str. Pm70

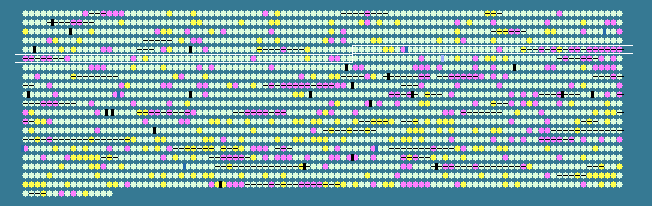

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.66   STD DEV: 3.39
Pasteurella multocida subsp. multocida str. Pm70, complete genome - 1..2257487
2015 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
456	 42.53	0	530422..532749	-	775	15602321	ponB	PM0456	-	PonB
457	 38.94	0	532778..533134	-	118	15602322	-	PM0457	-	hypothetical protein
458	 41.16	0	533136..533480	-	114	15602323	-	PM0458	-	iron-sulfur cluster insertion protein ErpA
459	 42.04	0	533616..534419	+	267	15602324	map	PM0459	-	methionine aminopeptidase
460	 40.12	0	534480..537074	+	864	15602325	glnD	PM0460	-	PII uridylyl-transferase
461	 44.25	+1	537170..538030	-	286	15602326	-	PM0461	-	hypothetical protein
462	 44.16	+1	538040..539323	-	427	15602327	hemL	PM0462	-	hypothetical protein
463	 37.62	0	539456..540529	+	357	15602328	rfe	PM0463	-	hypothetical protein
464	 35.85	-1	540535..541368	+	277	15602329	-	PM0464	-	hypothetical protein
465	 39.60	0	548126..549034	-	302	15602330	-	PM0465	-	hypothetical protein
466	 38.45	0	549103..550665	+	520	15602331	-	PM0466	-	hypothetical protein
467	 40.82	0	550753..551820	+	355	15602332	dinP	PM0467	-	DNA polymerase IV
468	 42.28	0	551907..552767	+	286	15602333	htpX	PM0468	-	heat shock protein HtpX
469	 40.22	0	552862..553398	+	178	15602334	-	PM0469	-	hypothetical protein
470	 40.47	0	553412..554350	+	312	15602335	yagD	PM0470	-	YagD
471	 40.23	0	554347..555114	+	255	15602336	-	PM0471	-	hypothetical protein
472	 40.22	0	555145..556233	+	362	15602337	-	PM0472	-	hypothetical protein
473	 41.70	0	556298..558928	+	876	15602338	-	PM0473	-	hypothetical protein
474	 39.72	0	558938..559360	+	140	15602339	-	PM0474	-	hypothetical protein
475	 40.42	0	559431..560798	-	455	15602340	-	PM0475	-	hypothetical protein
476	 39.40	0	560807..561646	-	279	15602341	queF	PM0476	-	7-cyano-7-deazaguanine reductase
477	 40.84	0	561690..562475	-	261	15602342	-	PM0477	-	hypothetical protein
478	 38.99	0	562606..562923	+	105	15602343	-	PM0478	-	hypothetical protein
479	 39.34	0	562927..563658	+	243	15602344	-	PM0479	-	tRNA pseudouridine synthase C
480	 36.36	-1	563698..563862	+	54	15602345	-	PM0480	-	hypothetical protein
481	 39.05	0	564068..564277	+	69	15602346	cspD	PM0481	-	CspD
482	 38.03	0	564347..564793	-	148	15602347	-	PM0482	-	hypothetical protein
483	 40.76	0	564958..566748	+	596	15602348	-	PM0483	-	hypothetical protein
484	 46.07	+1	566863..567396	+	177	15602349	fabA	PM0484	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
485	 39.83	0	567465..567941	-	158	15602350	-	PM0485	-	hypothetical protein
486	 41.03	0	567998..568972	+	324	15602351	usg1	PM0486	-	aspartate-semialdehyde dehydrogenase
487	 29.48	-2	569261..569779	+	172	15602352	-	PM0487	-	hypothetical protein
488	 41.95	0	569890..570237	+	115	15602353	-	PM0488	-	hypothetical protein
489	 28.99	-2	570256..570669	+	137	15602354	-	PM0489	-	hypothetical protein
490	 44.73	+1	570666..571016	+	116	15602355	-	PM0490	-	hypothetical protein
491	 38.54	0	571020..571403	+	127	15602356	-	PM0491	-	hypothetical protein
492	 22.86	-2	571581..571895	+	104	15602357	-	PM0492	-	hypothetical protein
493	 32.85	-2	571996..572406	+	136	15602358	-	PM0493	-	hypothetical protein
494	 37.23	-1	573219..573500	+	93	15602359	-	PM0494	-	hypothetical protein
495	 33.18	-2	573528..574178	+	216	15602360	-	PM0495	-	hypothetical protein
496	 28.24	-2	574178..574687	+	169	15602361	-	PM0496	-	hypothetical protein
497	 25.44	-2	574871..575377	+	168	15602362	-	PM0497	-	hypothetical protein
498	 26.21	-2	575639..576115	+	158	15602363	-	PM0498	-	hypothetical protein
499	 27.91	-2	576287..576673	+	128	15602364	-	PM0499	-	hypothetical protein
500	 31.20	-2	576784..577299	+	171	15602365	-	PM0500	-	hypothetical protein
501	 25.86	-2	577476..577823	+	115	15602366	-	PM0501	-	hypothetical protein
502	 28.77	-2	578249..578752	+	167	15602367	-	PM0502	-	hypothetical protein
503	 40.61	0	578895..579224	+	109	15602368	-	PM0503	-	hypothetical protein
504	 37.16	-1	579221..579664	+	147	15602369	-	PM0504	-	hypothetical protein
505	 36.60	-1	579805..580233	+	142	15602370	-	PM0505	-	hypothetical protein
506	 39.92	0	580314..581057	-	247	15602371	-	PM0506	-	hypothetical protein
507	 38.75	0	581175..582374	+	399	15602372	-	PM0507	-	hypothetical protein
508	 35.06	-1	582376..583302	+	308	15602373	-	PM0508	-	hypothetical protein
509	 41.09	0	583304..584089	+	261	15602374	-	PM0509	-	hypothetical protein
510	 39.06	0	584099..585286	+	395	15602375	-	PM0510	-	hypothetical protein
511	 40.79	0	585286..586170	+	294	15602376	-	PM0511	-	hypothetical protein
512	 41.57	0	586170..586970	+	266	15602377	-	PM0512	-	hypothetical protein
513	 43.11	0	586981..588075	+	364	15602378	-	PM0513	-	hypothetical protein
514	 41.25	0	588283..589557	+	424	15602379	-	PM0514	-	hypothetical protein
515	 40.00	0	589557..589916	+	119	15602380	-	PM0515	-	hypothetical protein
516	 41.46	0	589977..593669	+	1230	15602381	recB	PM0516	-	hypothetical protein
517	 41.34	0	593669..595642	+	657	15602382	recD	PM0517	-	hypothetical protein
518	 37.50	0	595680..596327	+	215	15602383	grx2	PM0518	-	glutaredoxin 2
519	 35.36	-1	596418..596762	+	114	15602384	-	PM0519	-	hypothetical protein
520	 42.89	0	597043..597471	+	142	15602385	rplM	PM0520	-	50S ribosomal protein L13
521	 44.53	+1	597488..597880	+	130	15602386	rpS9	PM0521	-	RpS9
522	 38.97	0	598079..598717	+	212	15602387	sspA	PM0522	-	hypothetical protein
523	 39.34	0	598723..599205	+	160	15602388	sspB	PM0523	-	ClpXP protease specificity-enhancing factor
524	 44.14	+1	599268..599813	-	181	15602389	-	PM0524	-	hypothetical protein
525	 41.59	0	599813..600853	-	346	15602390	kpsF	PM0525	-	KpsF
526	 43.81	0	601311..602045	-	244	15602391	-	PM0526	-	hypothetical protein
527	 40.20	0	602101..603468	-	455	15602392	-	PM0527	-	hypothetical protein
528	 41.01	0	603945..605624	+	559	15602393	glnS	PM0528	-	glutaminyl-tRNA synthetase
529	 40.43	0	605796..607274	+	492	15602394	-	PM0529	-	hypothetical protein
530	 39.23	0	607374..607865	+	163	15602395	-	PM0530	-	hypothetical protein
531	 39.26	0	607850..608389	+	179	15602396	-	PM0531	-	hypothetical protein
532	 41.19	0	608496..610340	-	614	15602397	dxs	PM0532	-	1-deoxy-D-xylulose-5-phosphate synthase
533	 43.47	0	610407..611294	-	295	15602398	ispA	PM0533	-	hypothetical protein
534	 38.62	0	611313..611558	-	81	15602399	xseB	PM0534	-	exodeoxyribonuclease VII small subunit
535	 39.29	0	611759..613201	+	480	15602400	thiI	PM0535	-	thiamine biosynthesis protein ThiI
536	 40.50	0	613241..613561	-	106	15602401	-	PM0536	-	dsDNA-mimic protein
537	 40.99	0	613696..614727	+	343	15602402	-	PM0537	-	putative sulfite oxidase subunit YedY
538	 38.16	0	614727..615347	+	206	15602403	-	PM0538	-	putative sulfite oxidase subunit YedZ
539	 36.69	-1	615388..615864	+	158	15602404	-	PM0539	-	hypothetical protein
540	 42.22	0	616319..618412	+	697	15602405	malQ	PM0540	-	hypothetical protein
541	 43.50	0	618444..620636	+	730	15602406	glgB	PM0541	-	glycogen branching enzyme
542	 42.38	0	620710..622698	+	662	15602407	glgx	PM0542	-	Glgx
543	 40.61	0	622759..624078	+	439	15602408	glgC	PM0543	-	glucose-1-phosphate adenylyltransferase
544	 42.41	0	624158..625600	+	480	15602409	glgA	PM0544	-	glycogen synthase
545	 39.60	0	625725..628181	+	818	15602410	glgP	PM0545	-	hypothetical protein
546	 44.05	+1	628288..630927	-	879	15602411	ppc	PM0546	-	phosphoenolpyruvate carboxylase
547	 41.00	0	631172..632176	-	334	15602412	purR	PM0547	-	DNA-binding transcriptional repressor PurR
548	 44.26	+1	632494..633381	-	295	15602413	-	PM0548	-	hypothetical protein
549	 40.33	0	633405..633947	-	180	15602414	argR	PM0549	-	arginine repressor
550	 41.77	0	634091..635026	+	311	15602415	mdh_2	PM0550	-	malate dehydrogenase
551	 40.83	0	635328..637061	-	577	161723314	argS	PM0551	-	arginyl-tRNA synthetase
552	 35.06	-1	637103..637738	+	211	15602417	-	PM0552	-	hypothetical protein
553	 33.99	-1	637740..638045	+	101	15602418	-	PM0553	-	hypothetical protein
554	 41.08	0	638073..638537	+	154	15602419	lpp	PM0554	-	outer membrane lipoprotein
555	 41.27	0	638702..639784	+	360	15602420	prfA	PM0555	-	peptide chain release factor 1
40.66	MEAN

3.39	STD DEV
