IslandPath Analysis: Pasteurella multocida subsp. multocida str. Pm70

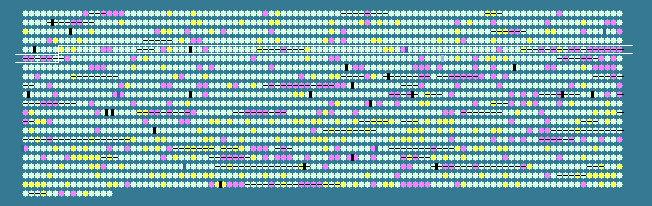

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.66 STD DEV: 3.39
Pasteurella multocida subsp. multocida str. Pm70, complete genome - 1..2257487
2015 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
407	 45.87	+1	475349..476257	-	302	15602272	fdxH	PM0407	-	FdxH
408	 43.21	0	476259..478688	-	809	15602273	fdxG_1	PM0408	-	FdxG
409	 47.28	+1	478737..479324	-	195	15602274	fdxG_2	PM0409	-	FdxG
410	 41.85	0	479567..480388	+	273	15602275	fdhD	PM0410	-	formate dehydrogenase accessory protein
411	 42.37	0	480549..482729	+	726	15602276	uvrD	PM0411	-	DNA-dependent helicase II
412	 41.38	0	482890..484293	+	467	15602277	dnaB	PM0412	-	replicative DNA helicase
413	 41.64	0	484293..485375	+	360	15602278	alr	PM0413	-	alanine racemase
414	 31.75	-2	485466..487421	-	651	15602279	pglA	PM0414	-	PglA
415	 35.37	-1	487568..487813	+	81	15602280	-	PM0415	-	hypothetical protein
416	 39.88	0	488453..490102	+	549	15602281	pgi	PM0416	-	glucose-6-phosphate isomerase
417	 40.40	0	490186..490836	-	216	15602282	-	PM0417	-	hypothetical protein
418	 39.52	0	491073..491282	+	69	15602283	ner	PM0418	-	Ner
419	 43.16	0	491757..492794	-	345	15602284	-	PM0419	-	hypothetical protein
420	 43.71	0	492952..495225	-	757	15602285	metE	PM0420	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
421	 43.37	0	495524..496450	+	308	15602286	metR	PM0421	-	MetR
422	 39.28	0	496456..497178	+	240	15602287	-	PM0422	-	hypothetical protein
423	 37.58	0	497182..497511	+	109	15602288	-	PM0423	-	hypothetical protein
424	 31.58	-2	497668..497895	+	75	15602289	-	PM0424	-	hypothetical protein
425	 44.94	+1	497943..499613	-	556	15602290	-	PM0425	-	putative ABC transporter ATP-binding protein
426	 40.19	0	500173..500814	+	213	15602291	-	PM0426	-	hypothetical protein
427	 40.97	0	500805..501812	+	335	15602292	-	PM0427	-	hypothetical protein
428	 41.69	0	501813..502781	-	322	15602293	-	PM0428	-	hypothetical protein
429	 41.04	0	503443..505479	+	678	15602294	uvrB	PM0429	-	excinuclease ABC subunit B
430	 40.90	0	505492..506271	+	259	15602295	-	PM0430	-	hypothetical protein
431	 36.73	-1	506318..507613	-	431	15602296	phoR	PM0431	-	PhoR
432	 39.80	0	507610..508305	-	231	15602297	phoB	PM0432	-	PhoB
433	 40.51	0	508432..509211	-	259	15602298	pstB	PM0433	-	hypothetical protein
434	 42.47	0	509229..510071	-	280	15602299	pstA	PM0434	-	hypothetical protein
435	 42.68	0	510072..511034	-	320	15602300	pstC	PM0435	-	hypothetical protein
436	 43.23	0	511097..512308	-	403	15602301	pstS	PM0436	-	hypothetical protein
437	 43.97	0	512402..513031	+	209	15602302	rrmJ	PM0437	-	23S rRNA methyltransferase J
438	 43.59	0	513163..515082	+	639	15602303	ftsH	PM0438	-	hypothetical protein
439	 42.75	0	515215..516042	+	275	15602304	folP	PM0439	-	hypothetical protein
440	 44.42	+1	516063..517397	+	444	15602305	mrsA	PM0440	-	MrsA
441	 41.61	0	517460..517918	+	152	15602306	-	PM0441	-	hypothetical protein
442	 43.62	0	518198..518887	+	229	15602307	-	PM0442	-	hypothetical protein
443	 38.94	0	518936..519613	-	225	15602308	minC	PM0443	-	hypothetical protein
444	 36.51	-1	519707..519958	+	83	15602309	-	PM0444	-	hypothetical protein
445	 43.33	0	519948..520337	-	129	15602310	-	PM0445	-	hypothetical protein
446	 40.59	0	520397..520699	-	100	15602311	-	PM0446	-	hypothetical protein
447	 38.45	0	520703..521230	-	175	15602312	resA	PM0447	-	ResA
448	 44.59	+1	521169..521852	-	227	15602313	-	PM0448	-	hypothetical protein
449	 41.22	0	521913..523028	-	371	15602314	-	PM0449	-	hypothetical protein
450	 44.07	+1	523039..524361	-	440	15602315	-	PM0450	-	hypothetical protein
451	 42.70	0	524361..525758	-	465	15602316	-	PM0451	-	hypothetical protein
452	 42.91	0	525924..526445	-	173	15602317	-	PM0452	-	hypothetical protein
453	 41.00	0	526485..528389	-	634	15602318	-	PM0453	-	hypothetical protein
454	 40.71	0	528656..529360	+	234	161723315	pepE	PM0454	-	peptidase E
455	 41.53	0	529457..530347	+	296	15602320	-	PM0455	-	hypothetical protein
456	 42.53	0	530422..532749	-	775	15602321	ponB	PM0456	-	PonB
457	 38.94	0	532778..533134	-	118	15602322	-	PM0457	-	hypothetical protein
458	 41.16	0	533136..533480	-	114	15602323	-	PM0458	-	iron-sulfur cluster insertion protein ErpA
459	 42.04	0	533616..534419	+	267	15602324	map	PM0459	-	methionine aminopeptidase
460	 40.12	0	534480..537074	+	864	15602325	glnD	PM0460	-	PII uridylyl-transferase
461	 44.25	+1	537170..538030	-	286	15602326	-	PM0461	-	hypothetical protein
462	 44.16	+1	538040..539323	-	427	15602327	hemL	PM0462	-	hypothetical protein
463	 37.62	0	539456..540529	+	357	15602328	rfe	PM0463	-	hypothetical protein
464	 35.85	-1	540535..541368	+	277	15602329	-	PM0464	-	hypothetical protein
465	 39.60	0	548126..549034	-	302	15602330	-	PM0465	-	hypothetical protein
466	 38.45	0	549103..550665	+	520	15602331	-	PM0466	-	hypothetical protein
467	 40.82	0	550753..551820	+	355	15602332	dinP	PM0467	-	DNA polymerase IV
468	 42.28	0	551907..552767	+	286	15602333	htpX	PM0468	-	heat shock protein HtpX
469	 40.22	0	552862..553398	+	178	15602334	-	PM0469	-	hypothetical protein
470	 40.47	0	553412..554350	+	312	15602335	yagD	PM0470	-	YagD
471	 40.23	0	554347..555114	+	255	15602336	-	PM0471	-	hypothetical protein
472	 40.22	0	555145..556233	+	362	15602337	-	PM0472	-	hypothetical protein
473	 41.70	0	556298..558928	+	876	15602338	-	PM0473	-	hypothetical protein
474	 39.72	0	558938..559360	+	140	15602339	-	PM0474	-	hypothetical protein
475	 40.42	0	559431..560798	-	455	15602340	-	PM0475	-	hypothetical protein
476	 39.40	0	560807..561646	-	279	15602341	queF	PM0476	-	7-cyano-7-deazaguanine reductase
477	 40.84	0	561690..562475	-	261	15602342	-	PM0477	-	hypothetical protein
478	 38.99	0	562606..562923	+	105	15602343	-	PM0478	-	hypothetical protein
479	 39.34	0	562927..563658	+	243	15602344	-	PM0479	-	tRNA pseudouridine synthase C
480	 36.36	-1	563698..563862	+	54	15602345	-	PM0480	-	hypothetical protein
481	 39.05	0	564068..564277	+	69	15602346	cspD	PM0481	-	CspD
482	 38.03	0	564347..564793	-	148	15602347	-	PM0482	-	hypothetical protein
483	 40.76	0	564958..566748	+	596	15602348	-	PM0483	-	hypothetical protein
484	 46.07	+1	566863..567396	+	177	15602349	fabA	PM0484	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
485	 39.83	0	567465..567941	-	158	15602350	-	PM0485	-	hypothetical protein
486	 41.03	0	567998..568972	+	324	15602351	usg1	PM0486	-	aspartate-semialdehyde dehydrogenase
487	 29.48	-2	569261..569779	+	172	15602352	-	PM0487	-	hypothetical protein
488	 41.95	0	569890..570237	+	115	15602353	-	PM0488	-	hypothetical protein
489	 28.99	-2	570256..570669	+	137	15602354	-	PM0489	-	hypothetical protein
490	 44.73	+1	570666..571016	+	116	15602355	-	PM0490	-	hypothetical protein
491	 38.54	0	571020..571403	+	127	15602356	-	PM0491	-	hypothetical protein
492	 22.86	-2	571581..571895	+	104	15602357	-	PM0492	-	hypothetical protein
493	 32.85	-2	571996..572406	+	136	15602358	-	PM0493	-	hypothetical protein
494	 37.23	-1	573219..573500	+	93	15602359	-	PM0494	-	hypothetical protein
495	 33.18	-2	573528..574178	+	216	15602360	-	PM0495	-	hypothetical protein
496	 28.24	-2	574178..574687	+	169	15602361	-	PM0496	-	hypothetical protein
497	 25.44	-2	574871..575377	+	168	15602362	-	PM0497	-	hypothetical protein
498	 26.21	-2	575639..576115	+	158	15602363	-	PM0498	-	hypothetical protein
499	 27.91	-2	576287..576673	+	128	15602364	-	PM0499	-	hypothetical protein
500	 31.20	-2	576784..577299	+	171	15602365	-	PM0500	-	hypothetical protein
501	 25.86	-2	577476..577823	+	115	15602366	-	PM0501	-	hypothetical protein
502	 28.77	-2	578249..578752	+	167	15602367	-	PM0502	-	hypothetical protein
503	 40.61	0	578895..579224	+	109	15602368	-	PM0503	-	hypothetical protein
504	 37.16	-1	579221..579664	+	147	15602369	-	PM0504	-	hypothetical protein
505	 36.60	-1	579805..580233	+	142	15602370	-	PM0505	-	hypothetical protein
506	 39.92	0	580314..581057	-	247	15602371	-	PM0506	-	hypothetical protein
40.66	MEAN

3.39	STD DEV
