IslandPath Analysis: Pasteurella multocida subsp. multocida str. Pm70

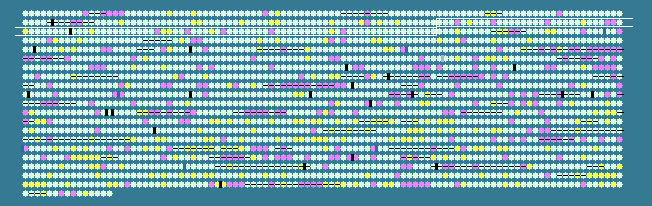

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.66 STD DEV: 3.39
Pasteurella multocida subsp. multocida str. Pm70, complete genome - 1..2257487
2015 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
170	 37.38	0	196120..196638	-	172	15602035	ptsN	PM0170	-	hypothetical protein
171	 41.18	0	196641..197366	-	241	15602036	-	PM0171	-	hypothetical protein
172	 38.79	0	197375..197887	-	170	15602037	-	PM0172	-	hypothetical protein
173	 36.96	-1	197871..198449	-	192	15602038	-	PM0173	-	hypothetical protein
174	 42.14	0	198680..199474	+	264	15602039	-	PM0174	-	hypothetical protein
175	 45.67	+1	199471..200256	+	261	15602040	-	PM0175	-	hypothetical protein
176	 38.66	0	200294..200800	+	168	15602041	-	PM0176	-	hypothetical protein
177	 38.50	0	200845..201483	+	212	15602042	-	PM0177	-	hypothetical protein
178	 40.74	0	201488..201865	+	125	15602043	-	PM0178	-	hypothetical protein
179	 36.43	-1	201847..202104	+	85	15602044	-	PM0179	-	hypothetical protein
180	 43.58	0	202125..203402	+	425	15602045	murZ	PM0180	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
181	 41.22	0	203457..205433	-	658	15602046	rnb	PM0181	-	exoribonuclease II
182	 43.04	0	205494..206276	-	260	15602047	fabI	PM0182	-	FabI
183	 42.20	0	206364..207119	-	251	15602048	-	PM0183	-	hypothetical protein
184	 37.94	0	207357..207986	-	209	15602049	-	PM0184	-	hypothetical protein
185	 38.03	0	207992..208417	-	141	15602050	-	PM0185	-	hypothetical protein
186	 41.48	0	208410..209096	-	228	15602051	-	PM0186	-	hypothetical protein
187	 40.77	0	209243..209914	-	223	15602052	neuA	PM0187	-	NeuA
188	 35.19	-1	209934..211172	-	412	15602053	-	PM0188	-	hypothetical protein
189	 42.36	0	211228..212733	-	501	15602054	lysS	PM0189	-	lysyl-tRNA synthetase
190	 43.41	0	212786..213748	-	320	15602055	prfB	PM0190	-	peptide chain release factor 2
191	 39.62	0	214049..214732	+	227	15602056	dsbC	PM0191	-	DsbC
192	 44.02	0	214795..216516	+	573	15602057	recJ	PM0192	-	hypothetical protein
193	 39.41	0	216518..217192	+	224	15602058	-	PM0193	-	hypothetical protein
194	 44.93	+1	217192..217881	+	229	15602059	pfs	PM0194	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
195	 42.56	0	217973..219457	-	494	15602060	pepA	PM0195	-	leucyl aminopeptidase
196	 40.11	0	219576..220682	+	368	15602061	-	PM0196	-	hypothetical protein
197	 39.78	0	220689..221759	+	356	15602062	-	PM0197	-	hypothetical protein
198	 37.04	-1	222047..222397	-	116	15602063	frdD	PM0198	-	fumarate reductase subunit D
199	 34.34	-1	222412..222810	-	132	15602064	frdC	PM0199	-	fumarate reductase subunit C
200	 41.76	0	222821..223651	-	276	15602065	frdB	PM0200	-	fumarate reductase iron-sulfur subunit
201	 44.33	+1	223584..225383	-	599	15602066	frdA	PM0201	-	fumarate reductase flavoprotein subunit
202	 39.40	0	225736..226707	+	323	15602067	lysU_2	PM0202	-	lysyl-tRNA synthetase
203	 40.82	0	226758..227786	-	342	15602068	-	PM0203	-	hypothetical protein
204	 43.96	0	227888..230494	-	868	15602069	acnB	PM0204	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
205	 41.82	0	230723..231052	+	109	15602070	-	PM0205	-	hypothetical protein
206	 43.12	0	231254..231856	+	200	15602071	recR	PM0206	-	recombination protein RecR
207	 42.65	0	231866..233818	+	650	15602072	topB	PM0207	-	DNA topoisomerase III
208	 38.79	0	234036..234383	+	115	15602073	secG	PM0208	-	preprotein translocase subunit SecG
209	 37.68	0	234604..235155	+	183	15602074	-	PM0209	-	RNA polymerase sigma factor
210	 42.50	0	235423..236142	-	239	15602075	-	PM0210	-	hypothetical protein
211	 41.02	0	236132..237055	-	307	15602076	-	PM0211	-	hypothetical protein
212	 45.95	+1	237117..237449	-	110	15602077	-	PM0212	-	hypothetical protein
213	 40.89	0	237492..237941	-	149	15602078	-	PM0213	-	hypothetical protein
214	 39.29	0	238418..239089	+	223	15602079	ygiX	PM0214	-	YgiX
215	 40.76	0	239076..240449	+	457	15602080	ygiY	PM0215	-	YgiY
216	 38.10	0	240537..240746	+	69	15602081	mopI	PM0216	-	MopI
217	 41.20	0	240798..241280	-	160	15602082	smpB	PM0217	-	SsrA-binding protein
218	 43.61	0	241440..242918	+	492	15602083	-	PM0218	-	hypothetical protein
219	 39.80	0	242967..243677	-	236	15602084	arcA	PM0219	-	two-component response regulator
220	 39.33	0	244065..244331	-	88	15602085	rpmE2	PM0220	-	50S ribosomal protein L31 type B
221	 39.75	0	244510..246270	+	586	15602086	dipZ	PM0221	-	thiol:disulfide interchange protein precursor
222	 43.51	0	246443..248044	+	533	15602087	purH	PM0222	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
223	 36.48	-1	248083..249669	+	528	15602088	dcaA	PM0223	-	DcaA
224	 46.36	+1	249672..250961	+	429	15602089	purD	PM0224	-	phosphoribosylamine--glycine ligase
225	 44.18	+1	251089..252351	+	420	15602090	glyA	PM0225	-	serine hydroxymethyltransferase
226	 40.72	0	252492..253466	-	324	15602091	secF	PM0226	-	preprotein translocase subunit SecF
227	 43.00	0	253474..255324	-	616	15602092	secD	PM0227	-	preprotein translocase subunit SecD
228	 37.04	-1	255350..255646	-	98	15602093	yajC	PM0228	-	preprotein translocase subunit YajC
229	 42.83	0	255944..257101	-	385	15602094	tgt	PM0229	-	queuine tRNA-ribosyltransferase
230	 43.41	0	257316..258665	-	449	15602095	dcuC	PM0230	-	C4-dicarboxylate transporter DcuC
231	 40.61	0	258704..259459	-	251	15602096	-	PM0231	-	hypothetical protein
232	 44.96	+1	259459..260550	-	363	15602097	queA	PM0232	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
233	 43.62	0	260804..262174	-	456	15602098	-	PM0233	-	hypothetical protein
234	 36.91	-1	262335..264461	-	708	15602099	-	PM0234	-	hypothetical protein
235	 41.44	0	264664..265551	+	295	15602100	metF	PM0235	-	5,10-methylenetetrahydrofolate reductase
236	 41.34	0	265895..267493	+	532	15602101	dppA	PM0236	-	hypothetical protein
237	 41.19	0	267681..268685	+	334	15602102	dppB	PM0237	-	hypothetical protein
238	 43.06	0	268708..269601	+	297	15602103	dppC	PM0238	-	hypothetical protein
239	 44.14	+1	269612..270610	+	332	15602104	dppD	PM0239	-	dipeptide transporter ATP-binding subunit
240	 42.30	0	270627..271607	+	326	15602105	dppF	PM0240	-	dipeptide transporter ATP-binding subunit
241	 42.11	0	271684..272469	-	261	15602106	-	PM0241	-	hypothetical protein
242	 36.49	-1	272478..273269	-	263	15602107	yebM	PM0242	-	YebM
243	 40.98	0	273462..275057	+	531	15602108	-	PM0243	-	hypothetical protein
244	 42.72	0	275133..276080	-	315	15602109	prsA	PM0244	-	ribose-phosphate pyrophosphokinase
245	 38.96	0	276150..277037	-	295	15602110	-	PM0245	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
246	 40.38	0	277037..277660	-	207	15602111	lolB	PM0246	-	outer membrane lipoprotein LolB
247	 43.31	0	277695..278957	-	420	15602112	cca	PM0247	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
248	 40.69	0	278979..279590	-	203	15602113	-	PM0248	-	hypothetical protein
249	 42.68	0	279655..280917	-	420	15602114	-	PM0249	-	hypothetical protein
250	 38.77	0	280944..281624	-	226	15602115	-	PM0250	-	hypothetical protein
251	 38.56	0	281800..282870	+	356	15602116	-	PM0251	-	hypothetical protein
252	 45.00	+1	282874..284253	+	459	15602117	radA	PM0252	-	DNA repair protein RadA
253	 38.14	0	284275..284628	-	117	15602118	-	PM0253	-	hypothetical protein
254	 36.88	-1	284783..285262	+	159	15602119	lrp	PM0254	-	leucine-responsive transcriptional regulator
255	 43.18	0	285267..288059	+	930	15602120	ftsK	PM0255	-	hypothetical protein
256	 39.32	0	288070..288687	+	205	15602121	lolA	PM0256	-	outer-membrane lipoprotein carrier protein
257	 43.80	0	288699..290036	+	445	15602122	-	PM0257	-	recombination factor protein RarA
258	 40.33	0	290295..291581	+	428	15602123	serS	PM0258	-	seryl-tRNA synthetase
259	 39.55	0	291653..292537	-	294	15602124	cdd	PM0259	-	cytidine deaminase
260	 37.63	0	292651..293697	-	348	15602125	potD_1	PM0260	-	PotD
261	 39.00	0	293957..295033	-	358	15602126	potD_2	PM0261	-	PotD
262	 41.02	0	295133..295900	-	255	15602127	potC	PM0262	-	spermidine/putrescine ABC transporter membrane protein
263	 39.06	0	295900..296754	-	284	15602128	potB	PM0263	-	spermidine/putrescine ABC transporter membrane protein
264	 38.06	0	296744..297886	-	380	15602129	potA	PM0264	-	putrescine/spermidine ABC transporter ATPase protein
265	 41.97	0	298180..299418	+	412	15602130	pepT	PM0265	-	peptidase T
266	 40.79	0	299485..302139	-	884	15602131	-	PM0266	-	hypothetical protein
267	 38.42	0	302117..303373	-	418	15602132	-	PM0267	-	hypothetical protein
268	 39.62	0	303452..304231	+	259	15602133	proQ	PM0268	-	putative solute/DNA competence effector
269	 37.91	0	304324..306375	+	683	15602134	prc	PM0269	-	carboxy-terminal protease
40.66	MEAN

3.39	STD DEV
