IslandPath Analysis: Pasteurella multocida subsp. multocida str. Pm70

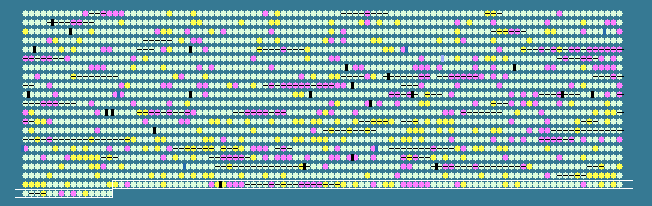

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.66 STD DEV: 3.39
Pasteurella multocida subsp. multocida str. Pm70, complete genome - 1..2257487
2015 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1916	 45.58	+1	2154233..2155171	+	312	15603780	fabD	PM1915	-	acyl carrier protein S-malonyltransferase
1917	 41.15	0	2155195..2155923	+	242	15603781	fabG	PM1916	-	3-ketoacyl-(acyl-carrier-protein) reductase
1918	 36.36	-1	2156184..2156414	+	76	15603782	acpP	PM1917	-	acyl carrier protein
1919	 42.64	0	2156643..2157974	+	443	15603783	-	PM1918	-	anaerobic C4-dicarboxylate transporter
1920	 39.49	0	2158088..2158996	+	302	15603784	-	PM1919	-	hypothetical protein
1921	 43.07	0	2159044..2160306	-	420	15603785	rho	PM1920	-	transcription termination factor Rho
1922	 43.08	0	2160520..2161791	+	423	15603786	rhlB	PM1921	-	ATP-dependent RNA helicase RhlB
1923	 40.38	0	2161848..2162159	+	103	15603787	-	PM1922	-	hypothetical protein
1924	 46.58	+1	2162163..2162630	+	155	15603788	-	PM1923	-	SPOUT methyltransferase superfamily protein
1925	 41.19	0	2162643..2164577	+	644	15603789	pbp2	PM1924	-	Pbp2
1926	 43.01	0	2164577..2165692	+	371	15603790	rodA	PM1925	-	RodA
1927	 38.64	0	2165742..2166626	+	294	15603791	-	PM1926	-	hypothetical protein
1928	 38.82	0	2166653..2167837	+	394	15603792	dacA	PM1927	-	DacA
1929	 39.06	0	2167940..2168236	+	98	15603793	-	PM1928	-	hypothetical protein
1930	 41.10	0	2168243..2168899	+	218	15603794	lipB	PM1929	-	lipoyltransferase
1931	 41.33	0	2168964..2169926	+	320	15603795	lipA	PM1930	-	lipoyl synthase
1932	 32.86	-2	2170004..2170423	-	139	15603796	-	PM1931	-	hypothetical protein
1933	 48.15	+2	2170704..2170919	+	71	15603797	-	PM1932	-	hypothetical protein
1934	 44.21	+1	2171066..2171920	+	284	15603798	folD	PM1933	-	hypothetical protein
1935	 35.44	-1	2171936..2172220	+	94	15603799	-	PM1934	-	hypothetical protein
1936	 36.15	-1	2172651..2172863	-	70	15603800	-	PM1935	-	hypothetical protein
1937	 36.25	-1	2172959..2173711	-	250	15603801	-	PM1936	-	hypothetical protein
1938	 41.94	0	2173746..2174291	+	181	15603802	-	PM1937	-	hypothetical protein
1939	 42.76	0	2174564..2176111	-	515	15603803	-	PM1938	-	hypothetical protein
1940	 41.45	0	2176123..2176578	-	151	15603804	-	PM1939	-	hypothetical protein
1941	 42.33	0	2176582..2177292	+	236	15603805	-	PM1940	-	hypothetical protein
1942	 33.33	-2	2177719..2178117	-	132	15603806	-	PM1941	-	hypothetical protein
1943	 39.35	0	2178190..2178804	+	204	15603807	-	PM1942	-	hypothetical protein
1944	 47.69	+2	2178888..2179904	-	338	15603808	-	PM1943	-	hypothetical protein
1945	 43.95	0	2179908..2180312	-	134	15603809	-	PM1944	-	hypothetical protein
1946	 40.77	0	2180657..2181100	+	147	15603810	ycaN	PM1945	-	YcaN
1947	 31.14	-2	2181346..2181756	-	136	15603811	-	PM1946	-	hypothetical protein
1948	 32.60	-2	2181758..2183794	-	678	15603812	-	PM1947	-	hypothetical protein
1949	 32.02	-2	2183797..2185317	-	506	15603813	-	PM1948	-	hypothetical protein
1950	 29.14	-2	2185304..2186590	-	428	15603814	-	PM1949	-	hypothetical protein
1951	 48.30	+2	2186734..2187234	-	166	15603815	ssb	PM1950	-	single-strand DNA-binding protein
1952	 42.44	0	2187406..2190237	+	943	15603816	uvrA	PM1951	-	excinuclease ABC subunit A
1953	 44.74	+1	2190308..2190868	+	186	15603817	sodC	PM1952	-	SodC
1954	 44.99	+1	2190954..2191691	-	245	15603818	-	PM1953	-	23S rRNA (guanosine-2'-O-)-methyltransferase
1955	 42.86	0	2191692..2194094	-	800	15603819	vacB	PM1954	-	hypothetical protein
1956	 45.08	+1	2194366..2195421	+	351	15603820	mreB	PM1955	-	hypothetical protein
1957	 42.10	0	2195500..2196549	+	349	15603821	mreC	PM1956	-	hypothetical protein
1958	 41.10	0	2196549..2197037	+	162	15603822	mreD	PM1957	-	hypothetical protein
1959	 36.89	-1	2197057..2197506	-	149	15603823	-	PM1958	-	hypothetical protein
1960	 41.42	0	2197831..2198436	-	201	15603824	leuD	PM1959	-	isopropylmalate isomerase small subunit
1961	 48.47	+2	2198639..2200045	-	468	15603825	leuC	PM1960	-	isopropylmalate isomerase large subunit
1962	 45.46	+1	2200386..2201465	-	359	15603826	leuB	PM1961	-	3-isopropylmalate dehydrogenase
1963	 43.42	0	2201575..2203131	-	518	15603827	leuA	PM1962	-	2-isopropylmalate synthase
1964	 31.25	-2	2203219..2203554	-	111	15603828	-	PM1963	-	hypothetical protein
1965	 35.16	-1	2203645..2204409	-	254	15603829	-	PM1964	-	DNA-bindng transcriptional repressor SrlR
1966	 36.72	-1	2204454..2204837	-	127	15603830	-	PM1965	-	hypothetical protein
1967	 36.84	-1	2204931..2205101	-	56	15603831	-	PM1966	-	hypothetical protein
1968	 34.69	-1	2205180..2205548	-	122	15603832	gutM	PM1967	-	DNA-binding transcriptional activator GutM
1969	 38.97	0	2205659..2206438	-	259	15603833	-	PM1968	-	sorbitol-6-phosphate dehydrogenase
1970	 39.78	0	2206469..2206840	-	123	15603834	-	PM1969	-	glucitol/sorbitol-specific PTS system component IIA
1971	 42.53	0	2206919..2207908	-	329	15603835	-	PM1970	-	hypothetical protein
1972	 39.64	0	2207939..2208493	-	184	15603836	-	PM1971	-	hypothetical protein
1973	 24.07	-2	2208551..2208766	-	71	15603837	-	PM1972	-	hypothetical protein
1974	 45.53	+1	2208818..2209645	-	275	15603838	-	PM1973	-	hypothetical protein
1975	 41.89	0	2209817..2210260	+	147	15603839	-	PM1974	-	hypothetical protein
1976	 41.26	0	2210473..2211771	+	432	15603840	tig	PM1975	-	trigger factor
1977	 42.96	0	2211936..2212517	+	193	15603841	clpP	PM1976	-	ATP-dependent Clp protease proteolytic subunit
1978	 39.89	0	2212533..2213768	+	411	15603842	clpX	PM1977	-	ATP-dependent protease ATP-binding subunit
1979	 42.48	0	2213893..2216307	+	804	15603843	lon	PM1978	-	hypothetical protein
1980	 41.04	0	2216438..2218318	+	626	15603844	-	PM1979	-	hypothetical protein
1981	 44.18	+1	2218391..2219782	-	463	15603845	ibeB	PM1980	-	IbeB
1982	 41.60	0	2219792..2220916	-	374	15603846	-	PM1981	-	hypothetical protein
1983	 44.20	+1	2220918..2223650	-	910	15603847	-	PM1982	-	hypothetical protein
1984	 42.28	0	2223665..2224771	-	368	15603848	-	PM1983	-	hypothetical protein
1985	 41.49	0	2224889..2225611	+	240	161723302	rpsB	PM1984	-	30S ribosomal protein S2
1986	 42.99	0	2225753..2226601	+	282	15603850	tsf	PM1985	-	elongation factor Ts
1987	 43.62	0	2226745..2227473	+	242	15603851	pyrH	PM1986	-	uridylate kinase
1988	 40.32	0	2227549..2228106	+	185	15603852	frr	PM1987	-	ribosome recycling factor
1989	 41.87	0	2228254..2229471	+	405	15603853	dxr	PM1988	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1990	 38.87	0	2229521..2230243	+	240	15603854	-	PM1989	-	hypothetical protein
1991	 40.34	0	2230260..2231129	+	289	15603855	cdsA	PM1990	-	hypothetical protein
1992	 41.23	0	2231151..2232479	+	442	15603856	-	PM1991	-	hypothetical protein
1993	 40.24	0	2232509..2234884	+	791	15603857	-	PM1992	-	hypothetical protein
1994	 37.11	-1	2234993..2235574	+	193	15603858	skp	PM1993	-	Skp
1995	 44.12	+1	2235574..2236602	+	342	15603859	lpxD	PM1994	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1996	 41.83	0	2236708..2237166	+	152	15603860	fabZ	PM1995	-	FabZ
1997	 44.36	+1	2237184..2237972	+	262	15603861	lpxA	PM1996	-	UDP-N-acetylglucosamine acyltransferase
1998	 41.82	0	2238048..2239226	+	392	15603862	lpxB	PM1997	-	lipid-A-disaccharide synthase
1999	 44.61	+1	2239228..2239821	+	197	15603863	rnhB	PM1998	-	ribonuclease HII
2000	 41.79	0	2239852..2241708	+	618	15603864	-	PM1999	-	hypothetical protein
2001	 43.23	0	2241723..2242379	+	218	15603865	-	PM2000	-	hypothetical protein
2002	 38.25	0	2242390..2243019	+	209	15603866	-	PM2001	-	hypothetical protein
2003	 39.25	0	2243021..2243950	+	309	15603867	-	PM2002	-	hypothetical protein
2004	 45.08	+1	2243976..2244554	+	192	15603868	mogA	PM2003	-	molybdenum cofactor biosynthesis protein
2005	 41.00	0	2244599..2244937	+	112	15603869	glnB	PM2004	-	GlnB
2006	 42.74	0	2244938..2246191	+	417	15603870	-	PM2005	-	hypothetical protein
2007	 34.14	-1	2246309..2248675	+	788	15603871	-	PM2006	-	hypothetical protein
2008	 41.43	0	2248855..2250039	+	394	15603872	-	PM2007	-	hypothetical protein
2009	 36.45	-1	2250078..2250623	+	181	15603873	-	PM2008	-	hypothetical protein
2010	 42.01	0	2250746..2251702	+	318	15603874	-	PM2009	-	hypothetical protein
2011	 45.47	+1	2251729..2252832	+	367	15603875	ispG	PM2010	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
2012	 42.37	0	2252862..2254133	+	423	15603876	hisS	PM2011	-	histidyl-tRNA synthetase
2013	 39.05	0	2254152..2254763	+	203	15603877	-	PM2012	-	hypothetical protein
2014	 42.92	0	2254968..2255405	+	145	15603878	-	PM2013	-	hypothetical protein
2015	 42.21	0	2255517..2257487	-	656	15603879	cpdB	PM2014	-	bifunctional 2',3'-cyclic nucleotide 2'-phosphodiesterase/3'-nucleotidase periplasmic precursor protein
40.66	MEAN

3.39	STD DEV
