IslandPath Analysis: Pasteurella multocida subsp. multocida str. Pm70

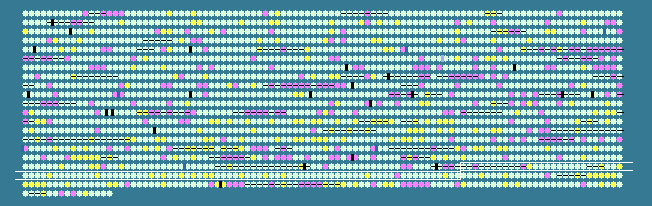

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.66 STD DEV: 3.39
Pasteurella multocida subsp. multocida str. Pm70, complete genome - 1..2257487
2015 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1774	 41.37	0	1999648..2000070	+	140	15603638	-	PM1773	-	hypothetical protein
1775	 38.06	0	2000091..2000810	+	239	15603639	-	PM1774	-	hypothetical protein
1776	 36.92	-1	2000803..2001081	+	92	15603640	-	PM1775	-	hypothetical protein
1777	 39.93	0	2001261..2001548	+	95	15603641	-	PM1776	-	hypothetical protein
1778	 37.53	0	2002059..2002487	+	142	15603642	-	PM1777	-	hypothetical protein
1779	 40.82	0	2002577..2003137	+	186	15603643	-	PM1778	-	hypothetical protein
1780	 43.55	0	2003130..2003540	+	136	15603644	-	PM1779	-	hypothetical protein
1781	 40.06	0	2003533..2003859	+	108	15603645	-	PM1780	-	hypothetical protein
1782	 38.39	0	2003856..2004290	+	144	15603646	-	PM1781	-	hypothetical protein
1783	 42.19	0	2004283..2006460	+	725	15603647	-	PM1782	-	hypothetical protein
1784	 30.07	-2	2007544..2008494	+	316	15603648	-	PM1783	-	hypothetical protein
1785	 44.30	+1	2009018..2010403	-	461	15603649	-	PM1784	-	hypothetical protein
1786	 42.55	0	2010413..2010922	-	169	15603650	mobB	PM1785	-	hypothetical protein
1787	 40.51	0	2010973..2011404	-	143	15603651	-	PM1786	-	hypothetical protein
1788	 39.10	0	2011413..2012366	-	317	15603652	rseB	PM1787	-	periplasmic negative regulator of sigmaE
1789	 39.59	0	2012430..2013020	-	196	15603653	mclA	PM1788	-	MclA
1790	 40.45	0	2013067..2013642	-	191	15603654	rpoE	PM1789	-	RNA polymerase sigma factor RpoE
1791	 37.25	-1	2013754..2014008	-	84	15603655	-	PM1790	-	hypothetical protein
1792	 40.11	0	2014284..2016290	+	668	15603656	-	PM1791	-	hypothetical protein
1793	 42.49	0	2016712..2017890	+	392	15603657	-	PM1792	-	hypothetical protein
1794	 43.89	0	2017902..2020373	+	823	15603658	torA	PM1793	-	TorA
1795	 41.79	0	2020370..2020960	+	196	15603659	torD	PM1794	-	chaperone protein TorD
1796	 43.10	0	2021041..2022207	-	388	15603660	fruA	PM1795	-	hypothetical protein
1797	 44.87	+1	2022218..2023153	-	311	15603661	fruK	PM1796	-	1-phosphofructokinase
1798	 42.76	0	2023150..2024295	-	381	15603662	fruB	PM1797	-	bifunctional fructose-specific PTS IIA/HPr protein
1799	 37.21	-1	2024411..2025004	-	197	15603663	-	PM1798	-	hypothetical protein
1800	 46.49	+1	2025035..2025604	-	189	15603664	mobA	PM1799	-	molybdopterin-guanine dinucleotide biosynthesis protein A
1801	 38.95	0	2025669..2025935	+	88	15603665	-	PM1800	-	hypothetical protein
1802	 39.61	0	2025945..2026565	+	206	15603666	dsbA	PM1801	-	DsbA
1803	 40.00	0	2026623..2026952	+	109	15603667	-	PM1802	-	hypothetical protein
1804	 39.89	0	2027039..2028136	+	365	15603668	trmA	PM1803	-	tRNA (uracil-5-)-methyltransferase
1805	 44.80	+1	2028140..2028898	+	252	15603669	-	PM1804	-	hypothetical protein
1806	 38.95	0	2029026..2029559	-	177	15603670	-	PM1805	-	hypothetical protein
1807	 42.92	0	2029743..2031119	+	458	15603671	glmU	PM1806	-	bifunctional N-acetylglucosamine-1-phosphate uridyltransferase/glucosamine-1-phosphate acetyltransferase
1808	 41.33	0	2031177..2032727	-	516	15603672	-	PM1807	-	hypothetical protein
1809	 42.63	0	2032736..2036638	-	1300	15603673	-	PM1808	-	hypothetical protein
1810	 41.51	0	2036716..2038476	-	586	15603674	-	PM1809	-	hypothetical protein
1811	 40.95	0	2038626..2039255	-	209	15603675	narP	PM1810	-	NarP
1812	 39.53	0	2039271..2041787	-	838	15603676	cyaA	PM1811	-	adenylate cyclase
1813	 45.58	+1	2041930..2042868	+	312	15603677	hemC	PM1812	-	porphobilinogen deaminase
1814	 43.37	0	2042885..2043631	+	248	15603678	hemX	PM1813	-	HemX
1815	 40.24	0	2043672..2045075	+	467	15603679	-	PM1814	-	hypothetical protein
1816	 39.26	0	2045088..2046353	+	421	15603680	hemY	PM1815	-	HemY
1817	 39.47	0	2046448..2046903	-	151	161723305	recX	PM1816	-	recombination regulator RecX
1818	 43.47	0	2047013..2048077	-	354	15603682	recA	PM1817	-	recombinase A
1819	 43.65	0	2048387..2049985	+	532	15603683	-	PM1818	-	hypothetical protein
1820	 42.31	0	2050010..2053084	+	1024	15603684	-	PM1819	-	hypothetical protein
1821	 43.48	0	2053084..2055744	+	886	15603685	-	PM1820	-	hypothetical protein
1822	 44.27	+1	2055763..2056731	+	322	15603686	-	PM1821	-	hypothetical protein
1823	 43.65	0	2056772..2058796	+	674	15603687	ppkA	PM1822	-	PpkA
1824	 46.05	+1	2058815..2059522	+	235	15603688	attE	PM1823	-	AttE
1825	 42.50	0	2059527..2060759	+	410	15603689	-	PM1824	-	hypothetical protein
1826	 42.77	0	2060752..2062287	+	511	15603690	-	PM1825	-	hypothetical protein
1827	 44.67	+1	2062289..2063020	+	243	15603691	-	PM1826	-	hypothetical protein
1828	 42.86	0	2063024..2063506	+	160	15603692	-	PM1827	-	hypothetical protein
1829	 47.16	+1	2063568..2065028	+	486	15603693	-	PM1828	-	hypothetical protein
1830	 44.09	+1	2065041..2066444	+	467	15603694	-	PM1829	-	hypothetical protein
1831	 47.31	+1	2066576..2069158	+	860	15603695	mutS	PM1830	-	DNA mismatch repair protein
1832	 46.12	+1	2069224..2070357	-	377	15603696	anmK	PM1831	-	anhydro-N-acetylmuramic acid kinase
1833	 43.65	0	2070484..2071152	-	222	15603697	-	PM1832	-	hypothetical protein
1834	 41.59	0	2071193..2072572	-	459	15603698	hemN	PM1833	-	coproporphyrinogen III oxidase
1835	 40.56	0	2072584..2073012	-	142	15603699	-	PM1834	-	hypothetical protein
1836	 39.65	0	2073018..2073587	-	189	15603700	-	PM1835	-	hypothetical protein
1837	 47.88	+2	2073651..2074310	-	219	15603701	rsuA_2	PM1836	-	hypothetical protein
1838	 44.04	0	2074391..2077294	-	967	15603702	hepA	PM1837	-	ATP-dependent helicase HepA
1839	 40.57	0	2077572..2078276	+	234	15603703	-	PM1838	-	hypothetical protein
1840	 43.42	0	2078324..2079037	-	237	15603704	-	PM1839	-	hypothetical protein
1841	 44.24	+1	2079149..2080477	+	442	15603705	srmB	PM1840	-	ATP-dependent RNA helicase SrmB
1842	 40.07	0	2081103..2081384	+	93	15603706	-	PM1841	-	hypothetical protein
1843	 40.33	0	2081917..2082159	+	80	15603707	-	PM1842	-	hypothetical protein
1844	 45.86	+1	2083018..2083983	-	321	15603708	-	PM1843	-	ADP-heptose:LPS heptosyl transferase I
1845	 43.94	0	2083980..2085026	-	348	15603709	rfaF	PM1844	-	RfaF
1846	 43.07	0	2085092..2085502	-	136	15603710	-	PM1845	-	hypothetical protein
1847	 43.58	0	2085618..2087042	-	474	15603711	ptsB	PM1846	-	PtsB
1848	 39.31	0	2087271..2088290	-	339	15603712	scrR	PM1847	-	ScrR
1849	 40.93	0	2088316..2089815	-	499	15603713	scrB	PM1848	-	ScrB
1850	 43.47	0	2089796..2090722	-	308	15603714	-	PM1849	-	aminoimidazole riboside kinase
1851	 41.34	0	2090908..2091519	+	203	15603715	-	PM1850	-	hypothetical protein
1852	 39.40	0	2091547..2092914	+	455	15603716	purB	PM1851	-	adenylosuccinate lyase
1853	 39.32	0	2093273..2094859	+	528	15603717	lctP	PM1852	-	LctP
1854	 41.53	0	2094937..2095656	+	239	15603718	-	PM1853	-	hypothetical protein
1855	 42.95	0	2095668..2097071	+	467	15603719	-	PM1854	-	hypothetical protein
1856	 40.94	0	2097089..2097811	+	240	15603720	-	PM1855	-	hypothetical protein
1857	 39.94	0	2097904..2099280	-	458	15603721	pssA	PM1856	-	phosphatidylserine synthase
1858	 45.93	+1	2099446..2100525	+	359	15603722	-	PM1857	-	hypothetical protein
1859	 42.91	0	2100683..2100943	-	86	15603723	-	PM1858	-	hypothetical protein
1860	 38.65	0	2101021..2101716	+	231	15603724	-	PM1859	-	hypothetical protein
1861	 42.61	0	2101833..2102996	+	387	15603725	pgk	PM1860	-	phosphoglycerate kinase
1862	 41.11	0	2103110..2104189	+	359	15603726	fba	PM1861	-	fructose-bisphosphate aldolase
1863	 36.36	-1	2104268..2104729	+	153	15603727	-	PM1862	-	hypothetical protein
1864	 38.76	0	2104745..2105518	+	257	15603728	-	PM1863	-	hypothetical protein
1865	 43.98	0	2105540..2105896	-	118	15603729	dgkA	PM1864	-	hypothetical protein
1866	 42.57	0	2105920..2108139	-	739	15603730	relA	PM1865	-	RelA
1867	 42.09	0	2108148..2109461	-	437	15603731	rumA	PM1866	-	23S rRNA 5-methyluridine methyltransferase
1868	 42.05	0	2109465..2110175	-	236	15603732	recO	PM1867	-	DNA repair protein RecO
1869	 43.27	0	2110367..2111101	+	244	15603733	-	PM1868	-	hypothetical protein
1870	 39.61	0	2111114..2111671	+	185	161723304	-	PM1869	-	hypothetical protein
1871	 45.15	+1	2111671..2112093	+	140	15603735	-	PM1870	-	Holliday junction resolvase-like protein
1872	 42.32	0	2112181..2113482	-	433	15603736	eno	PM1871	-	phosphopyruvate hydratase
1873	 42.97	0	2113667..2115295	-	542	15603737	pyrG	PM1872	-	CTP synthetase
40.66	MEAN

3.39	STD DEV
