IslandPath Analysis: Pasteurella multocida subsp. multocida str. Pm70

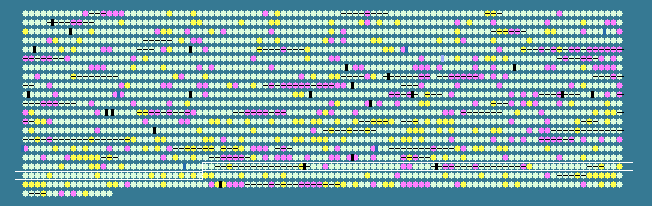

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.66   STD DEV: 3.39
Pasteurella multocida subsp. multocida str. Pm70, complete genome - 1..2257487
2015 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1731	 38.27	0	1945617..1946447	+	276	15603595	plpB	PM1730	-	PlpB
1732	 43.15	0	1947165..1948997	-	610	15603596	glmS	PM1731	-	D-fructose-6-phosphate amidotransferase
1733	 41.76	0	1949201..1949473	-	90	15603597	hupA	PM1732	-	hypothetical protein
1734	 38.24	0	1949625..1950215	-	196	15603598	-	PM1733	-	hypothetical protein
1735	 44.41	+1	1950230..1951294	-	354	15603599	uroD	PM1734	-	UroD
1736	 43.77	0	1951291..1952085	-	264	15603600	nudC	PM1735	-	NADH pyrophosphatase
1737	 43.98	0	1952228..1956481	-	1417	15603601	rpoC	PM1736	-	DNA-directed RNA polymerase subunit beta'
1738	 42.52	0	1956592..1960620	-	1342	15603602	rpoB	PM1737	-	DNA-directed RNA polymerase subunit beta
1739	 42.82	0	1960895..1961263	-	122	15603603	rplL	PM1738	-	50S ribosomal protein L7/L12
1740	 42.07	0	1961315..1961806	-	163	15603604	rplJ	PM1739	-	50S ribosomal protein L10
1741	 42.12	0	1962360..1963736	+	458	15603605	gntP	PM1740	-	GntP
1742	 43.63	0	1963749..1964894	+	381	15603606	-	PM1741	-	hypothetical protein
1743	 40.87	0	1964961..1965650	-	229	15603607	rplA	PM1742	-	50S ribosomal protein L1
1744	 41.03	0	1965655..1966083	-	142	15603608	rplK	PM1743	-	50S ribosomal protein L11
1745	 40.04	0	1966243..1966794	-	183	15603609	nusG	PM1744	-	transcription antitermination protein NusG
1746	 37.23	-1	1966796..1967206	-	136	15603610	secE	PM1745	-	preprotein translocase subunit SecE
1747	 44.47	+1	1967465..1968649	-	394	15603611	tuf	PM1746	-	elongation factor Tu
1748	 37.64	0	1969367..1970317	+	316	15603612	coaA	PM1747	-	pantothenate kinase
1749	 43.77	0	1970398..1971729	-	443	15603613	hslU	PM1748	-	ATP-dependent protease ATP-binding subunit
1750	 42.75	0	1971745..1972275	-	176	15603614	hslV	PM1749	-	ATP-dependent protease peptidase subunit
1751	 35.77	-1	1972519..1973256	-	245	15603615	-	PM1750	-	hypothetical protein
1752	 41.35	0	1973355..1974227	-	290	15603616	ubiA	PM1751	-	4-hydroxybenzoate octaprenyltransferase
1753	 41.54	0	1974589..1975941	+	450	15603617	ptsG	PM1752	-	hypothetical protein
1754	 40.69	0	1976085..1976804	+	239	15603618	-	PM1753	-	hypothetical protein
1755	 42.77	0	1976957..1979488	+	843	15603619	dmsA	PM1754	-	DmsA
1756	 42.83	0	1979499..1980119	+	206	15603620	dmsB	PM1755	-	DmsB
1757	 41.46	0	1980121..1980969	+	282	15603621	dmsC	PM1756	-	DmsC
1758	 40.76	0	1981058..1981663	+	201	15603622	-	PM1757	-	twin-argninine leader-binding protein DmsD
1759	 42.67	0	1981681..1982226	+	181	15603623	-	PM1758	-	hypothetical protein
1760	 41.12	0	1982349..1983452	-	367	15603624	-	PM1759	-	hypothetical protein
1761	 37.89	0	1983485..1984318	-	277	15603625	-	PM1760	-	hypothetical protein
1762	 37.40	0	1984320..1985204	-	294	15603626	-	PM1761	-	hypothetical protein
1763	 38.57	0	1985323..1986678	-	451	15603627	-	PM1762	-	hypothetical protein
1764	 36.95	-1	1986723..1987829	-	368	15603628	-	PM1763	-	hypothetical protein
1765	 36.86	-1	1988017..1988724	+	235	15603629	gntR_1	PM1764	-	hypothetical protein
1766	 40.37	0	1988717..1989796	+	359	15603630	-	PM1765	-	hypothetical protein
1767	 42.19	0	1989826..1991700	-	624	15603631	selB	PM1766	-	hypothetical protein
1768	 41.69	0	1991928..1992860	+	310	15603632	iunH	PM1767	-	IunH
1769	 43.02	0	1992896..1994278	-	460	15603633	selA	PM1768	-	selenocysteine synthase
1770	 41.87	0	1994906..1996159	+	417	15603634	slpA	PM1769	-	hypothetical protein
1771	 34.55	-1	1996331..1997479	+	382	15603635	-	PM1770	-	hypothetical protein
1772	 27.91	-2	1998080..1999222	+	380	15603636	-	PM1771	-	hypothetical protein
1773	 38.89	0	1999441..1999638	+	65	15603637	-	PM1772	-	hypothetical protein
1774	 41.37	0	1999648..2000070	+	140	15603638	-	PM1773	-	hypothetical protein
1775	 38.06	0	2000091..2000810	+	239	15603639	-	PM1774	-	hypothetical protein
1776	 36.92	-1	2000803..2001081	+	92	15603640	-	PM1775	-	hypothetical protein
1777	 39.93	0	2001261..2001548	+	95	15603641	-	PM1776	-	hypothetical protein
1778	 37.53	0	2002059..2002487	+	142	15603642	-	PM1777	-	hypothetical protein
1779	 40.82	0	2002577..2003137	+	186	15603643	-	PM1778	-	hypothetical protein
1780	 43.55	0	2003130..2003540	+	136	15603644	-	PM1779	-	hypothetical protein
1781	 40.06	0	2003533..2003859	+	108	15603645	-	PM1780	-	hypothetical protein
1782	 38.39	0	2003856..2004290	+	144	15603646	-	PM1781	-	hypothetical protein
1783	 42.19	0	2004283..2006460	+	725	15603647	-	PM1782	-	hypothetical protein
1784	 30.07	-2	2007544..2008494	+	316	15603648	-	PM1783	-	hypothetical protein
1785	 44.30	+1	2009018..2010403	-	461	15603649	-	PM1784	-	hypothetical protein
1786	 42.55	0	2010413..2010922	-	169	15603650	mobB	PM1785	-	hypothetical protein
1787	 40.51	0	2010973..2011404	-	143	15603651	-	PM1786	-	hypothetical protein
1788	 39.10	0	2011413..2012366	-	317	15603652	rseB	PM1787	-	periplasmic negative regulator of sigmaE
1789	 39.59	0	2012430..2013020	-	196	15603653	mclA	PM1788	-	MclA
1790	 40.45	0	2013067..2013642	-	191	15603654	rpoE	PM1789	-	RNA polymerase sigma factor RpoE
1791	 37.25	-1	2013754..2014008	-	84	15603655	-	PM1790	-	hypothetical protein
1792	 40.11	0	2014284..2016290	+	668	15603656	-	PM1791	-	hypothetical protein
1793	 42.49	0	2016712..2017890	+	392	15603657	-	PM1792	-	hypothetical protein
1794	 43.89	0	2017902..2020373	+	823	15603658	torA	PM1793	-	TorA
1795	 41.79	0	2020370..2020960	+	196	15603659	torD	PM1794	-	chaperone protein TorD
1796	 43.10	0	2021041..2022207	-	388	15603660	fruA	PM1795	-	hypothetical protein
1797	 44.87	+1	2022218..2023153	-	311	15603661	fruK	PM1796	-	1-phosphofructokinase
1798	 42.76	0	2023150..2024295	-	381	15603662	fruB	PM1797	-	bifunctional fructose-specific PTS IIA/HPr protein
1799	 37.21	-1	2024411..2025004	-	197	15603663	-	PM1798	-	hypothetical protein
1800	 46.49	+1	2025035..2025604	-	189	15603664	mobA	PM1799	-	molybdopterin-guanine dinucleotide biosynthesis protein A
1801	 38.95	0	2025669..2025935	+	88	15603665	-	PM1800	-	hypothetical protein
1802	 39.61	0	2025945..2026565	+	206	15603666	dsbA	PM1801	-	DsbA
1803	 40.00	0	2026623..2026952	+	109	15603667	-	PM1802	-	hypothetical protein
1804	 39.89	0	2027039..2028136	+	365	15603668	trmA	PM1803	-	tRNA (uracil-5-)-methyltransferase
1805	 44.80	+1	2028140..2028898	+	252	15603669	-	PM1804	-	hypothetical protein
1806	 38.95	0	2029026..2029559	-	177	15603670	-	PM1805	-	hypothetical protein
1807	 42.92	0	2029743..2031119	+	458	15603671	glmU	PM1806	-	bifunctional N-acetylglucosamine-1-phosphate uridyltransferase/glucosamine-1-phosphate acetyltransferase
1808	 41.33	0	2031177..2032727	-	516	15603672	-	PM1807	-	hypothetical protein
1809	 42.63	0	2032736..2036638	-	1300	15603673	-	PM1808	-	hypothetical protein
1810	 41.51	0	2036716..2038476	-	586	15603674	-	PM1809	-	hypothetical protein
1811	 40.95	0	2038626..2039255	-	209	15603675	narP	PM1810	-	NarP
1812	 39.53	0	2039271..2041787	-	838	15603676	cyaA	PM1811	-	adenylate cyclase
1813	 45.58	+1	2041930..2042868	+	312	15603677	hemC	PM1812	-	porphobilinogen deaminase
1814	 43.37	0	2042885..2043631	+	248	15603678	hemX	PM1813	-	HemX
1815	 40.24	0	2043672..2045075	+	467	15603679	-	PM1814	-	hypothetical protein
1816	 39.26	0	2045088..2046353	+	421	15603680	hemY	PM1815	-	HemY
1817	 39.47	0	2046448..2046903	-	151	161723305	recX	PM1816	-	recombination regulator RecX
1818	 43.47	0	2047013..2048077	-	354	15603682	recA	PM1817	-	recombinase A
1819	 43.65	0	2048387..2049985	+	532	15603683	-	PM1818	-	hypothetical protein
1820	 42.31	0	2050010..2053084	+	1024	15603684	-	PM1819	-	hypothetical protein
1821	 43.48	0	2053084..2055744	+	886	15603685	-	PM1820	-	hypothetical protein
1822	 44.27	+1	2055763..2056731	+	322	15603686	-	PM1821	-	hypothetical protein
1823	 43.65	0	2056772..2058796	+	674	15603687	ppkA	PM1822	-	PpkA
1824	 46.05	+1	2058815..2059522	+	235	15603688	attE	PM1823	-	AttE
1825	 42.50	0	2059527..2060759	+	410	15603689	-	PM1824	-	hypothetical protein
1826	 42.77	0	2060752..2062287	+	511	15603690	-	PM1825	-	hypothetical protein
1827	 44.67	+1	2062289..2063020	+	243	15603691	-	PM1826	-	hypothetical protein
1828	 42.86	0	2063024..2063506	+	160	15603692	-	PM1827	-	hypothetical protein
1829	 47.16	+1	2063568..2065028	+	486	15603693	-	PM1828	-	hypothetical protein
1830	 44.09	+1	2065041..2066444	+	467	15603694	-	PM1829	-	hypothetical protein
40.66	MEAN

3.39	STD DEV
