IslandPathversion 1.0

IslandPath Analysis: Pasteurella multocida subsp. multocida str. Pm70

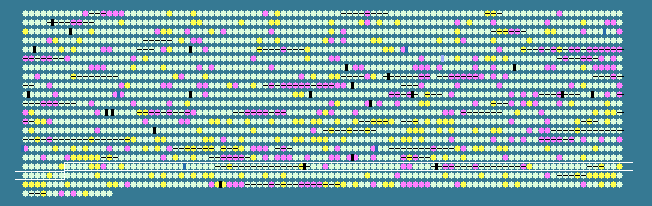

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.66 STD DEV: 3.39
Pasteurella multocida subsp. multocida str. Pm70, complete genome - 1..2257487
2015 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1708	 41.56	0	1914725..1915867	-	380	15603572	-	PM1707	-	hypothetical protein
1709	 39.16	0	1915996..1917900	-	634	15603573	-	PM1708	-	hypothetical protein
1710	 37.30	0	1917948..1918931	-	327	15603574	-	PM1709	-	hypothetical protein
1711	 40.00	0	1919175..1919789	+	204	15603575	-	PM1710	-	hypothetical protein
1712	 45.71	+1	1919956..1920642	+	228	15603576	-	PM1711	-	N-acetylmannosamine-6-phosphate 2-epimerase
1713	 45.86	+1	1920664..1921557	+	297	15603577	-	PM1712	-	N-acetylmannosamine kinase
1714	 36.97	-1	1921567..1922034	+	155	15603578	-	PM1713	-	hypothetical protein
1715	 38.87	0	1922061..1922927	+	288	15603579	-	PM1714	-	hypothetical protein
1716	 39.12	0	1922948..1923829	+	293	15603580	nanA	PM1715	-	N-acetylneuraminate lyase
1717	 44.61	+1	1923922..1925943	-	673	15603581	ligA	PM1716	-	NAD-dependent DNA ligase LigA
1718	 40.74	0	1926140..1928692	+	850	15603582	-	PM1717	-	hypothetical protein
1719	 42.45	0	1928776..1929510	-	244	15603583	-	PM1718	-	hypothetical protein
1720	 44.10	+1	1929522..1930496	-	324	15603584	rluD	PM1719	-	23S rRNA pseudouridine synthase D
1721	 40.10	0	1930602..1931384	+	260	15603585	-	PM1720	-	hypothetical protein
1722	 40.66	0	1931440..1932012	-	190	15603586	-	PM1721	-	hypothetical protein
1723	 37.95	0	1932292..1932594	-	100	15603587	-	PM1722	-	hypothetical protein
1724	 41.17	0	1932738..1933286	+	182	15603588	-	PM1723	-	hypothetical protein
1725	 40.72	0	1933310..1934635	+	441	15603589	pepP	PM1724	-	hypothetical protein
1726	 43.78	0	1934647..1935852	+	401	15603590	-	PM1725	-	hypothetical protein
1727	 42.56	0	1935855..1937024	+	389	15603591	visC	PM1726	-	VisC
1728	 37.48	0	1943110..1943664	-	184	15603592	-	PM1727	-	D,D-heptose 1,7-bisphosphate phosphatase
1729	 38.55	0	1943857..1944891	+	344	15603593	metN	PM1728	-	DL-methionine transporter ATP-binding subunit
1730	 40.00	0	1944884..1945573	+	229	15603594	-	PM1729	-	hypothetical protein
1731	 38.27	0	1945617..1946447	+	276	15603595	plpB	PM1730	-	PlpB
1732	 43.15	0	1947165..1948997	-	610	15603596	glmS	PM1731	-	D-fructose-6-phosphate amidotransferase
1733	 41.76	0	1949201..1949473	-	90	15603597	hupA	PM1732	-	hypothetical protein
1734	 38.24	0	1949625..1950215	-	196	15603598	-	PM1733	-	hypothetical protein
1735	 44.41	+1	1950230..1951294	-	354	15603599	uroD	PM1734	-	UroD
1736	 43.77	0	1951291..1952085	-	264	15603600	nudC	PM1735	-	NADH pyrophosphatase
1737	 43.98	0	1952228..1956481	-	1417	15603601	rpoC	PM1736	-	DNA-directed RNA polymerase subunit beta'
1738	 42.52	0	1956592..1960620	-	1342	15603602	rpoB	PM1737	-	DNA-directed RNA polymerase subunit beta
1739	 42.82	0	1960895..1961263	-	122	15603603	rplL	PM1738	-	50S ribosomal protein L7/L12
1740	 42.07	0	1961315..1961806	-	163	15603604	rplJ	PM1739	-	50S ribosomal protein L10
1741	 42.12	0	1962360..1963736	+	458	15603605	gntP	PM1740	-	GntP
1742	 43.63	0	1963749..1964894	+	381	15603606	-	PM1741	-	hypothetical protein
1743	 40.87	0	1964961..1965650	-	229	15603607	rplA	PM1742	-	50S ribosomal protein L1
1744	 41.03	0	1965655..1966083	-	142	15603608	rplK	PM1743	-	50S ribosomal protein L11
1745	 40.04	0	1966243..1966794	-	183	15603609	nusG	PM1744	-	transcription antitermination protein NusG
1746	 37.23	-1	1966796..1967206	-	136	15603610	secE	PM1745	-	preprotein translocase subunit SecE
1747	 44.47	+1	1967465..1968649	-	394	15603611	tuf	PM1746	-	elongation factor Tu
1748	 37.64	0	1969367..1970317	+	316	15603612	coaA	PM1747	-	pantothenate kinase
1749	 43.77	0	1970398..1971729	-	443	15603613	hslU	PM1748	-	ATP-dependent protease ATP-binding subunit
1750	 42.75	0	1971745..1972275	-	176	15603614	hslV	PM1749	-	ATP-dependent protease peptidase subunit
1751	 35.77	-1	1972519..1973256	-	245	15603615	-	PM1750	-	hypothetical protein
1752	 41.35	0	1973355..1974227	-	290	15603616	ubiA	PM1751	-	4-hydroxybenzoate octaprenyltransferase
1753	 41.54	0	1974589..1975941	+	450	15603617	ptsG	PM1752	-	hypothetical protein
1754	 40.69	0	1976085..1976804	+	239	15603618	-	PM1753	-	hypothetical protein
1755	 42.77	0	1976957..1979488	+	843	15603619	dmsA	PM1754	-	DmsA
1756	 42.83	0	1979499..1980119	+	206	15603620	dmsB	PM1755	-	DmsB
1757	 41.46	0	1980121..1980969	+	282	15603621	dmsC	PM1756	-	DmsC
1758	 40.76	0	1981058..1981663	+	201	15603622	-	PM1757	-	twin-argninine leader-binding protein DmsD
1759	 42.67	0	1981681..1982226	+	181	15603623	-	PM1758	-	hypothetical protein
1760	 41.12	0	1982349..1983452	-	367	15603624	-	PM1759	-	hypothetical protein
1761	 37.89	0	1983485..1984318	-	277	15603625	-	PM1760	-	hypothetical protein
1762	 37.40	0	1984320..1985204	-	294	15603626	-	PM1761	-	hypothetical protein
1763	 38.57	0	1985323..1986678	-	451	15603627	-	PM1762	-	hypothetical protein
1764	 36.95	-1	1986723..1987829	-	368	15603628	-	PM1763	-	hypothetical protein
1765	 36.86	-1	1988017..1988724	+	235	15603629	gntR_1	PM1764	-	hypothetical protein
1766	 40.37	0	1988717..1989796	+	359	15603630	-	PM1765	-	hypothetical protein
1767	 42.19	0	1989826..1991700	-	624	15603631	selB	PM1766	-	hypothetical protein
1768	 41.69	0	1991928..1992860	+	310	15603632	iunH	PM1767	-	IunH
1769	 43.02	0	1992896..1994278	-	460	15603633	selA	PM1768	-	selenocysteine synthase
1770	 41.87	0	1994906..1996159	+	417	15603634	slpA	PM1769	-	hypothetical protein
1771	 34.55	-1	1996331..1997479	+	382	15603635	-	PM1770	-	hypothetical protein
1772	 27.91	-2	1998080..1999222	+	380	15603636	-	PM1771	-	hypothetical protein
1773	 38.89	0	1999441..1999638	+	65	15603637	-	PM1772	-	hypothetical protein
1774	 41.37	0	1999648..2000070	+	140	15603638	-	PM1773	-	hypothetical protein
1775	 38.06	0	2000091..2000810	+	239	15603639	-	PM1774	-	hypothetical protein
1776	 36.92	-1	2000803..2001081	+	92	15603640	-	PM1775	-	hypothetical protein
1777	 39.93	0	2001261..2001548	+	95	15603641	-	PM1776	-	hypothetical protein
1778	 37.53	0	2002059..2002487	+	142	15603642	-	PM1777	-	hypothetical protein
1779	 40.82	0	2002577..2003137	+	186	15603643	-	PM1778	-	hypothetical protein
1780	 43.55	0	2003130..2003540	+	136	15603644	-	PM1779	-	hypothetical protein
1781	 40.06	0	2003533..2003859	+	108	15603645	-	PM1780	-	hypothetical protein
1782	 38.39	0	2003856..2004290	+	144	15603646	-	PM1781	-	hypothetical protein
1783	 42.19	0	2004283..2006460	+	725	15603647	-	PM1782	-	hypothetical protein
1784	 30.07	-2	2007544..2008494	+	316	15603648	-	PM1783	-	hypothetical protein
1785	 44.30	+1	2009018..2010403	-	461	15603649	-	PM1784	-	hypothetical protein
1786	 42.55	0	2010413..2010922	-	169	15603650	mobB	PM1785	-	hypothetical protein
1787	 40.51	0	2010973..2011404	-	143	15603651	-	PM1786	-	hypothetical protein
1788	 39.10	0	2011413..2012366	-	317	15603652	rseB	PM1787	-	periplasmic negative regulator of sigmaE
1789	 39.59	0	2012430..2013020	-	196	15603653	mclA	PM1788	-	MclA
1790	 40.45	0	2013067..2013642	-	191	15603654	rpoE	PM1789	-	RNA polymerase sigma factor RpoE
1791	 37.25	-1	2013754..2014008	-	84	15603655	-	PM1790	-	hypothetical protein
1792	 40.11	0	2014284..2016290	+	668	15603656	-	PM1791	-	hypothetical protein
1793	 42.49	0	2016712..2017890	+	392	15603657	-	PM1792	-	hypothetical protein
1794	 43.89	0	2017902..2020373	+	823	15603658	torA	PM1793	-	TorA
1795	 41.79	0	2020370..2020960	+	196	15603659	torD	PM1794	-	chaperone protein TorD
1796	 43.10	0	2021041..2022207	-	388	15603660	fruA	PM1795	-	hypothetical protein
1797	 44.87	+1	2022218..2023153	-	311	15603661	fruK	PM1796	-	1-phosphofructokinase
1798	 42.76	0	2023150..2024295	-	381	15603662	fruB	PM1797	-	bifunctional fructose-specific PTS IIA/HPr protein
1799	 37.21	-1	2024411..2025004	-	197	15603663	-	PM1798	-	hypothetical protein
1800	 46.49	+1	2025035..2025604	-	189	15603664	mobA	PM1799	-	molybdopterin-guanine dinucleotide biosynthesis protein A
1801	 38.95	0	2025669..2025935	+	88	15603665	-	PM1800	-	hypothetical protein
1802	 39.61	0	2025945..2026565	+	206	15603666	dsbA	PM1801	-	DsbA
1803	 40.00	0	2026623..2026952	+	109	15603667	-	PM1802	-	hypothetical protein
1804	 39.89	0	2027039..2028136	+	365	15603668	trmA	PM1803	-	tRNA (uracil-5-)-methyltransferase
1805	 44.80	+1	2028140..2028898	+	252	15603669	-	PM1804	-	hypothetical protein
1806	 38.95	0	2029026..2029559	-	177	15603670	-	PM1805	-	hypothetical protein
1807	 42.92	0	2029743..2031119	+	458	15603671	glmU	PM1806	-	bifunctional N-acetylglucosamine-1-phosphate uridyltransferase/glucosamine-1-phosphate acetyltransferase
40.66	MEAN

3.39	STD DEV
