IslandPath Analysis: Pasteurella multocida subsp. multocida str. Pm70

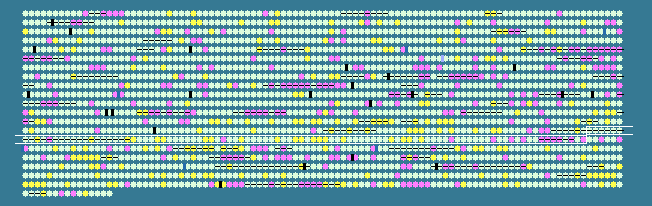

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.66   STD DEV: 3.39
Pasteurella multocida subsp. multocida str. Pm70, complete genome - 1..2257487
2015 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1395	 38.60	0	1587848..1587961	-	37	15603259	rpmJ	PM1394	-	50S ribosomal protein L36
1396	 39.59	0	1587990..1589315	-	441	15603260	secY	PM1395	-	preprotein translocase subunit SecY
1397	 42.30	0	1589323..1589757	-	144	15603261	rplO	PM1396	-	50S ribosomal protein L15
1398	 39.44	0	1589762..1589941	-	59	15603262	rpmD	PM1397	-	50S ribosomal protein L30
1399	 43.51	0	1589948..1590448	-	166	15603263	rpsE	PM1398	-	30S ribosomal protein S5
1400	 44.07	+1	1590464..1590817	-	117	15603264	rplR	PM1399	-	50S ribosomal protein L18
1401	 42.88	0	1590831..1591364	-	177	15603265	rplF	PM1400	-	50S ribosomal protein L6
1402	 41.73	0	1591380..1591772	-	130	15603266	rpsH	PM1401	-	30S ribosomal protein S8
1403	 45.42	+1	1591809..1592114	-	101	15603267	rpsN	PM1402	-	30S ribosomal protein S14
1404	 41.11	0	1592126..1592665	-	179	15603268	rplE	PM1403	-	50S ribosomal protein L5
1405	 36.54	-1	1592683..1592994	-	103	15603269	rplX	PM1404	-	50S ribosomal protein L24
1406	 43.55	0	1593009..1593380	-	123	15603270	rplN	PM1405	-	50S ribosomal protein L14
1407	 37.98	0	1593617..1593874	-	85	15603271	rpsQ	PM1406	-	30S ribosomal protein S17
1408	 41.67	0	1593874..1594065	-	63	15603272	rpmC	PM1407	-	50S ribosomal protein L29
1409	 43.80	0	1594065..1594475	-	136	15603273	rplP	PM1408	-	50S ribosomal protein L16
1410	 43.50	0	1594489..1595196	-	235	15603274	rpsC	PM1409	-	30S ribosomal protein S3
1411	 40.84	0	1595214..1595546	-	110	15603275	rplV	PM1410	-	50S ribosomal protein L22
1412	 44.93	+1	1595557..1595832	-	91	15603276	rpsS	PM1411	-	30S ribosomal protein S19
1413	 43.67	0	1595858..1596679	-	273	15603277	rplB	PM1412	-	50S ribosomal protein L2
1414	 38.94	0	1596699..1597001	-	100	15603278	rplW	PM1413	-	50S ribosomal protein L23
1415	 41.63	0	1596998..1597600	-	200	15603279	rplD	PM1414	-	50S ribosomal protein L4
1416	 40.48	0	1597615..1598244	-	209	15603280	rplC	PM1415	-	50S ribosomal protein L3
1417	 42.95	0	1598261..1598572	-	103	15603281	rpsJ	PM1416	-	30S ribosomal protein S10
1418	 47.56	+2	1598907..1600277	+	456	15603282	-	PM1417	-	hypothetical protein
1419	 46.14	+1	1600274..1601257	+	327	15603283	-	PM1418	-	tRNA-dihydrouridine synthase A
1420	 41.73	0	1601378..1602604	-	408	15603284	tnaB	PM1419	-	TnaB
1421	 42.23	0	1602677..1604092	-	471	15603285	tnaA	PM1420	-	tryptophanase
1422	 40.87	0	1604667..1604918	+	83	15603286	-	PM1421	-	oxaloacetate decarboxylase subunit gamma
1423	 44.72	+1	1604938..1606746	+	602	15603287	-	PM1422	-	pyruvate carboxylase subunit B
1424	 45.82	+1	1606757..1608061	+	434	15603288	-	PM1423	-	hypothetical protein
1425	 43.17	0	1608184..1609434	-	416	15603289	lysA	PM1424	-	hypothetical protein
1426	 37.54	0	1609686..1609994	+	102	15603290	cyaY	PM1425	-	frataxin-like protein
1427	 39.96	0	1609960..1610880	+	306	15603291	-	PM1426	-	phospholipase A
1428	 42.13	0	1610870..1612768	+	632	15603292	recQ	PM1427	-	RecQ
1429	 39.83	0	1612867..1615284	-	805	15603293	-	PM1428	-	hypothetical protein
1430	 43.30	0	1615496..1616308	-	270	15603294	aroE	PM1429	-	shikimate 5-dehydrogenase
1431	 45.03	+1	1616386..1617180	-	264	15603295	cysE	PM1430	-	serine acetyltransferase
1432	 44.38	+1	1617208..1618221	-	337	15603296	gpsA	PM1431	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
1433	 38.01	0	1618327..1618839	-	170	15603297	secB	PM1432	-	preprotein translocase subunit SecB
1434	 36.96	-1	1618857..1619297	-	146	15603298	-	PM1433	-	hypothetical protein
1435	 44.06	+1	1619509..1620822	+	437	15603299	dcuB	PM1434	-	anaerobic C4-dicarboxylate transporter
1436	 44.00	0	1620927..1622426	-	499	15603300	-	PM1435	-	hypothetical protein
1437	 45.99	+1	1622603..1622926	+	107	15603301	glpE	PM1436	-	GlpE
1438	 43.91	0	1622923..1623234	-	103	15603302	-	PM1437	-	hypothetical protein
1439	 42.58	0	1623292..1624167	+	291	15603303	glpG	PM1438	-	hypothetical protein
1440	 41.50	0	1624227..1624985	+	252	15603304	glpR	PM1439	-	hypothetical protein
1441	 41.14	0	1625037..1626317	-	426	15603305	glpC	PM1440	-	sn-glycerol-3-phosphate dehydrogenase subunit C
1442	 44.08	+1	1626314..1627606	-	430	15603306	glpB	PM1441	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
1443	 46.81	+1	1627590..1629281	-	563	15603307	glpA	PM1442	-	sn-glycerol-3-phosphate dehydrogenase subunit A
1444	 43.50	0	1629582..1631027	+	481	15603308	glpT	PM1443	-	GlpT
1445	 39.83	0	1631176..1632252	+	358	15603309	glpQ	PM1444	-	glycerophosphodiester phosphodiesterase
1446	 48.04	+2	1632416..1633204	+	262	15603310	glpF	PM1445	-	hypothetical protein
1447	 46.12	+1	1633236..1634744	+	502	15603311	glpK	PM1446	-	glycerol kinase
1448	 42.54	0	1634815..1635129	-	104	15603312	tex	PM1447	-	hypothetical protein
1449	 46.46	+1	1635139..1637514	-	791	15603313	-	PM1448	-	hypothetical protein
1450	 47.15	+1	1637518..1638060	-	180	15603314	-	PM1449	-	hypothetical protein
1451	 44.65	+1	1638200..1638676	+	158	15603315	greB	PM1450	-	transcription elongation factor GreB
1452	 38.40	0	1638710..1639519	-	269	15603316	xynC	PM1451	-	XynC
1453	 40.21	0	1639725..1640291	-	188	15603317	-	PM1452	-	hypothetical protein
1454	 47.15	+1	1640533..1643160	+	875	15603318	adh2	PM1453	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
1455	 42.78	0	1643261..1644319	-	352	15603319	msmK	PM1454	-	MsmK
1456	 41.71	0	1644341..1646035	-	564	15603320	afuB_2	PM1455	-	AfuB
1457	 41.05	0	1646038..1647126	-	362	15603321	-	PM1456	-	hypothetical protein
1458	 40.81	0	1647141..1648130	-	329	15603322	-	PM1457	-	hypothetical protein
1459	 41.18	0	1648511..1649746	+	411	15603323	pgtC	PM1458	-	PgtC
1460	 38.12	0	1649743..1651725	+	660	15603324	pgtB	PM1459	-	PgtB
1461	 39.39	0	1651718..1652971	+	417	15603325	-	PM1460	-	hypothetical protein
1462	 44.31	+1	1653139..1654149	+	336	15603326	-	PM1461	-	hypothetical protein
1463	 40.76	0	1654425..1654949	+	174	15603327	-	PM1462	-	hypothetical protein
1464	 47.55	+2	1655069..1655659	-	196	15603328	trpG_2	PM1463	-	para-aminobenzoate synthase component II
1465	 44.51	+1	1655767..1656741	+	324	15603329	pabB	PM1464	-	para-aminobenzoate synthase component I
1466	 41.75	0	1656745..1657326	+	193	15603330	-	PM1465	-	hypothetical protein
1467	 44.36	+1	1657389..1657778	+	129	15603331	-	PM1466	-	hypothetical protein
1468	 39.71	0	1657918..1658262	+	114	15603332	-	PM1467	-	hypothetical protein
1469	 41.69	0	1658315..1660336	-	673	15603333	-	PM1468	-	hypothetical protein
1470	 39.14	0	1660591..1662330	+	579	15603334	-	PM1469	-	hypothetical protein
1471	 43.08	0	1662422..1662934	-	170	15603335	-	PM1470	-	hypothetical protein
1472	 36.67	-1	1662969..1663328	-	119	15603336	-	PM1471	-	hypothetical protein
1473	 41.62	0	1663476..1664018	+	180	15603337	-	PM1472	-	hypothetical protein
1474	 41.41	0	1664147..1665805	-	552	15603338	-	PM1473	-	hypothetical protein
1475	 41.04	0	1665798..1667483	-	561	15603339	cydD	PM1474	-	CydD
1476	 38.21	0	1667671..1668531	-	286	15603340	-	PM1475	-	hypothetical protein
1477	 41.76	0	1668610..1671030	-	806	15603341	gyrB	PM1476	-	DNA gyrase subunit B
1478	 41.56	0	1671336..1672685	+	449	15603342	-	PM1477	-	hypothetical protein
1479	 36.09	-1	1672698..1673060	+	120	15603343	-	PM1478	-	hypothetical protein
1480	 38.16	0	1673023..1673955	+	310	15603344	-	PM1479	-	hypothetical protein
1481	 41.52	0	1673974..1674498	+	174	15603345	-	PM1480	-	hypothetical protein
1482	 29.17	-2	1674804..1675091	+	95	15603346	-	PM1481	-	hypothetical protein
1483	 42.31	0	1675172..1676185	-	337	15603347	glpX	PM1482	-	fructose 1,6-bisphosphatase II
1484	 30.59	-2	1676401..1676619	+	72	15603348	-	PM1483	-	hypothetical protein
1485	 38.29	0	1676674..1677117	+	147	15603349	mioC	PM1484	-	flavodoxin
1486	 40.26	0	1677605..1679494	+	629	15603350	gidA	PM1485	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
1487	 34.91	-1	1679494..1680126	+	210	15603351	gidB	PM1486	-	glucose-inhibited division protein B
1488	 27.21	-2	1680264..1680671	+	135	15603352	-	PM1487	-	F0F1 ATP synthase subunit I
1489	 35.72	-1	1680682..1681476	+	264	15603353	atpB	PM1488	-	F0F1 ATP synthase subunit A
1490	 36.86	-1	1681533..1681787	+	84	15603354	atpE	PM1489	-	F0F1 ATP synthase subunit C
1491	 38.85	0	1681867..1682337	+	156	15603355	atpF	PM1490	-	F0F1 ATP synthase subunit B
1492	 36.33	-1	1682351..1682884	+	177	15603356	atpH	PM1491	-	F0F1 ATP synthase subunit delta
1493	 39.95	0	1682897..1684438	+	513	15603357	atpA	PM1492	-	F0F1 ATP synthase subunit alpha
1494	 35.40	-1	1684465..1685334	+	289	15603358	atpG	PM1493	-	F0F1 ATP synthase subunit gamma
40.66	MEAN

3.39	STD DEV
