IslandPathversion 1.0

IslandPath Analysis: Pasteurella multocida subsp. multocida str. Pm70

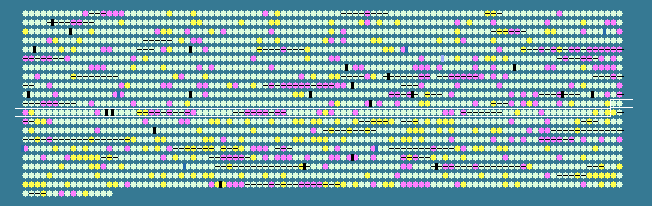

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.66 STD DEV: 3.39
Pasteurella multocida subsp. multocida str. Pm70, complete genome - 1..2257487
2015 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1099	 43.56	0	1293967..1294230	+	87	15602964	-	PM1099	-	hypothetical protein
1100	 42.63	0	1294248..1294871	+	207	15602965	ureX	PM1100	-	UreX
1101	 33.60	-2	1295002..1295382	+	126	15602966	-	PM1101	-	hypothetical protein
1102	 45.65	+1	1295412..1297481	+	689	15602967	glyS	PM1102	-	glycyl-tRNA synthetase subunit beta
1103	 39.89	0	1297617..1299035	-	472	15602968	aspA	PM1103	-	aspartate ammonia-lyase
1104	 42.62	0	1299364..1300935	+	523	15602969	mtrF	PM1104	-	hypothetical protein
1105	 38.43	0	1301067..1301537	+	156	15602970	fxsA	PM1105	-	FxsA
1106	 40.89	0	1301626..1301916	+	96	15602971	groES	PM1106	-	co-chaperonin GroES
1107	 43.98	0	1302012..1303655	+	547	15602972	groEL	PM1107	-	chaperonin GroEL
1108	 41.33	0	1303790..1304527	+	245	15602973	modB_2	PM1108	-	ModB
1109	 42.16	0	1304496..1305299	+	267	15602974	nifC	PM1109	-	NifC
1110	 42.17	0	1305301..1305900	+	199	15602975	-	PM1110	-	hypothetical protein
1111	 40.87	0	1305918..1306766	+	282	15602976	modD	PM1111	-	molybdenum transport protein ModD
1112	 41.95	0	1306862..1308694	-	610	15602977	deaD	PM1112	-	DeaD
1113	 36.23	-1	1308802..1309698	-	298	161723311	-	PM1113	-	lipoprotein NlpI
1114	 43.64	0	1309782..1311926	-	714	15602979	pnp	PM1114	-	polynucleotide phosphorylase/polyadenylase
1115	 42.76	0	1312375..1313817	-	480	15602980	gltX	PM1115	-	glutamyl-tRNA synthetase
1116	 38.28	0	1314570..1315358	+	262	15602981	-	PM1116	-	hypothetical protein
1117	 41.20	0	1315443..1316663	-	406	15602982	argE	PM1117	-	acetylornithine deacetylase
1118	 42.26	0	1316699..1317706	+	335	15602983	argC	PM1118	-	N-acetyl-gamma-glutamyl-phosphate reductase
1119	 41.86	0	1317707..1318480	+	257	15602984	argB	PM1119	-	acetylglutamate kinase
1120	 44.69	+1	1318496..1319869	+	457	15602985	argH	PM1120	-	argininosuccinate lyase
1121	 44.89	+1	1320204..1320575	+	123	15602986	-	PM1121	-	hypothetical protein
1122	 29.32	-2	1321010..1321333	-	107	15602987	-	PM1122	-	hypothetical protein
1123	 29.57	-2	1321432..1321803	+	123	15602988	-	PM1123	-	hypothetical protein
1124	 41.98	0	1322121..1322363	+	80	15602989	-	PM1124	-	hypothetical protein
1125	 34.56	-1	1322726..1323052	-	108	15602990	-	PM1125	-	hypothetical protein
1126	 38.47	0	1323045..1324076	-	343	15602991	-	PM1126	-	hypothetical protein
1127	 37.56	0	1324015..1327185	-	1056	15602992	-	PM1127	-	hypothetical protein
1128	 35.37	-1	1327410..1327703	-	97	15602993	-	PM1128	-	hypothetical protein
1129	 36.52	-1	1327708..1327989	-	93	15602994	-	PM1129	-	hypothetical protein
1130	 41.31	0	1328062..1328412	-	116	15602995	-	PM1130	-	hypothetical protein
1131	 40.38	0	1328492..1329556	+	354	15602996	perM	PM1131	-	hypothetical protein
1132	 42.40	0	1329614..1332712	-	1032	15602997	acrB	PM1132	-	hypothetical protein
1133	 41.61	0	1332722..1333168	-	148	15602998	-	PM1133	-	hypothetical protein
1134	 42.01	0	1333193..1334356	-	387	15602999	-	PM1134	-	hypothetical protein
1135	 37.59	0	1334434..1334997	-	187	15603000	-	PM1135	-	hypothetical protein
1136	 40.00	0	1335150..1335899	-	249	15603001	-	PM1136	-	hypothetical protein
1137	 42.64	0	1336037..1338250	-	737	15603002	priA	PM1137	-	primosome assembly protein PriA
1138	 28.84	-2	1338406..1339584	+	392	15603003	-	PM1138	-	hypothetical protein
1139	 28.93	-2	1339581..1340489	-	302	15603004	-	PM1139	-	hypothetical protein
1140	 29.59	-2	1340498..1341511	-	337	15603005	-	PM1140	-	hypothetical protein
1141	 31.74	-2	1341541..1342167	-	208	15603006	-	PM1141	-	hypothetical protein
1142	 38.03	0	1342603..1342815	+	70	15603007	rpmE	PM1142	-	50S ribosomal protein L31
1143	 36.47	-1	1342878..1343546	+	222	15603008	losA	PM1143	-	LosA
1144	 33.24	-2	1343549..1344580	+	343	15603009	-	PM1144	-	hypothetical protein
1145	 39.61	0	1344583..1345395	-	270	15603010	fpg	PM1145	-	formamidopyrimidine-DNA glycosylase
1146	 40.77	0	1345444..1346169	-	241	15603011	-	PM1146	-	hypothetical protein
1147	 38.46	0	1346179..1346919	-	246	15603012	-	PM1147	-	hypothetical protein
1148	 38.81	0	1346916..1347938	-	340	15603013	-	PM1148	-	hypothetical protein
1149	 37.80	0	1347944..1348996	-	350	15603014	-	PM1149	-	hypothetical protein
1150	 32.16	-2	1349193..1349363	-	56	15603015	rpmG	PM1150	-	50S ribosomal protein L33
1151	 44.73	+1	1349375..1349611	-	78	15603016	rpmB	PM1151	-	50S ribosomal protein L28
1152	 37.04	-1	1349853..1350527	-	224	15603017	radC	PM1152	-	DNA repair protein RadC
1153	 43.81	0	1350705..1351907	+	400	15603018	dfp	PM1153	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
1154	 42.11	0	1351923..1352378	+	151	15603019	dut	PM1154	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1155	 42.67	0	1352382..1352981	+	199	15603020	slmA	PM1155	-	nucleoid occlusion protein
1156	 33.79	-2	1353003..1353221	+	72	15603021	-	PM1156	-	hypothetical protein
1157	 38.73	0	1353273..1353902	+	209	15603022	crp	PM1157	-	cAMP-regulatory protein
1158	 37.83	0	1354034..1354789	+	251	15603023	-	PM1158	-	hypothetical protein
1159	 40.95	0	1354795..1355871	-	358	15603024	recF	PM1159	-	recombination protein F
1160	 40.33	0	1355889..1356989	-	366	15603025	dnaN	PM1160	-	DNA polymerase III subunit beta
1161	 39.75	0	1357003..1358358	-	451	15603026	dnaA	PM1161	-	chromosomal replication initiation protein
1162	 43.70	0	1358683..1358817	+	44	15603027	rpmH	PM1162	-	50S ribosomal protein L34
1163	 40.46	0	1358802..1359194	+	130	15603028	rnpA	PM1163	-	ribonuclease P
1164	 40.23	0	1359158..1359418	+	86	15603029	-	PM1164	-	hypothetical protein
1165	 40.65	0	1359418..1361043	+	541	15603030	yidC	PM1165	-	putative inner membrane protein translocase component YidC
1166	 42.85	0	1361084..1362481	+	465	15603031	trmE	PM1166	-	tRNA modification GTPase TrmE
1167	 38.58	0	1362578..1363969	-	463	15603032	-	PM1167	-	hypothetical protein
1168	 39.52	0	1364187..1364687	-	166	15603033	menG	PM1168	-	ribonuclease activity regulator protein RraA
1169	 39.69	0	1364738..1365649	-	303	15603034	menA	PM1169	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
1170	 41.70	0	1365745..1366485	+	246	15603035	-	PM1170	-	hypothetical protein
1171	 36.80	-1	1366510..1366884	-	124	15603036	-	PM1171	-	hypothetical protein
1172	 35.58	-1	1367079..1367924	+	281	15603037	-	PM1172	-	hypothetical protein
1173	 41.49	0	1367982..1369832	-	616	15603038	-	PM1173	-	hypothetical protein
1174	 31.36	-2	1369954..1370865	-	303	15603039	-	PM1174	-	hypothetical protein
1175	 41.72	0	1371025..1372443	+	472	15603040	glnA	PM1175	-	hypothetical protein
1176	 38.67	0	1372545..1372919	+	124	15603041	-	PM1176	-	hypothetical protein
1177	 42.89	0	1373060..1373509	-	149	15603042	rplI	PM1177	-	50S ribosomal protein L9
1178	 42.54	0	1373529..1373756	-	75	15603043	rpsR	PM1178	-	30S ribosomal protein S18
1179	 38.53	0	1373769..1374095	-	108	15603044	priB	PM1179	-	primosomal replication protein N
1180	 42.86	0	1374082..1374459	-	125	15603045	rpsF	PM1180	-	30S ribosomal protein S6
1181	 41.35	0	1374781..1375416	-	211	15603046	lexA	PM1181	-	LexA repressor
1182	 40.21	0	1375875..1378304	+	809	15603047	plsB	PM1182	-	glycerol-3-phosphate acyltransferase
1183	 44.59	+1	1378451..1379827	-	458	15603048	ffh	PM1183	-	hypothetical protein
1184	 38.06	0	1379967..1380770	+	267	15603049	-	PM1184	-	hypothetical protein
1185	 38.25	0	1380872..1382131	+	419	15603050	-	PM1185	-	hypothetical protein
1186	 38.56	0	1382362..1382820	+	152	15603051	exbB	PM1186	-	ExbB
1187	 34.36	-1	1382830..1383219	+	129	15603052	exbD	PM1187	-	hypothetical protein
1188	 43.19	0	1383216..1383986	+	256	15603053	tonB	PM1188	-	TonB
1189	 41.61	0	1384146..1384616	+	156	15603054	-	PM1189	-	hypothetical protein
1190	 43.80	0	1384711..1385484	-	257	15603055	-	PM1190	-	hypothetical protein
1191	 39.96	0	1385548..1386075	-	175	15603056	ppa	PM1191	-	inorganic pyrophosphatase
1192	 43.20	0	1386286..1387542	+	418	15603057	mtr	PM1192	-	Mtr
1193	 41.09	0	1387630..1389279	+	549	15603058	ushA	PM1193	-	bifunctional UDP-sugar hydrolase/5'-nucleotidase periplasmic precursor
1194	 41.57	0	1389260..1390036	+	258	15603059	-	PM1194	-	hypothetical protein
1195	 43.44	0	1390300..1391199	+	299	15603060	hisG	PM1195	-	ATP phosphoribosyltransferase
1196	 45.88	+1	1391204..1391458	+	84	15603061	-	PM1196	-	hypothetical protein
1197	 39.10	0	1391483..1392106	+	207	15603062	vatB	PM1197	-	VatB
1198	 45.61	+1	1392120..1393406	+	428	15603063	hisD	PM1198	-	histidinol dehydrogenase
40.66	MEAN

3.39	STD DEV
