IslandPath Analysis: Paracoccus denitrificans PD1222

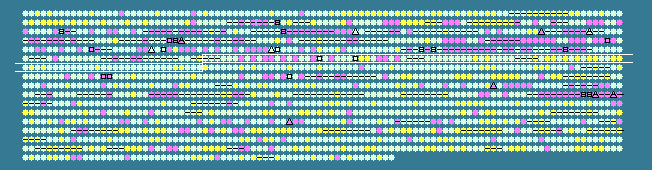

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No tRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.77 STD DEV: 4.14
Paracoccus denitrificans PD1222 chromosome 2, complete sequence - 1..1730097
1662 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
531	 65.18	0	521824..522159	+	111	119386088	-	Pden_3374	-	hypothetical protein
532	 69.60	0	522163..522981	+	272	119386089	-	Pden_3375	-	lytic transglycosylase, catalytic
533	 68.21	0	523031..523612	+	193	119386090	-	Pden_3376	-	hypothetical protein
534	 70.00	0	523854..525593	+	579	119386091	-	Pden_3377	-	hypothetical protein
535	 69.05	0	525662..525913	+	83	119386092	-	Pden_3378	-	prevent-host-death family protein
536	 65.52	0	525917..526351	+	144	119386093	-	Pden_3379	-	PilT domain-containing protein
537	 55.16	-2	526562..526813	-	83	119386094	-	Pden_3380	-	hypothetical protein
538	 64.79	0	526818..527030	+	70	119386095	-	Pden_3381	-	helix-turn-helix domain-containing protein
539	 62.39	-1	527269..527922	-	217	119386096	-	Pden_3382	-	class II aldolase/adducin family protein
540	 67.38	0	527919..529178	-	419	119386097	-	Pden_3383	-	type III effector Hrp-dependent outers
541	 62.05	-1	529196..530473	-	425	119386098	-	Pden_3384	-	TRAP dicarboxylate transporter, DctM subunit
542	 62.03	-1	530470..531030	-	186	119386099	-	Pden_3385	-	tripartite ATP-independent periplasmic transporter DctQ
543	 64.73	0	531027..531698	-	223	119386100	-	Pden_3386	-	cyclase family protein
544	 63.00	0	531715..532722	-	335	119386101	-	Pden_3387	-	TRAP dicarboxylate transporter, DctP subunit
545	 65.81	0	532760..534163	-	467	119386102	-	Pden_3388	-	SAF domain-containing protein
546	 61.31	-1	534444..535115	+	223	119386103	-	Pden_3389	-	GntR family transcriptional regulator
547	 65.62	0	535370..538231	-	953	119386104	-	Pden_3390	-	hypothetical protein
548	 63.58	0	538268..539467	-	399	119386105	-	Pden_3391	-	hypothetical protein
549	 61.44	-1	539614..539919	-	101	119386106	-	Pden_3392	-	hypothetical protein
550	 64.76	0	540885..541514	+	209	119386107	-	Pden_3395	-	putative transposase
551	 64.49	0	541860..542732	-	290	119386108	-	Pden_3396	-	LysR family transcriptional regulator
552	 63.14	0	542800..543111	+	103	119386109	-	Pden_3397	-	hypothetical protein
553	 66.67	0	543498..543977	+	159	119386110	-	Pden_3398	-	twin-arginine translocation pathway signal
554	 66.19	0	543983..544609	+	208	119386111	-	Pden_3399	-	ferric reductase domain-containing protein
555	 66.89	0	544753..545640	-	295	119386112	-	Pden_3400	-	molybdenum cofactor synthesis domain-containing protein
556	 63.64	0	545967..546131	+	54	119386113	-	Pden_3401	-	transposase, IS4
557	 70.80	0	546172..547575	-	467	119386114	-	Pden_3402	-	integral membrane sensor signal transduction histidine kinase
558	 71.06	+1	547568..548272	-	234	119386115	-	Pden_3403	-	two component transcriptional regulator
559	 67.31	0	548443..549684	+	413	119386116	-	Pden_3404	-	extracellular solute-binding protein
560	 61.51	-1	549751..550623	+	290	119386117	-	Pden_3405	-	binding-protein-dependent transport systems inner membrane component
561	 61.61	-1	550613..551482	+	289	119386118	-	Pden_3406	-	binding-protein-dependent transport systems inner membrane component
562	 65.85	0	551486..552592	+	368	119386119	-	Pden_3407	-	ABC transporter related
563	 50.96	-2	552977..553237	+	86	119386120	-	Pden_3408	-	hypothetical protein
564	 63.33	0	553476..554615	+	379	119386121	-	Pden_3409	-	creatinase
565	 65.16	0	554677..555207	-	176	119386122	-	Pden_3410	-	hypothetical protein
566	 64.29	0	555233..556117	-	294	119386123	-	Pden_3411	-	hypothetical protein
567	 66.11	0	556142..557041	-	299	119386124	-	Pden_3412	-	hypothetical protein
568	 69.17	0	557134..557493	-	119	119386125	-	Pden_3413	-	hypothetical protein
569	 69.93	0	558039..558896	-	285	119386126	-	Pden_3414	-	hypothetical protein
570	 64.86	0	559011..560171	+	386	119386127	-	Pden_3415	-	LysR family transcriptional regulator
571	 68.25	0	560290..561237	-	315	119386128	-	Pden_3416	-	acetamidase/formamidase
572	 69.87	0	561264..561575	-	103	119386129	-	Pden_3417	-	hypothetical protein
573	 69.61	0	561585..562298	-	237	119386130	-	Pden_3418	-	hypothetical protein
574	 70.10	0	562313..563098	-	261	119386131	-	Pden_3419	-	short-chain dehydrogenase/reductase SDR
575	 68.13	0	563140..564366	-	408	119386132	-	Pden_3420	-	aminotransferase, class I and II
576	 71.87	+1	564392..564814	-	140	119386133	-	Pden_3421	-	endoribonuclease L-PSP
577	 68.05	0	564811..566043	-	410	119386134	-	Pden_3422	-	aspartate aminotransferase
578	 70.72	0	566180..567067	+	295	119386135	-	Pden_3423	-	LysR family transcriptional regulator
579	 69.80	0	567071..567997	-	308	119386136	-	Pden_3424	-	dihydrodipicolinate synthetase
580	 69.00	0	568008..568865	-	285	119386137	-	Pden_3425	-	aminotransferase, class IV
581	 66.28	0	568877..569647	-	256	119386138	-	Pden_3426	-	hypothetical protein
582	 66.16	0	569820..570806	+	328	119386139	-	Pden_3427	-	TRAP dicarboxylate transporter- DctP subunit
583	 66.85	0	570897..571439	+	180	119386140	-	Pden_3428	-	tripartite ATP-independent periplasmic transporter DctQ
584	 64.75	0	571452..572753	+	433	119386141	-	Pden_3429	-	TRAP dicarboxylate transporter, DctM subunit
585	 67.70	0	572761..573534	+	257	119386142	-	Pden_3430	-	allophanate hydrolase subunit 1
586	 70.42	0	573531..574595	+	354	119386143	-	Pden_3431	-	urea amidolyase related protein
587	 65.59	0	574592..575242	+	216	119386144	-	Pden_3432	-	GntR family transcriptional regulator
588	 73.29	+1	575239..576189	+	316	119386145	-	Pden_3433	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
589	 72.17	+1	576186..577457	+	423	119386146	-	Pden_3434	-	allantoate amidohydrolase
590	 67.61	0	577454..578089	+	211	119386147	-	Pden_3435	-	GntR family transcriptional regulator
591	 70.85	0	578094..579287	+	397	119386148	-	Pden_3436	-	peptidase M24
592	 67.98	0	579311..579997	+	228	119386149	-	Pden_3437	-	fumarylacetoacetate (FAA) hydrolase
593	 71.51	+1	580165..581424	-	419	119386150	-	Pden_3438	-	integral membrane sensor signal transduction histidine kinase
594	 68.75	0	581421..582140	-	239	119386151	-	Pden_3439	-	two component transcriptional regulator
595	 71.59	+1	582349..582957	+	202	119386152	-	Pden_3440	-	hypothetical protein
596	 70.65	0	583029..583505	+	158	119386153	-	Pden_3441	-	hypothetical protein
597	 64.94	0	583517..583921	+	134	119386154	-	Pden_3442	-	hypothetical protein
598	 67.38	0	583981..584262	-	93	119386155	-	Pden_3443	-	hypothetical protein
599	 72.50	+1	584310..586316	-	668	119386156	-	Pden_3444	-	ABC transporter related
600	 71.39	+1	586309..587514	-	401	119386157	-	Pden_3445	-	RND family efflux transporter MFP subunit
601	 66.67	0	587614..588063	+	149	119386158	-	Pden_3446	-	hypothetical protein
602	 70.67	0	588344..589516	+	390	119386159	-	Pden_3447	-	RND family efflux transporter MFP subunit
603	 65.64	0	589521..592625	+	1034	119386160	-	Pden_3448	-	hydrophobe/amphiphile efflux-1 (HAE1) family protein
604	 72.33	+1	592622..593998	+	458	119386161	-	Pden_3449	-	RND efflux system outer membrane lipoprotein
605	 66.58	0	594069..595274	-	401	119386162	ampC	Pden_3450	-	beta-lactamase
606	 68.61	0	595356..596231	+	291	119386163	-	Pden_3451	-	LysR family transcriptional regulator
607	 64.51	0	596329..596745	+	138	119386164	-	Pden_3452	-	hypothetical protein
608	 63.92	0	596845..597135	+	96	119386165	-	Pden_3453	-	hypothetical protein
609	 66.11	0	597192..598448	-	418	119386166	-	Pden_3454	-	LysR family transcriptional regulator
610	 70.22	0	598445..599119	-	224	119386167	-	Pden_3455	-	hypothetical protein
611	 65.23	0	599124..599540	-	138	119386168	-	Pden_3456	-	endoribonuclease L-PSP
612	 68.47	0	599599..600870	-	423	119386169	-	Pden_3457	-	FAD dependent oxidoreductase
613	 70.55	0	601117..602274	+	385	119386170	-	Pden_3458	-	acetylornithine deacetylase
614	 66.31	0	602523..603659	+	378	119386171	-	Pden_3459	-	spermidine/putrescine ABC transporter ATPase subunit
615	 65.55	0	603742..604812	+	356	119386172	-	Pden_3460	-	ABC polyamine/opine transporter, periplasmic substrate-binding protein
616	 67.52	0	604937..606229	+	430	119386173	-	Pden_3461	-	binding-protein-dependent transport systems inner membrane component
617	 65.09	0	606235..607188	+	317	119386174	-	Pden_3462	-	binding-protein-dependent transport systems inner membrane component
618	 69.57	0	607236..608441	+	401	119386175	-	Pden_3463	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
619	 68.63	0	608674..609030	-	118	119386176	-	Pden_3464	-	ferredoxin
620	 64.50	0	609104..610258	-	384	119386177	-	Pden_3465	-	Rieske (2Fe-2S) domain-containing protein
621	 68.51	0	610387..611307	+	306	119386178	-	Pden_3466	-	LysR family transcriptional regulator
622	 69.46	0	611548..612549	-	333	119386179	-	Pden_3467	-	proline racemase
623	 67.51	0	612943..613653	-	236	119386180	-	Pden_3468	-	CRP/FNR family transcriptional regulator
624	 70.08	0	613765..614847	+	360	119386181	-	Pden_3469	-	hypothetical protein
625	 69.05	0	615004..615549	-	181	119386182	-	Pden_3470	-	hypothetical protein
626	 72.71	+1	615599..616954	-	451	119386183	-	Pden_3471	-	TfuA domain-containing protein
627	 71.79	+1	616951..618120	-	389	119386184	-	Pden_3472	-	hypothetical protein
628	 67.90	0	618747..620537	+	596	119386185	-	Pden_3473	-	adenylyl cyclase class-3/4/guanylyl cyclase
629	 68.02	0	620705..622696	+	663	119386186	-	Pden_3474	-	hypothetical protein
630	 68.67	0	622786..623484	-	232	119386187	-	Pden_3475	-	ThiJ/PfpI domain-containing protein
66.77	MEAN

4.14	STD DEV
