IslandPathversion 1.0

IslandPath Analysis: Paracoccus denitrificans PD1222

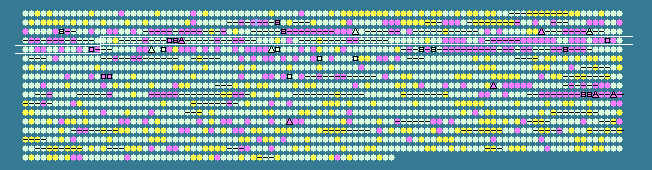

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No tRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.77 STD DEV: 4.14
Paracoccus denitrificans PD1222 chromosome 2, complete sequence - 1..1730097
1662 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
314	 69.44	0	326590..327381	-	263	119385871	-	Pden_3149	-	phytanoyl-CoA dioxygenase
315	 65.79	0	327688..328374	-	228	119385872	-	Pden_3150	-	protein of unknown function DUF899, thioredoxin family protein
316	 75.95	+2	328642..329901	+	419	119385873	-	Pden_3151	-	tetratricopeptide TPR_4
317	 69.31	0	329911..330552	+	213	119385874	-	Pden_3152	-	hypothetical protein
318	 65.69	0	330661..331068	+	135	119385875	-	Pden_3153	-	cupin 2 domain-containing protein
319	 69.78	0	331073..331906	+	277	119385876	-	Pden_3154	-	aminoglycoside N(3')-acetyltransferase
320	 66.21	0	331919..332353	+	144	119385877	-	Pden_3155	-	methyltransferase type 12
321	 62.89	0	332449..332766	+	105	119385878	-	Pden_3156	-	histone family protein nucleoid-structuring protein H-NS
322	 66.67	0	332782..333399	+	205	119385879	-	Pden_3157	-	plasmid pRiA4b ORF-3 family protein
323	 63.33	0	333475..333834	+	119	119385880	-	Pden_3158	-	hypothetical protein
324	 63.83	0	333864..334322	+	152	119385881	-	Pden_3159	-	gentamicin 3'-N-acetyltransferase
325	 62.59	-1	334803..335831	-	342	119385882	-	Pden_3160	-	transposase IS116/IS110/IS902 family protein
326	 63.27	0	335940..336263	+	107	119385883	-	Pden_3161	-	transposase IS3/IS911 family protein
327	 63.02	0	336263..337168	+	301	119385884	-	Pden_3162	-	integrase catalytic subunit
328	 65.23	0	337267..337683	+	138	119385885	-	Pden_3163	-	hypothetical protein
329	 66.37	0	338133..338810	+	225	119385886	-	Pden_3164	-	DNA methylase N-4/N-6 domain-containing protein
330	 67.33	0	338882..339184	+	100	119385887	-	Pden_3165	-	hypothetical protein
331	 63.64	0	339330..340253	+	307	119385888	-	Pden_3166	-	hypothetical protein
332	 66.91	0	341031..341438	+	135	119385889	-	Pden_3167	-	single-strand binding protein
333	 62.25	-1	341929..342132	+	67	119385890	-	Pden_3168	-	hypothetical protein
334	 63.89	0	342234..342449	+	71	119385891	-	Pden_3169	-	hypothetical protein
335	 65.92	0	342529..342795	+	88	119385892	-	Pden_3170	-	hypothetical protein
336	 61.24	-1	342906..343163	-	85	119385893	-	Pden_3171	-	XRE family transcriptional regulator
337	 61.74	-1	343217..343663	+	148	119385894	-	Pden_3172	-	hypothetical protein
338	 63.75	0	343788..344096	+	102	119385895	-	Pden_3173	-	hypothetical protein
339	 69.76	0	344116..344568	+	150	119385896	-	Pden_3174	-	hypothetical protein
340	 65.33	0	344690..345589	+	299	119385897	-	Pden_3175	-	hypothetical protein
341	 66.92	0	345773..346171	-	132	119385898	-	Pden_3176	-	hypothetical protein
342	 65.26	0	346168..346452	-	94	119385899	-	Pden_3177	-	AbrB family transcriptional regulator
343	 71.99	+1	346610..346891	+	93	119385900	-	Pden_3178	-	putative transcriptional regulator
344	 63.97	0	346902..348014	+	370	119385901	-	Pden_3179	-	replication protein A
345	 59.74	-1	348011..348313	+	100	119385902	-	Pden_3180	-	hypothetical protein
346	 66.87	0	348310..348798	+	162	119385903	-	Pden_3181	-	hypothetical protein
347	 67.74	0	348795..350282	+	495	119385904	-	Pden_3182	-	C-5 cytosine-specific DNA methylase
348	 69.65	0	350279..350881	+	200	119385905	-	Pden_3183	-	conjugal transfer protein precursor
349	 65.78	0	350878..351216	+	112	119385906	-	Pden_3184	-	hypothetical protein
350	 70.51	0	351220..352026	+	268	119385907	-	Pden_3185	-	lytic transglycosylase, catalytic
351	 68.21	0	352076..352657	+	193	119385908	-	Pden_3186	-	hypothetical protein
352	 69.57	0	352908..354701	+	597	119385909	-	Pden_3187	-	hypothetical protein
353	 67.01	0	354719..356728	+	669	119385910	-	Pden_3188	-	TRAG family protein
354	 68.20	0	356759..357280	+	173	119385911	-	Pden_3189	-	hypothetical protein
355	 62.26	-1	357306..357827	-	173	119385912	-	Pden_3190	-	hypothetical protein
356	 52.92	-2	357824..358063	-	79	119385913	-	Pden_3191	-	hypothetical protein
357	 67.84	0	358045..358470	-	141	119385914	-	Pden_3192	-	PilT domain-containing protein
358	 67.05	0	358467..358730	-	87	119385915	-	Pden_3193	-	putative plasmid stabilization protein
359	 68.06	0	359010..360014	+	334	119385916	-	Pden_3194	-	type II secretion system protein E
360	 63.36	0	360011..360343	+	110	119385917	-	Pden_3195	-	conjugal transfer protein TrbC
361	 68.79	0	360343..360624	+	93	119385918	-	Pden_3196	-	conjugal transfer protein TrbB
362	 67.92	0	360637..363270	+	877	119385919	-	Pden_3197	-	AAA ATPase
363	 67.29	0	363267..364064	+	265	119385920	-	Pden_3198	-	conjugal transfer protein TrbJ
364	 69.44	0	364085..364372	+	95	119385921	-	Pden_3199	-	hypothetical protein
365	 69.69	0	364380..365702	+	440	119385922	-	Pden_3200	-	TrbL/VirB6 plasmid conjugal transfer protein
366	 67.10	0	365699..366388	+	229	119385923	-	Pden_3201	-	conjugal transfer protein
367	 67.62	0	366385..367428	+	347	119385924	-	Pden_3202	-	conjugal transfer protein TrbG/VirB9/CagX
368	 70.35	0	367428..368594	+	388	119385925	-	Pden_3203	-	conjugation TrbI family protein
369	 66.67	0	368591..368845	+	84	119385926	-	Pden_3204	-	hypothetical protein
370	 63.60	0	368847..369791	-	314	119385927	-	Pden_3205	-	LysR family transcriptional regulator
371	 54.29	-2	369824..370534	-	236	119385928	-	Pden_3206	-	regulatory protein GntR, HTH
372	 60.98	-1	370806..372089	-	427	119385929	-	Pden_3207	-	TRAP dicarboxylate transporter, DctM subunit
373	 58.15	-2	372102..372653	-	183	119385930	-	Pden_3208	-	hypothetical protein
374	 60.06	-1	372650..373663	-	337	119385931	-	Pden_3209	-	TRAP dicarboxylate transporter- DctP subunit
375	 65.14	0	374073..375254	+	393	119385932	-	Pden_3210	-	iron-containing alcohol dehydrogenase
376	 64.02	0	375275..376708	+	477	119385933	-	Pden_3211	-	aldehyde dehydrogenase
377	 61.88	-1	376719..377762	+	347	119385934	-	Pden_3212	-	alcohol dehydrogenase
378	 64.80	0	377773..378576	+	267	119385935	-	Pden_3213	-	enoyl-CoA hydratase/isomerase
379	 62.60	-1	378583..378828	+	81	119385936	-	Pden_3214	-	hypothetical protein
380	 61.87	-1	378959..379333	-	124	119385937	-	Pden_3215	-	carboxymuconolactone decarboxylase
381	 63.12	0	379406..380335	-	309	119385938	-	Pden_3216	-	3-hydroxyisobutyrate dehydrogenase
382	 58.92	-1	380455..380880	-	141	119385939	-	Pden_3217	-	cupin 2 domain-containing protein
383	 59.96	-1	380901..381794	-	297	119385940	-	Pden_3218	-	beta-lactamase domain-containing protein
384	 59.38	-1	381847..382848	-	333	119385941	-	Pden_3219	-	TRAP dicarboxylate transporter- DctP subunit
385	 57.81	-2	382965..383393	-	142	119385942	-	Pden_3220	-	thioesterase superfamily protein
386	 61.43	-1	383452..384405	-	317	119385943	-	Pden_3221	-	hypothetical protein
387	 61.91	-1	384445..385959	-	504	119385944	-	Pden_3222	-	hypothetical protein
388	 59.33	-1	385965..386414	-	149	119385945	-	Pden_3223	-	hypothetical protein
389	 63.02	0	386490..388244	-	584	119385946	-	Pden_3224	-	acyl-CoA dehydrogenase domain-containing protein
390	 64.40	0	388262..390559	-	765	119385947	-	Pden_3225	-	3-hydroxyacyl-CoA dehydrogenase, NAD-binding
391	 63.81	0	390556..391677	-	373	119385948	-	Pden_3226	-	acetyl-CoA acetyltransferases
392	 59.29	-1	391797..393029	-	410	119385949	-	Pden_3227	-	L-carnitine dehydratase/bile acid-inducible protein F
393	 62.73	0	393111..394610	-	499	119385950	-	Pden_3228	-	aldehyde dehydrogenase
394	 60.49	-1	394918..396066	+	382	119385951	-	Pden_3229	-	hypothetical protein
395	 63.63	0	396188..397768	+	526	119385952	-	Pden_3230	-	AMP-dependent synthetase and ligase
396	 56.02	-2	397808..398662	+	284	119385953	-	Pden_3231	-	IclR family transciptional regulator
397	 62.24	-1	398991..399803	-	270	119385954	-	Pden_3232	-	histidine kinase
398	 61.65	-1	400008..400685	-	225	119385955	-	Pden_3233	-	transposase IS116/IS110/IS902 family protein
399	 53.33	-2	400725..401084	-	119	119385956	-	Pden_3234	-	hypothetical protein
400	 64.97	0	401247..402308	+	353	119385957	-	Pden_3235	-	hypothetical protein
401	 67.18	0	402410..403183	+	257	119385958	-	Pden_3236	-	NmrA family protein
402	 63.53	0	403185..404078	-	297	119385959	-	Pden_3237	-	LysR family transcriptional regulator
403	 59.92	-1	404224..404697	+	157	119385960	-	Pden_3238	-	hypothetical protein
404	 61.63	-1	404744..405418	+	224	119385961	-	Pden_3239	-	hypothetical protein
405	 67.17	0	405618..406619	+	333	119385962	-	Pden_3240	-	hypothetical protein
406	 64.21	0	406649..407218	+	189	119385963	-	Pden_3241	-	twin-arginine translocation pathway signal
407	 61.08	-1	407264..408247	+	327	119385964	-	Pden_3242	-	aldo/keto reductase
408	 66.07	0	408296..409462	+	388	119385965	-	Pden_3243	-	aldo/keto reductase
409	 65.86	0	409473..410462	+	329	119385966	-	Pden_3244	-	aldo/keto reductase
410	 62.51	-1	410491..411477	+	328	119385967	-	Pden_3245	-	hypothetical protein
411	 66.67	0	411556..411753	+	65	119385968	-	Pden_3246	-	hypothetical protein
412	 63.23	0	411867..412448	+	193	119385969	-	Pden_3247	-	transposase
413	 63.02	0	412476..413243	-	255	119385970	-	Pden_3248	-	regulatory proteins, IclR
66.77	MEAN

4.14	STD DEV
