IslandPathversion 1.0

IslandPath Analysis: Paracoccus denitrificans PD1222

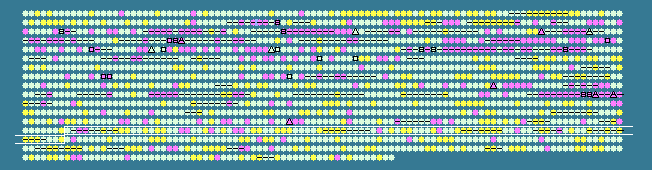

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No tRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.77 STD DEV: 4.14
Paracoccus denitrificans PD1222 chromosome 2, complete sequence - 1..1730097
1662 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1308	 65.18	0	1316818..1317756	+	312	119386865	-	Pden_4160	-	SoxH protein-like
1309	 68.51	0	1317760..1318842	-	360	119386866	-	Pden_4161	-	protein of unknown function DUF395, YeeE/YedE
1310	 57.53	-2	1319216..1320298	+	360	119386867	-	Pden_4162	-	hypothetical protein
1311	 61.55	-1	1320373..1321368	+	331	119386868	-	Pden_4163	-	hypothetical protein
1312	 63.69	0	1321384..1321752	-	122	119386869	-	Pden_4164	-	HxlR family transcriptional regulator
1313	 65.94	0	1321888..1322436	+	182	119386870	-	Pden_4165	-	(Acyl-carrier-protein) phosphodiesterase
1314	 71.71	+1	1322456..1323625	-	389	119386871	-	Pden_4166	-	NnrS family protein
1315	 69.87	0	1323622..1324371	-	249	119386872	-	Pden_4167	-	ABC transporter related
1316	 71.67	+1	1324368..1325186	-	272	119386873	-	Pden_4168	-	binding-protein-dependent transport systems inner membrane component
1317	 71.99	+1	1325183..1326178	-	331	119386874	-	Pden_4169	-	putative sulfonate/nitrate transport system substrate-binding protein
1318	 70.92	0	1326284..1326589	-	101	119386875	-	Pden_4170	-	hypothetical protein
1319	 70.05	0	1326586..1327206	-	206	119386876	-	Pden_4171	-	hypothetical protein
1320	 69.95	0	1327210..1327758	-	182	119386877	-	Pden_4172	-	BadM/Rrf2 family transcriptional regulator
1321	 70.77	0	1327758..1329977	-	739	119386878	-	Pden_4173	-	TonB-dependent receptor
1322	 70.20	0	1330301..1331233	+	310	119386879	-	Pden_4174	-	DeoR family transcriptional regulator
1323	 73.87	+1	1331237..1332679	-	480	119386880	-	Pden_4175	-	carbohydrate kinase, FGGY
1324	 71.39	+1	1332694..1333350	-	218	119386881	-	Pden_4176	-	HAD family hydrolase
1325	 68.17	0	1333354..1334817	-	487	119386882	-	Pden_4177	-	mannitol dehydrogenase domain-containing protein
1326	 67.17	0	1334887..1335885	-	332	119386883	-	Pden_4178	-	ABC transporter related
1327	 61.37	-1	1335897..1336727	-	276	119386884	-	Pden_4179	-	binding-protein-dependent transport systems inner membrane component
1328	 61.38	-1	1336733..1337602	-	289	119386885	-	Pden_4180	-	binding-protein-dependent transport systems inner membrane component
1329	 65.98	0	1337701..1339008	-	435	119386886	-	Pden_4181	-	extracellular solute-binding protein
1330	 66.02	0	1339157..1339621	-	154	119386887	-	Pden_4182	-	7-cyano-7-deazaguanine reductase
1331	 70.76	0	1339637..1340344	-	235	119386888	-	Pden_4183	-	radical SAM domain-containing protein
1332	 62.71	0	1340341..1340694	-	117	119386889	-	Pden_4184	-	putative 6-pyruvoyl tetrahydropterin synthase
1333	 69.23	0	1340694..1341395	-	233	119386890	-	Pden_4185	-	exsB protein
1334	 71.10	+1	1341593..1342585	+	330	119386891	-	Pden_4186	-	hypothetical protein
1335	 67.70	0	1342595..1343656	-	353	119386892	-	Pden_4187	-	glycerol-3-phosphate transporter ATP-binding subunit
1336	 63.08	0	1343657..1344520	-	287	119386893	-	Pden_4188	-	binding-protein-dependent transport systems inner membrane component
1337	 61.79	-1	1344513..1345394	-	293	119386894	-	Pden_4189	-	binding-protein-dependent transport systems inner membrane component
1338	 64.74	0	1345444..1346739	-	431	119386895	-	Pden_4190	-	extracellular solute-binding protein
1339	 72.96	+1	1346993..1348057	+	354	119386896	-	Pden_4191	-	hypothetical protein
1340	 72.53	+1	1348066..1349481	+	471	119386897	-	Pden_4192	-	hypothetical protein
1341	 67.76	0	1349495..1350223	+	242	119386898	-	Pden_4193	-	hypothetical protein
1342	 69.79	0	1350220..1352109	-	629	119386899	-	Pden_4194	-	SARP family transcriptional regulator
1343	 71.28	+1	1352237..1353016	-	259	119386900	-	Pden_4195	-	nitroreductase
1344	 72.46	+1	1353021..1354331	-	436	119386901	-	Pden_4196	-	hypothetical protein
1345	 72.94	+1	1354328..1355443	-	371	119386902	-	Pden_4197	-	UBA/THIF-type NAD/FAD binding protein
1346	 66.88	0	1355415..1357277	-	620	119386903	-	Pden_4198	-	radical SAM domain-containing protein
1347	 66.16	0	1357309..1357701	-	130	119386904	-	Pden_4199	-	hypothetical protein
1348	 68.25	0	1358307..1360007	+	566	119386905	-	Pden_4200	-	ABC transporter related
1349	 65.45	0	1360113..1362173	-	686	119386906	-	Pden_4201	-	TonB-dependent heme/hemoglobin receptor family protein
1350	 70.51	0	1362333..1363373	+	346	119386907	-	Pden_4202	-	hemin-degrading family protein
1351	 72.26	+1	1363370..1364245	+	291	119386908	-	Pden_4203	-	periplasmic binding protein
1352	 72.52	+1	1364245..1365321	+	358	119386909	-	Pden_4204	-	transport system permease protein
1353	 72.35	+1	1365318..1366091	+	257	119386910	-	Pden_4205	-	hemin importer ATP-binding subunit
1354	 72.05	+1	1366192..1367175	+	327	119386911	-	Pden_4206	-	alcohol dehydrogenase
1355	 69.38	0	1367233..1369002	+	589	119386912	-	Pden_4207	-	poly-beta-hydroxybutyrate polymerase domain-containing protein
1356	 70.02	0	1368999..1370102	-	367	119386913	-	Pden_4208	-	acetate kinase
1357	 70.12	0	1370099..1371025	-	308	119386914	-	Pden_4209	-	phosphate butyryltransferase
1358	 69.89	0	1371199..1371570	-	123	119386915	-	Pden_4210	-	response regulator receiver protein
1359	 66.32	0	1371664..1373379	-	571	119386916	actP	Pden_4211	-	acetate permease
1360	 59.87	-1	1373376..1373684	-	102	119386917	-	Pden_4212	-	hypothetical protein
1361	 66.72	0	1373891..1375846	-	651	119386918	-	Pden_4213	-	acetate--CoA ligase
1362	 74.86	+1	1376134..1377048	-	304	119386919	-	Pden_4214	-	ApbE family lipoprotein
1363	 68.23	0	1377045..1377620	-	191	119386920	-	Pden_4215	-	NosL family protein
1364	 72.85	+1	1377617..1378441	-	274	119386921	-	Pden_4216	-	nitrous oxide maturation protein NosY
1365	 71.56	+1	1378438..1379337	-	299	119386922	-	Pden_4217	-	ABC transporter related
1366	 66.07	0	1379303..1380634	-	443	119386923	-	Pden_4218	-	periplasmic copper-binding
1367	 64.42	0	1380640..1382598	-	652	119386924	-	Pden_4219	-	nitrous-oxide reductase
1368	 66.90	0	1382616..1384796	-	726	119386925	-	Pden_4220	-	FMN-binding domain-containing protein
1369	 73.24	+1	1384793..1385203	-	136	119386926	-	Pden_4221	-	hypothetical protein
1370	 62.84	0	1385540..1385983	+	147	119386927	-	Pden_4222	-	pseudoazurin
1371	 67.77	0	1386142..1386414	+	90	119386928	-	Pden_4223	-	hypothetical protein
1372	 67.40	0	1386481..1387161	-	226	119386929	-	Pden_4224	-	hypothetical protein
1373	 72.22	+1	1387139..1387732	-	197	119386930	-	Pden_4225	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
1374	 71.56	+1	1387729..1389198	-	489	119386931	-	Pden_4226	-	UbiD family decarboxylase
1375	 71.54	+1	1389319..1389852	+	177	119386932	-	Pden_4227	-	hypothetical protein
1376	 69.08	0	1389849..1390844	+	331	119386933	-	Pden_4228	-	peptidase U32
1377	 71.49	+1	1390847..1391737	+	296	119386934	-	Pden_4229	-	peptidase U32
1378	 71.77	+1	1391761..1392975	+	404	119386935	-	Pden_4230	-	NnrS family protein
1379	 72.51	+1	1393035..1393547	-	170	119386936	-	Pden_4231	-	hypothetical protein
1380	 73.63	+1	1393547..1394350	-	267	119386937	-	Pden_4232	-	PpiC-type peptidyl-prolyl cis-trans isomerase
1381	 63.53	0	1394356..1395057	-	233	119386938	-	Pden_4233	-	respiratory nitrate reductase, gamma subunit
1382	 68.84	0	1395072..1395761	-	229	119386939	-	Pden_4234	-	nitrate reductase molybdenum cofactor assembly chaperone
1383	 63.18	0	1395758..1397275	-	505	119386940	-	Pden_4235	-	nitrate reductase, beta subunit
1384	 65.26	0	1397272..1401036	-	1254	119386941	-	Pden_4236	-	nitrate reductase, alpha subunit
1385	 66.41	0	1401051..1403768	-	905	119386942	-	Pden_4237	-	nitrite transporter
1386	 66.10	0	1404042..1404746	+	234	119386943	ftrB	Pden_4238	-	transcriptional activator FtrB
1387	 73.45	+1	1404840..1405901	+	353	119386944	-	Pden_4239	-	methylated-DNA--protein-cysteine methyltransferase
1388	 74.85	+1	1405972..1406949	+	325	119386945	-	Pden_4240	-	FAD-binding 9, siderophore-interacting domain-containing protein
1389	 69.61	0	1406954..1408144	-	396	119386946	-	Pden_4241	-	Bcr/CflA subfamily drug resistance transporter
1390	 61.75	-1	1408491..1408673	+	60	119386947	-	Pden_4242	-	hypothetical protein
1391	 68.37	0	1408704..1409231	+	175	119386948	-	Pden_4243	-	GntR domain-containing protein
1392	 72.46	+1	1409413..1410396	+	327	119386949	-	Pden_4244	-	asparaginase/glutaminase
1393	 68.86	0	1410436..1411347	-	303	119386950	-	Pden_4245	-	galactose 1-dehydrogenase
1394	 68.44	0	1411347..1413095	-	582	119386951	-	Pden_4246	-	dihydroxy-acid dehydratase
1395	 71.14	+1	1413095..1414078	-	327	119386952	-	Pden_4247	-	hypothetical protein
1396	 68.45	0	1414230..1415183	+	317	119386953	-	Pden_4248	-	LysR family transcriptional regulator
1397	 67.75	0	1415269..1416657	-	462	119386954	-	Pden_4249	-	sodium:dicarboxylate symporter
1398	 71.15	+1	1416909..1417622	+	237	119386955	-	Pden_4250	-	ankyrin
1399	 69.62	0	1417634..1418107	+	157	119386956	-	Pden_4251	-	CMP/dCMP deaminase, zinc-binding
1400	 73.81	+1	1418104..1419321	+	405	119386957	-	Pden_4252	-	major facilitator transporter
1401	 72.54	+1	1419350..1419775	+	141	119386958	-	Pden_4253	-	hypothetical protein
1402	 72.36	+1	1419940..1420677	+	245	119386959	-	Pden_4254	-	hypothetical protein
1403	 71.83	+1	1420741..1421979	+	412	119386960	-	Pden_4255	-	molecular chaperone, DnaK
1404	 68.23	0	1422043..1422939	-	298	119386961	-	Pden_4256	-	LysR family transcriptional regulator
1405	 68.33	0	1423057..1424502	+	481	119386962	-	Pden_4257	-	molybdopterin dehydrogenase, FAD-binding
1406	 66.32	0	1424499..1426811	+	770	119386963	-	Pden_4258	-	aldehyde oxidase and xanthine dehydrogenase, molybdopterin binding
1407	 70.70	0	1426808..1427551	+	247	119386964	-	Pden_4259	-	hypothetical protein
66.77	MEAN

4.14	STD DEV
