IslandPath Analysis: Paracoccus denitrificans PD1222

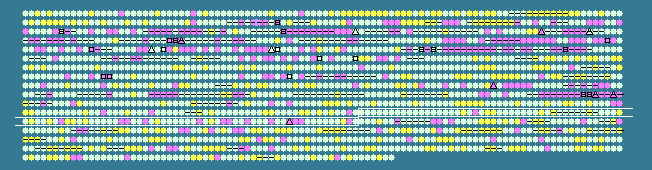

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No tRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.77 STD DEV: 4.14
Paracoccus denitrificans PD1222 chromosome 2, complete sequence - 1..1730097
1662 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1157	 67.58	0	1148956..1150926	-	656	119386714	-	Pden_4007	-	integral membrane sensor signal transduction histidine kinase
1158	 66.96	0	1150919..1152289	-	456	119386715	-	Pden_4008	-	two component, sigma54 specific, Fis family transcriptional regulator
1159	 65.12	0	1152491..1154755	+	754	119386716	-	Pden_4009	-	oxidoreductase alpha (molybdopterin) subunit
1160	 66.31	0	1154774..1156177	+	467	119386717	-	Pden_4010	-	cytochrome bd ubiquinol oxidase, subunit I
1161	 65.47	0	1156179..1157183	+	334	119386718	-	Pden_4011	-	cytochrome d ubiquinol oxidase, subunit II
1162	 66.42	0	1157362..1160223	+	953	119386719	-	Pden_4012	-	ATPase
1163	 67.30	0	1160292..1160924	+	210	119386720	-	Pden_4013	-	multiple antibiotic resistance (MarC)-related proteins
1164	 67.25	0	1160987..1162009	+	340	119386721	-	Pden_4014	-	Dyp-type peroxidase family protein
1165	 68.30	0	1162011..1162808	+	265	119386722	-	Pden_4015	-	Linocin_M18 bacteriocin protein
1166	 65.99	0	1162815..1163705	+	296	119386723	-	Pden_4016	-	hypothetical protein
1167	 64.18	0	1164011..1165297	+	428	119386724	-	Pden_4017	-	ABC branched chain amino acid transporter, substrate binding protein
1168	 70.00	0	1165346..1167265	+	639	119386725	-	Pden_4018	-	inner-membrane translocator
1169	 68.45	0	1167267..1168502	+	411	119386726	-	Pden_4019	-	inner-membrane translocator
1170	 66.94	0	1168499..1169239	+	246	119386727	-	Pden_4020	-	ABC transporter related
1171	 68.22	0	1169243..1169950	+	235	119386728	-	Pden_4021	-	ABC transporter related
1172	 65.94	0	1170462..1171013	+	183	119386729	-	Pden_4022	-	redoxin domain-containing protein
1173	 67.69	0	1171014..1171697	+	227	119386730	-	Pden_4023	-	phosphoglycolate phosphatase
1174	 70.70	0	1171756..1172226	+	156	119386731	-	Pden_4024	-	hypothetical protein
1175	 66.39	0	1172479..1174299	+	606	119386732	-	Pden_4025	-	GTP-binding protein TypA
1176	 61.16	-1	1174385..1175020	+	211	119386733	-	Pden_4026	-	hypothetical protein
1177	 64.81	0	1175033..1175356	-	107	119386734	-	Pden_4027	-	ferredoxin
1178	 72.31	+1	1175481..1177040	-	519	119386735	-	Pden_4028	-	exodeoxyribonuclease VII, large subunit
1179	 70.94	+1	1177155..1178417	+	420	119386736	-	Pden_4029	-	phosphoribosylamine--glycine ligase
1180	 64.88	0	1178755..1180317	+	520	119386737	-	Pden_4030	-	2-isopropylmalate synthase
1181	 67.98	0	1180350..1181189	-	279	119386738	-	Pden_4031	-	hypothetical protein
1182	 67.30	0	1181383..1182483	+	366	119386739	-	Pden_4032	-	cell shape determining protein MreB
1183	 69.24	0	1182497..1183429	+	310	119386740	-	Pden_4033	-	rod shape-determining protein MreC
1184	 68.17	0	1183422..1183952	+	176	119386741	-	Pden_4034	-	putative rod shape-determining protein MreD
1185	 68.72	0	1183956..1185899	+	647	119386742	-	Pden_4035	-	peptidoglycan glycosyltransferase
1186	 64.22	0	1185903..1187045	+	380	119386743	-	Pden_4036	-	rod shape-determining protein RodA
1187	 72.42	+1	1187055..1187975	+	306	119386744	-	Pden_4037	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
1188	 68.21	0	1188106..1189533	+	475	119386745	-	Pden_4038	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
1189	 72.77	+1	1189606..1190637	+	343	119386746	-	Pden_4039	-	ABC-type nitrate/sulfonate/bicarbonate transport systems, periplasmic components TauA
1190	 65.51	0	1190693..1191298	+	201	119386747	-	Pden_4040	-	hypothetical protein
1191	 67.89	0	1191308..1191634	-	108	119386748	-	Pden_4041	-	arsenate reductase and related
1192	 69.17	0	1191781..1193100	-	439	119386749	-	Pden_4042	-	hypothetical protein
1193	 66.27	0	1193259..1193768	+	169	119386750	-	Pden_4043	-	ErfK/YbiS/YcfS/YnhG family protein
1194	 68.71	0	1193832..1195346	+	504	119386751	-	Pden_4044	-	NnrS family protein
1195	 70.44	0	1195503..1196720	+	405	119386752	-	Pden_4045	-	chromate transporter
1196	 63.61	0	1196881..1197174	+	97	119386753	-	Pden_4046	-	hypothetical protein
1197	 66.53	0	1197245..1198684	-	479	119386754	-	Pden_4047	-	NAD(P) transhydrogenase, beta subunit
1198	 67.24	0	1198698..1200272	-	524	119386755	pntA	Pden_4048	-	NAD(P) transhydrogenase subunit alpha
1199	 67.40	0	1200368..1201048	-	226	119386756	-	Pden_4049	-	hypothetical protein
1200	 70.83	0	1201059..1201466	-	135	119386757	-	Pden_4050	-	isoprenylcysteine carboxyl methyltransferase
1201	 67.60	0	1201502..1203649	-	715	119386758	-	Pden_4051	-	malate synthase G
1202	 72.20	+1	1203819..1204523	-	234	119386759	-	Pden_4052	-	mucin-associated surface protein
1203	 68.67	0	1204691..1207234	+	847	119386760	-	Pden_4053	-	aminopeptidase N
1204	 69.00	0	1207252..1208193	+	313	119386761	-	Pden_4054	-	phospholipid/glycerol acyltransferase
1205	 71.88	+1	1208346..1209458	-	370	119386762	-	Pden_4055	-	gamma-glutamyl kinase
1206	 68.90	0	1209446..1210477	-	343	119386763	obgE	Pden_4056	-	GTPase ObgE
1207	 61.36	-1	1210622..1210960	+	112	119386764	-	Pden_4057	-	small multidrug resistance protein
1208	 70.27	0	1211023..1212438	+	471	119386765	-	Pden_4058	-	hypothetical protein
1209	 70.88	0	1212457..1213239	+	260	119386766	-	Pden_4059	-	endonuclease/exonuclease/phosphatase
1210	 67.29	0	1213306..1214583	+	425	119386767	-	Pden_4060	-	phosphopyruvate hydratase
1211	 72.79	+1	1214632..1215447	-	271	119386768	-	Pden_4061	-	hypothetical protein
1212	 69.13	0	1215444..1217066	-	540	119386769	-	Pden_4062	-	alpha-isopropylmalate/homocitrate synthase family transferase
1213	 67.31	0	1217099..1218487	-	462	119386770	-	Pden_4063	-	cysteinyl-tRNA synthetase
1214	 67.25	0	1218643..1218984	+	113	119386771	-	Pden_4064	-	hypothetical protein
1215	 69.16	0	1219068..1219508	-	146	119386772	-	Pden_4065	-	hypothetical protein
1216	 68.33	0	1219607..1220746	-	379	119386773	-	Pden_4066	-	ABC transporter related
1217	 61.71	-1	1220743..1221549	-	268	119386774	-	Pden_4067	-	binding-protein-dependent transport systems inner membrane component
1218	 63.22	0	1221546..1222415	-	289	119386775	-	Pden_4068	-	binding-protein-dependent transport systems inner membrane component
1219	 69.95	0	1222509..1222934	-	141	119386776	-	Pden_4069	-	hypothetical protein
1220	 67.52	0	1222931..1224445	-	504	119386777	-	Pden_4070	-	hypothetical protein
1221	 61.93	-1	1224537..1225085	+	182	119386778	-	Pden_4071	-	NADPH-dependent FMN reductase
1222	 64.46	0	1225149..1227143	-	664	119386779	-	Pden_4072	-	RNA polymerase sigma factor RpoD
1223	 71.72	+1	1227285..1229225	-	646	119386780	dnaG	Pden_4073	-	DNA primase
1224	 69.91	0	1229265..1229849	-	194	119386781	-	Pden_4074	-	TetR family transcriptional regulator
1225	 66.58	0	1230311..1231474	+	387	119386782	-	Pden_4075	-	L-lactate dehydrogenase (cytochrome)
1226	 64.04	0	1231504..1232571	-	355	119386783	-	Pden_4076	-	acyltransferase family protein
1227	 64.91	0	1232663..1233289	+	208	119386784	-	Pden_4077	-	50S ribosomal protein L25/general stress protein Ctc
1228	 67.93	0	1233405..1234745	+	446	119386785	-	Pden_4078	-	tRNA (uracil-5-)-methyltransferase Gid
1229	 66.90	0	1234742..1235587	+	281	119386786	-	Pden_4079	-	glutamyl-tRNA synthetase, class Ic
1230	 62.30	-1	1235569..1235934	-	121	119386787	-	Pden_4080	-	phosphoribosyl-AMP cyclohydrolase
1231	 69.18	0	1235995..1236432	+	145	119386788	-	Pden_4081	-	NifU-related protein involved in Fe-S cluster formation
1232	 70.82	0	1236788..1238881	-	697	119386789	-	Pden_4082	-	DEAD/DEAH box helicase domain-containing protein
1233	 69.23	0	1238878..1241175	-	765	119386790	-	Pden_4083	-	DNA ligase, NAD-dependent
1234	 62.07	-1	1241333..1241506	-	57	119386791	-	Pden_4084	-	response regulator receiver protein
1235	 58.81	-1	1241524..1241892	-	122	119386792	-	Pden_4085	-	hypothetical protein
1236	 64.41	0	1241928..1242326	+	132	119386793	-	Pden_4086	-	hypothetical protein
1237	 64.92	0	1242832..1243461	-	209	119386794	-	Pden_4087	-	hypothetical protein
1238	 61.85	-1	1243464..1243733	-	89	119386795	-	Pden_4088	-	hypothetical protein
1239	 63.41	0	1243733..1245883	-	716	119386796	-	Pden_4089	-	metallophosphoesterase
1240	 64.67	0	1245880..1246230	-	116	119386797	-	Pden_4090	-	hypothetical protein
1241	 65.51	0	1246230..1247267	-	345	119386798	-	Pden_4091	-	hypothetical protein
1242	 60.28	-1	1247347..1247706	+	119	119386799	-	Pden_4092	-	hypothetical protein
1243	 64.39	0	1247883..1249376	-	497	119386800	-	Pden_4093	-	hypothetical protein
1244	 65.40	0	1249366..1250628	-	420	119386801	-	Pden_4094	-	hypothetical protein
1245	 62.70	0	1250937..1251944	+	335	119386802	-	Pden_4095	-	phage integrase family protein
1246	 59.28	-1	1251970..1252524	-	184	119386803	-	Pden_4096	-	two component transcriptional regulator
1247	 60.90	-1	1252581..1252892	-	103	119386804	-	Pden_4097	-	hypothetical protein
1248	 68.38	0	1253056..1254225	+	389	119386805	-	Pden_4098	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1249	 66.42	0	1254239..1254646	-	135	119386806	-	Pden_4099	-	Fe-S metabolism associated SufE
1250	 69.80	0	1254775..1255284	+	169	119386807	-	Pden_4100	-	hypothetical protein
1251	 65.38	0	1255587..1256132	-	181	119386808	-	Pden_4101	-	GCN5-related N-acetyltransferase
1252	 64.10	0	1256245..1256517	-	90	119386809	rpmA	Pden_4102	-	50S ribosomal protein L27
1253	 65.01	0	1256537..1256959	-	140	119386810	-	Pden_4103	-	ribosomal protein L21
1254	 71.19	+1	1257151..1258212	-	353	119386811	-	Pden_4104	-	L-carnitine dehydratase/bile acid-inducible protein F
1255	 57.14	-2	1258639..1258827	-	62	119386812	-	Pden_4105	-	hypothetical protein
1256	 67.26	0	1258997..1260334	-	445	119386813	-	Pden_4106	-	nitrilotriacetate monooxygenase
66.77	MEAN

4.14	STD DEV
