IslandPathversion 1.0

IslandPath Analysis: Paracoccus denitrificans PD1222

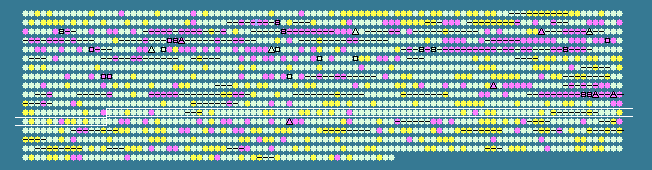

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No tRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.77 STD DEV: 4.14
Paracoccus denitrificans PD1222 chromosome 2, complete sequence - 1..1730097
1662 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1115	 63.46	0	1103932..1104243	+	103	119386672	-	Pden_3965	-	hypothetical protein
1116	 64.02	0	1104253..1105008	+	251	119386673	-	Pden_3966	-	FeS assembly ATPase SufC
1117	 68.00	0	1105008..1106354	+	448	119386674	-	Pden_3967	-	SufBD protein
1118	 70.96	+1	1106351..1106839	+	162	119386675	-	Pden_3968	-	hypothetical protein
1119	 64.29	0	1106836..1107423	+	195	119386676	-	Pden_3969	-	hypothetical protein
1120	 66.83	0	1107420..1108631	+	403	119386677	-	Pden_3970	-	SufS subfamily cysteine desulfurase
1121	 66.94	0	1109057..1111228	-	723	119386678	-	Pden_3971	-	phosphoribosylformylglycinamidine synthase II
1122	 63.27	0	1111534..1112475	-	313	119386679	-	Pden_3972	-	LysR family transcriptional regulator
1123	 67.04	0	1112959..1113771	+	270	119386680	-	Pden_3973	-	glutamate racemase
1124	 64.41	0	1113790..1114233	+	147	119386681	-	Pden_3974	-	cytochrome c-type biogenesis protein CcmE
1125	 68.30	0	1114309..1114920	+	203	119386682	-	Pden_3975	-	hypothetical protein
1126	 68.93	0	1114911..1115441	+	176	119386683	-	Pden_3976	-	hypothetical protein
1127	 67.79	0	1115530..1117491	+	653	119386684	-	Pden_3977	-	cytochrome c-type biogenesis protein CcmF
1128	 69.09	0	1117495..1117947	+	150	119386685	-	Pden_3978	-	cytochrome C biogenesis protein
1129	 69.52	0	1118017..1118787	+	256	119386686	-	Pden_3979	-	enoyl-CoA hydratase/isomerase
1130	 71.94	+1	1118822..1119541	-	239	119386687	-	Pden_3980	-	NUDIX hydrolase
1131	 68.10	0	1119544..1119963	-	139	119386688	-	Pden_3981	-	hypothetical protein
1132	 71.68	+1	1120068..1121462	-	464	119386689	-	Pden_3982	-	response regulator receiver modulated diguanylate cyclase
1133	 70.00	0	1121571..1121840	+	89	119386690	-	Pden_3983	-	hypothetical protein
1134	 64.61	0	1121859..1123220	-	453	119386691	-	Pden_3984	-	aminotransferase class-III
1135	 70.00	0	1123458..1124807	-	449	119386692	-	Pden_3985	-	cytochrome P450
1136	 70.25	0	1124804..1126003	-	399	119386693	-	Pden_3986	-	hypothetical protein
1137	 70.01	0	1126057..1126743	-	228	119386694	-	Pden_3987	-	peptidase M48, Ste24p
1138	 66.92	0	1126771..1127952	-	393	119386695	-	Pden_3988	-	VWA containing CoxE family protein
1139	 69.16	0	1128237..1129361	+	374	119386696	-	Pden_3989	-	Ppx/GppA phosphatase
1140	 69.00	0	1129363..1130133	+	256	119386697	-	Pden_3990	-	ribosomal RNA methyltransferase RrmJ/FtsJ
1141	 74.80	+1	1130270..1131376	-	368	119386698	-	Pden_3991	-	helix-turn-helix domain-containing protein
1142	 71.40	+1	1131504..1132412	-	302	119386699	-	Pden_3992	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1143	 64.90	0	1132498..1133232	+	244	119386700	-	Pden_3993	-	uridylate kinase
1144	 64.54	0	1133313..1133876	+	187	119386701	-	Pden_3994	-	ribosome recycling factor
1145	 70.20	0	1133880..1134614	+	244	119386702	-	Pden_3995	-	undecaprenyl diphosphate synthase
1146	 69.59	0	1134611..1135465	+	284	119386703	-	Pden_3996	-	phosphatidate cytidylyltransferase
1147	 72.29	+1	1135470..1136642	+	390	119386704	-	Pden_3997	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1148	 71.12	+1	1136639..1137964	+	441	119386705	-	Pden_3998	-	putative membrane-associated zinc metalloprotease
1149	 65.86	0	1138068..1140416	+	782	119386706	-	Pden_3999	-	surface antigen (D15)
1150	 72.69	+1	1140416..1141195	+	259	119386707	-	Pden_4000	-	outer membrane chaperone Skp (OmpH)
1151	 68.46	0	1141217..1142164	-	315	119386708	-	Pden_4001	-	purine nucleosidase
1152	 72.16	+1	1142225..1144681	-	818	119386709	-	Pden_4002	-	penicillin amidase
1153	 69.55	0	1144811..1145677	+	288	119386710	-	Pden_4003	-	3-hydroxyisobutyrate dehydrogenase
1154	 63.75	0	1145983..1146531	-	182	119386711	-	Pden_4004	-	hypothetical protein
1155	 58.10	-2	1146544..1146753	-	69	119386712	-	Pden_4005	-	hypothetical protein
1156	 65.58	0	1147245..1148897	+	550	119386713	-	Pden_4006	-	major facilitator transporter
1157	 67.58	0	1148956..1150926	-	656	119386714	-	Pden_4007	-	integral membrane sensor signal transduction histidine kinase
1158	 66.96	0	1150919..1152289	-	456	119386715	-	Pden_4008	-	two component, sigma54 specific, Fis family transcriptional regulator
1159	 65.12	0	1152491..1154755	+	754	119386716	-	Pden_4009	-	oxidoreductase alpha (molybdopterin) subunit
1160	 66.31	0	1154774..1156177	+	467	119386717	-	Pden_4010	-	cytochrome bd ubiquinol oxidase, subunit I
1161	 65.47	0	1156179..1157183	+	334	119386718	-	Pden_4011	-	cytochrome d ubiquinol oxidase, subunit II
1162	 66.42	0	1157362..1160223	+	953	119386719	-	Pden_4012	-	ATPase
1163	 67.30	0	1160292..1160924	+	210	119386720	-	Pden_4013	-	multiple antibiotic resistance (MarC)-related proteins
1164	 67.25	0	1160987..1162009	+	340	119386721	-	Pden_4014	-	Dyp-type peroxidase family protein
1165	 68.30	0	1162011..1162808	+	265	119386722	-	Pden_4015	-	Linocin_M18 bacteriocin protein
1166	 65.99	0	1162815..1163705	+	296	119386723	-	Pden_4016	-	hypothetical protein
1167	 64.18	0	1164011..1165297	+	428	119386724	-	Pden_4017	-	ABC branched chain amino acid transporter, substrate binding protein
1168	 70.00	0	1165346..1167265	+	639	119386725	-	Pden_4018	-	inner-membrane translocator
1169	 68.45	0	1167267..1168502	+	411	119386726	-	Pden_4019	-	inner-membrane translocator
1170	 66.94	0	1168499..1169239	+	246	119386727	-	Pden_4020	-	ABC transporter related
1171	 68.22	0	1169243..1169950	+	235	119386728	-	Pden_4021	-	ABC transporter related
1172	 65.94	0	1170462..1171013	+	183	119386729	-	Pden_4022	-	redoxin domain-containing protein
1173	 67.69	0	1171014..1171697	+	227	119386730	-	Pden_4023	-	phosphoglycolate phosphatase
1174	 70.70	0	1171756..1172226	+	156	119386731	-	Pden_4024	-	hypothetical protein
1175	 66.39	0	1172479..1174299	+	606	119386732	-	Pden_4025	-	GTP-binding protein TypA
1176	 61.16	-1	1174385..1175020	+	211	119386733	-	Pden_4026	-	hypothetical protein
1177	 64.81	0	1175033..1175356	-	107	119386734	-	Pden_4027	-	ferredoxin
1178	 72.31	+1	1175481..1177040	-	519	119386735	-	Pden_4028	-	exodeoxyribonuclease VII, large subunit
1179	 70.94	+1	1177155..1178417	+	420	119386736	-	Pden_4029	-	phosphoribosylamine--glycine ligase
1180	 64.88	0	1178755..1180317	+	520	119386737	-	Pden_4030	-	2-isopropylmalate synthase
1181	 67.98	0	1180350..1181189	-	279	119386738	-	Pden_4031	-	hypothetical protein
1182	 67.30	0	1181383..1182483	+	366	119386739	-	Pden_4032	-	cell shape determining protein MreB
1183	 69.24	0	1182497..1183429	+	310	119386740	-	Pden_4033	-	rod shape-determining protein MreC
1184	 68.17	0	1183422..1183952	+	176	119386741	-	Pden_4034	-	putative rod shape-determining protein MreD
1185	 68.72	0	1183956..1185899	+	647	119386742	-	Pden_4035	-	peptidoglycan glycosyltransferase
1186	 64.22	0	1185903..1187045	+	380	119386743	-	Pden_4036	-	rod shape-determining protein RodA
1187	 72.42	+1	1187055..1187975	+	306	119386744	-	Pden_4037	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
1188	 68.21	0	1188106..1189533	+	475	119386745	-	Pden_4038	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
1189	 72.77	+1	1189606..1190637	+	343	119386746	-	Pden_4039	-	ABC-type nitrate/sulfonate/bicarbonate transport systems, periplasmic components TauA
1190	 65.51	0	1190693..1191298	+	201	119386747	-	Pden_4040	-	hypothetical protein
1191	 67.89	0	1191308..1191634	-	108	119386748	-	Pden_4041	-	arsenate reductase and related
1192	 69.17	0	1191781..1193100	-	439	119386749	-	Pden_4042	-	hypothetical protein
1193	 66.27	0	1193259..1193768	+	169	119386750	-	Pden_4043	-	ErfK/YbiS/YcfS/YnhG family protein
1194	 68.71	0	1193832..1195346	+	504	119386751	-	Pden_4044	-	NnrS family protein
1195	 70.44	0	1195503..1196720	+	405	119386752	-	Pden_4045	-	chromate transporter
1196	 63.61	0	1196881..1197174	+	97	119386753	-	Pden_4046	-	hypothetical protein
1197	 66.53	0	1197245..1198684	-	479	119386754	-	Pden_4047	-	NAD(P) transhydrogenase, beta subunit
1198	 67.24	0	1198698..1200272	-	524	119386755	pntA	Pden_4048	-	NAD(P) transhydrogenase subunit alpha
1199	 67.40	0	1200368..1201048	-	226	119386756	-	Pden_4049	-	hypothetical protein
1200	 70.83	0	1201059..1201466	-	135	119386757	-	Pden_4050	-	isoprenylcysteine carboxyl methyltransferase
1201	 67.60	0	1201502..1203649	-	715	119386758	-	Pden_4051	-	malate synthase G
1202	 72.20	+1	1203819..1204523	-	234	119386759	-	Pden_4052	-	mucin-associated surface protein
1203	 68.67	0	1204691..1207234	+	847	119386760	-	Pden_4053	-	aminopeptidase N
1204	 69.00	0	1207252..1208193	+	313	119386761	-	Pden_4054	-	phospholipid/glycerol acyltransferase
1205	 71.88	+1	1208346..1209458	-	370	119386762	-	Pden_4055	-	gamma-glutamyl kinase
1206	 68.90	0	1209446..1210477	-	343	119386763	obgE	Pden_4056	-	GTPase ObgE
1207	 61.36	-1	1210622..1210960	+	112	119386764	-	Pden_4057	-	small multidrug resistance protein
1208	 70.27	0	1211023..1212438	+	471	119386765	-	Pden_4058	-	hypothetical protein
1209	 70.88	0	1212457..1213239	+	260	119386766	-	Pden_4059	-	endonuclease/exonuclease/phosphatase
1210	 67.29	0	1213306..1214583	+	425	119386767	-	Pden_4060	-	phosphopyruvate hydratase
1211	 72.79	+1	1214632..1215447	-	271	119386768	-	Pden_4061	-	hypothetical protein
1212	 69.13	0	1215444..1217066	-	540	119386769	-	Pden_4062	-	alpha-isopropylmalate/homocitrate synthase family transferase
1213	 67.31	0	1217099..1218487	-	462	119386770	-	Pden_4063	-	cysteinyl-tRNA synthetase
1214	 67.25	0	1218643..1218984	+	113	119386771	-	Pden_4064	-	hypothetical protein
66.77	MEAN

4.14	STD DEV
