IslandPathversion 1.0

IslandPath Analysis: Paracoccus denitrificans PD1222

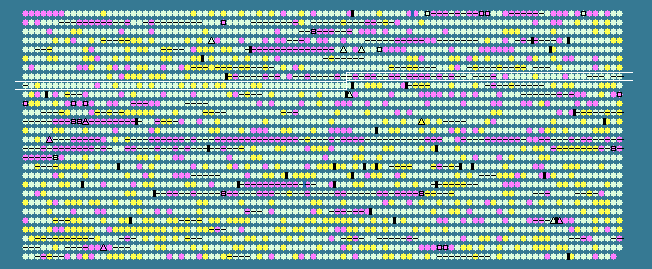

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.57 STD DEV: 4.21
Paracoccus denitrificans PD1222 chromosome 1, complete sequence - 1..2852282
2799 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
755	 66.34	0	745851..746471	+	206	119383512	rplD	Pden_0760	-	50S ribosomal protein L4
756	 59.60	-1	746468..746764	+	98	119383513	rplW	Pden_0761	-	50S ribosomal protein L23
757	 64.76	0	746860..747699	+	279	119383514	rplB	Pden_0762	-	50S ribosomal protein L2
758	 57.35	-2	747703..747981	+	92	119383515	rpsS	Pden_0763	-	30S ribosomal protein S19
759	 59.84	-1	747987..748367	+	126	119383516	rplV	Pden_0764	-	50S ribosomal protein L22
760	 66.39	0	748367..749089	+	240	119383517	rpsC	Pden_0765	-	30S ribosomal protein S3
761	 65.22	0	749102..749515	+	137	119383518	rplP	Pden_0766	-	50S ribosomal protein L16
762	 60.22	-1	749633..749911	+	92	119383519	-	Pden_0767	-	ribosomal protein L29
763	 57.83	-2	749924..750172	+	82	119383520	rpsQ	Pden_0768	-	30S ribosomal protein S17
764	 63.41	0	750236..750604	+	122	119383521	rplN	Pden_0769	-	50S ribosomal protein L14
765	 62.75	0	750604..750909	+	101	119383522	rplX	Pden_0770	-	50S ribosomal protein L24
766	 60.96	-1	750909..751469	+	186	119383523	rplE	Pden_0771	-	50S ribosomal protein L5
767	 59.48	-1	751488..751793	+	101	119383524	rpsN	Pden_0772	-	30S ribosomal protein S14
768	 62.16	-1	751803..752201	+	132	119383525	rpsH	Pden_0773	-	30S ribosomal protein S8
769	 63.30	0	752213..752746	+	177	119383526	rplF	Pden_0774	-	50S ribosomal protein L6
770	 62.78	0	752758..753117	+	119	119383527	rplR	Pden_0775	-	50S ribosomal protein L18
771	 68.08	0	753236..753802	+	188	119383528	rpsE	Pden_0776	-	30S ribosomal protein S5
772	 62.96	0	753815..754003	+	62	119383529	rpmD	Pden_0777	-	50S ribosomal protein L30
773	 67.08	0	754133..754855	+	240	119383530	-	Pden_0778	-	hypothetical protein
774	 66.67	0	755010..755495	+	161	119383531	rplO	Pden_0779	-	50S ribosomal protein L15
775	 64.19	0	755600..756973	+	457	119383532	secY	Pden_0780	-	preprotein translocase subunit SecY
776	 65.60	0	757011..757667	+	218	119383533	-	Pden_0781	-	adenylate kinase
777	 64.50	0	757831..758199	+	122	162139378	rpsM	Pden_0782	-	30S ribosomal protein S13
778	 65.38	0	758212..758601	+	129	119383535	-	Pden_0783	-	30S ribosomal protein S11
779	 62.83	0	758721..759737	+	338	119383536	-	Pden_0784	-	DNA-directed RNA polymerase subunit alpha
780	 63.83	0	759854..760276	+	140	119383537	rplQ	Pden_0785	-	50S ribosomal protein L17
781	 60.95	-1	760626..761237	+	203	119383538	-	Pden_0786	-	response regulator receiver protein
782	 64.64	0	761305..761895	+	196	119383539	-	Pden_0787	-	N-acyl-L-homoserine lactone synthetase-like
783	 67.64	0	761957..763285	+	442	119383540	-	Pden_0788	-	recombination factor protein RarA
784	 68.53	0	763282..763656	+	124	119383541	-	Pden_0789	-	CrcB protein
785	 69.34	0	763653..764699	+	348	119383542	-	Pden_0790	-	RluA family pseudouridine synthase
786	 70.74	0	764696..765358	+	220	119383543	-	Pden_0791	-	HAD family hydrolase
787	 69.20	0	765351..766061	+	236	119383544	-	Pden_0792	-	ATP12 ATPase
788	 64.52	0	766214..767239	+	341	119383545	-	Pden_0793	-	cationic amino acid ABC transporter, periplasmic binding protein
789	 64.27	0	767355..768608	+	417	119383546	-	Pden_0794	-	polar amino acid ABC transporter, inner membrane subunit
790	 66.12	0	768610..770064	+	484	119383547	-	Pden_0795	-	polar amino acid ABC transporter, inner membrane subunit
791	 61.76	-1	770075..770848	+	257	119383548	-	Pden_0796	-	ABC transporter related
792	 66.67	0	770948..771850	+	300	119383549	-	Pden_0797	-	hypothetical protein
793	 64.81	0	771923..772783	-	286	119383550	-	Pden_0798	-	aminotransferase, class IV
794	 65.11	0	772881..773906	+	341	119383551	-	Pden_0799	-	citrate (pro-3S)-lyase
795	 69.69	0	774324..775946	-	540	119383552	-	Pden_0800	-	ABC transporter related
796	 69.37	0	775943..776755	-	270	119383553	-	Pden_0801	-	binding-protein-dependent transport systems inner membrane component
797	 68.90	0	776752..777690	-	312	119383554	-	Pden_0802	-	binding-protein-dependent transport systems inner membrane component
798	 68.32	0	777739..779373	-	544	119383555	-	Pden_0803	-	protein of unknown function DUF894, DitE
799	 68.89	0	779632..780933	+	433	119383556	-	Pden_0804	-	D-amino acid dehydrogenase small subunit
800	 66.28	0	780997..781257	-	86	119383557	-	Pden_0805	-	transglycosylase-associated protein
801	 64.47	0	781254..781526	-	90	119383558	-	Pden_0806	-	hypothetical protein
802	 70.01	0	781572..782318	+	248	119383559	-	Pden_0807	-	ErfK/YbiS/YcfS/YnhG family protein
803	 72.79	+1	782443..782997	+	184	119383560	-	Pden_0808	-	hypothetical protein
804	 68.53	0	783068..783979	+	303	119383561	-	Pden_0809	-	lytic transglycosylase, catalytic
805	 66.46	0	784055..785524	-	489	119383562	-	Pden_0810	-	extracellular solute-binding protein
806	 63.35	0	785581..786273	-	230	119383563	-	Pden_0811	-	phosphatidylcholine synthase
807	 69.86	0	786368..787243	-	291	119383564	-	Pden_0812	-	phosphoserine phosphatase SerB
808	 67.01	0	787437..788591	+	384	119383565	-	Pden_0813	-	phosphoserine aminotransferase
809	 64.72	0	788704..790293	+	529	119383566	-	Pden_0814	-	D-3-phosphoglycerate dehydrogenase
810	 69.96	0	790346..791074	+	242	119383567	-	Pden_0815	-	metallophosphoesterase
811	 69.43	0	791211..792839	+	542	119383568	-	Pden_0816	-	sodium-dependent inorganic phosphate (Pi) transporter
812	 65.15	0	793035..793496	+	153	119383569	-	Pden_0817	-	CreA family protein
813	 59.16	-1	793728..794060	+	110	119383570	-	Pden_0818	-	hemimethylated DNA binding protein
814	 69.71	0	794073..794630	-	185	119383571	-	Pden_0819	-	putative anti-sigma regulatory factor, serine/threonine protein kinase
815	 67.76	0	794627..794992	-	121	119383572	-	Pden_0820	-	anti-sigma-factor antagonist
816	 70.37	0	795231..795608	+	125	119383573	-	Pden_0821	-	hypothetical protein
817	 66.63	0	795629..798091	+	820	119383574	-	Pden_0822	-	peptidase domain-containing protein
818	 66.17	0	798302..799714	+	470	119383575	-	Pden_0823	-	hypothetical protein
819	 66.67	0	799729..800688	+	319	119383576	-	Pden_0824	-	hypothetical protein
820	 71.62	+1	800699..801505	+	268	119383577	-	Pden_0825	-	transglutaminase domain-containing protein
821	 64.82	0	801536..802294	+	252	119383578	-	Pden_0826	-	20S proteasome, A and B subunits
822	 71.18	+1	802307..804943	-	878	119383579	-	Pden_0827	-	DNA mismatch repair protein
823	 69.29	0	805100..805939	+	279	119383580	-	Pden_0828	-	hydratase/decarboxylase
824	 65.85	0	806084..807190	+	368	119383581	-	Pden_0829	-	extracellular solute-binding protein
825	 64.85	0	807211..808092	+	293	119383582	-	Pden_0830	-	binding-protein-dependent transport systems inner membrane component
826	 65.90	0	808089..808871	+	260	119383583	-	Pden_0831	-	binding-protein-dependent transport systems inner membrane component
827	 70.53	0	808868..809902	+	344	119383584	-	Pden_0832	-	ABC transporter related
828	 68.24	0	810408..812123	+	571	119383585	-	Pden_0833	-	hemolysin-type calcium-binding region
829	 70.54	0	812160..812933	-	257	119383586	-	Pden_0834	-	WecB/TagA/CpsF family glycosyl transferase
830	 65.26	0	813051..814475	+	474	119383587	-	Pden_0835	-	hypothetical protein
831	 70.52	0	814575..820856	+	2093	119383588	-	Pden_0836	-	beta-ketoacyl synthase
832	 67.88	0	820859..821851	+	330	119383589	-	Pden_0837	-	glycosyl transferase family protein
833	 70.34	0	821848..826473	+	1541	119383590	-	Pden_0838	-	amino acid adenylation domain-containing protein
834	 72.60	+1	826470..827093	+	207	119383591	-	Pden_0839	-	4'-phosphopantetheinyl transferase
835	 69.90	0	827074..828279	-	401	119383592	-	Pden_0840	-	glycosyl transferase, group 1
836	 63.38	0	828462..828674	+	70	119383593	-	Pden_0841	-	hypothetical protein
837	 65.95	0	828668..829366	-	232	119383594	-	Pden_0842	-	undecaprenyl-phosphate galactose phosphotransferase
838	 65.11	0	829672..830442	+	256	119383595	-	Pden_0843	-	hypothetical protein
839	 71.86	+1	830439..831266	-	275	119383596	-	Pden_0844	-	glycosyl transferase family protein
840	 71.68	+1	831535..832272	+	245	119383597	-	Pden_0845	-	ATPases involved in chromosome partitioning-like
841	 67.62	0	832333..833799	+	488	119383598	-	Pden_0846	-	lipopolysaccharide biosynthesis
842	 67.47	0	833799..835172	+	457	119383599	-	Pden_0847	-	polysaccharide biosynthesis protein
843	 66.49	0	835257..837539	+	760	119383600	-	Pden_0848	-	malic enzyme
844	 64.50	0	837600..838199	-	199	119383601	-	Pden_0849	-	putative outer membrane protein
845	 67.80	0	838421..839389	-	322	119383602	-	Pden_0850	-	rhodanese domain-containing protein
846	 66.50	0	839444..840040	+	198	119383603	-	Pden_0851	-	nicotinamidase
847	 65.44	0	840040..841347	+	435	119383604	-	Pden_0852	-	nicotinate phosphoribosyltransferase
848	 67.15	0	841517..843187	-	556	119383605	nadE	Pden_0853	-	NAD synthetase
849	 67.83	0	843319..844785	+	488	119383606	-	Pden_0854	-	MORN repeat-containing protein
850	 66.27	0	844892..845389	-	165	119383607	-	Pden_0855	-	xanthine-guanine phosphoribosyltransferase
851	 66.67	0	845399..846001	-	200	119383608	-	Pden_0856	-	lysine exporter protein LysE/YggA
852	 64.13	0	846011..846838	-	275	119383609	-	Pden_0857	-	enoyl-(acyl carrier protein) reductase
853	 64.10	0	846922..847584	+	220	119383610	-	Pden_0858	-	pyridoxamine-phosphate oxidase
854	 65.32	0	847715..848308	+	197	119383611	-	Pden_0859	-	cold-shock DNA-binding domain-containing protein
66.57	MEAN

4.21	STD DEV
