IslandPathversion 1.0

IslandPath Analysis: Paracoccus denitrificans PD1222

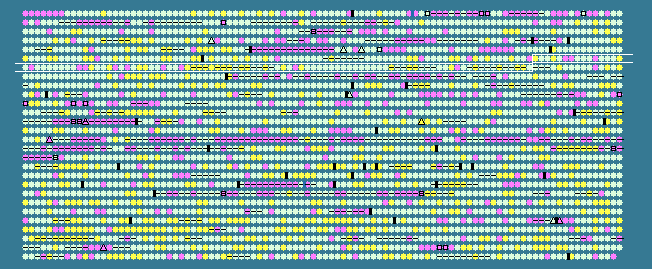

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.57 STD DEV: 4.21
Paracoccus denitrificans PD1222 chromosome 1, complete sequence - 1..2852282
2799 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
586	 72.94	+1	564656..565627	+	323	119383343	-	Pden_0591	-	putative tellurite resistance protein
587	 67.29	0	565697..567145	+	482	119383344	-	Pden_0592	-	inosine-5'-monophosphate dehydrogenase
588	 68.41	0	567470..568273	+	267	119383345	-	Pden_0593	-	hypothetical protein
589	 71.70	+1	568349..569500	+	383	119383346	-	Pden_0594	-	Fmu (Sun) domain-containing protein
590	 66.96	0	569558..571600	+	680	119383347	-	Pden_0595	-	multi-sensor hybrid histidine kinase
591	 62.39	0	571624..572208	-	194	119383348	-	Pden_0596	-	hypothetical protein
592	 61.72	-1	572452..573522	+	356	119383349	recA	Pden_0597	-	recombinase A
593	 65.84	0	573749..576406	+	885	119383350	alaS	Pden_0598	-	alanyl-tRNA synthetase
594	 66.67	0	576403..576693	+	96	119383351	-	Pden_0599	-	hypothetical protein
595	 66.16	0	576760..577554	+	264	119383352	-	Pden_0600	-	putative glutamine amidotransferase
596	 60.98	-1	577694..577939	-	81	119383353	-	Pden_0601	-	hypothetical protein
597	 65.32	0	577960..578181	-	73	119383354	-	Pden_0602	-	hypothetical protein
598	 66.13	0	578569..579861	+	430	119383355	-	Pden_0603	-	adenylosuccinate synthetase
599	 63.38	0	579873..580085	+	70	119383356	-	Pden_0604	-	hypothetical protein
600	 71.23	+1	580103..580738	+	211	119383357	-	Pden_0605	-	thiamine pyrophosphokinase
601	 69.14	0	580824..581795	-	323	119383358	-	Pden_0606	-	binding-protein-dependent transport systems inner membrane component
602	 63.00	0	581788..582795	-	335	119383359	-	Pden_0607	-	binding-protein-dependent transport systems inner membrane component
603	 66.31	0	582803..584503	-	566	119383360	-	Pden_0608	-	extracellular solute-binding protein
604	 68.63	0	584724..586553	+	609	119383361	-	Pden_0609	-	ABC transporter related
605	 66.15	0	586652..587821	+	389	119383362	-	Pden_0610	-	amidohydrolase
606	 65.52	0	587908..589299	-	463	119383363	-	Pden_0611	-	dihydrolipoamide dehydrogenase
607	 69.93	0	589345..589926	-	193	119383364	-	Pden_0612	-	hypothetical protein
608	 66.11	0	589984..591234	-	416	119383365	-	Pden_0613	-	major facilitator transporter
609	 69.35	0	591234..592313	-	359	119383366	-	Pden_0614	-	queuosine biosynthesis protein
610	 59.45	-1	592411..592701	+	96	119383367	-	Pden_0615	-	putative bacterioferritin-associated ferredoxin
611	 59.05	-1	592649..593134	+	161	119383368	-	Pden_0616	-	bacterioferritin
612	 72.74	+1	593194..593868	-	224	119383369	-	Pden_0617	-	HAD family hydrolase
613	 68.98	0	593973..595313	+	446	119383370	-	Pden_0618	-	nucleotidyl transferase
614	 68.87	0	595315..597132	+	605	119383371	-	Pden_0619	-	D-fructose-6-phosphate amidotransferase
615	 73.78	+1	597136..598119	-	327	119383372	-	Pden_0620	-	peptidase S58, DmpA
616	 62.74	0	598259..598843	+	194	119383373	-	Pden_0621	-	peptide methionine sulfoxide reductase
617	 69.31	0	598844..599713	+	289	119383374	-	Pden_0622	-	ribosomal L11 methyltransferase
618	 63.08	0	599834..600028	-	64	119383375	-	Pden_0623	-	hypothetical protein
619	 68.75	0	600267..600986	-	239	119383376	-	Pden_0624	-	hypothetical protein
620	 70.99	+1	601003..601974	+	323	119383377	ubiA	Pden_0625	-	prenyltransferase
621	 72.56	+1	602001..604307	+	768	119383378	-	Pden_0626	-	OmpA/MotB domain-containing protein
622	 64.53	0	604338..604664	+	108	119383379	-	Pden_0627	-	hypothetical protein
623	 64.58	0	604661..605521	-	286	119383380	-	Pden_0628	-	hypothetical protein
624	 61.97	-1	605518..605964	-	148	119383381	-	Pden_0629	-	hypothetical protein
625	 66.58	0	606107..607291	-	394	119383382	-	Pden_0630	-	aromatic amino acid aminotransferase
626	 67.94	0	607291..608151	-	286	119383383	-	Pden_0631	-	3-mercaptopyruvate sulfurtransferase
627	 62.00	-1	608217..608687	-	156	119383384	smpB	Pden_0632	-	SsrA-binding protein
628	 71.84	+1	608839..610500	+	553	119383385	-	Pden_0633	-	acetolactate synthase 2 catalytic subunit
629	 72.14	+1	610511..611935	-	474	119383386	-	Pden_0634	-	phosphate transporter
630	 70.91	+1	611932..612402	-	156	119383387	-	Pden_0635	-	NUDIX hydrolase
631	 71.99	+1	612399..612830	-	143	119383388	-	Pden_0636	-	hypothetical protein
632	 74.81	+1	612897..614948	-	683	119383389	-	Pden_0637	-	penicillin-binding protein 1C
633	 72.25	+1	615033..616142	-	369	119383390	-	Pden_0638	-	hypothetical protein
634	 71.35	+1	616152..617519	-	455	119383391	-	Pden_0639	-	protein of unknown function DUF463, YcjX family protein
635	 73.93	+1	617618..620026	+	802	119383392	-	Pden_0640	-	ATP-dependent helicase HrpB
636	 66.67	0	620066..620614	-	182	119383393	-	Pden_0641	-	hypothetical protein
637	 72.82	+1	620768..621661	-	297	119383394	-	Pden_0642	-	methionyl-tRNA formyltransferase
638	 72.58	+1	621688..622566	-	292	119383395	-	Pden_0643	-	dienelactone hydrolase
639	 69.11	0	622551..624188	-	545	119383396	-	Pden_0644	-	hypothetical protein
640	 68.66	0	624493..624993	-	166	119383397	-	Pden_0645	-	peptide deformylase
641	 70.79	+1	625277..625834	-	185	119383398	-	Pden_0646	-	peptide deformylase
642	 65.33	0	625827..626348	-	173	119383399	-	Pden_0647	-	peptide deformylase
643	 68.95	0	626439..627623	+	394	119383400	-	Pden_0648	-	aminotransferase, class I and II
644	 70.79	+1	627620..628249	+	209	119383401	-	Pden_0649	-	ErfK/YbiS/YcfS/YnhG family protein
645	 69.57	0	628306..629682	+	458	119383402	-	Pden_0650	-	MATE efflux family protein
646	 58.23	-1	629713..629949	+	78	119383403	-	Pden_0651	-	AsnC family transcriptional regulator
647	 70.77	0	629991..631136	+	381	119383404	-	Pden_0652	-	histidinol-phosphate aminotransferase
648	 66.05	0	631186..631668	-	160	119383405	-	Pden_0653	-	AsnC family transcriptional regulator
649	 64.57	0	631740..632120	+	126	119383406	-	Pden_0654	-	hypothetical protein
650	 66.73	0	632113..633768	+	551	119383407	-	Pden_0655	-	nitrite/sulfite reductase hemoprotein beta subunit
651	 67.49	0	633761..634492	+	243	119383408	-	Pden_0656	-	phosphoadenosine phosphosulfate reductase
652	 68.82	0	634489..634860	+	123	119383409	-	Pden_0657	-	hypothetical protein
653	 64.28	0	634914..635750	+	278	119383410	-	Pden_0658	-	ferredoxin--NADP(+) reductase
654	 66.51	0	635875..638430	+	851	119383411	-	Pden_0659	-	DNA topoisomerase I
655	 67.01	0	638639..640381	+	580	119383412	-	Pden_0660	-	gamma-glutamyltransferase
656	 67.82	0	640375..640722	-	115	119383413	-	Pden_0661	-	hypothetical protein
657	 64.35	0	641089..642597	-	502	119383414	-	Pden_0662	-	amino acid carrier protein
658	 66.86	0	642700..644766	-	688	119383415	-	Pden_0663	-	TRAP transporter, 4TM/12TM fusion protein
659	 67.27	0	644849..645850	-	333	119383416	-	Pden_0664	-	TRAP transporter solute receptor TAXI family protein
660	 67.61	0	646155..647639	+	494	119383417	-	Pden_0665	-	phosphate transporter
661	 64.41	0	647851..649314	+	487	119383418	-	Pden_0666	-	amino acid carrier protein
662	 70.67	0	649453..650526	-	357	119383419	-	Pden_0667	-	hypothetical protein
663	 67.68	0	650523..651113	-	196	119383420	-	Pden_0668	-	TetR family transcriptional regulator
664	 69.30	0	651205..652191	+	328	119383421	-	Pden_0669	-	3-oxoacyl-(acyl-carrier-protein) synthase
665	 72.24	+1	652191..653123	+	310	119383422	-	Pden_0670	-	NAD-dependent epimerase/dehydratase
666	 72.03	+1	653111..653893	+	260	119383423	-	Pden_0671	-	beta-lactamase domain-containing protein
667	 68.70	0	653890..655170	+	426	119383424	-	Pden_0672	-	putative adenylate-forming enzyme
668	 69.30	0	655286..656311	-	341	119383425	-	Pden_0673	-	regulatory protein, LacI
669	 65.99	0	656409..657740	+	443	119383426	-	Pden_0674	-	xanthine/uracil/vitamin C permease
670	 70.03	0	657740..659137	+	465	119383427	-	Pden_0675	-	amidohydrolase
671	 68.78	0	659134..659844	+	236	119383428	-	Pden_0676	-	hypothetical protein
672	 72.05	+1	659972..660733	-	253	119383429	-	Pden_0677	-	putative hydantoin racemase protein
673	 60.61	-1	660737..662089	-	450	119383430	-	Pden_0678	-	permease for cytosine/purines, uracil, thiamine, allantoin
674	 68.21	0	662118..662828	-	236	119383431	-	Pden_0679	-	Asp/Glu racemase
675	 65.64	0	662953..663633	+	226	119383432	-	Pden_0680	-	GntR family transcriptional regulator
676	 70.77	0	663687..664271	+	194	119383433	-	Pden_0681	-	hypothetical protein
677	 67.65	0	664351..664755	+	134	119383434	-	Pden_0682	-	4-hydroxybenzoyl-CoA thioesterase
678	 66.09	0	664857..665552	+	231	119383435	-	Pden_0683	-	MotA/TolQ/ExbB proton channel
679	 69.68	0	665554..666018	+	154	119383436	-	Pden_0684	-	biopolymer transport protein ExbD/TolR
680	 74.11	+1	666022..667566	+	514	119383437	-	Pden_0685	-	TolA family protein
681	 66.02	0	667568..668953	+	461	119383438	tolB	Pden_0686	-	translocation protein TolB
682	 67.05	0	668964..669485	+	173	119383439	-	Pden_0687	-	OmpA domain-containing protein
683	 70.75	0	669482..670411	+	309	119383440	-	Pden_0688	-	hypothetical protein
684	 73.90	+1	670401..671630	+	409	119383441	-	Pden_0689	-	tRNA(Ile)-lysidine synthetase
685	 64.98	0	671691..673586	+	631	119383442	-	Pden_0690	-	ATP-dependent metalloprotease FtsH
66.57	MEAN

4.21	STD DEV
