IslandPathversion 1.0

IslandPath Analysis: Paracoccus denitrificans PD1222

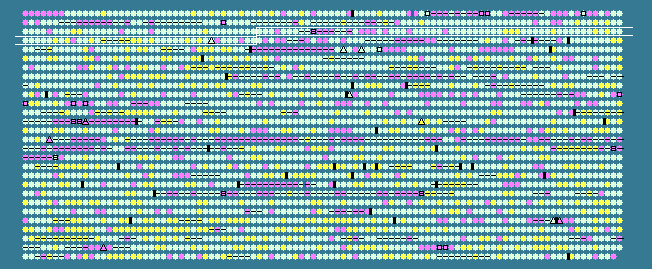

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.57 STD DEV: 4.21
Paracoccus denitrificans PD1222 chromosome 1, complete sequence - 1..2852282
2799 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
240	 68.15	0	224461..225939	+	492	119382997	-	Pden_0243	-	succinate-semialdehyde dehydrogenase (NAD(P)(+))
241	 68.49	0	225977..227128	+	383	119382998	-	Pden_0244	-	mandelate racemase/muconate lactonizing protein
242	 68.18	0	227187..228044	+	285	119382999	-	Pden_0245	-	5-carboxymethyl-2-hydroxymuconate delta-isomerase
243	 62.40	0	228259..229149	+	296	119383000	-	Pden_0246	-	xylose isomerase domain-containing protein
244	 65.04	0	229193..230239	+	348	119383001	-	Pden_0247	-	periplasmic binding protein/LacI transcriptional regulator
245	 66.11	0	230457..231896	+	479	119383002	-	Pden_0248	-	ABC transporter related
246	 65.52	0	231893..232855	+	320	119383003	-	Pden_0249	-	inner-membrane translocator
247	 64.93	0	232852..233715	+	287	119383004	-	Pden_0250	-	DNA-binding transcriptional repressor RpiR
248	 68.80	0	233732..234574	+	280	119383005	-	Pden_0251	-	ribokinase-like domain-containing protein
249	 53.57	-2	234598..234849	-	83	119383006	-	Pden_0252	-	transposase (class I)
250	 63.05	0	234955..235479	-	174	119383007	-	Pden_0253	-	hypothetical protein
251	 54.84	-2	235511..235789	+	92	119383008	-	Pden_0254	-	hypothetical protein
252	 56.63	-2	236307..236864	+	185	119383009	-	Pden_0255	-	hypothetical protein
253	 65.49	0	236988..237242	+	84	119383010	-	Pden_0256	-	hypothetical protein
254	 65.24	0	237429..237779	-	116	119383011	-	Pden_0257	-	hypothetical protein
255	 61.82	-1	237776..238126	-	116	119383012	-	Pden_0258	-	hypothetical protein
256	 65.76	0	238183..238512	+	109	119383013	-	Pden_0259	-	hypothetical protein
257	 62.32	-1	238789..239064	-	91	119383014	-	Pden_0260	-	hypothetical protein
258	 61.26	-1	239190..239984	-	264	119383015	-	Pden_0261	-	D12 class N6 adenine-specific DNA methyltransferase
259	 53.09	-2	239981..240562	-	193	119383016	-	Pden_0262	-	hypothetical protein
260	 65.59	0	240559..242226	-	555	119383017	-	Pden_0263	-	DNA-cytosine methyltransferase
261	 58.59	-1	242420..242716	+	98	119383018	-	Pden_0264	-	hypothetical protein
262	 64.81	0	242716..243093	+	125	119383019	-	Pden_0265	-	XRE family transcriptional regulator
263	 68.03	0	243083..243817	+	244	119383020	-	Pden_0266	-	hypothetical protein
264	 68.97	0	243957..244910	-	317	119383021	-	Pden_0267	-	peptidoglycan binding domain-containing protein
265	 60.85	-1	244980..245237	-	85	119383022	-	Pden_0268	-	hypothetical protein
266	 66.10	0	245264..245617	-	117	119383023	-	Pden_0269	-	hypothetical protein
267	 64.50	0	245625..249644	-	1339	119383024	-	Pden_0270	-	gene transfer agent (GTA) like protein
268	 67.58	0	249649..250086	-	145	119383025	-	Pden_0271	-	NlpC/P60 family phage cell wall peptidase
269	 64.41	0	250083..250967	-	294	119383026	-	Pden_0272	-	phage protein
270	 63.32	0	250964..251590	-	208	119383027	-	Pden_0273	-	hypothetical protein
271	 62.62	0	251590..252849	-	419	119383028	-	Pden_0274	-	hypothetical protein
272	 64.79	0	252834..253898	-	354	119383029	-	Pden_0275	-	hypothetical protein
273	 67.05	0	254344..254865	+	173	119383030	-	Pden_0276	-	putative sugar-binding protein
274	 69.37	0	254938..255678	-	246	119383031	-	Pden_0277	-	ChaC family protein
275	 64.86	0	256203..257528	+	441	119383032	-	Pden_0278	-	major facilitator transporter
276	 69.62	0	257705..259090	+	461	119383033	-	Pden_0279	-	GntR family transcriptional regulator
277	 63.99	0	259188..259973	+	261	119383034	-	Pden_0280	-	ABC transporter related
278	 66.78	0	259973..260818	+	281	119383035	-	Pden_0281	-	extracellular solute-binding protein
279	 66.36	0	260877..261533	+	218	119383036	-	Pden_0282	-	amino acid ABC transporter, permease protein, 3-TM region, His/Glu/Gln/Arg/opine
280	 64.70	0	261535..262194	+	219	119383037	-	Pden_0283	-	amino acid ABC transporter, permease protein, 3-TM region, His/Glu/Gln/Arg/opine
281	 70.97	+1	262191..262934	+	247	119383038	-	Pden_0284	-	Asp/Glu racemase
282	 72.83	+1	262931..263887	+	318	119383039	-	Pden_0285	-	threonine dehydratase
283	 70.86	+1	263884..264861	+	325	119383040	-	Pden_0286	-	ornithine cyclodeaminase
284	 64.64	0	264873..266054	+	393	119383041	-	Pden_0287	-	peptidase M24
285	 68.46	0	266068..267069	+	333	119383042	-	Pden_0288	-	succinylglutamate desuccinylase/aspartoacylase
286	 68.73	0	267066..268517	+	483	119383043	-	Pden_0289	-	succinate-semialdehyde dehydrogenase (NAD(P)(+))
287	 66.16	0	268517..269887	+	456	119383044	-	Pden_0290	-	hypothetical protein
288	 68.85	0	269891..271033	+	380	119383045	-	Pden_0291	-	alcohol dehydrogenase
289	 70.26	0	271049..272245	-	398	119383046	-	Pden_0292	-	hypothetical protein
290	 69.39	0	272403..272990	-	195	119383047	-	Pden_0293	-	hypothetical protein
291	 68.19	0	273336..275105	-	589	119383048	-	Pden_0294	-	hemolysin-type calcium-binding region
292	 67.51	0	275682..276158	+	158	119383049	-	Pden_0295	-	MarR family transcriptional regulator
293	 67.79	0	276190..278148	-	652	119383050	-	Pden_0296	-	TonB-dependent receptor
294	 68.51	0	278251..279009	-	252	119383051	-	Pden_0297	-	ABC transporter related
295	 67.60	0	279006..279965	-	319	119383052	-	Pden_0298	-	transport system permease protein
296	 70.74	0	279955..280911	-	318	119383053	-	Pden_0299	-	transport system permease protein
297	 67.00	0	280913..281818	-	301	119383054	-	Pden_0300	-	periplasmic binding protein
298	 71.59	+1	282034..283434	+	466	119383055	-	Pden_0301	-	L-seryl-tRNA(Sec) selenium transferase
299	 66.67	0	283449..284342	-	297	119383056	-	Pden_0302	-	LysR family transcriptional regulator
300	 63.27	0	284436..284876	+	146	119383057	-	Pden_0303	-	transmembrane pair domain-containing protein
301	 68.81	0	284873..285757	-	294	119383058	-	Pden_0304	-	LysR family transcriptional regulator
302	 66.32	0	285838..286125	+	95	119383059	-	Pden_0305	-	hypothetical protein
303	 68.45	0	286535..288052	-	505	119383060	-	Pden_0306	-	hypothetical protein
304	 69.09	0	288056..288550	-	164	119383061	-	Pden_0307	-	putative tricarboxylic transport membrane protein
305	 67.83	0	288547..289488	-	313	119383062	-	Pden_0308	-	hypothetical protein
306	 70.49	0	289661..290758	-	365	119383063	-	Pden_0309	-	periplasmic iron-binding protein
307	 68.60	0	290820..291491	+	223	119383064	-	Pden_0310	-	two component transcriptional regulator
308	 73.72	+1	291488..292918	+	476	119383065	-	Pden_0311	-	integral membrane sensor signal transduction histidine kinase
309	 62.37	0	293052..294146	+	364	119383066	-	Pden_0312	-	hypothetical protein
310	 69.11	0	294237..295178	+	313	119383067	-	Pden_0313	-	hypothetical protein
311	 65.27	0	295262..295834	+	190	119383068	-	Pden_0314	-	AmiS/UreI transporter
312	 70.31	0	295835..297919	-	694	119383069	-	Pden_0315	-	oxidoreductase domain-containing protein
313	 67.60	0	297929..298891	-	320	119383070	-	Pden_0316	-	glycosyl transferase family protein
314	 70.97	+1	298982..300166	-	394	119383071	-	Pden_0317	-	CBS domain-containing protein
315	 70.02	0	300271..300927	-	218	119383072	-	Pden_0318	-	GntR family transcriptional regulator
316	 67.23	0	301221..302456	+	411	119383073	-	Pden_0319	-	hypothetical protein
317	 72.09	+1	302525..303298	+	257	119383074	-	Pden_0320	-	LamB/YcsF family protein
318	 70.08	0	303295..304086	+	263	119383075	-	Pden_0321	-	hypothetical protein
319	 72.34	+1	304074..305642	+	522	119383076	-	Pden_0322	-	allophanate hydrolase subunit 2
320	 70.40	0	305639..307405	+	588	119383077	-	Pden_0323	-	carbamoyl-phosphate synthase L chain, ATP-binding
321	 69.48	0	307485..308516	+	343	119383078	-	Pden_0324	-	putative ammonia monooxygenase
322	 70.92	+1	308566..309129	+	187	119383079	-	Pden_0325	-	hypothetical protein
323	 67.92	0	309179..310213	-	344	119383080	-	Pden_0326	-	luciferase family protein
324	 69.44	0	310210..311184	-	324	119383081	-	Pden_0327	-	LysR family transcriptional regulator
325	 68.15	0	311304..312248	+	314	119383082	-	Pden_0328	-	glyoxalase/bleomycin resistance protein/dioxygenase
326	 67.16	0	312401..312802	+	133	119383083	-	Pden_0329	-	hypothetical protein
327	 64.65	0	312834..313427	-	197	119383084	-	Pden_0330	-	NADPH-dependent FMN reductase
328	 70.52	0	313684..315213	-	509	119383085	-	Pden_0331	-	glyoxalase/bleomycin resistance protein/dioxygenase
329	 69.26	0	315226..315843	-	205	119383086	-	Pden_0332	-	glutathione S-transferase domain-containing protein
330	 70.30	0	315957..316754	-	265	119383087	trpA	Pden_0333	-	tryptophan synthase subunit alpha
331	 66.30	0	316884..317981	+	365	119383088	-	Pden_0334	-	translation-associated GTPase
332	 64.43	0	318371..319441	-	356	119383089	-	Pden_0335	-	phage integrase family protein
333	 53.33	-2	319640..319954	-	104	119383090	-	Pden_0336	-	hypothetical protein
334	 69.41	0	319992..320720	-	242	119383091	-	Pden_0337	-	hypothetical protein
335	 65.32	0	320717..321160	-	147	119383092	-	Pden_0338	-	hypothetical protein
336	 65.12	0	321356..322261	-	301	119383093	-	Pden_0339	-	hypothetical protein
337	 62.86	0	322258..322677	-	139	119383094	-	Pden_0340	-	hypothetical protein
338	 65.08	0	322674..325319	-	881	119383095	-	Pden_0341	-	DNA methylase N-4/N-6 domain-containing protein
339	 65.15	0	325323..326441	-	372	119383096	-	Pden_0342	-	DNA polymerase III, beta subunit
66.57	MEAN

4.21	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
