IslandPathversion 1.0

IslandPath Analysis: Paracoccus denitrificans PD1222

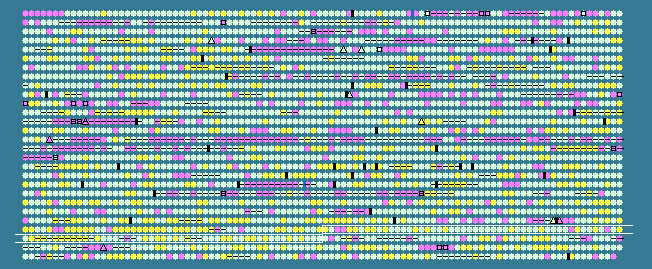

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.57 STD DEV: 4.21
Paracoccus denitrificans PD1222 chromosome 1, complete sequence - 1..2852282
2799 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2451	 71.31	+1	2496242..2498158	-	638	119385208	-	Pden_2481	-	von Willebrand factor, type A
2452	 69.00	0	2498170..2498982	-	270	119385209	-	Pden_2482	-	ATPase
2453	 62.42	0	2498986..2500374	-	462	119385210	-	Pden_2483	-	cytochrome c oxidase, subunit I
2454	 61.15	-1	2500388..2500840	-	150	119385211	-	Pden_2484	-	nitric-oxide reductase
2455	 73.55	+1	2500915..2501829	-	304	119385212	-	Pden_2485	-	ApbE family lipoprotein
2456	 70.28	0	2501826..2503871	-	681	119385213	-	Pden_2486	-	FMN-binding domain-containing protein
2457	 64.15	0	2503999..2505789	+	596	119385214	-	Pden_2487	-	hydroxylamine reductase
2458	 72.22	+1	2505861..2506724	+	287	119385215	-	Pden_2488	-	uroporphyrin-III C-methyltransferase
2459	 71.15	+1	2506717..2507028	+	103	119385216	-	Pden_2489	-	cytochrome c (c55X)
2460	 69.00	0	2507025..2508179	+	384	119385217	-	Pden_2490	-	cytochrome d1, heme region
2461	 72.63	+1	2508182..2509153	+	323	119385218	-	Pden_2491	-	AsnC family transcriptional regulator
2462	 68.14	0	2509150..2509623	+	157	119385219	-	Pden_2492	-	AsnC family transcriptional regulator
2463	 68.32	0	2509620..2510102	+	160	119385220	-	Pden_2493	-	AsnC family transcriptional regulator
2464	 68.22	0	2510116..2511339	+	407	119385221	-	Pden_2494	-	radical SAM domain-containing protein
2465	 65.64	0	2511314..2512768	+	484	119385222	-	Pden_2495	-	cytochrome d1, heme region
2466	 70.41	0	2512725..2512991	+	88	119385223	-	Pden_2496	-	hypothetical protein
2467	 66.48	0	2513247..2515424	+	725	119385224	-	Pden_2497	-	catalase/peroxidase HPI
2468	 71.34	+1	2515560..2517761	-	733	119385225	-	Pden_2498	-	primosome assembly protein PriA
2469	 63.30	0	2518051..2518704	+	217	119385226	-	Pden_2499	-	putative translaldolase
2470	 70.04	0	2518704..2519414	+	236	119385227	-	Pden_2500	-	hypothetical protein
2471	 72.20	+1	2519411..2520349	+	312	119385228	xerC	Pden_2501	-	site-specific tyrosine recombinase XerC
2472	 69.70	0	2520515..2521273	+	252	119385229	-	Pden_2502	-	hypothetical protein
2473	 70.01	0	2521311..2522297	-	328	119385230	-	Pden_2503	-	L-asparaginase II
2474	 67.99	0	2522449..2522976	+	175	119385231	-	Pden_2504	-	hypothetical protein
2475	 66.50	0	2523082..2524257	+	391	119385232	-	Pden_2505	-	radical SAM protein
2476	 68.37	0	2524476..2525999	+	507	119385233	-	Pden_2506	-	phosphoglyceromutase
2477	 69.74	0	2525996..2527231	+	411	119385234	-	Pden_2507	-	peptidase M23B
2478	 65.11	0	2527228..2528643	+	471	119385235	-	Pden_2508	-	carboxyl-terminal protease
2479	 67.48	0	2528640..2529131	+	163	119385236	-	Pden_2509	-	NUDIX hydrolase
2480	 69.78	0	2529222..2530475	-	417	119385237	-	Pden_2510	-	lytic murein transglycosylase
2481	 67.92	0	2530564..2530881	-	105	119385238	-	Pden_2511	-	hypothetical protein
2482	 71.13	+1	2530938..2531408	+	156	119385239	-	Pden_2512	-	YbaK/prolyl-tRNA synthetase associated region
2483	 66.27	0	2531453..2531704	-	83	119385240	-	Pden_2513	-	transglycosylase-associated protein
2484	 65.58	0	2531809..2532633	-	274	119385241	dapD	Pden_2514	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
2485	 65.61	0	2532699..2533553	+	284	119385242	-	Pden_2515	-	hypothetical protein
2486	 67.05	0	2533772..2534299	-	175	119385243	-	Pden_2516	-	hypothetical protein
2487	 71.37	+1	2534412..2534879	-	155	119385244	-	Pden_2517	-	hypothetical protein
2488	 68.17	0	2534883..2535215	-	110	119385245	-	Pden_2518	-	iojap-like protein
2489	 67.95	0	2535414..2535647	-	77	119385246	-	Pden_2519	-	hypothetical protein
2490	 67.85	0	2535943..2537379	+	478	119385247	-	Pden_2520	-	isopropylmalate isomerase large subunit
2491	 65.64	0	2537397..2537981	-	194	119385248	-	Pden_2521	-	hypothetical protein
2492	 61.55	-1	2538074..2538679	+	201	119385249	leuD	Pden_2522	-	isopropylmalate isomerase small subunit
2493	 71.89	+1	2538670..2539722	+	350	119385250	-	Pden_2523	-	hypothetical protein
2494	 68.36	0	2540009..2540185	+	58	119385251	-	Pden_2524	-	hypothetical protein
2495	 68.38	0	2540187..2540885	+	232	119385252	-	Pden_2525	-	cobalt transporter, subunit CbtA
2496	 71.35	+1	2540955..2541488	+	177	119385253	-	Pden_2526	-	hypothetical protein
2497	 70.03	0	2541488..2542111	+	207	119385254	-	Pden_2527	-	cob(II)yrinic acid a,c-diamide reductase
2498	 63.07	0	2542115..2542531	-	138	119385255	-	Pden_2528	-	hypothetical protein
2499	 63.89	0	2542536..2543147	-	203	119385256	-	Pden_2529	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
2500	 73.45	+1	2543463..2543816	+	117	119385257	-	Pden_2530	-	hypothetical protein
2501	 69.37	0	2543820..2544854	+	344	119385258	-	Pden_2531	-	cobalamin biosynthesis protein CobW
2502	 71.81	+1	2544858..2548028	+	1056	119385259	cobN	Pden_2532	-	cobaltochelatase
2503	 73.20	+1	2548025..2549188	+	387	119385260	-	Pden_2533	-	precorrin-3B synthase
2504	 71.90	+1	2549232..2549861	+	209	119385261	cobH	Pden_2534	-	precorrin-8X methylmutase
2505	 69.42	0	2549864..2550625	+	253	119385262	-	Pden_2535	-	precorrin-2 C20-methyltransferase
2506	 71.88	+1	2550622..2551350	+	242	119385263	-	Pden_2536	-	precorrin-3B C17-methyltransferase
2507	 72.58	+1	2551326..2552018	-	230	119385264	-	Pden_2537	-	precorrin-6A reductase
2508	 72.72	+1	2552062..2553234	+	390	119385265	-	Pden_2538	-	precorrin-6y C5,15-methyltransferase (decarboxylating), CbiE subunit
2509	 74.93	+1	2553231..2553581	+	116	119385266	-	Pden_2539	-	precorrin methylase
2510	 72.48	+1	2553578..2554351	+	257	119385267	-	Pden_2540	-	precorrin-4 C11-methyltransferase
2511	 71.63	+1	2554348..2555637	+	429	119385268	-	Pden_2541	-	cobyrinic acid a,c-diamide synthase
2512	 69.87	0	2555634..2556383	+	249	119385269	-	Pden_2542	-	precorrin 6A synthase
2513	 74.11	+1	2556368..2556676	+	102	119385270	-	Pden_2543	-	hypothetical protein
2514	 66.04	0	2557025..2557504	+	159	119385271	-	Pden_2544	-	cytochrome c, class II
2515	 64.95	0	2557504..2558085	+	193	119385272	-	Pden_2545	-	cytochrome B561
2516	 67.16	0	2558375..2560618	-	747	119385273	-	Pden_2546	-	DNA topoisomerase IV subunit A
2517	 69.72	0	2560721..2561539	+	272	119385274	-	Pden_2547	-	short-chain dehydrogenase/reductase SDR
2518	 60.70	-1	2561564..2561764	+	66	119385275	-	Pden_2548	-	hypothetical protein
2519	 68.76	0	2561764..2562336	+	190	119385276	-	Pden_2549	-	ATP--cobalamin adenosyltransferase
2520	 66.40	0	2562457..2563215	+	252	119385277	-	Pden_2550	-	electron transfer flavoprotein beta-subunit
2521	 70.33	0	2563215..2564141	+	308	119385278	-	Pden_2551	-	electron transfer flavoprotein, alpha subunit
2522	 63.58	0	2564340..2565215	+	291	119385279	-	Pden_2552	-	3-hydroxybutyryl-CoA dehydrogenase
2523	 70.77	0	2565291..2565875	-	194	119385280	-	Pden_2553	-	hypothetical protein
2524	 71.15	+1	2565872..2567143	-	423	119385281	-	Pden_2554	-	dihydroorotase, multifunctional complex type
2525	 66.15	0	2567140..2568099	-	319	119385282	pyrB	Pden_2555	-	aspartate carbamoyltransferase catalytic subunit
2526	 72.11	+1	2568202..2568936	+	244	119385283	-	Pden_2556	-	uroporphyrin-III C-methyltransferase
2527	 69.57	0	2569020..2569535	+	171	119385284	-	Pden_2557	-	hypothetical protein
2528	 72.43	+1	2569538..2569780	+	80	119385285	-	Pden_2558	-	SirA family protein
2529	 68.71	0	2569780..2570709	+	309	119385286	-	Pden_2559	-	auxin efflux carrier
2530	 68.28	0	2570713..2571519	+	268	119385287	-	Pden_2560	-	enoyl-CoA hydratase
2531	 68.99	0	2571625..2572569	+	314	119385288	-	Pden_2561	-	hypothetical protein
2532	 63.10	0	2572609..2572944	-	111	119385289	-	Pden_2562	-	hypothetical protein
2533	 69.17	0	2573003..2573602	-	199	119385290	-	Pden_2563	-	cytochrome B561
2534	 71.98	+1	2573716..2577630	+	1304	119385291	entF	Pden_2564	-	enterobactin synthase subunit F
2535	 71.70	+1	2577850..2578683	-	277	119385292	-	Pden_2565	-	putative esterase
2536	 69.51	0	2578835..2580241	+	468	119385293	-	Pden_2566	-	hypothetical protein
2537	 67.94	0	2580301..2581398	+	365	119385294	-	Pden_2567	-	periplasmic binding protein
2538	 71.50	+1	2581395..2582429	+	344	119385295	-	Pden_2568	-	transport system permease protein
2539	 71.30	+1	2582429..2583205	+	258	119385296	-	Pden_2569	-	ABC transporter related
2540	 66.19	0	2583236..2583655	-	139	119385297	-	Pden_2570	-	hypothetical protein
2541	 74.92	+1	2583696..2584895	-	399	119385298	-	Pden_2571	-	3-deoxy-D-manno-octulosonic-acid transferase domain-containing protein
2542	 67.89	0	2584892..2585626	-	244	119385299	-	Pden_2572	-	ribulose-phosphate 3-epimerase
2543	 67.84	0	2585807..2586832	+	341	119385300	-	Pden_2573	-	Hsp33 protein
2544	 69.56	0	2586829..2587416	+	195	119385301	-	Pden_2574	-	NUDIX hydrolase
2545	 74.21	+1	2587413..2588579	+	388	119385302	-	Pden_2575	-	polynucleotide adenylyltransferase region
2546	 69.24	0	2588579..2590441	+	620	119385303	-	Pden_2576	-	ABC transporter related
2547	 71.99	+1	2590438..2591658	+	406	119385304	-	Pden_2577	-	(Uracil-5)-methyltransferase
2548	 63.18	0	2591724..2592239	+	171	119385305	-	Pden_2578	-	hypothetical protein
2549	 63.46	0	2592340..2592993	-	217	119385306	-	Pden_2579	-	glutathione S-transferase domain-containing protein
2550	 68.33	0	2593137..2593736	-	199	119385307	-	Pden_2580	-	Allergen V5/Tpx-1 family protein
66.57	MEAN

4.21	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
