IslandPathversion 1.0

IslandPath Analysis: Paracoccus denitrificans PD1222

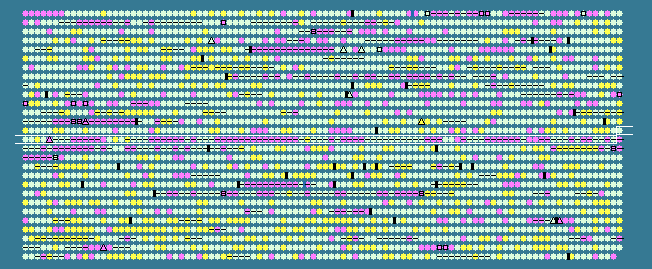

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.57 STD DEV: 4.21
Paracoccus denitrificans PD1222 chromosome 1, complete sequence - 1..2852282
2799 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1400	 66.31	0	1383891..1385555	-	554	119384157	secD	Pden_1416	-	preprotein translocase subunit SecD
1401	 66.67	0	1385572..1385904	-	110	119384158	-	Pden_1417	-	preprotein translocase, YajC subunit
1402	 67.49	0	1386096..1386947	+	283	119384159	mazG	Pden_1418	-	nucleoside triphosphate pyrophosphohydrolase
1403	 72.19	+1	1386952..1387857	+	301	119384160	-	Pden_1419	-	hypothetical protein
1404	 69.60	0	1387841..1388830	-	329	119384161	-	Pden_1420	-	tRNA-dihydrouridine synthase A
1405	 60.70	-1	1388943..1389998	+	351	119384162	-	Pden_1421	-	phage integrase family protein
1406	 65.61	0	1390072..1390542	-	156	119384163	-	Pden_1422	-	BadM/Rrf2 family transcriptional regulator
1407	 70.04	0	1390665..1391582	+	305	119384164	-	Pden_1423	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1408	 66.67	0	1391595..1392215	+	206	119384165	-	Pden_1424	-	methyltransferase type 11
1409	 57.57	-2	1392368..1395784	-	1138	119384166	-	Pden_1425	-	ABC transporter related
1410	 60.69	-1	1395781..1396800	-	339	119384167	-	Pden_1426	-	major facilitator transporter
1411	 56.91	-2	1396961..1399102	-	713	119384168	-	Pden_1427	-	TonB-dependent receptor
1412	 60.51	-1	1399197..1400186	-	329	119384169	-	Pden_1428	-	helix-turn-helix domain-containing protein
1413	 59.09	-1	1400353..1400946	+	197	119384170	-	Pden_1429	-	lysine exporter protein LysE/YggA
1414	 58.33	-1	1400925..1401488	+	187	119384171	-	Pden_1430	-	hypothetical protein
1415	 66.37	0	1401527..1402195	+	222	119384172	-	Pden_1431	-	GntR family transcriptional regulator
1416	 71.86	+1	1402280..1402837	+	185	119384173	-	Pden_1432	-	BioY protein
1417	 68.21	0	1402834..1403808	+	324	119384174	-	Pden_1433	-	biotin synthase
1418	 72.21	+1	1403811..1405253	-	480	119384175	-	Pden_1434	-	GntR family transcriptional regulator
1419	 67.53	0	1405317..1406012	+	231	119384176	-	Pden_1435	-	glutamine amidotransferase class-I
1420	 66.67	0	1406009..1406689	+	226	119384177	-	Pden_1436	-	MOSC domain-containing protein
1421	 67.96	0	1406686..1407534	+	282	119384178	-	Pden_1437	-	pyridoxal kinase
1422	 61.50	-1	1407734..1409686	-	650	119384179	-	Pden_1438	-	pathogenesis-related protein
1423	 57.40	-2	1409683..1411917	-	744	119384180	-	Pden_1439	-	hypothetical protein
1424	 57.41	-2	1412139..1412408	+	89	119384181	-	Pden_1440	-	hypothetical protein
1425	 59.09	-1	1412411..1412872	+	153	119384182	-	Pden_1441	-	hypothetical protein
1426	 59.04	-1	1412869..1413117	-	82	119384183	-	Pden_1442	-	hypothetical protein
1427	 61.90	-1	1413275..1413652	+	125	119384184	-	Pden_1443	-	hypothetical protein
1428	 64.66	0	1413649..1414047	+	132	119384185	-	Pden_1444	-	cupin 2 domain-containing protein
1429	 57.89	-2	1414120..1414404	+	94	119384186	-	Pden_1445	-	hypothetical protein
1430	 64.11	0	1414397..1415647	+	416	119384187	-	Pden_1446	-	major facilitator transporter
1431	 65.38	0	1415738..1416283	+	181	119384188	-	Pden_1447	-	PEBP family protein
1432	 64.73	0	1416302..1417177	+	291	119384189	-	Pden_1448	-	PhzF family phenazine biosynthesis protein
1433	 62.25	-1	1417178..1417720	-	180	119384190	-	Pden_1449	-	hypothetical protein
1434	 62.86	0	1417876..1418190	-	104	119384191	-	Pden_1450	-	alpha/beta hydrolase
1435	 52.92	-2	1418685..1418975	-	96	119384192	-	Pden_1452	-	hypothetical protein
1436	 56.13	-2	1419245..1420051	+	268	119384193	-	Pden_1453	-	DNA polymerase, beta-like
1437	 60.70	-1	1420288..1421376	+	362	119384194	-	Pden_1454	-	glutathione S-transferase-like protein
1438	 59.71	-1	1421594..1422829	-	411	119384195	-	Pden_1455	-	major facilitator transporter
1439	 59.96	-1	1422907..1423398	+	163	119384196	-	Pden_1456	-	HxlR family transcriptional regulator
1440	 62.06	-1	1423406..1424317	-	303	119384197	-	Pden_1457	-	alpha/beta hydrolase
1441	 59.62	-1	1424485..1425009	+	174	119384198	-	Pden_1458	-	cupin 2 domain-containing protein
1442	 60.43	-1	1425006..1425662	+	218	119384199	-	Pden_1459	-	DSBA oxidoreductase
1443	 61.07	-1	1425659..1426087	+	142	119384200	-	Pden_1460	-	GCN5-related N-acetyltransferase
1444	 60.04	-1	1426069..1426521	-	150	119384201	-	Pden_1461	-	GCN5-related N-acetyltransferase
1445	 55.81	-2	1426766..1427152	+	128	119384202	-	Pden_1462	-	GCN5-related N-acetyltransferase
1446	 59.72	-1	1427197..1428117	-	306	119384203	-	Pden_1463	-	LysR family transcriptional regulator
1447	 63.29	0	1428263..1429180	+	305	119384204	-	Pden_1464	-	aminotransferase, class IV
1448	 70.85	+1	1429171..1429911	-	246	119384205	-	Pden_1465	-	hypothetical protein
1449	 69.93	0	1430186..1430767	+	193	119384206	-	Pden_1466	-	helix-turn-helix domain-containing protein
1450	 64.30	0	1430770..1431402	-	210	119384207	-	Pden_1467	-	lysine exporter protein LysE/YggA
1451	 64.84	0	1431405..1431950	-	181	119384208	-	Pden_1468	-	hypothetical protein
1452	 62.28	-1	1432068..1432523	+	151	119384209	-	Pden_1469	-	AsnC family transcriptional regulator
1453	 63.14	0	1432553..1433176	+	207	119384210	-	Pden_1470	-	lysine exporter protein LysE/YggA
1454	 60.56	-1	1433351..1434349	+	332	119384211	-	Pden_1471	-	LysR family transcriptional regulator
1455	 60.37	-1	1434342..1435595	+	417	119384212	-	Pden_1472	-	methyltransferase type 12
1456	 57.42	-2	1435611..1436129	-	172	119384213	-	Pden_1473	-	dehydratase
1457	 61.97	-1	1436263..1436496	-	77	119384214	-	Pden_1474	-	hypothetical protein
1458	 65.78	0	1436499..1437620	-	373	119384215	-	Pden_1475	-	conjugation TrbI family protein
1459	 66.76	0	1437617..1438645	-	342	119384216	-	Pden_1476	-	conjugal transfer protein TrbG/VirB9/CagX
1460	 65.07	0	1438642..1439331	-	229	119384217	-	Pden_1477	-	conjugal transfer protein
1461	 67.63	0	1439328..1440680	-	450	119384218	-	Pden_1478	-	TrbL/VirB6 plasmid conjugal transfer protein
1462	 69.44	0	1440684..1440971	-	95	119384219	-	Pden_1479	-	hypothetical protein
1463	 64.37	0	1440989..1441771	-	260	119384220	-	Pden_1480	-	conjugal transfer protein TrbJ
1464	 65.23	0	1441768..1444278	-	836	119384221	-	Pden_1481	-	AAA ATPase
1465	 67.69	0	1444285..1444578	-	97	119384222	-	Pden_1482	-	conjugal transfer protein trbB
1466	 64.56	0	1444645..1444977	-	110	119384223	-	Pden_1483	-	conjugal transfer protein TrbC
1467	 66.57	0	1444974..1445972	-	332	119384224	-	Pden_1484	-	type II secretion system protein E
1468	 55.05	-2	1446345..1447265	+	306	119384225	-	Pden_1485	-	helix-turn-helix domain-containing protein
1469	 57.64	-2	1447354..1449435	+	693	119384226	-	Pden_1486	-	TonB-dependent receptor
1470	 60.24	-1	1449435..1450445	+	336	119384227	-	Pden_1487	-	methyltransferase type 12
1471	 63.57	0	1450447..1451349	+	300	119384228	-	Pden_1488	-	putative sulfonate/nitrate transport system substrate-binding protein
1472	 63.80	0	1451349..1452080	+	243	119384229	-	Pden_1489	-	binding-protein-dependent transport systems inner membrane component
1473	 57.56	-2	1452077..1452658	+	193	119384230	-	Pden_1490	-	ABC transporter related
1474	 61.09	-1	1452668..1453366	-	232	119384231	-	Pden_1491	-	TetR family transcriptional regulator
1475	 64.31	0	1453406..1455184	-	592	119384232	-	Pden_1492	-	ABC transporter related
1476	 63.98	0	1455181..1457001	-	606	119384233	-	Pden_1493	-	ABC transporter related
1477	 63.22	0	1457084..1458244	-	386	119384234	-	Pden_1494	-	monooxygenase, FAD-binding
1478	 59.83	-1	1458248..1460236	-	662	119384235	-	Pden_1495	-	TonB-dependent receptor
1479	 61.03	-1	1460233..1461420	-	395	119384236	-	Pden_1496	-	major facilitator transporter
1480	 58.58	-1	1461579..1462580	+	333	119384237	-	Pden_1497	-	helix-turn-helix domain-containing protein
1481	 58.76	-1	1462601..1463827	-	408	119384238	-	Pden_1498	-	major facilitator transporter
1482	 55.28	-2	1463830..1465779	-	649	119384239	-	Pden_1499	-	TonB-dependent receptor
1483	 54.58	-2	1466069..1467028	+	319	119384240	-	Pden_1500	-	helix-turn-helix domain-containing protein
1484	 64.10	0	1467357..1467746	-	129	119384241	-	Pden_1501	-	hypothetical protein
1485	 62.96	0	1467733..1468083	-	116	119384242	-	Pden_1502	-	hypothetical protein
1486	 62.40	0	1468070..1469287	-	405	119384243	-	Pden_1503	-	hypothetical protein
1487	 57.73	-2	1469486..1470022	-	178	119384244	-	Pden_1504	-	hypothetical protein
1488	 62.94	0	1470456..1470884	-	142	119384245	-	Pden_1505	-	hypothetical protein
1489	 63.44	0	1470887..1472872	-	661	119384246	-	Pden_1506	-	TRAG family protein
1490	 68.66	0	1472899..1474653	-	584	119384247	-	Pden_1507	-	hypothetical protein
1491	 67.58	0	1474897..1475661	-	254	119384248	-	Pden_1508	-	lytic transglycosylase, catalytic
1492	 62.20	-1	1475664..1475999	-	111	119384249	-	Pden_1509	-	hypothetical protein
1493	 67.77	0	1476066..1476608	-	180	119384250	-	Pden_1510	-	conjugal transfer protein precursor
1494	 61.30	-1	1476605..1477126	-	173	119384251	-	Pden_1511	-	hypothetical protein
1495	 62.15	-1	1477126..1478298	-	390	119384252	-	Pden_1512	-	replication protein A
1496	 67.73	0	1478317..1478598	-	93	119384253	-	Pden_1513	-	hypothetical protein
1497	 65.15	0	1478736..1479131	-	131	119384254	-	Pden_1514	-	hypothetical protein
1498	 60.56	-1	1479202..1479561	-	119	119384255	-	Pden_1515	-	hypothetical protein
1499	 63.64	0	1479617..1479880	-	87	119384256	-	Pden_1516	-	hypothetical protein
66.57	MEAN

4.21	STD DEV
