IslandPathversion 1.0

IslandPath Analysis: Paracoccus denitrificans PD1222

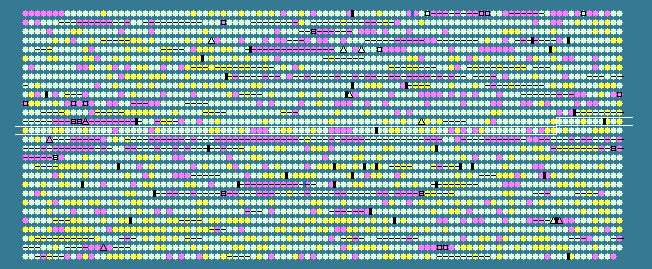

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.57 STD DEV: 4.21
Paracoccus denitrificans PD1222 chromosome 1, complete sequence - 1..2852282
2799 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1290	 66.62	0	1264849..1267014	+	721	119384047	-	Pden_1302	-	polyphosphate kinase
1291	 67.83	0	1267083..1268624	+	513	119384048	-	Pden_1303	-	Ppx/GppA phosphatase
1292	 68.48	0	1268835..1269884	-	349	119384049	-	Pden_1304	-	peptidase M19, renal dipeptidase
1293	 64.51	0	1270069..1270392	+	107	119384050	-	Pden_1305	-	antibiotic biosynthesis monooxygenase
1294	 70.28	0	1270495..1271130	+	211	119384051	-	Pden_1306	-	cobyrinic acid a,c-diamide synthase
1295	 65.97	0	1271230..1271517	+	95	119384052	-	Pden_1307	-	hypothetical protein
1296	 65.23	0	1271560..1273785	-	741	119384053	-	Pden_1308	-	excinuclease ABC subunit B
1297	 68.27	0	1273934..1274245	+	103	119384054	-	Pden_1309	-	ETC complex I subunit region
1298	 73.08	+1	1274539..1275879	-	446	119384055	-	Pden_1310	-	integral membrane sensor signal transduction histidine kinase
1299	 68.48	0	1275876..1276538	-	220	119384056	-	Pden_1311	-	two component transcriptional regulator
1300	 70.43	0	1276535..1276933	-	132	119384057	-	Pden_1312	-	hypothetical protein
1301	 73.61	+1	1277063..1277941	+	292	119384058	-	Pden_1313	-	hypothetical protein
1302	 66.79	0	1278128..1279726	+	532	119384059	mdoG	Pden_1314	-	glucan biosynthesis protein G
1303	 69.56	0	1279723..1281897	+	724	119384060	-	Pden_1315	-	glucosyltransferase MdoH
1304	 66.23	0	1281894..1283027	+	377	119384061	-	Pden_1316	-	hypothetical protein
1305	 68.82	0	1283098..1284765	+	555	119384062	-	Pden_1317	-	formate--tetrahydrofolate ligase
1306	 70.81	+1	1284769..1285371	+	200	119384063	nadD	Pden_1318	-	nicotinic acid mononucleotide adenylyltransferase
1307	 71.62	+1	1285371..1286825	+	484	119384064	-	Pden_1319	-	peptidase S13, D-Ala-D-Ala carboxypeptidase C
1308	 69.50	0	1286836..1287258	-	140	119384065	-	Pden_1320	-	hypothetical protein
1309	 64.03	0	1287350..1288942	+	530	119384066	lysK	Pden_1321	-	lysyl-tRNA synthetase
1310	 64.97	0	1289083..1291377	+	764	119384067	-	Pden_1322	-	hypothetical protein
1311	 71.19	+1	1291414..1291899	-	161	119384068	-	Pden_1323	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
1312	 67.55	0	1291957..1292970	-	337	119384069	-	Pden_1324	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
1313	 69.51	0	1292967..1294022	-	351	119384070	-	Pden_1325	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
1314	 65.48	0	1294024..1294947	-	307	119384071	-	Pden_1326	-	binding-protein-dependent transport systems inner membrane component
1315	 66.12	0	1294951..1295868	-	305	119384072	-	Pden_1327	-	binding-protein-dependent transport systems inner membrane component
1316	 62.24	-1	1295935..1297539	-	534	119384073	-	Pden_1328	-	extracellular solute-binding protein
1317	 68.37	0	1297935..1298813	+	292	119384074	-	Pden_1329	-	thioredoxin reductase-like
1318	 63.73	0	1298865..1299239	+	124	119384075	-	Pden_1330	-	cysteinyl-tRNA synthetase-like
1319	 66.76	0	1299236..1300336	+	366	119384076	-	Pden_1331	-	cobalamin synthesis protein, P47K
1320	 66.92	0	1300377..1300775	+	132	119384077	-	Pden_1332	-	helix-turn-helix domain-containing protein
1321	 68.72	0	1300801..1302015	-	404	119384078	-	Pden_1333	-	cobalamin synthesis protein, P47K
1322	 61.19	-1	1302041..1302259	-	72	119384079	-	Pden_1334	-	hypothetical protein
1323	 73.48	+1	1302268..1302927	-	219	119384080	-	Pden_1335	-	riboflavin biosynthesis protein RibD
1324	 65.59	0	1302938..1303402	-	154	119384081	-	Pden_1336	-	phosphoribosyl-AMP cyclohydrolase
1325	 63.13	0	1303421..1303873	-	150	119384082	-	Pden_1337	-	hypothetical protein
1326	 65.36	0	1304019..1305242	+	407	119384083	-	Pden_1338	-	cobalamin synthesis protein, P47K
1327	 68.91	0	1305333..1306001	+	222	119384084	-	Pden_1339	-	hypothetical protein
1328	 69.50	0	1306001..1306318	+	105	119384085	-	Pden_1340	-	hypothetical protein
1329	 67.60	0	1306419..1307921	+	500	119384086	-	Pden_1341	-	extracellular solute-binding protein
1330	 69.22	0	1307918..1308856	+	312	119384087	-	Pden_1342	-	binding-protein-dependent transport systems inner membrane component
1331	 69.82	0	1308853..1309677	+	274	119384088	-	Pden_1343	-	binding-protein-dependent transport systems inner membrane component
1332	 72.09	+1	1309674..1311110	+	478	119384089	-	Pden_1344	-	ABC transporter related
1333	 70.16	0	1312023..1312937	-	304	119384090	-	Pden_1346	-	methylisocitrate lyase
1334	 67.78	0	1312934..1314103	-	389	119384091	-	Pden_1347	-	methylcitrate synthase
1335	 68.37	0	1314114..1315637	-	507	119384092	-	Pden_1348	-	2-methylcitrate dehydratase
1336	 67.41	0	1315624..1316025	-	133	119384093	-	Pden_1349	-	thioesterase superfamily protein
1337	 70.63	0	1316144..1317529	+	461	119384094	-	Pden_1350	-	hypothetical protein
1338	 65.22	0	1317508..1318200	-	230	119384095	-	Pden_1351	-	LysR, substrate-binding
1339	 53.86	-2	1320063..1321046	+	327	119384096	-	Pden_1354	-	hypothetical protein
1340	 56.36	-2	1321075..1322112	+	345	119384097	-	Pden_1355	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
1341	 53.92	-2	1323389..1323796	-	135	119384098	-	Pden_1357	-	hypothetical protein
1342	 68.75	0	1323995..1324810	-	271	119384099	-	Pden_1358	-	methyltransferase type 11
1343	 64.79	0	1324827..1325252	-	141	119384100	-	Pden_1359	-	pseudoazurin
1344	 71.85	+1	1325264..1326034	-	256	119384101	-	Pden_1360	-	ABC transporter related
1345	 74.12	+1	1326031..1327104	-	357	119384102	-	Pden_1361	-	transport system permease protein
1346	 65.18	0	1327101..1328108	-	335	119384103	-	Pden_1362	-	periplasmic binding protein
1347	 65.42	0	1328565..1330172	-	535	119384104	-	Pden_1363	-	isocitrate lyase
1348	 69.25	0	1330296..1331918	-	540	119384105	-	Pden_1364	-	malate synthase
1349	 70.71	0	1332053..1333486	+	477	119384106	-	Pden_1365	-	hypothetical protein
1350	 67.55	0	1333483..1334499	-	338	119384107	-	Pden_1366	-	hypothetical protein
1351	 64.23	0	1334483..1335343	-	286	119384108	-	Pden_1367	-	periplasmic binding protein
1352	 61.84	-1	1335337..1337220	-	627	119384109	-	Pden_1368	-	TonB-dependent receptor
1353	 57.83	-2	1337561..1337956	-	131	119384110	-	Pden_1369	-	hypothetical protein
1354	 54.86	-2	1338220..1338939	+	239	119384111	-	Pden_1370	-	hypothetical protein
1355	 61.78	-1	1338995..1339444	+	149	119384112	-	Pden_1371	-	hypothetical protein
1356	 65.80	0	1339398..1340204	-	268	119384113	-	Pden_1372	-	phosphoesterase or phosphohydrolase-like
1357	 65.82	0	1340206..1341507	-	433	119384114	-	Pden_1373	-	ATP-dependent Lon protease
1358	 67.05	0	1341954..1342742	-	262	119384115	-	Pden_1374	-	metallophosphoesterase
1359	 64.22	0	1342739..1343188	-	149	119384116	-	Pden_1375	-	hypothetical protein
1360	 65.40	0	1343653..1344600	-	315	119384117	-	Pden_1376	-	lipoyl synthase
1361	 63.49	0	1344725..1345291	+	188	119384118	-	Pden_1377	-	redoxin domain-containing protein
1362	 71.17	+1	1345362..1346516	-	384	119384119	-	Pden_1378	-	hypothetical protein
1363	 71.17	+1	1346729..1347061	+	110	119384120	-	Pden_1379	-	hypothetical protein
1364	 66.86	0	1347048..1348622	-	524	119384121	-	Pden_1380	-	protein of unknown function DUF853, NPT hydrolase putative
1365	 69.20	0	1349084..1349872	+	262	119384122	-	Pden_1381	-	invasion associated locus B family protein
1366	 68.87	0	1349947..1351491	-	514	119384123	-	Pden_1382	-	protease Do
1367	 71.43	+1	1351705..1351956	-	83	119384124	-	Pden_1383	-	hypothetical protein
1368	 64.90	0	1352030..1355647	-	1205	119384125	-	Pden_1384	-	ribonucleotide-diphosphate reductase subunit alpha
1369	 72.14	+1	1356043..1356627	-	194	119384126	-	Pden_1385	-	5-formyltetrahydrofolate cyclo-ligase
1370	 66.39	0	1356612..1358069	-	485	119384127	-	Pden_1386	-	magnesium transporter
1371	 69.73	0	1358090..1358905	-	271	119384128	-	Pden_1387	-	inositol monophosphatase
1372	 60.83	-1	1358986..1359345	-	119	119384129	-	Pden_1388	-	XRE family transcriptional regulator
1373	 70.49	0	1359524..1360492	+	322	119384130	-	Pden_1389	-	alcohol dehydrogenase
1374	 61.22	-1	1360615..1361385	+	256	119384131	-	Pden_1390	-	hypothetical protein
1375	 63.79	0	1361653..1361895	+	80	119384132	-	Pden_1391	-	BolA family protein
1376	 59.50	-1	1361947..1362309	+	120	119384133	-	Pden_1392	-	glutaredoxin-like protein
1377	 71.84	+1	1362397..1363092	-	231	119384134	-	Pden_1393	-	hypothetical protein
1378	 69.70	0	1363100..1363528	-	142	119384135	-	Pden_1394	-	protein of unknown function DUF883, ElaB
1379	 68.97	0	1363627..1364754	-	375	119384136	-	Pden_1395	-	aminotransferase, class V
1380	 65.83	0	1364894..1365610	+	238	119384137	-	Pden_1396	-	glutamine amidotransferase class-I
1381	 65.05	0	1365607..1366965	+	452	119384138	-	Pden_1397	-	glutamate--ammonia ligase
1382	 68.34	0	1367038..1368348	+	436	119384139	-	Pden_1398	-	FAD dependent oxidoreductase
1383	 65.60	0	1368345..1369001	-	218	119384140	-	Pden_1399	-	hypothetical protein
1384	 64.83	0	1369014..1371131	-	705	119384141	-	Pden_1400	-	(p)ppGpp synthetase I, SpoT/RelA
1385	 63.03	0	1371154..1371510	-	118	119384142	-	Pden_1401	-	DNA-directed RNA polymerase subunit omega
1386	 65.24	0	1371581..1372072	-	163	119384143	-	Pden_1402	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
1387	 60.87	-1	1372187..1372738	+	183	119384144	-	Pden_1403	-	hypothetical protein
1388	 70.62	0	1372781..1374172	-	463	119384145	-	Pden_1404	-	hypothetical protein
1389	 71.70	+1	1374162..1375871	-	569	119384146	-	Pden_1405	-	hypothetical protein
66.57	MEAN

4.21	STD DEV
