IslandPathversion 1.0

IslandPath Analysis: Paracoccus denitrificans PD1222

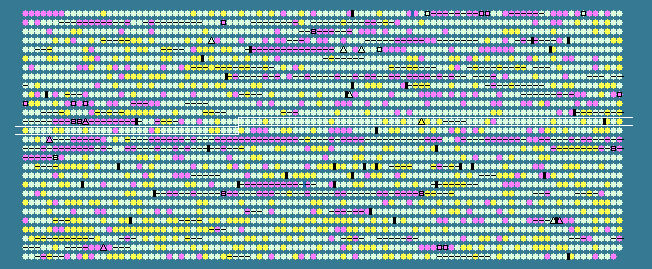

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.57 STD DEV: 4.21
Paracoccus denitrificans PD1222 chromosome 1, complete sequence - 1..2852282
2799 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1237	 68.46	0	1212380..1213438	+	352	119383994	-	Pden_1249	-	binding-protein-dependent transport systems inner membrane component
1238	 69.32	0	1213435..1214340	+	301	119383995	-	Pden_1250	-	binding-protein-dependent transport systems inner membrane component
1239	 69.59	0	1214337..1215191	+	284	119383996	-	Pden_1251	-	ABC transporter related
1240	 68.52	0	1215238..1215993	+	251	119383997	-	Pden_1252	-	ABC transporter related
1241	 72.60	+1	1215990..1216697	-	235	119383998	-	Pden_1253	-	hypothetical protein
1242	 69.92	0	1216822..1218267	+	481	119383999	-	Pden_1254	-	aldehyde dehydrogenase
1243	 69.35	0	1218294..1219037	+	247	119384000	-	Pden_1255	-	3-ketoacyl-(acyl-carrier-protein) reductase
1244	 68.59	0	1219069..1219899	-	276	119384001	-	Pden_1256	-	ABC-3 protein
1245	 66.67	0	1219899..1220759	-	286	119384002	-	Pden_1257	-	ABC-3 protein
1246	 67.82	0	1220756..1221625	-	289	119384003	-	Pden_1258	-	ABC transporter related
1247	 68.65	0	1221618..1222523	-	301	119384004	-	Pden_1259	-	periplasmic solute binding protein
1248	 68.56	0	1222629..1223051	+	140	119384005	-	Pden_1260	-	ferric uptake regulator family protein
1249	 67.73	0	1223048..1223422	+	124	119384006	-	Pden_1261	-	hypothetical protein
1250	 67.73	0	1223419..1223793	-	124	119384007	-	Pden_1262	-	hypothetical protein
1251	 68.28	0	1223795..1224847	-	350	119384008	-	Pden_1263	-	hypothetical protein
1252	 70.06	0	1224844..1225551	-	235	119384009	-	Pden_1264	-	peptidyl-tRNA hydrolase
1253	 63.65	0	1225747..1226376	+	209	119384010	-	Pden_1265	-	endopeptidase Clp
1254	 63.35	0	1226538..1227803	+	421	119384011	clpX	Pden_1266	-	ATP-dependent protease ATP-binding subunit
1255	 64.80	0	1228027..1228401	+	124	119384012	-	Pden_1267	-	NADH dehydrogenase
1256	 68.38	0	1228406..1228873	+	155	119384013	-	Pden_1268	-	hypothetical protein
1257	 68.90	0	1228870..1229361	+	163	119384014	-	Pden_1269	-	hypothetical protein
1258	 65.10	0	1229325..1229963	-	212	119384015	aat	Pden_1270	-	leucyl/phenylalanyl-tRNA--protein transferase
1259	 66.37	0	1229999..1231351	-	450	119384016	-	Pden_1271	-	acetyl-CoA carboxylase biotin carboxylase subunit
1260	 67.82	0	1231359..1231880	-	173	119384017	-	Pden_1272	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
1261	 70.37	0	1231984..1232874	-	296	119384018	-	Pden_1273	-	lipid A biosynthesis acyltransferase
1262	 68.50	0	1232900..1233826	-	308	119384019	-	Pden_1274	-	hypothetical protein
1263	 69.94	0	1234011..1236029	-	672	119384020	-	Pden_1275	-	transketolase
1264	 71.20	+1	1236124..1238088	+	654	119384021	-	Pden_1276	-	hypothetical protein
1265	 66.26	0	1238179..1239669	+	496	119384022	-	Pden_1277	-	uracil-xanthine permease
1266	 69.18	0	1239663..1241015	-	450	119384023	-	Pden_1278	-	hypothetical protein
1267	 72.53	+1	1241012..1241983	-	323	119384024	-	Pden_1279	-	phage integrase family protein
1268	 74.18	+1	1241980..1243602	-	540	119384025	-	Pden_1280	-	hypothetical protein
1269	 67.83	0	1243589..1243846	-	85	119384026	-	Pden_1281	-	hypothetical protein
1270	 70.95	+1	1243974..1244510	+	178	119384027	-	Pden_1282	-	shikimate kinase
1271	 69.47	0	1244507..1245610	+	367	119384028	-	Pden_1283	-	3-dehydroquinate synthase
1272	 66.90	0	1245607..1246029	-	140	119384029	-	Pden_1284	-	monovalent cation/proton antiporter, MnhG/PhaG subunit
1273	 63.48	0	1246026..1246307	-	93	119384030	-	Pden_1285	-	putative monovalent cation/H+ antiporter subunit F
1274	 65.44	0	1246304..1246792	-	162	119384031	-	Pden_1286	-	cation antiporter
1275	 68.17	0	1246789..1248519	-	576	119384032	-	Pden_1287	-	putative monovalent cation/H+ antiporter subunit D
1276	 65.22	0	1248519..1248863	-	114	119384033	-	Pden_1288	-	putative monovalent cation/H+ antiporter subunit C
1277	 67.15	0	1248863..1251742	-	959	119384034	-	Pden_1289	-	putative monovalent cation/H+ antiporter subunit A
1278	 70.20	0	1251889..1253133	-	414	119384035	-	Pden_1290	-	Orn/DAP/Arg decarboxylase 2
1279	 59.92	-1	1253114..1253350	-	78	119384036	-	Pden_1291	-	hypothetical protein
1280	 68.00	0	1253370..1254941	-	523	119384037	-	Pden_1292	-	AMP-dependent synthetase and ligase
1281	 64.09	0	1254934..1255476	-	180	119384038	-	Pden_1293	-	serine acetyltransferase CysE, putative
1282	 67.51	0	1255559..1256623	-	354	119384039	-	Pden_1294	-	hypothetical protein
1283	 69.74	0	1256696..1257868	-	390	119384040	-	Pden_1295	-	lipase/acylhydrolase, putative
1284	 64.96	0	1257917..1259086	-	389	119384041	-	Pden_1296	-	DegT/DnrJ/EryC1/StrS aminotransferase
1285	 68.83	0	1259083..1260006	-	307	119384042	-	Pden_1297	-	NAD-dependent epimerase/dehydratase
1286	 66.04	0	1260007..1261131	-	374	119384043	-	Pden_1298	-	GDP-mannose 4,6-dehydratase
1287	 64.45	0	1261338..1262690	-	450	119384044	-	Pden_1299	-	prolyl-tRNA synthetase
1288	 68.20	0	1262820..1264124	+	434	119384045	-	Pden_1300	-	hypothetical protein
1289	 72.46	+1	1264128..1264817	+	229	119384046	-	Pden_1301	-	hypothetical protein
1290	 66.62	0	1264849..1267014	+	721	119384047	-	Pden_1302	-	polyphosphate kinase
1291	 67.83	0	1267083..1268624	+	513	119384048	-	Pden_1303	-	Ppx/GppA phosphatase
1292	 68.48	0	1268835..1269884	-	349	119384049	-	Pden_1304	-	peptidase M19, renal dipeptidase
1293	 64.51	0	1270069..1270392	+	107	119384050	-	Pden_1305	-	antibiotic biosynthesis monooxygenase
1294	 70.28	0	1270495..1271130	+	211	119384051	-	Pden_1306	-	cobyrinic acid a,c-diamide synthase
1295	 65.97	0	1271230..1271517	+	95	119384052	-	Pden_1307	-	hypothetical protein
1296	 65.23	0	1271560..1273785	-	741	119384053	-	Pden_1308	-	excinuclease ABC subunit B
1297	 68.27	0	1273934..1274245	+	103	119384054	-	Pden_1309	-	ETC complex I subunit region
1298	 73.08	+1	1274539..1275879	-	446	119384055	-	Pden_1310	-	integral membrane sensor signal transduction histidine kinase
1299	 68.48	0	1275876..1276538	-	220	119384056	-	Pden_1311	-	two component transcriptional regulator
1300	 70.43	0	1276535..1276933	-	132	119384057	-	Pden_1312	-	hypothetical protein
1301	 73.61	+1	1277063..1277941	+	292	119384058	-	Pden_1313	-	hypothetical protein
1302	 66.79	0	1278128..1279726	+	532	119384059	mdoG	Pden_1314	-	glucan biosynthesis protein G
1303	 69.56	0	1279723..1281897	+	724	119384060	-	Pden_1315	-	glucosyltransferase MdoH
1304	 66.23	0	1281894..1283027	+	377	119384061	-	Pden_1316	-	hypothetical protein
1305	 68.82	0	1283098..1284765	+	555	119384062	-	Pden_1317	-	formate--tetrahydrofolate ligase
1306	 70.81	+1	1284769..1285371	+	200	119384063	nadD	Pden_1318	-	nicotinic acid mononucleotide adenylyltransferase
1307	 71.62	+1	1285371..1286825	+	484	119384064	-	Pden_1319	-	peptidase S13, D-Ala-D-Ala carboxypeptidase C
1308	 69.50	0	1286836..1287258	-	140	119384065	-	Pden_1320	-	hypothetical protein
1309	 64.03	0	1287350..1288942	+	530	119384066	lysK	Pden_1321	-	lysyl-tRNA synthetase
1310	 64.97	0	1289083..1291377	+	764	119384067	-	Pden_1322	-	hypothetical protein
1311	 71.19	+1	1291414..1291899	-	161	119384068	-	Pden_1323	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
1312	 67.55	0	1291957..1292970	-	337	119384069	-	Pden_1324	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
1313	 69.51	0	1292967..1294022	-	351	119384070	-	Pden_1325	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
1314	 65.48	0	1294024..1294947	-	307	119384071	-	Pden_1326	-	binding-protein-dependent transport systems inner membrane component
1315	 66.12	0	1294951..1295868	-	305	119384072	-	Pden_1327	-	binding-protein-dependent transport systems inner membrane component
1316	 62.24	-1	1295935..1297539	-	534	119384073	-	Pden_1328	-	extracellular solute-binding protein
1317	 68.37	0	1297935..1298813	+	292	119384074	-	Pden_1329	-	thioredoxin reductase-like
1318	 63.73	0	1298865..1299239	+	124	119384075	-	Pden_1330	-	cysteinyl-tRNA synthetase-like
1319	 66.76	0	1299236..1300336	+	366	119384076	-	Pden_1331	-	cobalamin synthesis protein, P47K
1320	 66.92	0	1300377..1300775	+	132	119384077	-	Pden_1332	-	helix-turn-helix domain-containing protein
1321	 68.72	0	1300801..1302015	-	404	119384078	-	Pden_1333	-	cobalamin synthesis protein, P47K
1322	 61.19	-1	1302041..1302259	-	72	119384079	-	Pden_1334	-	hypothetical protein
1323	 73.48	+1	1302268..1302927	-	219	119384080	-	Pden_1335	-	riboflavin biosynthesis protein RibD
1324	 65.59	0	1302938..1303402	-	154	119384081	-	Pden_1336	-	phosphoribosyl-AMP cyclohydrolase
1325	 63.13	0	1303421..1303873	-	150	119384082	-	Pden_1337	-	hypothetical protein
1326	 65.36	0	1304019..1305242	+	407	119384083	-	Pden_1338	-	cobalamin synthesis protein, P47K
1327	 68.91	0	1305333..1306001	+	222	119384084	-	Pden_1339	-	hypothetical protein
1328	 69.50	0	1306001..1306318	+	105	119384085	-	Pden_1340	-	hypothetical protein
1329	 67.60	0	1306419..1307921	+	500	119384086	-	Pden_1341	-	extracellular solute-binding protein
1330	 69.22	0	1307918..1308856	+	312	119384087	-	Pden_1342	-	binding-protein-dependent transport systems inner membrane component
1331	 69.82	0	1308853..1309677	+	274	119384088	-	Pden_1343	-	binding-protein-dependent transport systems inner membrane component
1332	 72.09	+1	1309674..1311110	+	478	119384089	-	Pden_1344	-	ABC transporter related
1333	 70.16	0	1312023..1312937	-	304	119384090	-	Pden_1346	-	methylisocitrate lyase
1334	 67.78	0	1312934..1314103	-	389	119384091	-	Pden_1347	-	methylcitrate synthase
1335	 68.37	0	1314114..1315637	-	507	119384092	-	Pden_1348	-	2-methylcitrate dehydratase
1336	 67.41	0	1315624..1316025	-	133	119384093	-	Pden_1349	-	thioesterase superfamily protein
66.57	MEAN

4.21	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
