IslandPathversion 1.0

IslandPath Analysis: Orientia tsutsugamushi str. Ikeda

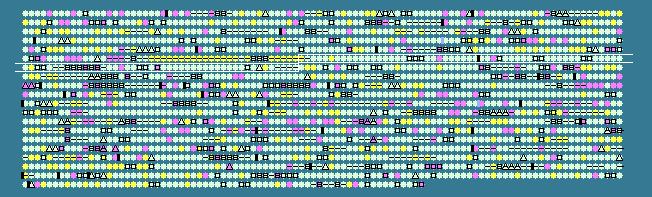

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.48 STD DEV: 3.15
Orientia tsutsugamushi str. Ikeda, complete genome - 1..2008987
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
547	 37.87	+2	564558..565460	-	300	189183454	-	OTT_0547	-	putative streptomycin-6-phosphotransferase
548	 34.65	+1	565895..567109	-	404	189183455	-	OTT_0548	-	putative conjugative transfer protein TraI
549	 32.82	0	567376..568158	-	260	189183456	-	OTT_0549	-	putative conjugative transfer protein TraA
550	 33.19	0	568215..568925	-	236	189183457	-	OTT_0550	-	putative conjugative transfer protein TraA
551	 33.18	0	568910..570208	-	432	189183458	-	OTT_0551	-	putative conjugative transfer protein TraA
552	 35.53	+1	570504..570959	+	151	189183459	-	OTT_0552	-	putative conjugative transfer protein TraD
553	 30.42	0	571027..571953	-	308	189183460	-	OTT_0553	-	hypothetical protein
554	 30.77	0	572074..572229	-	51	189183461	-	OTT_0554	-	RelA/SpoT-related protein
555	 31.55	0	572269..572661	-	130	189183462	-	OTT_0555	-	RelA/SpoT-related protein
556	 28.89	0	572703..573197	-	164	189183463	-	OTT_0556	-	hypothetical protein
557	 30.74	0	573216..573677	-	153	189183464	-	OTT_0557	-	hypothetical protein
558	 29.68	0	573738..574148	-	136	189183465	-	OTT_0558	-	hypothetical protein
559	 30.06	0	574156..574644	-	162	189183466	-	OTT_0559	-	hypothetical protein
560	 29.76	0	574834..575085	-	83	189183467	-	OTT_0560	-	hypothetical protein
561	 30.63	0	575308..575862	+	184	189183468	-	OTT_0561	-	hypothetical protein
562	 30.49	0	576004..576777	+	257	189183469	-	OTT_0562	-	hypothetical protein
563	 31.28	0	576930..577952	-	340	189183470	-	OTT_0563	-	replicative DNA helicase
564	 31.06	0	577961..579676	-	571	189183471	-	OTT_0564	-	hypothetical protein
565	 28.24	-1	580142..580534	+	130	189183472	-	OTT_0565	-	transposase
566	 31.17	0	580557..580787	+	76	189183473	-	OTT_0566	-	transposase
567	 29.29	0	580741..581037	+	98	189183474	-	OTT_0567	-	transposase
568	 33.04	0	581415..581759	-	114	189183475	-	OTT_0568	-	putative ferredoxin, 2Fe-2S (andrenodoxin-like)
569	 28.86	0	581776..583629	-	617	189183476	hscA	OTT_0569	-	chaperone protein HscA
570	 27.58	-1	583616..584119	-	167	189183477	hscB	OTT_0570	-	chaperone protein HscB
571	 32.00	0	584132..584506	-	124	189183478	hesB2	OTT_0571	-	HesB protein
572	 34.04	0	584516..584941	-	141	189183479	iscU	OTT_0572	-	NifU protein homolog
573	 32.94	0	584981..586252	-	423	189183480	spl1	OTT_0573	-	NifS protein homolog
574	 32.25	0	586267..587553	-	428	189183481	spl1	OTT_0574	-	NifS protein homolog
575	 30.20	0	587565..588011	-	148	189183482	-	OTT_0575	-	Rrf2 family protein
576	 33.90	0	588215..588916	+	233	189183483	-	OTT_0576	-	hypothetical protein
577	 31.09	0	589210..590457	+	415	189183484	ftsA	OTT_0577	-	cell division protein FtsA
578	 30.82	0	590436..591746	+	436	189183485	-	OTT_0578	-	hypothetical protein
579	 27.40	-1	591731..593482	+	583	189183486	-	OTT_0579	-	hypothetical protein
580	 28.77	0	593930..594367	+	145	189183487	-	OTT_0580	-	transposase
581	 33.90	0	594667..594843	-	58	189183488	-	OTT_0581	-	putative conjugative transfer protein TraD
582	 34.18	0	595505..596806	-	433	189183489	tme	OTT_0582	-	malate oxidoreductase and phosphate acetyltransferase
583	 28.16	-1	596826..597752	-	308	189183490	-	OTT_0583	-	hypothetical protein
584	 30.33	0	598061..598660	+	199	189183491	-	OTT_0584	-	hypothetical protein
585	 28.53	0	598789..599100	+	103	189183492	gltA	OTT_0585	-	citrate synthase
586	 29.10	0	599097..599852	-	251	189183493	-	OTT_0586	-	transposase
587	 29.95	0	599966..600172	-	68	189183494	-	OTT_0587	-	transposase
588	 28.64	0	600210..600614	-	134	189183495	atpC	OTT_0588	-	ATP synthase epsilon chain
589	 34.24	0	600611..602047	-	478	189183496	atpD	OTT_0589	-	ATP synthase beta chain
590	 30.53	0	602393..603532	-	379	189183497	capM	OTT_0590	-	CapM protein
591	 30.08	0	603568..604335	+	255	189183498	-	OTT_0591	-	hypothetical protein
592	 29.73	0	604732..606729	-	665	189183499	slt	OTT_0592	-	soluble lytic murein transglycosylase precursor
593	 32.91	0	606771..607709	+	312	189183500	fabD	OTT_0593	-	malonyl CoA-acyl carrier protein transacylase
594	 30.45	0	608870..609424	-	184	189183501	-	OTT_0594	-	transposase
595	 28.16	-1	609448..609756	-	102	189183502	-	OTT_0595	-	transposase
596	 30.43	0	612352..613386	+	344	189183503	pheS	OTT_0596	-	phenylalanyl-tRNA synthetase alpha chain
597	 30.18	0	613383..615824	+	813	189183504	pheT	OTT_0597	-	phenylalanyl-tRNA synthetase beta chain
598	 33.87	0	615911..616840	-	309	189183505	tsf	OTT_0598	-	translation elongation factor Ts
599	 31.97	0	616837..617715	-	292	189183506	rpsB	OTT_0599	-	30S ribosomal protein S2
600	 29.46	0	618042..618893	-	283	189183507	-	OTT_0600	-	hypothetical protein
601	 31.88	0	618877..620529	-	550	189183508	pepA	OTT_0601	-	aminopeptidase A
602	 35.15	+1	621330..622814	-	494	189183509	-	OTT_0602	-	ankyrin repeat-containing protein 12_01
603	 31.48	0	623609..623878	-	89	189183510	-	OTT_0603	-	transposase
604	 32.30	0	624369..625337	+	322	189183511	-	OTT_0604	-	transposase
605	 34.52	0	625825..627336	+	503	189183512	-	OTT_0605	-	hypothetical protein
606	 29.17	0	627669..627932	+	87	189183513	leuS	OTT_0606	-	leucyl-tRNA synthetase
607	 33.89	0	628176..628889	+	237	189183514	-	OTT_0607	-	repeat-containing protein A_03
608	 29.98	0	628914..629420	-	168	189183515	-	OTT_0608	-	transposase
609	 28.80	0	629407..629781	-	124	189183516	-	OTT_0609	-	transposase
610	 31.11	0	629838..629972	-	44	189183517	-	OTT_0610	-	transposase
611	 27.20	-1	629959..630333	-	124	189183518	-	OTT_0611	-	transposase
612	 29.31	0	630546..630719	+	57	189183519	-	OTT_0612	-	transposase
613	 28.00	-1	630673..631047	+	124	189183520	-	OTT_0613	-	transposase
614	 29.48	0	631070..631432	-	120	189183521	rbfA	OTT_0614	-	ribosome-binding factor A
615	 32.51	0	631463..634003	-	846	189183522	infB	OTT_0615	-	translation initiation factor IF-2
616	 32.00	0	634253..635755	-	500	189183523	nusA	OTT_0616	-	N utilization substance protein A
617	 27.12	-1	635774..636256	-	160	189183524	-	OTT_0617	-	hypothetical protein
618	 28.04	-1	636794..637567	+	257	189183525	ubiE	OTT_0618	-	ubiquinone/menaquinone biosynthesis methlytransferase UbiE
619	 31.10	0	637564..638952	+	462	189183526	ubiB	OTT_0619	-	ubiquinone biosynthesis protein UbiB
620	 32.32	0	639034..639528	+	164	189183527	-	OTT_0620	-	transposase
621	 28.27	-1	639482..639856	+	124	189183528	-	OTT_0621	-	transposase
622	 30.47	0	641860..644685	+	941	189183529	-	OTT_0622	-	hypothetical protein
623	 27.39	-1	645409..646014	-	201	189183530	-	OTT_0623	-	transposase
624	 28.07	-1	648276..650138	-	620	189183531	ccmF	OTT_0624	-	cytochrome c-type biogenesis protein CcmF
625	 29.55	0	650128..651396	-	422	189183532	-	OTT_0625	-	hemolysin homolog
626	 32.08	0	652588..652827	+	79	189183533	-	OTT_0626	-	hypothetical protein
627	 28.82	0	652927..653568	+	213	189183534	sodB	OTT_0627	-	superoxide dismutase
628	 31.09	0	653609..656500	+	963	189183535	sucA	OTT_0628	-	2-oxoglutarate dehydrogenase e1 component
629	 31.14	0	656500..657777	+	425	189183536	sucB	OTT_0629	-	dihydrolipoamide acetyltransferase component
630	 31.58	0	657783..659261	+	492	189183537	-	OTT_0630	-	hypothetical protein
631	 32.41	0	659554..660855	+	433	189183538	proP5	OTT_0631	-	proline/betaine transporter
632	 29.50	0	660922..661260	+	112	189183539	-	OTT_0632	-	hypothetical protein
633	 30.42	0	661649..662473	-	274	189183540	coxC	OTT_0633	-	cytochrome c oxidase subunit III
634	 31.80	0	662655..663632	-	325	189183541	ruvB	OTT_0634	-	holliday junction DNA helicase RuvB
635	 31.07	0	663632..664249	-	205	189183542	ruvA	OTT_0635	-	holliday junction DNA helicase RuvA
636	 32.31	0	664493..666634	-	713	189183543	-	OTT_0636	-	hypothetical protein
637	 30.93	0	667002..668207	-	401	189183544	bcr2	OTT_0637	-	drug resistance transporter, Bcr/CflA family protein
638	 32.29	0	669035..669997	-	320	189183545	-	OTT_0638	-	transposase
639	 32.00	0	670926..674363	+	1145	189183546	-	OTT_0639	-	sensor histidine kinase/response regulator/transporter hybrid protein
640	 31.87	0	674985..676007	+	340	189183547	-	OTT_0640	-	putative integrase
641	 41.95	+2	676408..676848	-	146	189183548	-	OTT_0641	-	hypothetical protein
642	 33.95	0	676832..677971	+	379	189183549	-	OTT_0642	-	reverse transcriptase
643	 33.33	0	678464..678613	+	49	189183550	-	OTT_0643	-	hypothetical protein
644	 33.96	0	678613..678930	+	105	189183551	-	OTT_0644	-	putative conjugative transfer protein TraE
645	 33.88	0	678960..679142	+	60	189183552	-	OTT_0645	-	putative conjugative transfer protein TraB
646	 31.21	0	679142..679471	+	109	189183553	-	OTT_0646	-	hypothetical protein
31.48	MEAN

3.15	STD DEV
