IslandPath Analysis: Orientia tsutsugamushi str. Ikeda

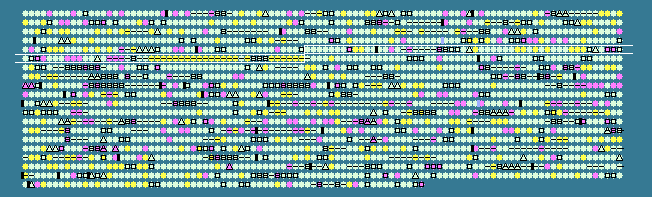

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).

A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.48 STD DEV: 3.15

Orientia tsutsugamushi str. Ikeda, complete genome - 1..2008987
1967 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
448	 28.68	0	469506..470021	-	171	189183355	-	OTT_0448	-	hypothetical protein
449	 31.18	0	470040..470504	-	154	189183356	-	OTT_0449	-	hypothetical protein
450	 30.49	0	470565..471056	-	163	189183357	-	OTT_0450	-	hypothetical protein
451	 29.45	0	471271..471939	-	222	189183358	-	OTT_0451	-	hypothetical protein
452	 32.16	0	472460..472885	-	141	189183359	-	OTT_0452	-	RelA/SpoT-related protein
453	 32.08	0	473119..474555	-	478	189183360	-	OTT_0453	-	replicative DNA helicase
454	 29.44	0	475774..476955	+	393	189183361	bcr2	OTT_0454	-	drug resistance transporter, Bcr/CflA family protein
455	 27.16	-1	477119..477361	-	80	189183362	-	OTT_0455	-	transposase
456	 38.14	+2	478909..479490	+	193	189183363	-	OTT_0456	-	putative conjugative transfer protein TraU
457	 35.17	+1	480120..480446	+	108	189183364	-	OTT_0457	-	reverse transcriptase
458	 29.82	0	480607..481689	-	360	189183365	-	OTT_0458	-	hypothetical protein
459	 34.64	+1	482167..482853	-	228	189183366	-	OTT_0459	-	ankyrin repeat-containing protein 11
460	 29.62	0	484504..486066	-	520	189183367	sca3	OTT_0460	-	cell surface antigen
461	 29.17	0	486245..486484	+	79	189183368	-	OTT_0461	-	hypothetical protein
462	 27.72	-1	486910..487176	-	88	189183369	-	OTT_0462	-	hypothetical protein
463	 30.98	0	487195..488385	-	396	189183370	-	OTT_0463	-	hypothetical protein
464	 30.26	0	488519..490306	-	595	189183371	-	OTT_0464	-	hypothetical protein
465	 25.52	-1	491052..491243	+	63	189183372	-	OTT_0465	-	hypothetical protein
466	 32.95	0	491475..491735	+	86	189183373	-	OTT_0466	-	hypothetical protein
467	 29.27	0	491777..492145	+	122	189183374	-	OTT_0467	-	hypothetical protein
468	 31.87	0	492154..492633	+	159	189183375	-	OTT_0468	-	replicative DNA helicase
469	 31.90	0	493675..494022	-	115	189183376	-	OTT_0469	-	repeat-containing protein A_02
470	 27.20	-1	494588..494962	+	124	189183377	-	OTT_0470	-	transposase
471	 31.11	0	494949..495083	+	44	189183378	-	OTT_0471	-	transposase
472	 28.80	0	495140..495514	+	124	189183379	-	OTT_0472	-	transposase
473	 29.98	0	495501..496007	+	168	189183380	-	OTT_0473	-	transposase
474	 31.40	0	496971..497747	+	258	189183381	-	OTT_0474	-	hypothetical protein
475	 31.87	0	498155..499177	+	340	189183382	-	OTT_0475	-	putative integrase
476	 39.60	+2	499717..500019	-	100	189183383	-	OTT_0476	-	hypothetical protein
477	 33.95	0	500003..501142	+	379	189183384	-	OTT_0477	-	reverse transcriptase
478	 32.00	0	501636..501785	+	49	189183385	-	OTT_0478	-	hypothetical protein
479	 30.56	0	501785..501928	+	47	189183386	-	OTT_0479	-	putative conjugative transfer protein TraE
480	 30.86	0	502015..502338	+	107	189183387	-	OTT_0480	-	putative conjugative transfer protein TraE
481	 28.38	0	502335..502637	+	100	189183388	-	OTT_0481	-	hypothetical protein
482	 28.57	0	502637..502741	+	34	189183389	-	OTT_0482	-	hypothetical protein
483	 41.67	+2	502841..503080	+	79	189183390	-	OTT_0483	-	putative conjugative transfer protein TraB
484	 35.56	+1	503043..503312	+	89	189183391	-	OTT_0484	-	putative conjugative transfer protein TraB
485	 30.91	0	503312..503641	+	109	189183392	-	OTT_0485	-	hypothetical protein
486	 36.47	+1	503622..505409	+	595	189183393	-	OTT_0486	-	putative conjugative transfer protein TraC
487	 32.08	0	505323..506360	-	345	189183394	-	OTT_0487	-	ankyrin repeat-containing protein 05_03
488	 38.45	+2	506728..507411	+	227	189183395	-	OTT_0488	-	putative conjugative transfer protein TraU
489	 31.15	0	507496..507816	+	106	189183396	-	OTT_0489	-	putative conjugative transfer protein TrbC
490	 29.93	0	507813..508253	+	146	189183397	-	OTT_0490	-	putative conjugative transfer protein TraN
491	 34.42	0	508304..509503	+	399	189183398	-	OTT_0491	-	putative conjugative transfer protein TraN
492	 35.41	+1	509500..510126	+	208	189183399	-	OTT_0492	-	putative conjugative transfer protein TraF
493	 35.71	+1	510202..511503	+	433	189183400	-	OTT_0493	-	putative conjugative transfer protein TraH
494	 37.20	+1	511503..511838	+	111	189183401	-	OTT_0494	-	putative conjugative transfer protein TraG
495	 32.30	0	512009..512977	+	322	189183402	-	OTT_0495	-	transposase
496	 29.27	0	512993..513583	-	196	189183403	-	OTT_0496	-	putative integrase
497	 30.70	0	514551..515081	+	176	189183404	-	OTT_0497	-	hypothetical protein
498	 27.23	-1	515568..515780	+	70	189183405	-	OTT_0498	-	transposase
499	 27.86	-1	516167..516367	+	66	189183406	-	OTT_0499	-	transposase
500	 32.33	0	516888..517385	-	165	189183407	-	OTT_0500	-	transposase
501	 29.89	0	517545..519695	+	716	189183408	uvrD	OTT_0501	-	DNA helicase II
502	 28.59	0	519687..520445	-	252	189183409	-	OTT_0502	-	transposase
503	 27.12	-1	521541..521894	-	117	189183410	-	OTT_0503	-	transposase
504	 27.92	-1	522050..522880	-	276	189183411	-	OTT_0504	-	hypothetical protein
505	 30.37	0	523699..525150	+	483	189183412	-	OTT_0505	-	sensor histidine kinase/response regulator/transporter hybrid protein
506	 30.22	0	525584..528253	+	889	189183413	polA	OTT_0506	-	DNA polymerase I (POL I)
507	 31.72	0	528319..529683	+	454	189183414	-	OTT_0507	-	GTP-binding protein, Era/Obg family
508	 26.02	-1	529692..530375	+	227	189183415	-	OTT_0508	-	hypothetical protein
509	 25.98	-1	530446..531519	+	357	189183416	-	OTT_0509	-	AFG1-like ATPase
510	 27.68	-1	531512..532165	+	217	189183417	tmk	OTT_0510	-	thymidylate kinase
511	 34.08	0	532310..534178	-	622	189183418	gidA	OTT_0511	-	glucose inhibited division protein A
512	 31.46	0	534818..536101	-	427	189183419	-	OTT_0512	-	hypothetical protein
513	 32.67	0	537149..537298	-	49	189183420	-	OTT_0513	-	putative integrase
514	 32.93	0	538046..539551	-	501	189183421	rho	OTT_0514	-	transcription termination factor Rho
515	 27.21	-1	541040..542068	+	342	189183422	hemE	OTT_0515	-	uroporphyrinogen decarboxylase
516	 27.05	-1	542061..543095	+	344	189183423	hemH	OTT_0516	-	probable ferrochelatase
517	 27.36	-1	543104..543538	+	144	189183424	-	OTT_0517	-	hypothetical protein
518	 31.58	0	543957..544184	+	75	189183425	-	OTT_0518	-	reverse transcriptase
519	 28.48	0	544569..544877	+	102	189183426	-	OTT_0519	-	transposase
520	 30.56	0	545689..545868	-	59	189183427	-	OTT_0520	-	putative conjugative transfer protein TraI
521	 33.74	0	545995..546240	-	81	189183428	-	OTT_0521	-	putative conjugative transfer protein TraI
522	 37.48	+1	546374..546880	-	168	189183429	-	OTT_0522	-	hypothetical protein
523	 43.73	+2	547194..547472	-	92	189183430	-	OTT_0523	-	hypothetical protein
524	 41.79	+2	547645..548034	-	129	189183431	-	OTT_0524	-	hypothetical protein
525	 36.52	+1	548044..548577	-	177	189183432	-	OTT_0525	-	hypothetical protein
526	 38.32	+2	548653..549834	-	393	189183433	-	OTT_0526	-	hypothetical protein
527	 40.28	+2	550048..550680	-	210	189183434	-	OTT_0527	-	hypothetical protein
528	 41.67	+2	550680..551087	-	135	189183435	-	OTT_0528	-	hypothetical protein
529	 35.32	+1	551084..551587	-	167	189183436	-	OTT_0529	-	hypothetical protein
530	 38.73	+2	551716..553494	-	592	189183437	-	OTT_0530	-	ABC transporter permease/ATP-binding protein
531	 42.82	+2	553506..554243	-	245	189183438	fabG	OTT_0531	-	3-ketoacyl-(acyl-carrier-protein) reductase
532	 42.04	+2	554390..554860	+	156	189183439	-	OTT_0532	-	transcriptional regulator (MarR family)
533	 40.84	+2	554857..555882	+	341	189183440	-	OTT_0533	-	hypothetical protein
534	 39.57	+2	556452..556916	+	154	189183441	-	OTT_0534	-	MutT/nudix family protein
535	 40.66	+2	556913..557458	+	181	189183442	-	OTT_0535	-	hypothetical protein
536	 36.93	+1	557472..557888	+	138	189183443	-	OTT_0536	-	hypothetical protein
537	 30.75	0	558342..558728	+	128	189183444	-	OTT_0537	-	hypothetical protein
538	 40.88	+2	558731..559207	+	158	189183445	-	OTT_0538	-	aminoglycoside phosphotransferase
539	 28.32	-1	559368..559706	-	112	189183446	-	OTT_0539	-	transposase
540	 29.98	0	559783..560289	-	168	189183447	-	OTT_0540	-	transposase
541	 28.80	0	560276..560650	-	124	189183448	-	OTT_0541	-	transposase
542	 40.50	+2	560985..561500	+	171	189183449	-	OTT_0542	-	hypothetical protein
543	 40.61	+2	561706..562200	+	164	189183450	-	OTT_0543	-	DNA gyrase inhibitor
544	 40.96	+2	562769..563122	+	117	189183451	-	OTT_0544	-	DNA gyrase inhibitor
545	 40.48	+2	563252..563797	+	181	189183452	-	OTT_0545	-	hypothetical protein
546	 38.38	+2	563876..564589	+	237	189183453	-	OTT_0546	-	dienelactone hydrolase family protein
547	 37.87	+2	564558..565460	-	300	189183454	-	OTT_0547	-	putative streptomycin-6-phosphotransferase
31.48	MEAN

3.15	STD DEV
